TechSpec Overall Height (in): 27.2
TechSpec Overall Length (in): 16
TechSpec Overall Width (ins): 1.61
TechSpec Core Length (in): 12.89
TechSpec Core Height (in): 26.5
TechSpec Fluid Capacity (gal): 1.64
TechSpec Rows: 2
TechSpec Inlet (in): 1.1
TechSpec Outlet (in): 1.1
TechSpec Core Thickness (in): 1.34
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 886
TechSpec Applications: 1988-1991 Honda CRX (All)--1988-1991 Honda Civic (All)
TechSpec Engine Codes: D15b2D15b7D16a6
TechSpec Chassis Codes: ED3ED4ED6ED7ED8ED9EE2EE4
TechSpec Includes: Mishimoto Radiator--Mishimoto Lifetime Warranty
Features:Direct fit for the 1988-1991 Honda CRX
Functions perfectly with DX, HF and Si models
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 1.34-in thick brazed aluminum core, providing ideal fluid temperatures during any driving condition

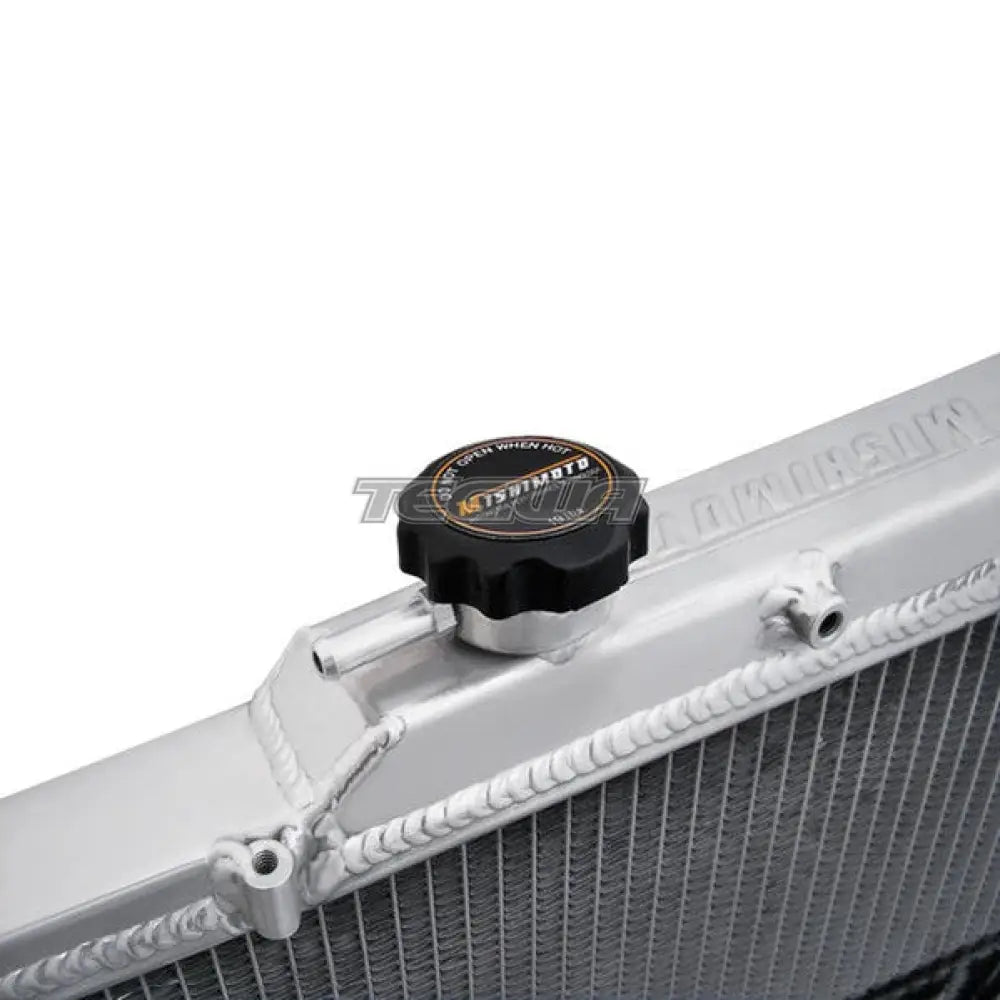

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

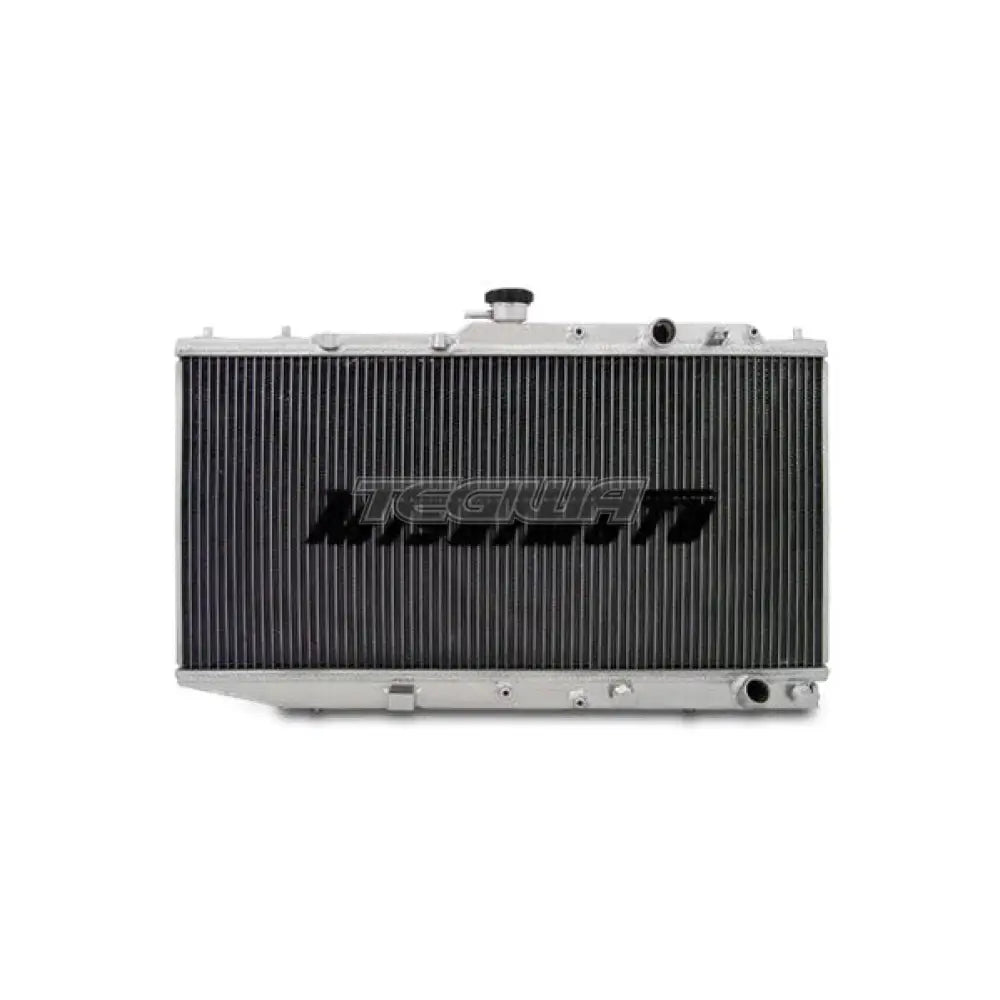

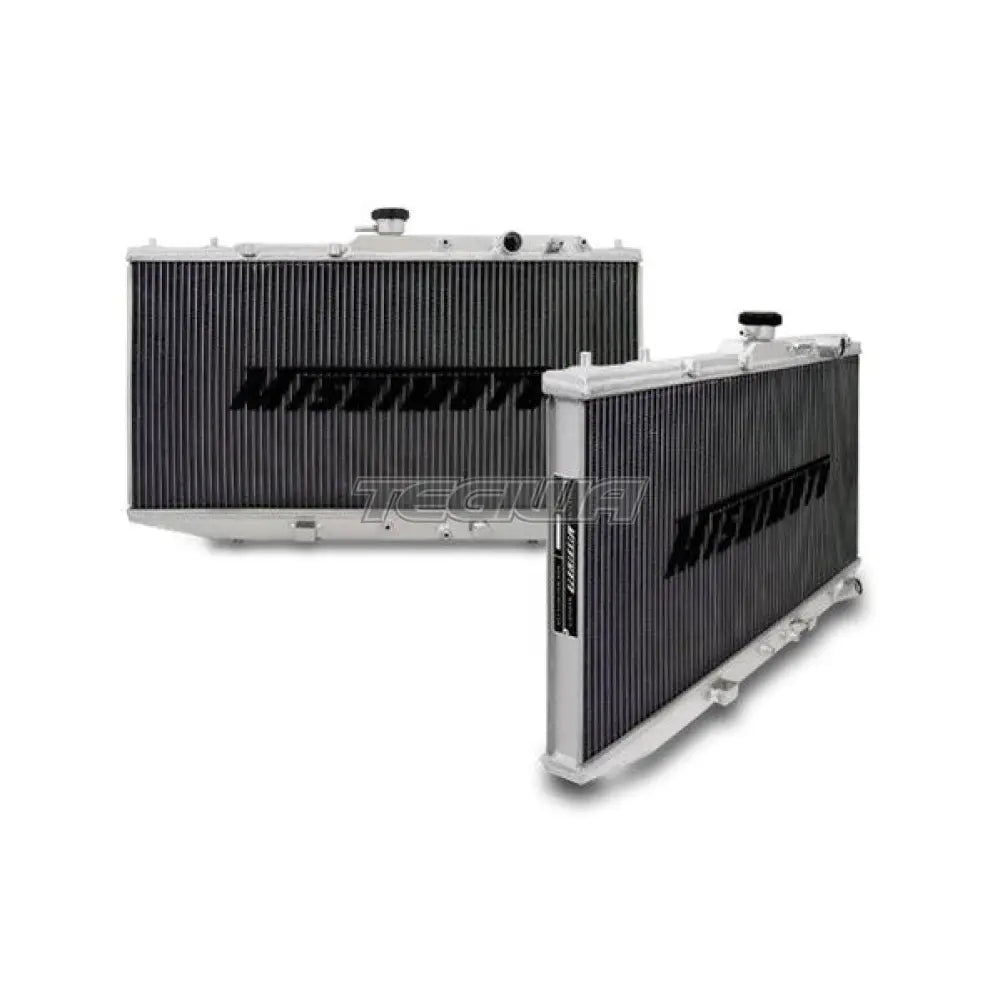

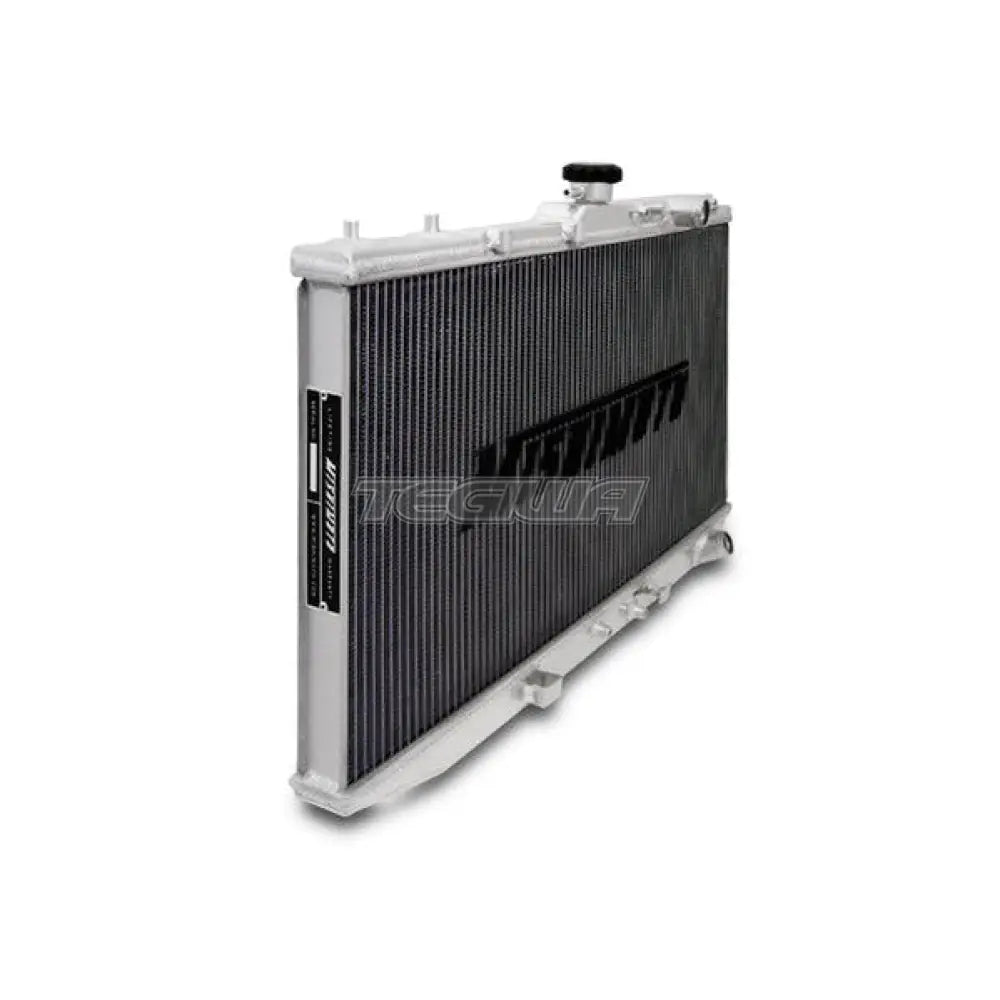

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock CRX radiator.For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating.Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.A perfect match to the Mishimoto CRX Fan Shroud kit.
