TechSpec Overall Height (in): 17.95
TechSpec Overall Length (in): 26.93
TechSpec Overall Width (ins): 1.92
TechSpec Core Length (in): 13.78
TechSpec Core Height (in): 26.23
TechSpec Fluid Capacity (gal): 1.58
TechSpec Rows: 2
TechSpec Inlet (in): 1.26
TechSpec Outlet (in): 1.26
TechSpec Core Thickness (in): 1.42
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2574
TechSpec Applications: 2002-2005 UKDM EP3 Civic Type R
TechSpec Engine Codes: K20a3
TechSpec Chassis Codes: EP3
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty

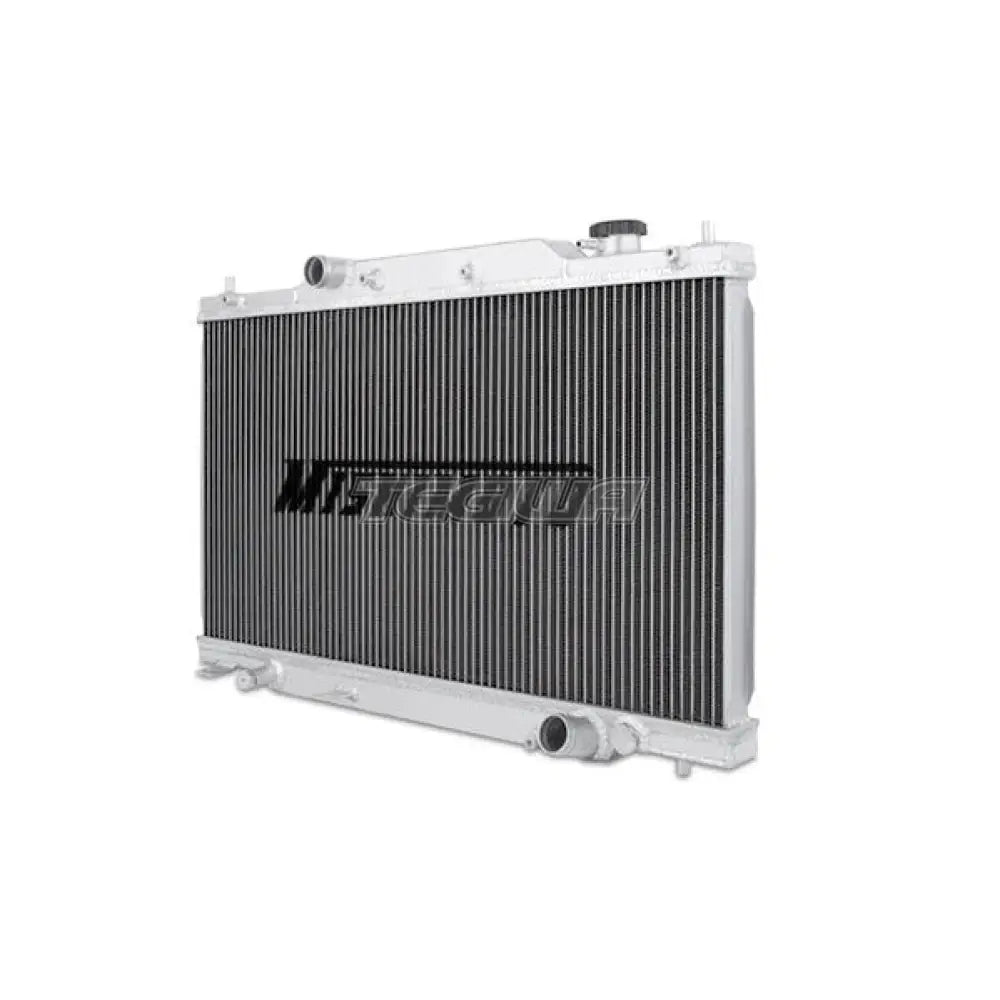

Features:Direct fit for the 2002-2005 Honda Civic Si w/ K20 engine

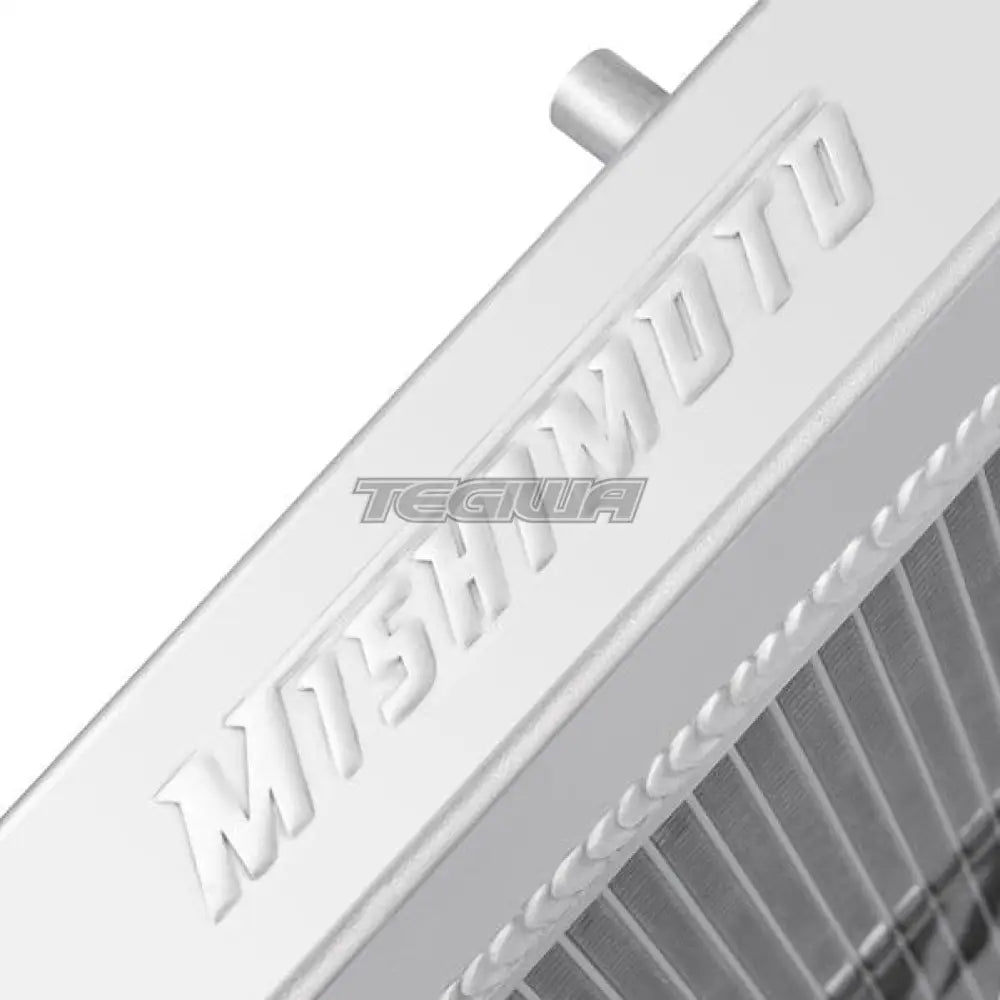

Full aluminum construction with durable TIG-welded end tanks
Features a two-row, 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track

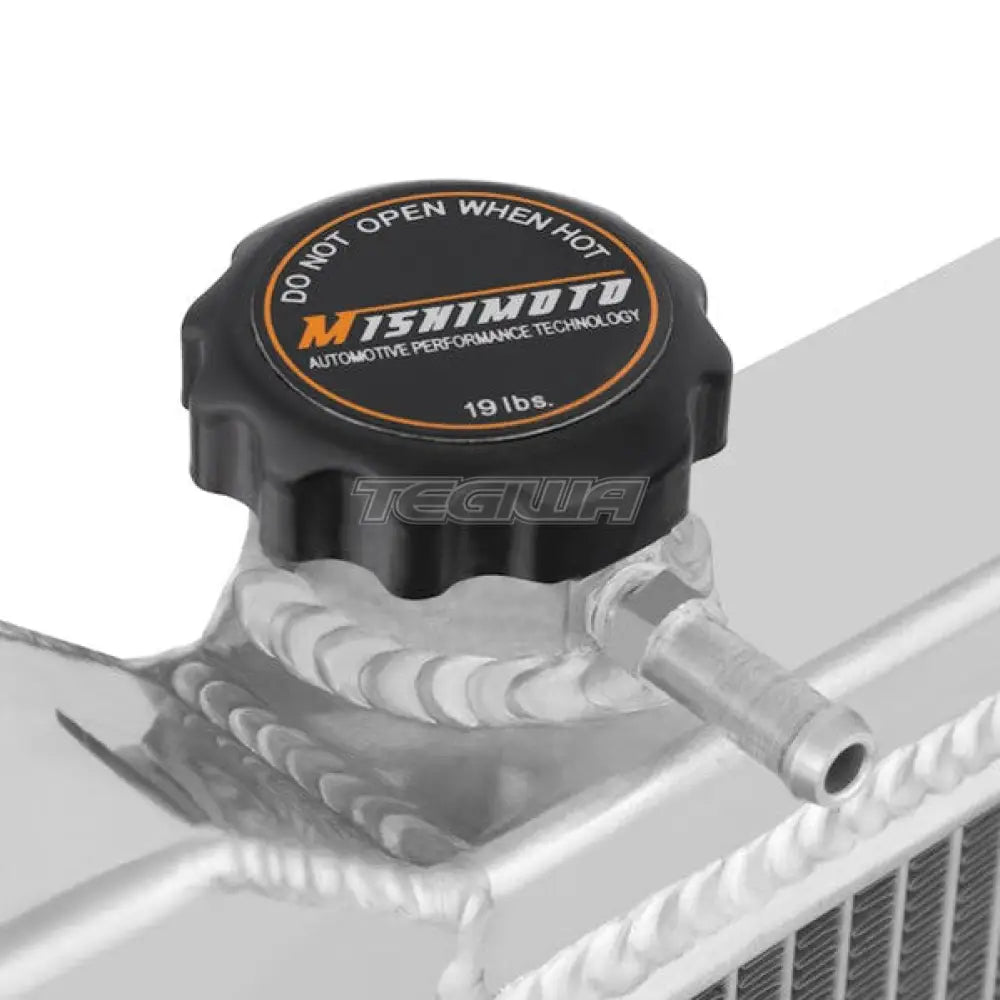

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Polished end tanks improve engine bay aesthetics
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3
A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Civic radiator. For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating. Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and are backed with limited lifetime warranty. Fits USDM EP3 Civic SI (2002-2005) Fits UKDM EP3 Civic Type R (2002-2005)
