TechSpec Overall Height (in): 15.12
TechSpec Overall Length (in): 17.99
TechSpec Overall Width (ins): 4.02
TechSpec Core Length (in): 14.96
TechSpec Core Height (in): 12.82
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 1996-2000 Honda Civic EK
TechSpec Engine Codes: K20
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
Features:Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
Provides a bolt-in cooling solution, simplifying the engine swap process
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Substantial fluid capacity and optimal heat dissipation
Provides efficient heat exchange for naturally aspirated and forced induction vehicles
Includes threaded fan switch port to function with stock sensor

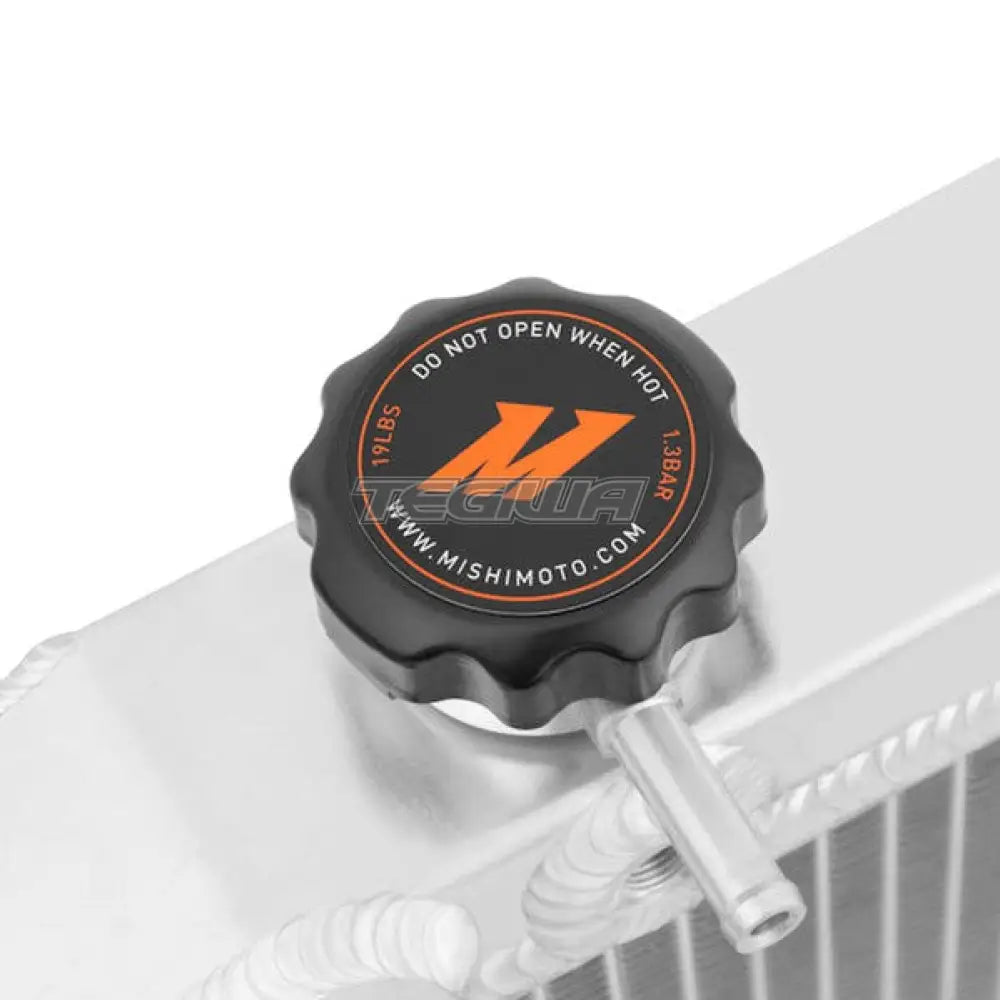

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

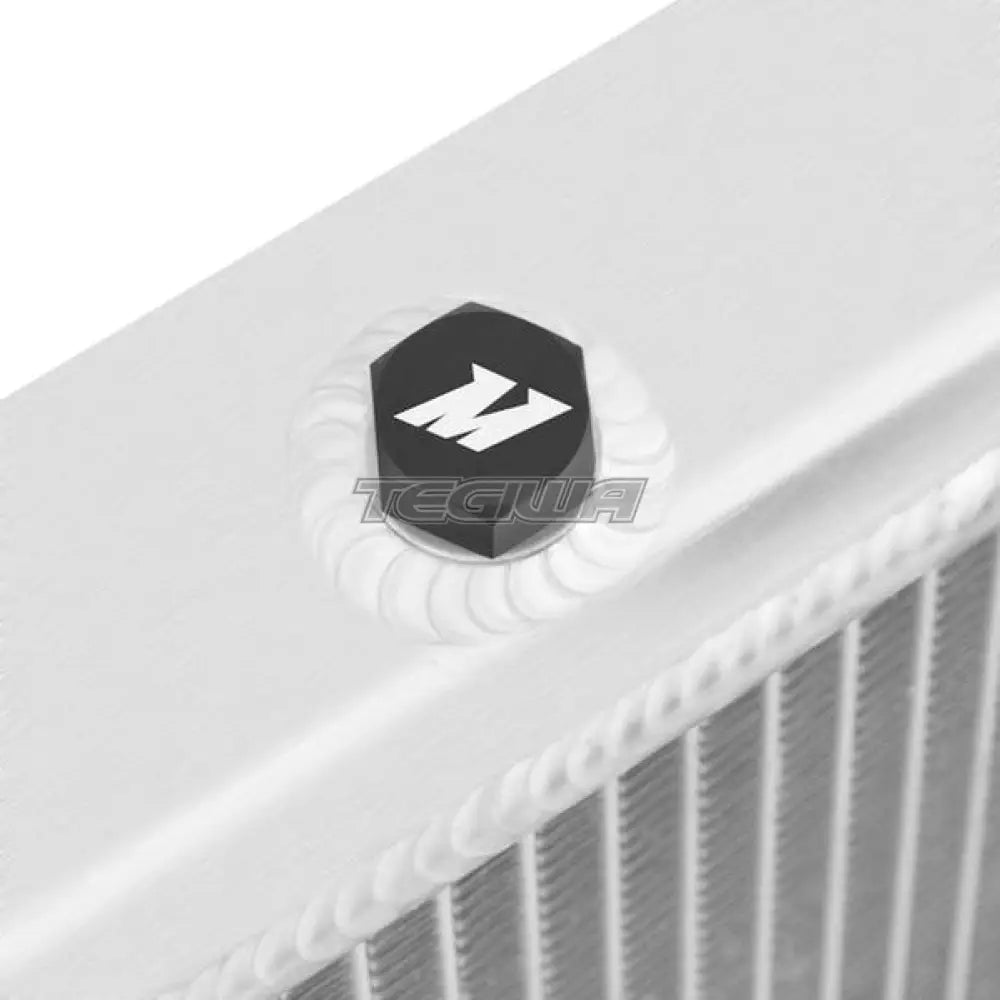

Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

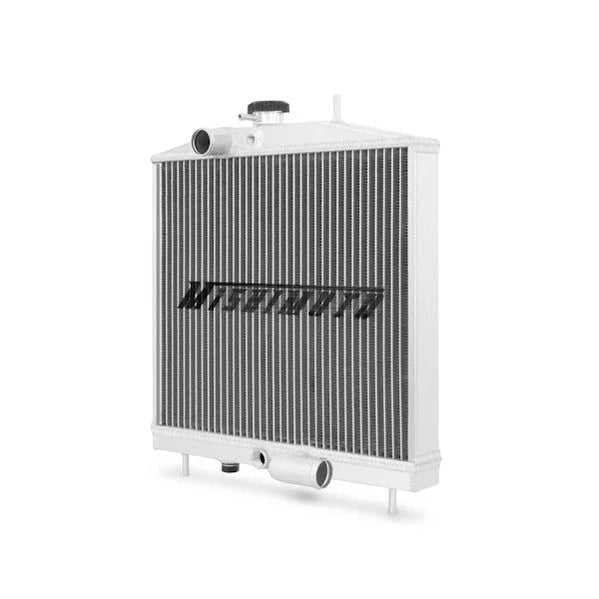

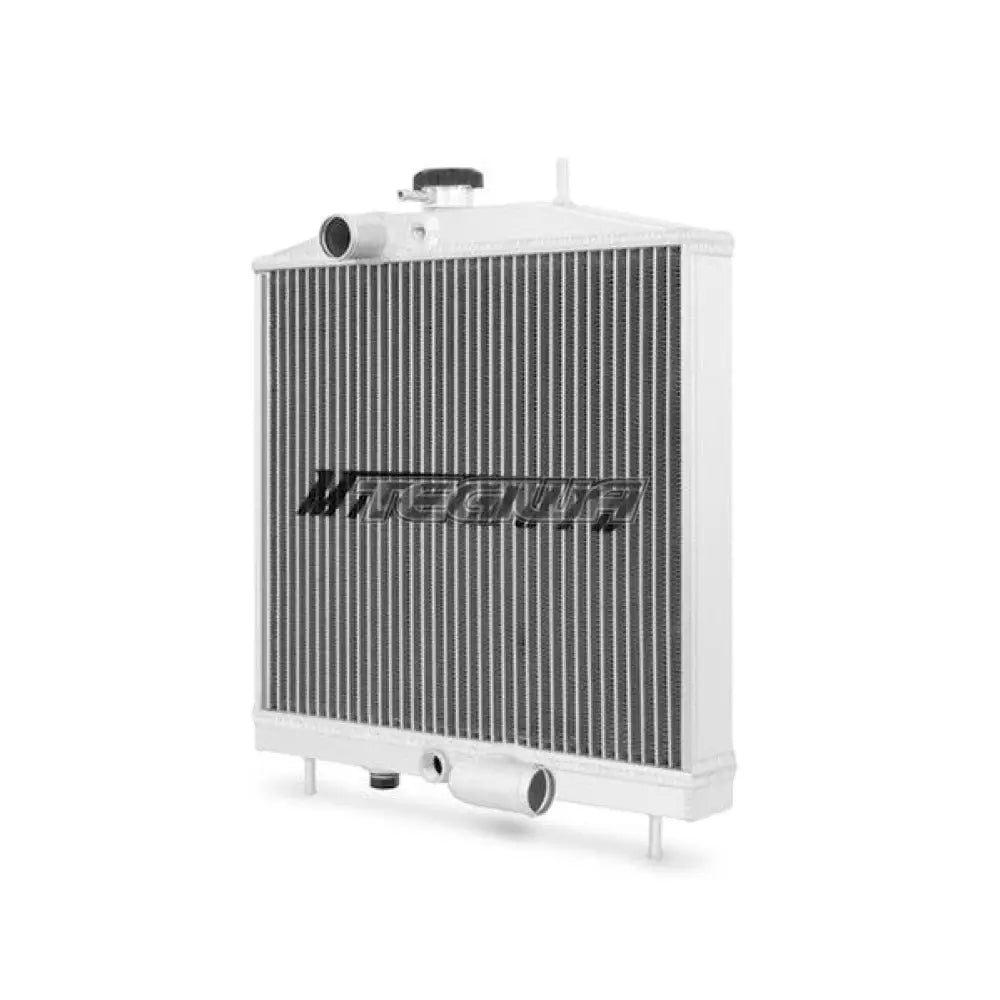

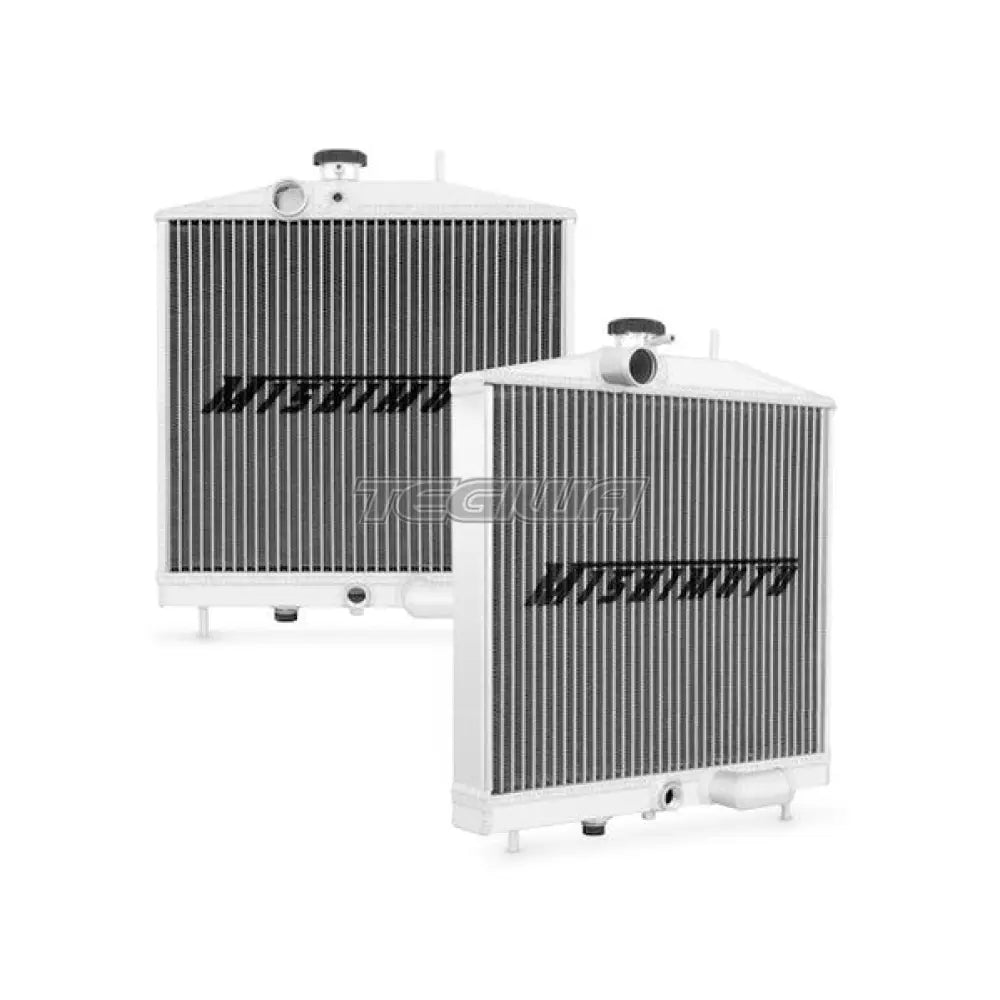

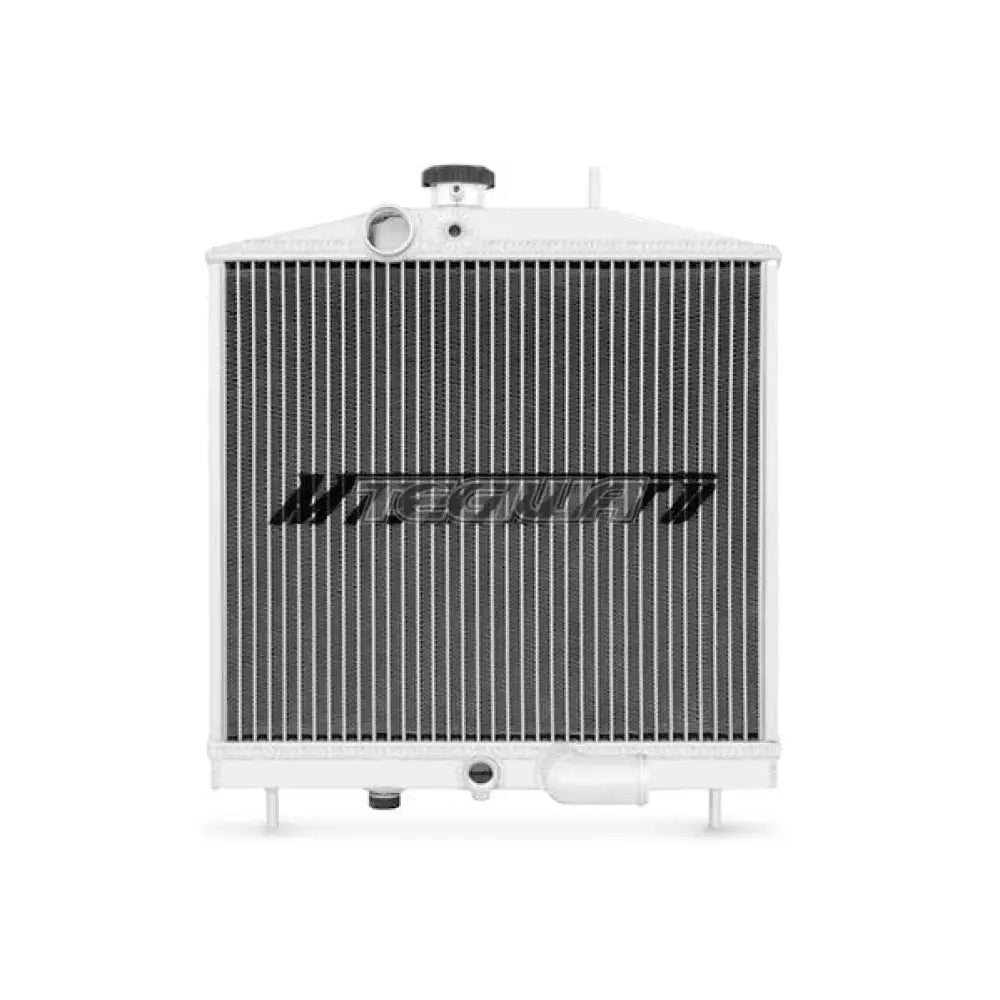

Mishimoto is proud to release a brand new radiator for EK chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
