TechSpec Overall Height (in): 18.5
TechSpec Overall Length (in): 14.6
TechSpec Overall Width (ins): 2.15
TechSpec Core Length (in): 13.78
TechSpec Core Height (in): 14.09
TechSpec Fluid Capacity (gal): 1.49
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.65
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1290
TechSpec Applications: 1992-2000 Honda Civic (All)--1993-1997 Honda Civic Del Sol
TechSpec Engine Codes: D15b1, D15b7, D15b8, D15z1, D16z6, D16y5, D16y7, D16y8, B16a2, B16a3
TechSpec Chassis Codes: EG1, EH6, EG2, EH2, EH3, EH9, EJ1, EJ2, EJ6, EJ7, EJ8, EM1
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
Manufactured with robust TIG-welded end tanks for improved strength
100-percent brazed aluminum core for maximum reliability
Increased coolant capacity directly results in improved cooling efficiency and engine temperature reduction
Included 1.3 bar radiator cap raises the boiling point of engine coolant to provide a safer and more efficient system
Designed to original equipment specifications for the 1992-2000 Honda Civic
Mishimoto Lifetime Warranty ensures product quality and craftsmanship
Install Difficulty: 3

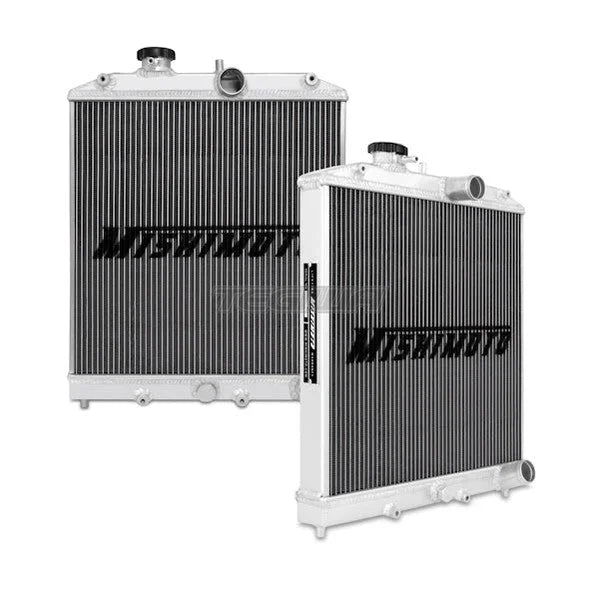

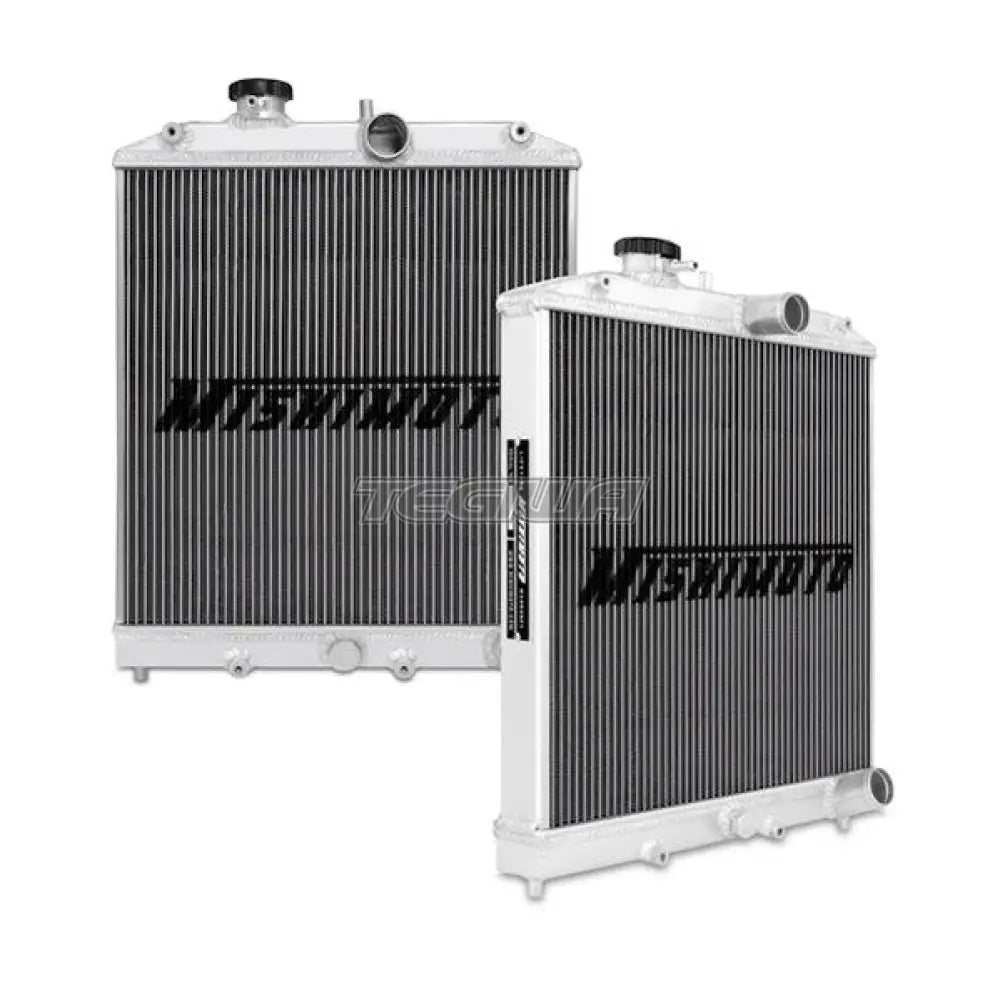

Whether you drive a stock EG or a boosted EK, coolant temperatures are key to a reliable, efficient engine. The Mishimoto Honda Civic Performance Aluminum Radiator is an ideal upgrade for achieving optimal coolant temperatures on and off the track. This radiator is precision engineered to retain factory fitment for a painless installation. To provide additional cooling efficiency this radiator is constructed using a 100-percent brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. Turbocharged, high-powered, naturally aspirated applications can produce substantial under-hood temperatures that can accelerate wear or cause engine damage if not properly regulated. Protect your investment with the Mishimoto Honda Civic Performance Aluminum Radiator. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Honda Civic aluminum radiator features an efficient dual-core design, which provides maximum cooling while maintaining a compact size, making this the perfect radiator for custom applications. Whether you need to replace that leaking factory radiator or provide additional cooling for your track car, the Mishimoto Honda Civic aluminum radiator is an ideal upgrade. As with all our products, this radiator includes the Mishimoto Lifetime Warranty.
