TechSpec Core Length (in): 23.22
TechSpec Core Height (in): 26.18
TechSpec Fluid Capacity (gal): 3.39
TechSpec Rows: 2
TechSpec Core Thickness (in): 1.89
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 2019+ Ford Ranger 2.3L EcoBoost
TechSpec Chassis Codes: T6
Note: This radiator reuses the factory mounting grommets. If your grommets are damaged, you may purchase replacements under Ford part #EB3Z-6C681-B
TechSpec Includes: Mishimoto Performance Aluminum Radiator-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty

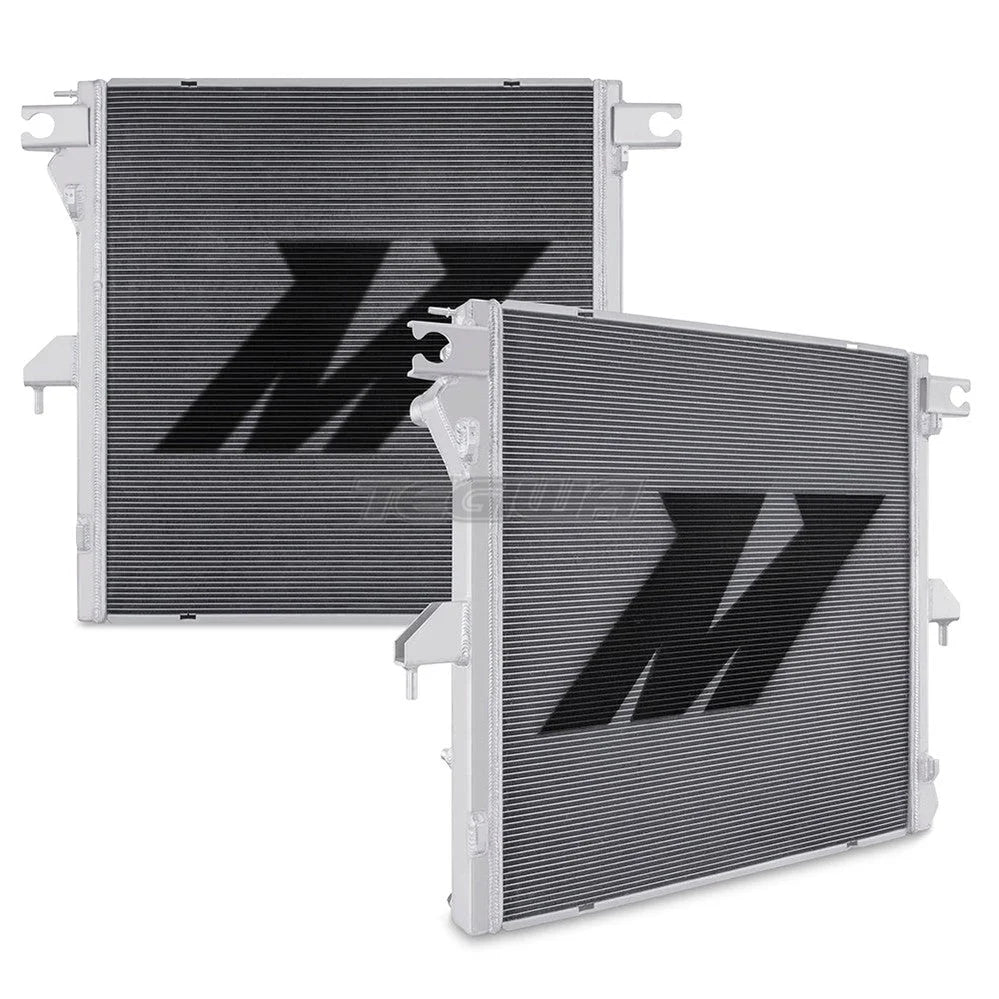

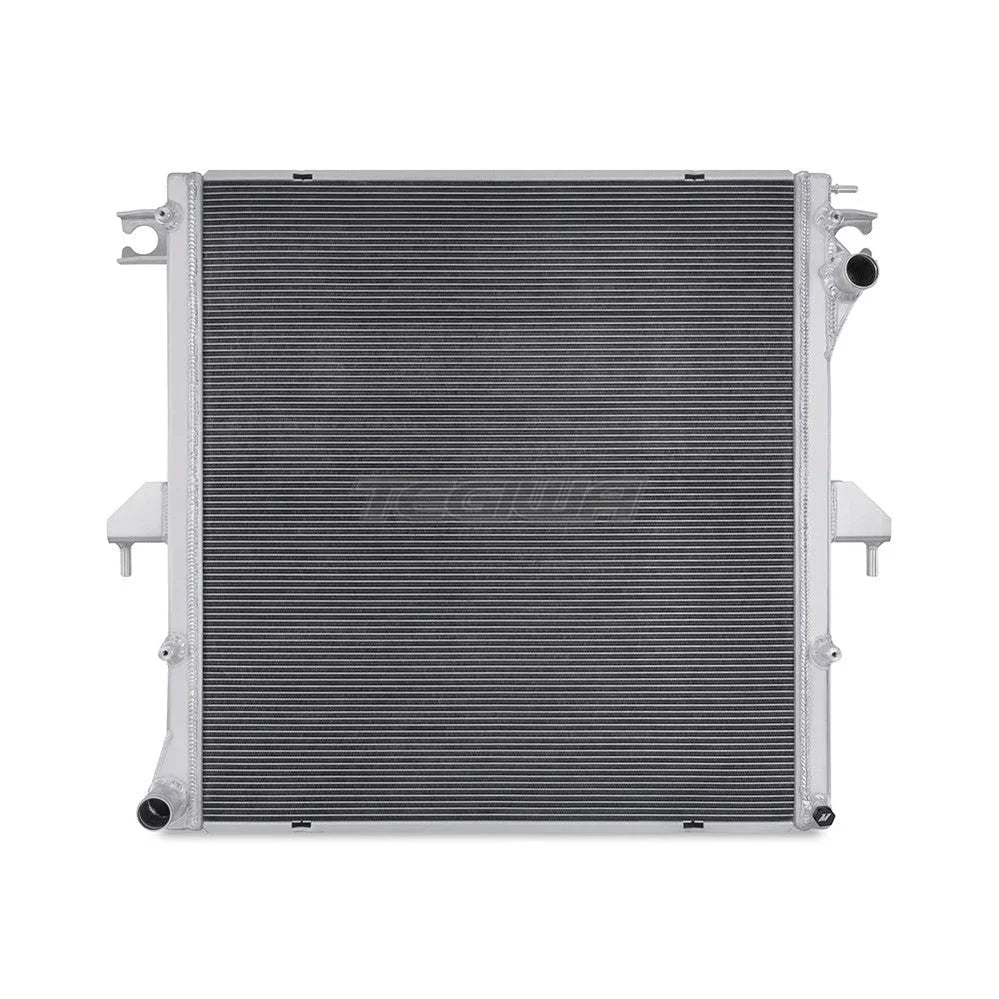

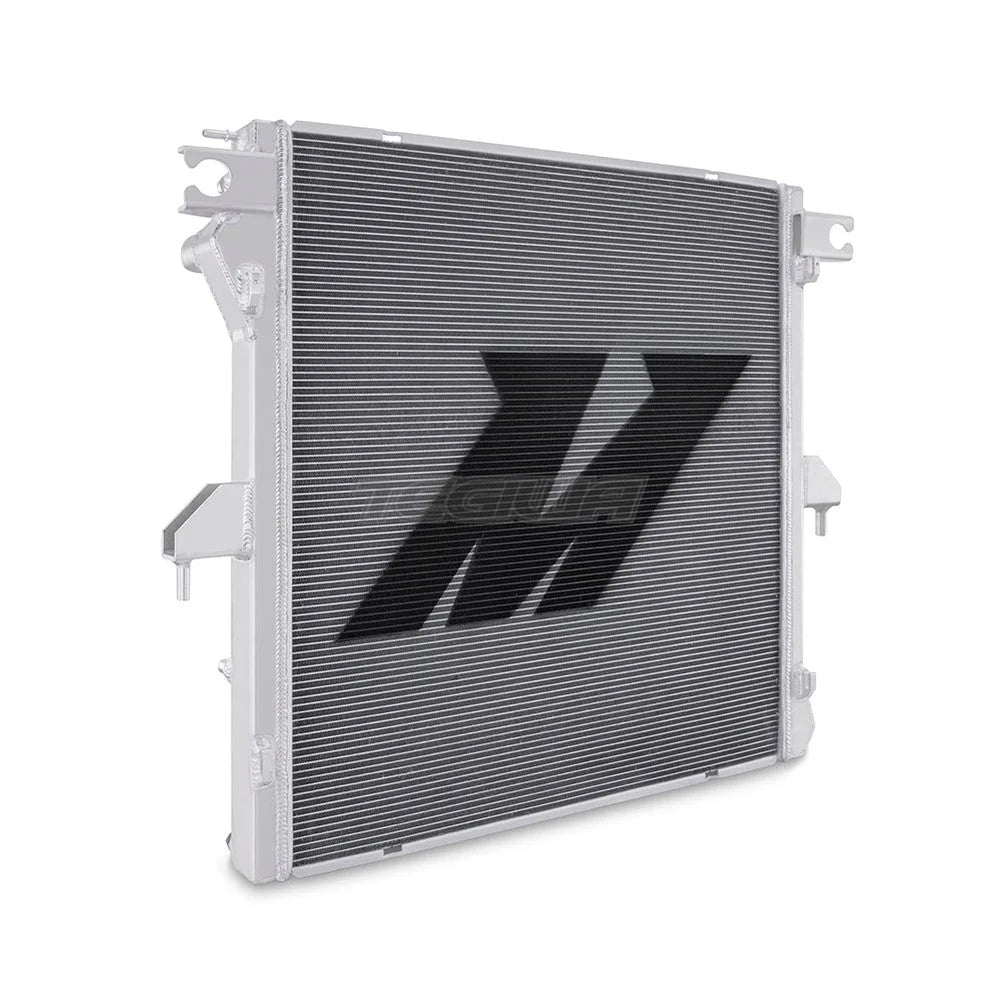

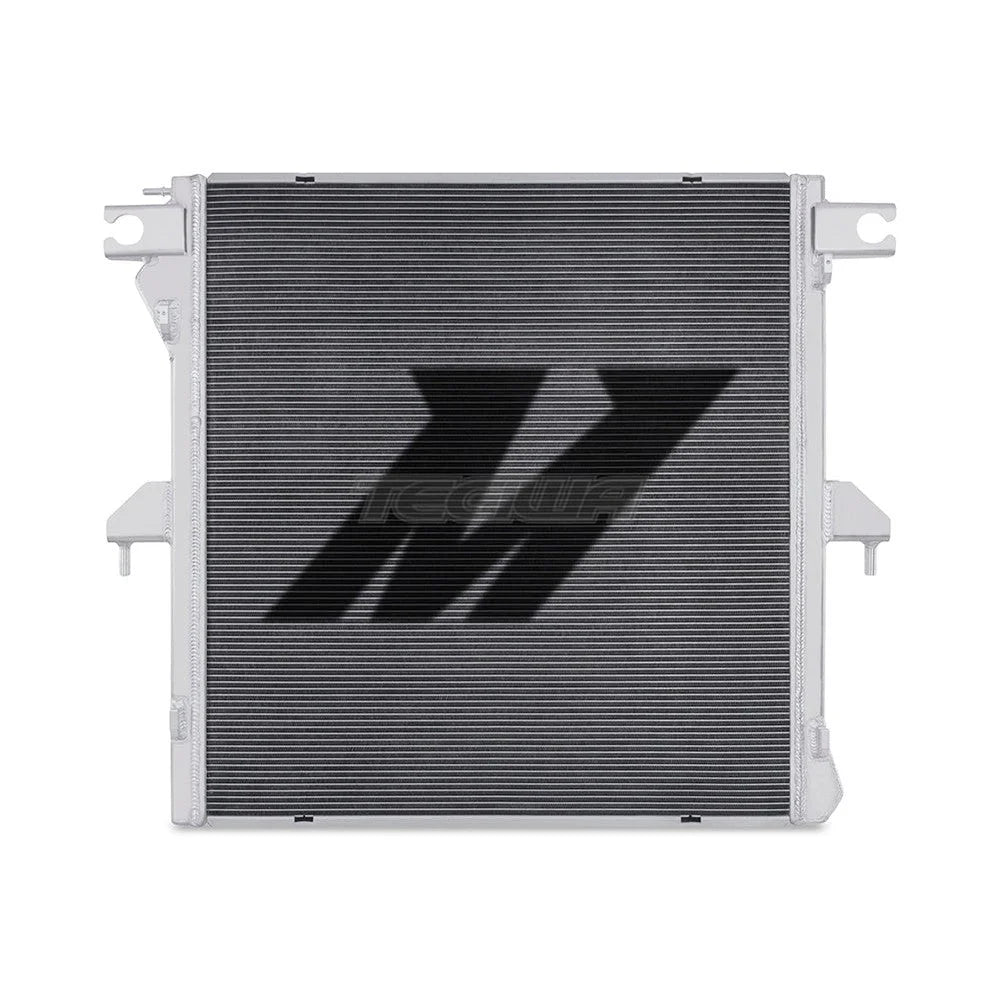

Features:Direct fit for 2019+ Ford Ranger 2.3L EcoBoost
Increases core volume by 78-percent over stock radiator
Increases fluid capacity by 51.3-percent over stock radiator
43.7-percent thicker core than stock radiator
95-percent increase in fin surface area

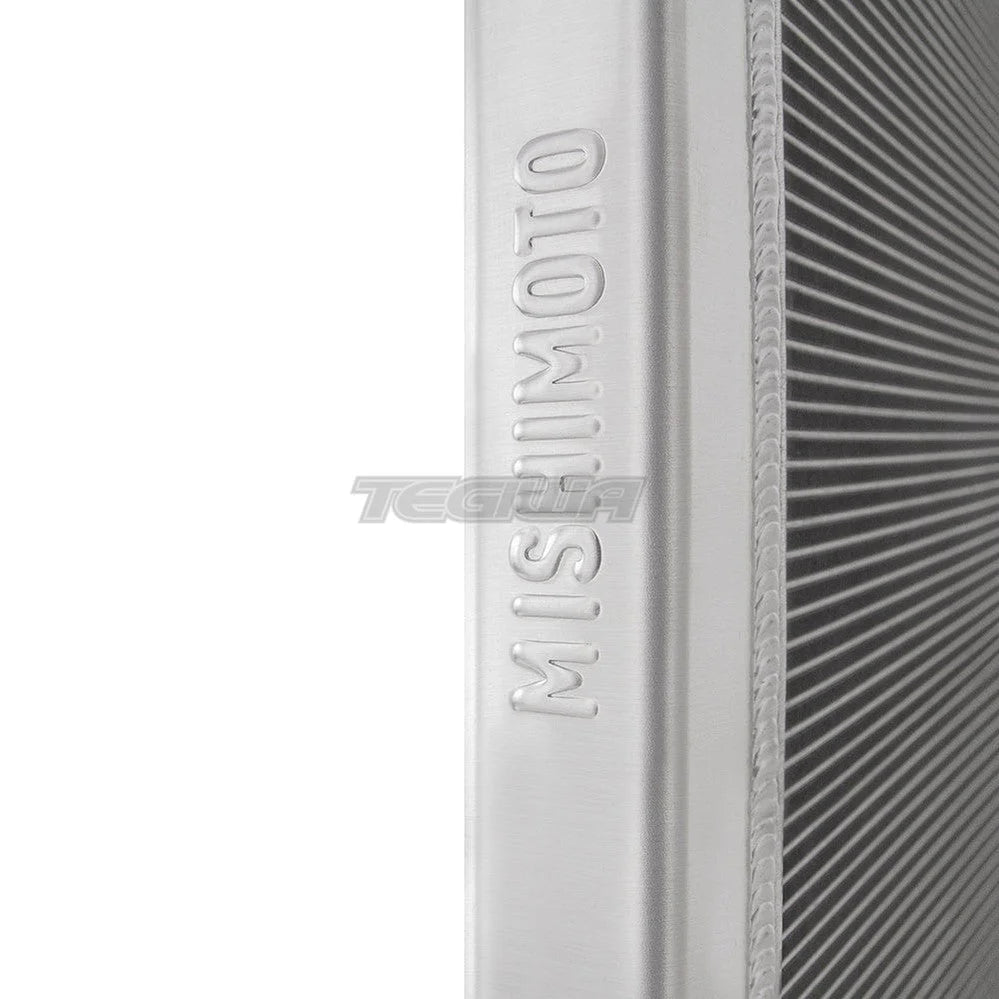

Full aluminum construction with durable, TIG-welded end tanks
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

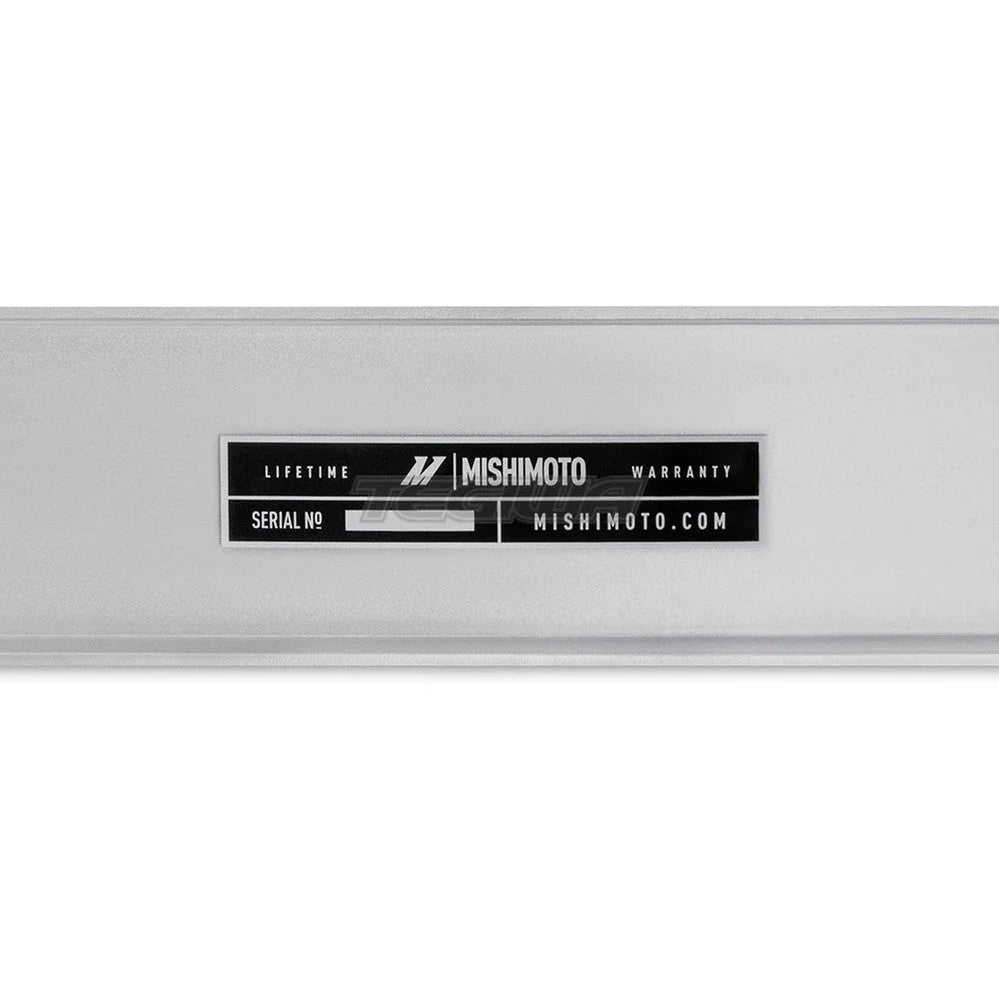

Mishimoto Lifetime Warranty
Install Difficulty: 2
The 2019+ Ford Ranger 2.3L EcoBoost is one of the most capable small trucks on the planet and it deserves a cooling system that's equally capable.This Mishimoto Performance Aluminium Radiator is constructed from high-quality aluminium with precision TIG-welded end tanks for increased durability and resistance to heat and pressure. The direct-fit design means this radiator fits without any trimming or modifications. To make sure our radiator performs as well as it fits, we’ve also increased core volume by 78-percent and fluid capacity 51.3-percent. Core thickness is increased by 43.7-percent and external fin surface area is increased by 95-percent to make the most of the air coming through the grille.This Mishimoto 2019+ Ford Ranger 2.3L EcoBoost Performance Aluminium Radiator includes a magnetic drain plug to keep your coolant free of metallic debris and is backed by our Mishimoto Lifetime Warranty to keep your Ranger cool as long as you own it.
