TechSpec Overall Height (in): 29.75
TechSpec Overall Length (in): 15.25
TechSpec Overall Width (ins): 4.75
TechSpec Core Length (in): 25.35
TechSpec Core Height (in): 14.7
TechSpec Fluid Capacity (gal): 2.67
TechSpec Rows: 3
TechSpec Inlet (in): 1.34
TechSpec Outlet (in): 1.34
TechSpec Core Thickness (in): 2.05
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 2015+ Ford Mustang EcoBoost, standard and performance packages
TechSpec Chassis Codes: S-550
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(2) Mounting Brackets--Mounting Hardware--(2) Pre-Cut Rubber Trim Seal--Lifetime Warranty
Features:Direct fit for 2015+ Ford Mustang EcoBoost, standard and performance package models
72.5-percent increase in coolant capacity over the base model radiator
53-percent increase in coolant capacity over the performance package radiator
22-percent increase in coolant surface area (tubes) over the stock performance package radiator
50-percent increase in air surface area (fins) over the stock performance package radiator
Fits manual and automatic vehicles
Fits with stock or Mishimoto Mustang EcoBoost Intercooler
Includes rubber trim seal to close off any unwanted air gaps between the radiator and chassis of the vehicle
2-in thick 3-row core
Brazed aluminum core with TIG-welded end tanks
Includes Magnetic Drain Plug
Mishimoto Lifetime Warranty
Install Difficulty: 3

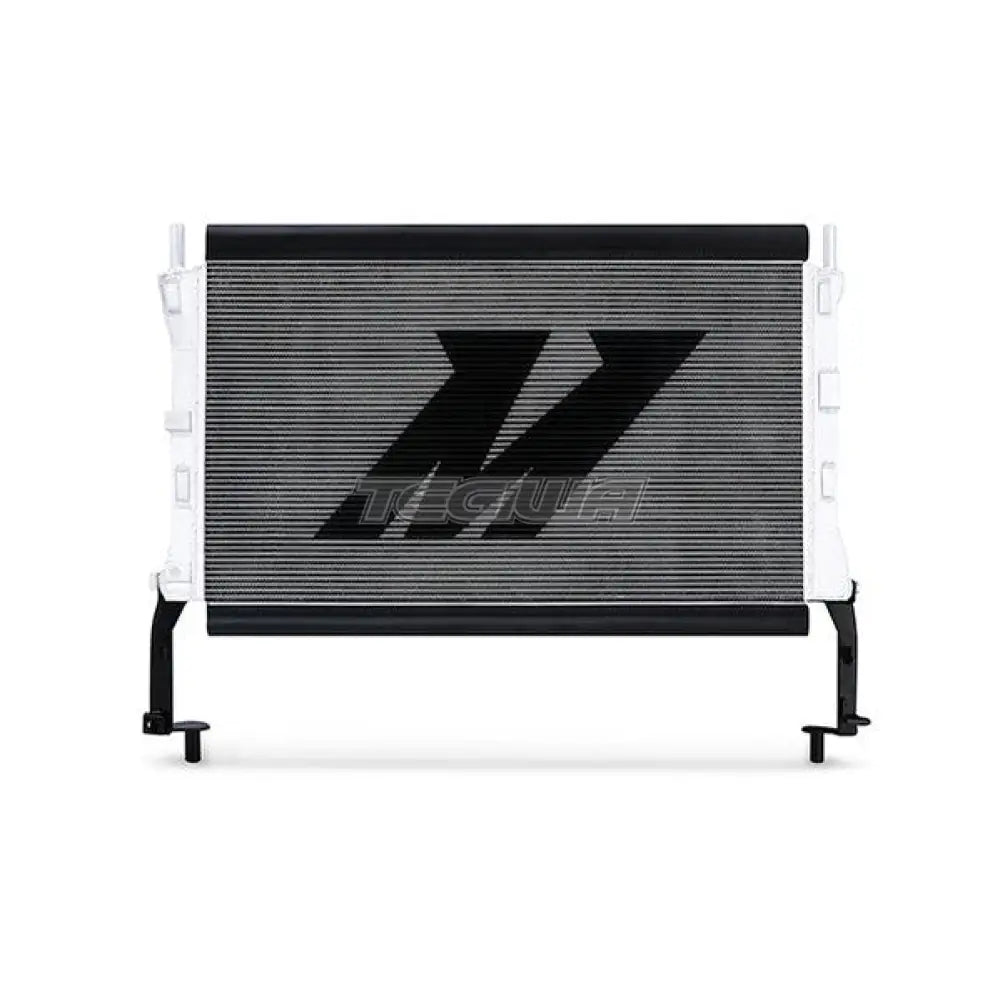

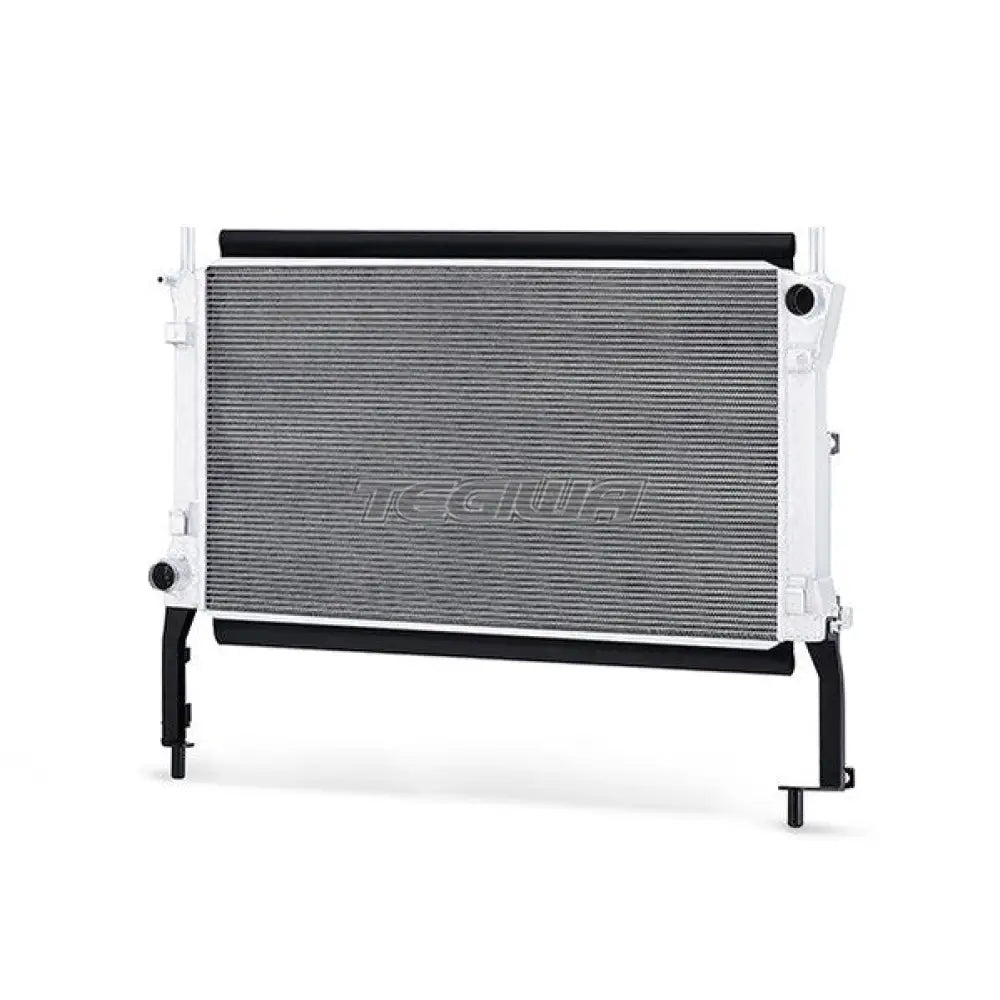

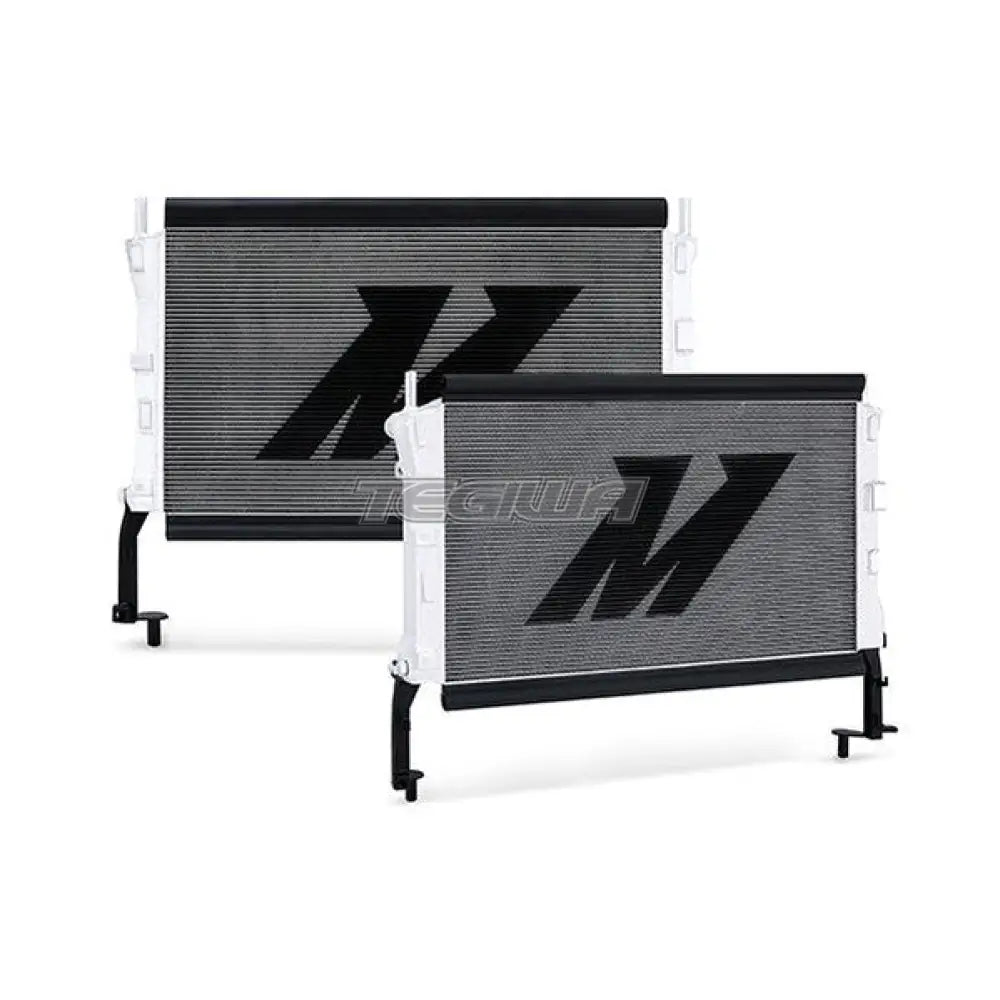

The Mishimoto 2015+ Ford Mustang EcoBoost Performance Aluminum Radiator is designed and engineered to reduce coolant temperatures substantially, and to protect your 2015+ Ford Mustang EcoBoost from overheating during aggressive driving or hot lapping sessions. It is the ideal upgrade to the stock 2015+ Ford Mustang EcoBoost radiator, and will outperform even the upgraded Ford performance package radiator. The Mishimoto 2015+ Ford Mustang EcoBoost radiator features a large three-row core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. The engineers at Mishimoto designed this 2015+ Ford Mustang EcoBoost radiator with a 72.5-percent increase in coolant capacity over the base-model radiator, and 53.3-percent increase in coolant capacity over the larger performance package radiator. This 2015+ Ford Mustang EcoBoost radiator also has a 22-percent increase in coolant surface area, and 50-percent increase in air surface area over the larger performance package radiator, making it an ideal upgrade to keep your EcoBoost running cool! This innovative 2015+ Ford Mustang EcoBoost radiator design features steel lower mounting brackets that are fully functional with the stock intercooler or the Mishimoto 2015+ Ford Mustang EcoBoost Performance Intercooler. To maximize the efficiency and prevent any ambient air from bypassing the core, the radiator also comes with upper and lower rubber trim seal to fully close any large air gaps between the radiator and intercooler, as well as the upper air diversion panel. Every Mishimoto aluminum radiator is a direct stock fit making installation effortless, with no cutting or modification required. Like all of our 2015+ Ford Mustang EcoBoost parts, this radiator comes with the Mishimoto Lifetime Warranty.
