TechSpec Overall Height (in): 19.3
TechSpec Overall Length (in): 43.82
TechSpec Overall Width (ins): 7.3
TechSpec Core Length (in): 34.6
TechSpec Core Height (in): 17.89
TechSpec Fluid Capacity (gal): 4.4
TechSpec Rows: 3
TechSpec Core Thickness (in): 2.04
TechSpec Material: Aluminum
TechSpec Applications: 2015+ Ford F-150 w/ 2.7L EcoBoost V6--2015+ Ford F-150 w/ 3.5L EcoBoost V6--2017+ Ford Raptor w/ 3.5L EcoBoost V6 High-Output--2015+ Ford F-150 w/ 5.0L Coyote V8--2015-2017 Ford F-150 w/ 3.5L Cyclone V6--2018+ Ford F-150 w/ 3.3L Cyclone V6----2018-2019 Ford Expedition 3.5L EcoBoost--2018-2019 Lincoln Navigator 3.5L EcoBoost
TechSpec Engine Codes: 2.7L EcoBoost V6--3.5L Cyclone V6--3.5L EcoBoost V6--3.5L EcoBoost V6 High-Output--5.0L Coyote V8--3.3L Cyclone V6
TechSpec Includes: Mishimoto Radiator-- O-Ring-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
Features:Direct fit for the 2015-2020 Ford F-150 and 2017+ Ford Raptor
45-percent Increase in coolant capacity over stock heavy-duty radiator
55-percent Increase in surface area over stock heavy-duty radiator
63-percent Increase in core volume over stock heavy-duty radiator
Includes new quick-disconnect o-ring for a leak-free installation
Full aluminum construction with durable, TIG-welded end tanks
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Patent numberD911,226
Mishimoto Lifetime Warranty
Install Difficulty: 3

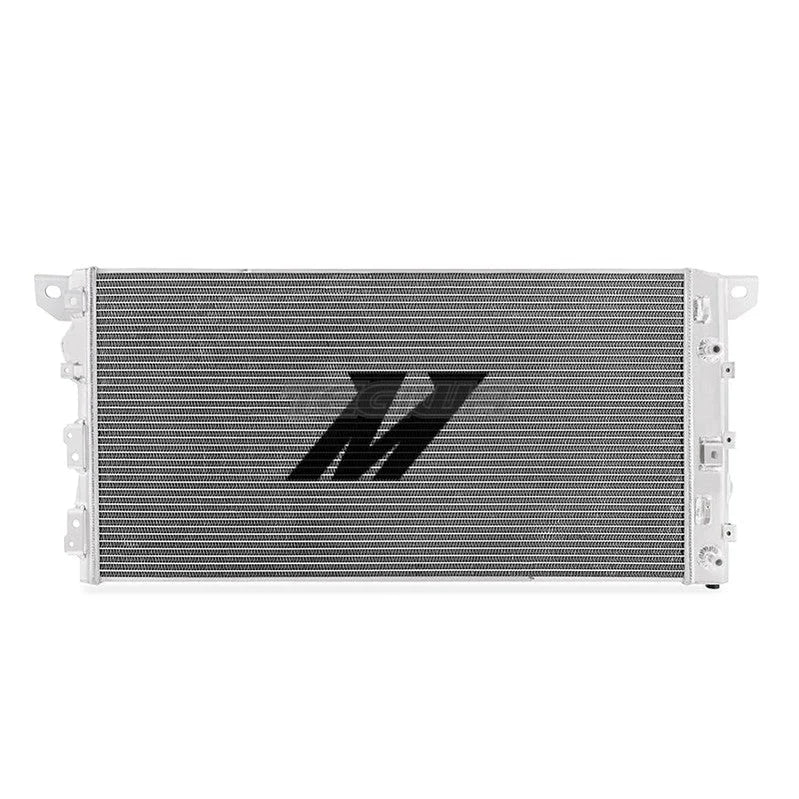

The Mishimoto performance aluminum radiator for the 2015-2021 Ford F-150/2017+ Ford Raptor is the ideal upgrade over the stock radiator. Whether your 2015-2021 Ford F-150 or Raptor is a daily driver, jobsite hauler, track destroyer, or all three, you should never overlook the importance of installing an upgraded radiator. The 2015-2021 F-150 came equipped from the factory with two different radiators, a light duty version and a inheavy-dutyin version that's shared with the Raptor. However, no matter which radiator your truck has, you're leaving a lot of potential on the table. The Mishimoto 2015-2021 F-150 radiator is designed and engineered to maximize cooling efficiency. Our radiator holds 45-percent more coolant, boasts a 55-percent increase in surface area, and a 63-percent increase in core volume over the heavy-duty stock radiator. So, even if you have the largest available Ford radiator, you can squeeze even more performance out of your F-150 or Raptor. The internal transmission cooler in the Mishimoto radiator is also larger than the transmission cooler found in the stock radiators, which will help your transmission run cooler too. The CNC-machined inlet and outlet of the Mishimoto radiator, combined with the included quick-disconnect o-ring, ensure a precise and leak-free fit. Like every Mishimoto Performance Radiator, this 2015-2021 Ford F-150/2017+ Ford Raptor radiator is constructed from durable, TIG-welded aluminum and is a direct fit with no cutting or other modifications. Of course, this radiator is protected by the Mishimoto Lifetime Warranty, so you never have to worry about buying another radiator again.
