TechSpec Overall Height (in): 18
TechSpec Overall Length (in): 40.32
TechSpec Overall Width (ins): 6.25
TechSpec Core Length (in): 31.88
TechSpec Core Height (in): 16.94
TechSpec Fluid Capacity (gal): 1.07
TechSpec Rows: 3
TechSpec Core Thickness (in): 2.04
TechSpec Material: Aluminum
TechSpec Applications: 2011-2014 Ford F-150 3.5L EcoBoost--2015-2017 Ford Expedition 3.5L EcoBoost--2015-2017 Lincoln Navigator 3.5L EcoBoost
TechSpec Engine Codes: 3.5L EcoBoost V6--5.0L Coyote V8--3.7L Cyclone V6
TechSpec Includes: Mishimoto Radiator-- O-Ring-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
Features:Direct-fit for 2011-2014 Ford F-150
150-percent Increase in coolant capacity over stock heavy-duty radiator
102-percent Increase in surface area over stock heavy-duty radiator
60-percent Increase in core volume over stock heavy-duty radiator
Larger internal transmission cooler provides greater transmission cooling
Includes new quick-disconnect o-ring for a leak-free installation
Full aluminum construction with durable, TIG-welded end tanks
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Patent numberD913,335
Mishimoto Lifetime Warranty
Install Difficulty: 3

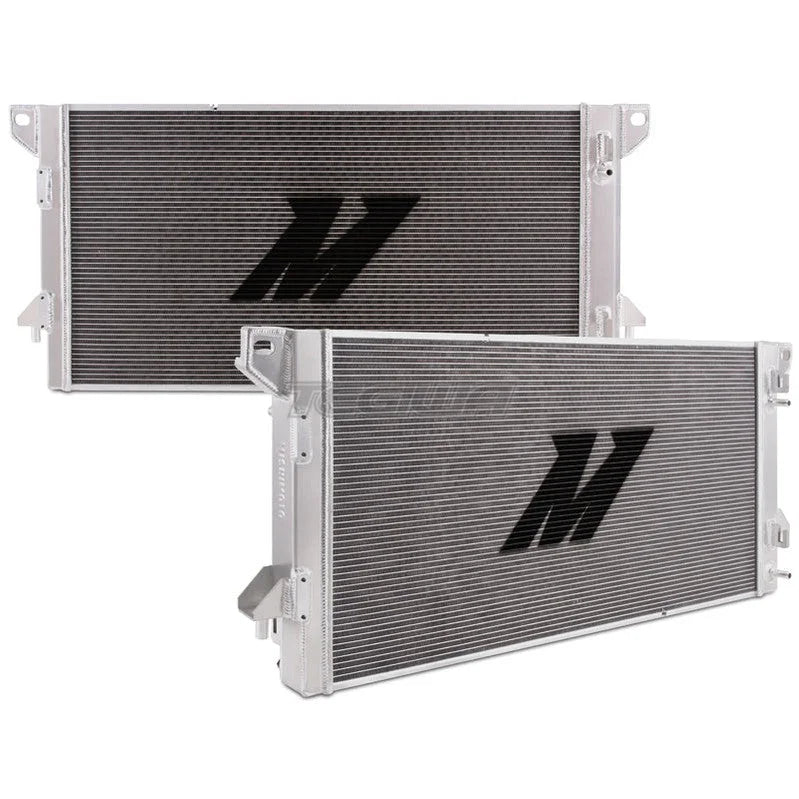

The Mishimoto performance aluminum radiator for the 2011-2014 Ford F-150 is the ideal upgrade over the stock radiator. Whether your 2011-2014 Ford F-150 is a daily driver, jobsite hauler, track destroyer, or all three, you should never overlook the importance of installing an upgraded radiator. The 2011-2014 F-150 came equipped from the factory with two different radiators, a light duty version and a inheavy-dutyin version. However, no matter which radiator your truck has, you?re leaving a lot of potential on the table. The Mishimoto F-150 radiator is designed and engineered to maximize cooling efficiency. Our radiator holds 150-percent more coolant and boasts a 102-percent increase in surface area over the heavy-duty stock radiator. So, even if you have the largest available Ford radiator, you can squeeze even more performance out of your F-150. The internal transmission cooler in the Mishimoto radiator is also larger than the transmission cooler found in the stock radiators, which will help your transmission run cooler too. Like every Mishimoto Performance Radiator, this 2011-2014 Ford F-150 radiator is constructed from durable, TIG-welded aluminum and is a direct fit with no cutting or other modifications. Of course, this radiator is protected by the Mishimoto Lifetime Warranty, so you never have to worry about buying another radiator again.
