TechSpec Overall Height (in): 30.6
TechSpec Overall Length (in): 23.3
TechSpec Overall Width (ins): 5.6
TechSpec Core Length (in): 29.8
TechSpec Core Height (in): 15.1
TechSpec Fluid Capacity (gal): 3.34
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.38
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13142
TechSpec Material: Aluminum
TechSpec Applications: 2010-2011 Chevy Camaro SS (AT & MT)
TechSpec Engine Codes: L99--LS3
TechSpec Chassis Codes: Zeta
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2010-2011 Chevrolet Camaro SS
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
.5 gal of additional fluid capacity
Lowers radiator outlet temperatures by 20 F
20-percent greater cooling efficiency

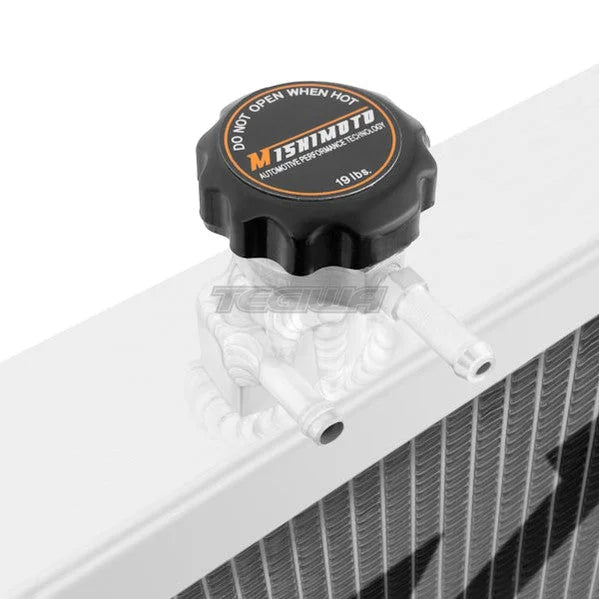

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

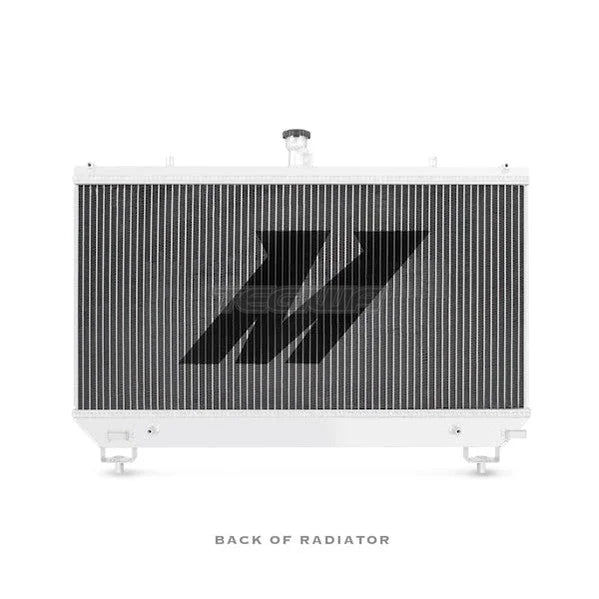

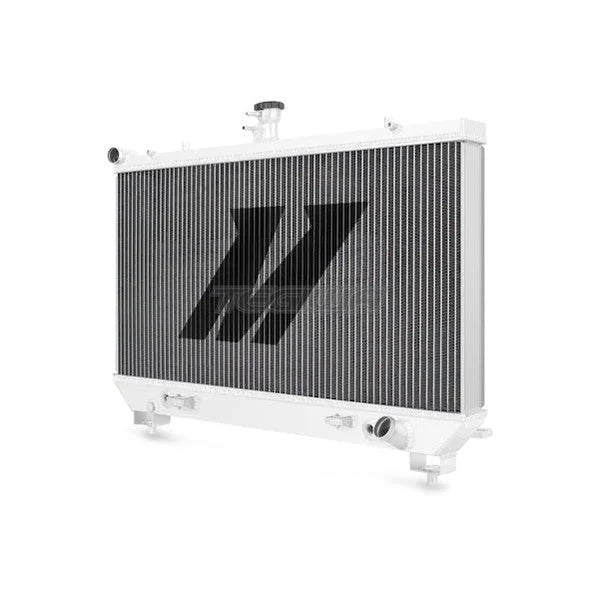

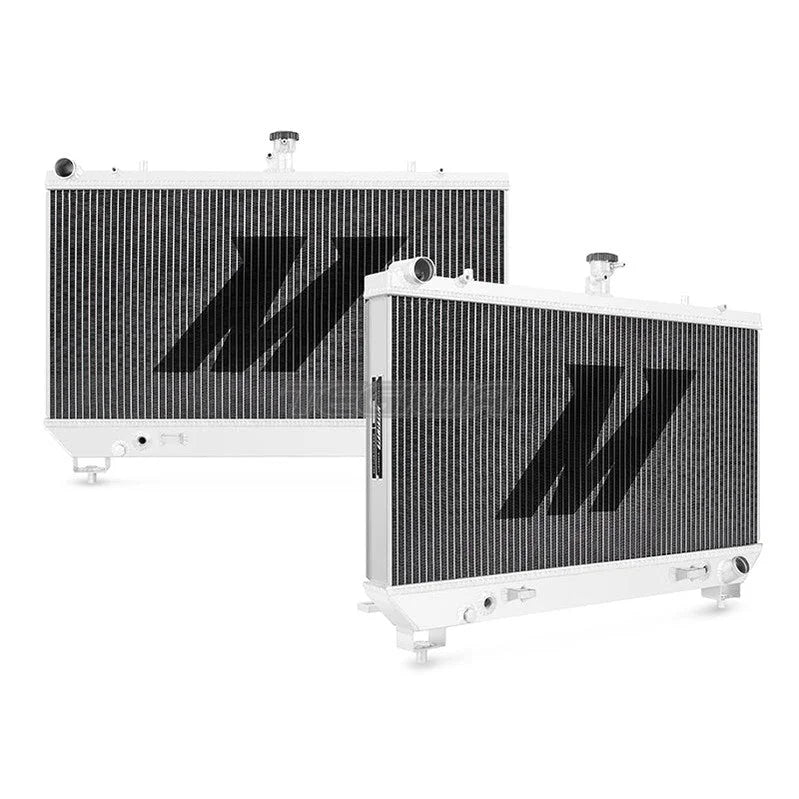

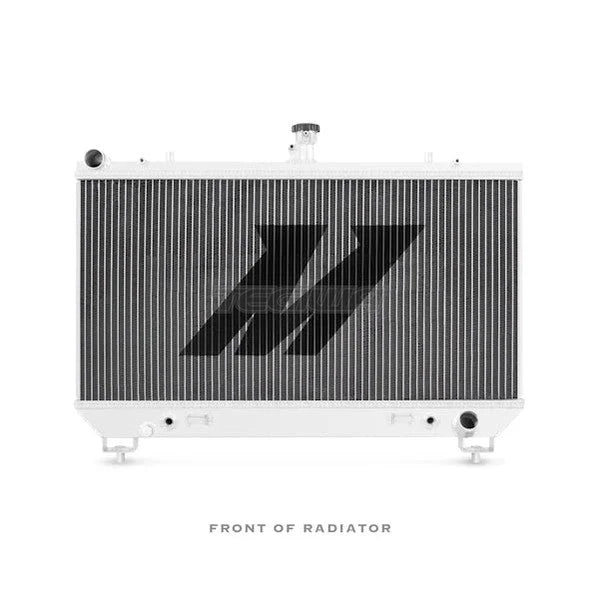

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by increasing cooling efficiency by 30-percent.Curious how much 30-percent really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20F, that 30-percent is pretty impressive.With polished end tanks and all aluminum construction, the Mishimoto Camaro SS radiator looks as good as it performs!
