TechSpec Overall Height (in): 27.4
TechSpec Overall Length (in): 17
TechSpec Overall Width (ins): 4.4
TechSpec Core Length (in): 22.83
TechSpec Core Height (in): 16.14
TechSpec Fluid Capacity (gal): 2.51
TechSpec Rows: 2
TechSpec Core Thickness (in): 1.9
TechSpec Applications: 2001-2006 BMW E46 M3
TechSpec Engine Codes: S54
TechSpec Chassis Codes: E46

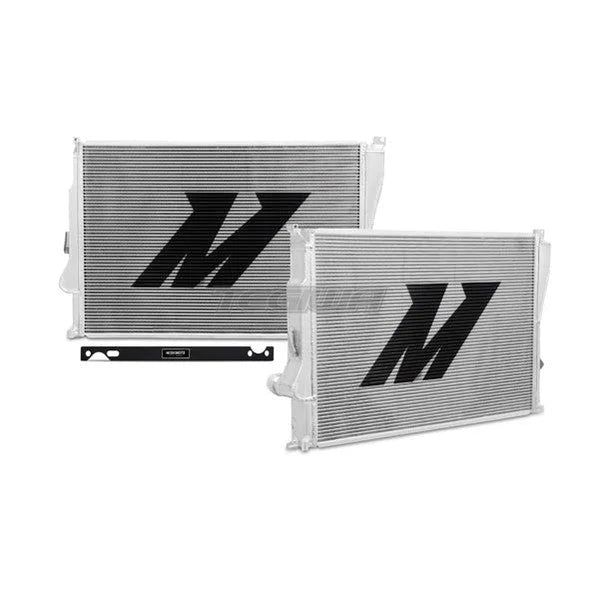

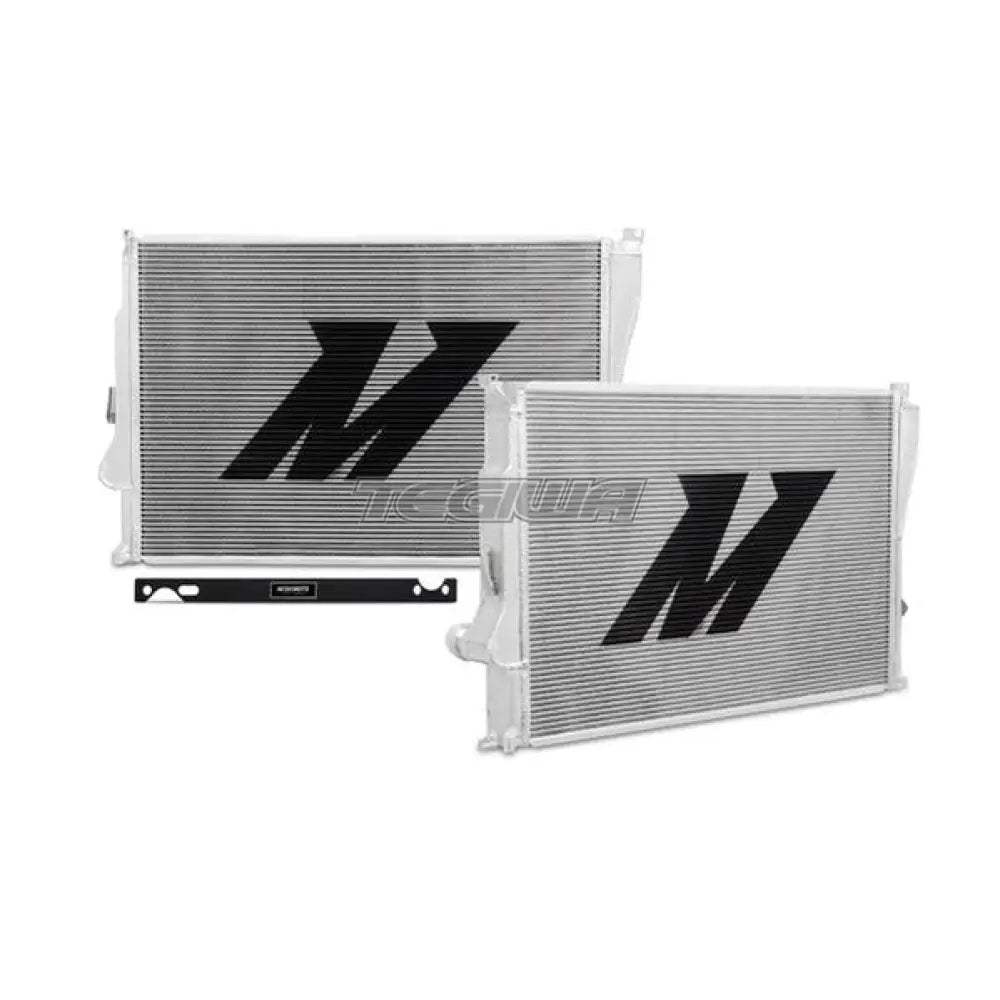

TechSpec Includes: Mishimoto Radiator--Fan Tool-- Black 1/8-inch NPT Plug--(5) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
Features:Direct fit for the 2001-2006 BMW E46 M3

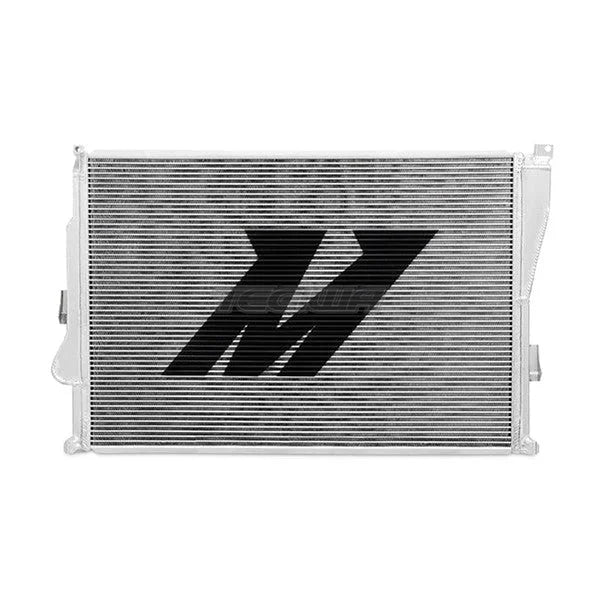

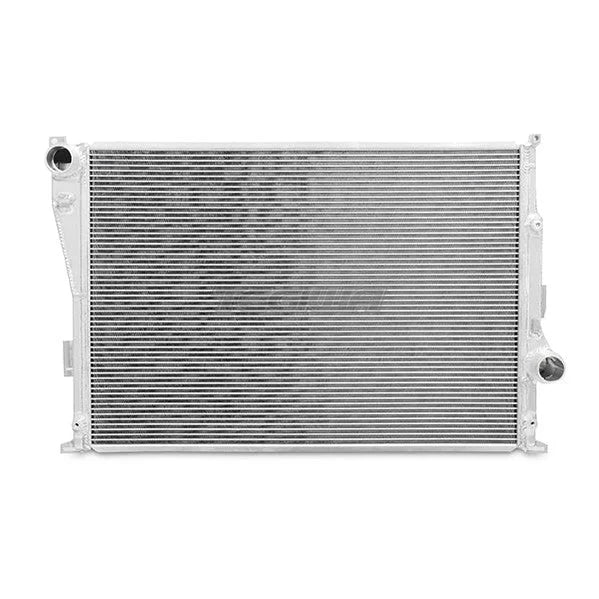

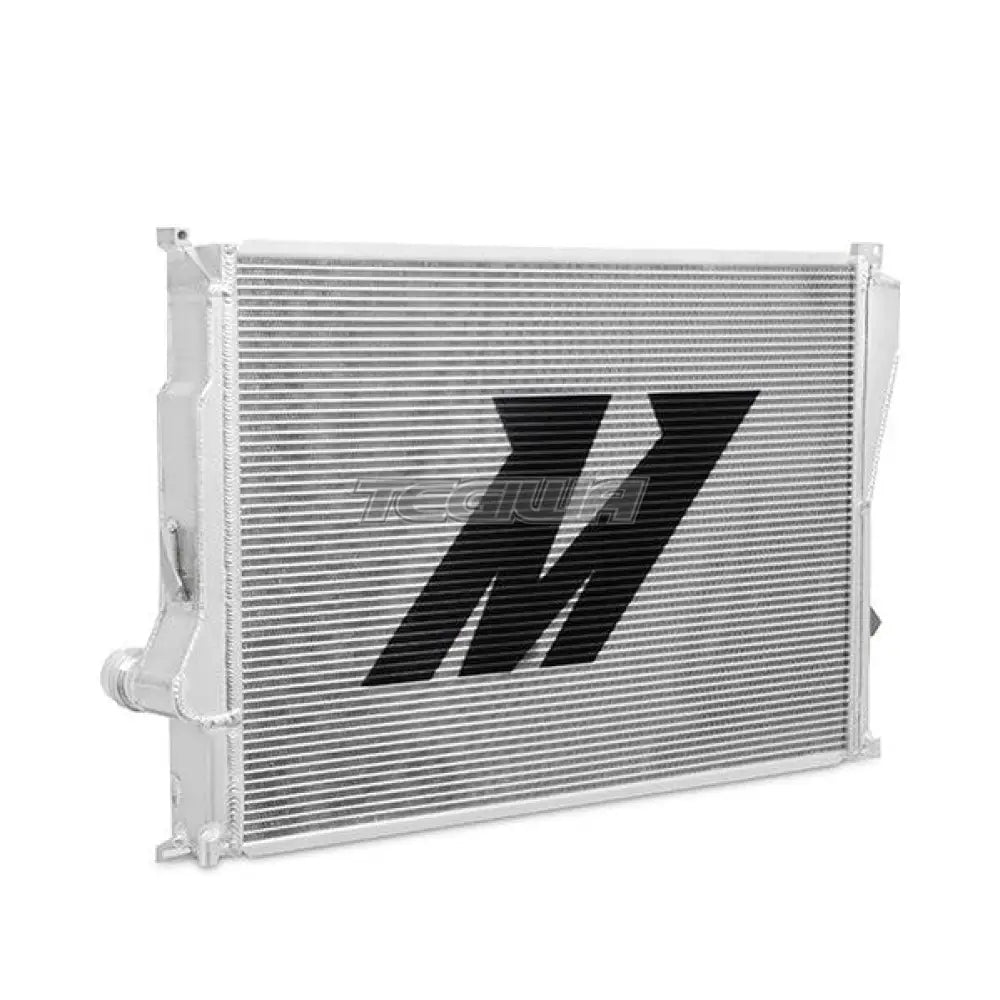

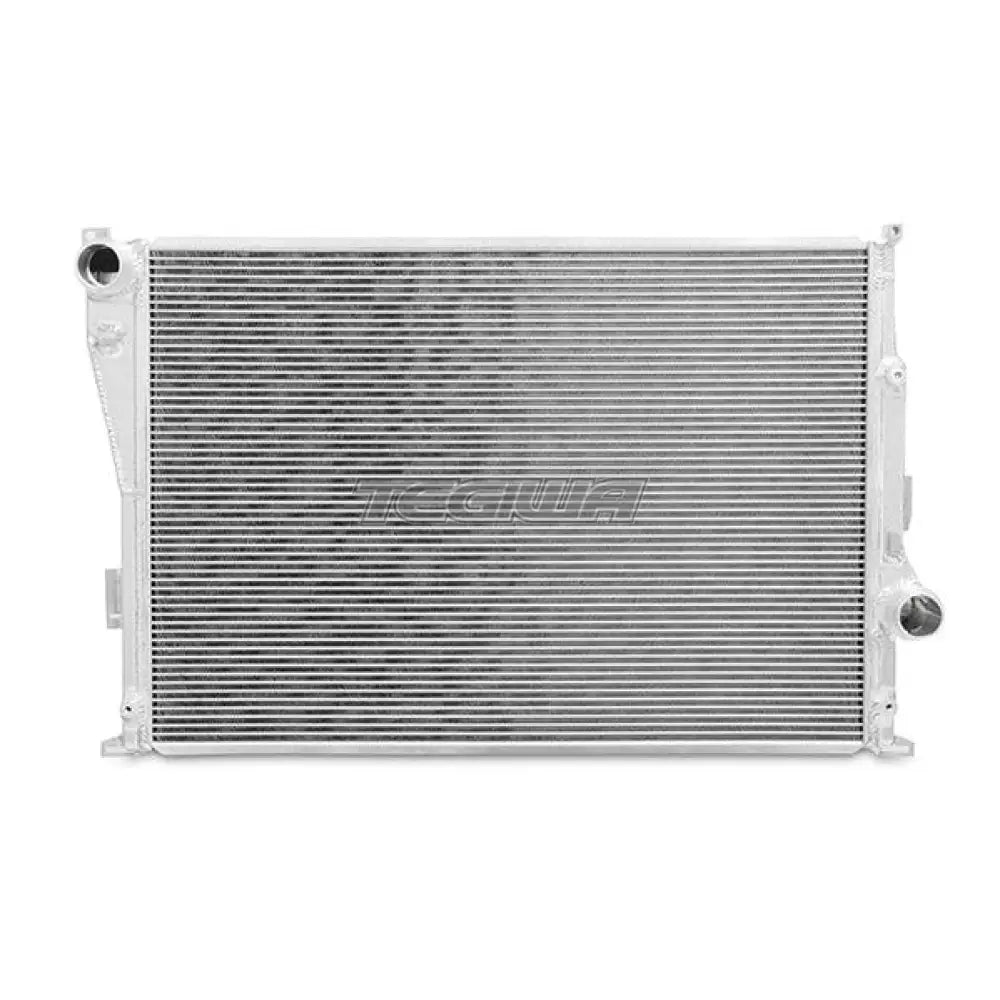

Fully brazed aluminum core with TIG-welded end tanks
Fits perfectly with stock clutch fan or Mishimoto electric fan shroud
Precision designed

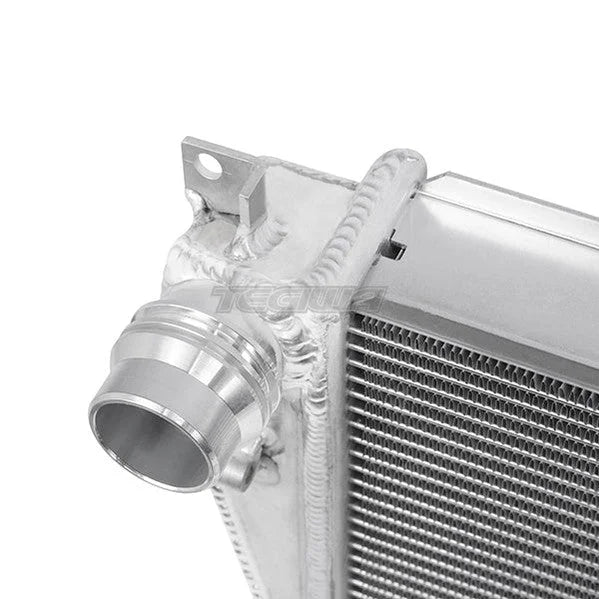

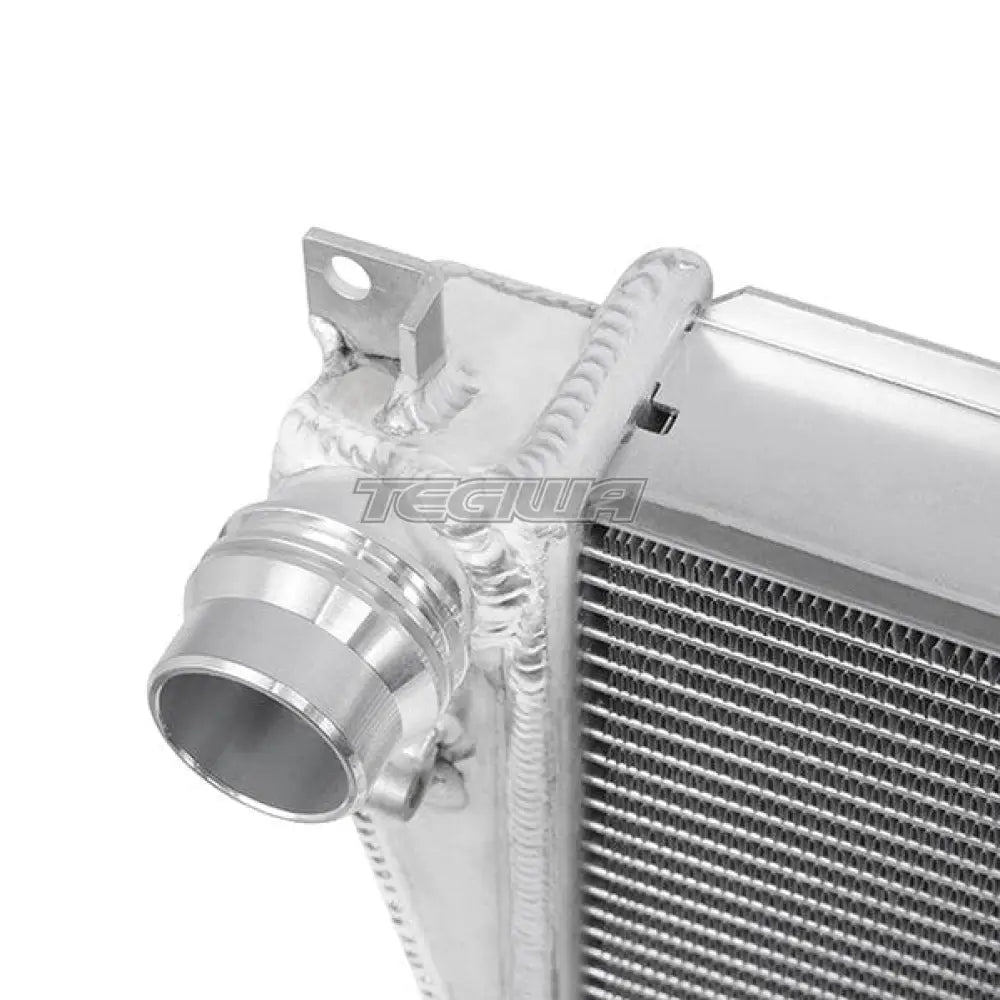

CNC-machined quick-disconnect fittings mate perfectly with stock hoses
Track-tested design
32-percent increase in coolant surface area
15-percent increase in air surface area
25-percent increase in coolant capacity
Works with most aftermarket supercharger kits
Includes fan tool for clutch fan removal
1/8-in NPT port for easy installation of sensors
Mishimoto Lifetime Warranty
Install Difficulty: 3
The S54 is an incredible feat of engineering. Smooth power delivery, individual throttle bodies, and an 8,000 rpm redline makes for an unforgettable driving experience. As with any BMW, maintenance is key to extending the life of your vehicle and ensuring that you're getting a driving experience rivaled by very few other vehicles on the road. As many of these vehicles see frequent track time, the team at Mishimoto felt a need to develop a performance aluminum radiator that would not only provide improved durability, but also deliver the efficiency needed for track driving. Our team of engineers developed an extremely dense core that provides a greater number of coolant tubes and a very dense fin composition. This allows for more heat transfer contact points which results in greater heat exchange and improved efficiency. Additionally, this dense core provides a 32-percent increase in coolant surface area, a 15-percent increase in air surface area, and a 25-percent increase in coolant capacity. All of these factors will contribute to lower temperatures and greater heat rejection, ideal for those in warm climates and track use. This radiator is designed as a complete bolt-in fit, requiring no modification for fitment with the stock fan and shrouding. Our end tanks are constructed from high quality aluminum TIG-welded to a 100-percent brazed aluminum core. Not only does this aid in heat transfer, but it provides the reliability needed for years of service. This radiator is also applicable with most aftermarket supercharger kits, providing the cooling power needed for power levels above stock. As with all our products, the Mishimoto E46 M3 Performance Aluminum Radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
