TechSpec Overall Height (in): 18.3
TechSpec Overall Length (in): 26.3
TechSpec Overall Width (ins): 2.07
TechSpec Core Length (in): 21.46
TechSpec Core Height (in): 17.13
TechSpec Fluid Capacity (gal): 3.13
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 9751841
TechSpec Applications: 1995-1999 BMW M3--1998-1999 BMW 323IC/IS--1988-1991 BMW 325I--1992-1995 BMW 325I/IC/IS--1996-1998 BMW 328I/IC/IS
TechSpec Engine Codes: S52--M52--M50TU--M20B25
TechSpec Chassis Codes: E30--E36
Note: This radiator design was based on USDM BMW Part Number 17111723784. Please ensure proper fitment with your vehicle before installing for Euro-spec imported vehicles.----E36: This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.----E30: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U). Stock E30 fan shroud does not fit with this product
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:
Direct fit for the 1988-1999 BMW E30/E36 W/ 6 Cylinder engine
Full aluminum construction with durable, TIG-welded end tanks
Two-row, 1.57-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
Functions with stock mechanical fan and stock shrouding
Includes threaded port for the stock temperature sensor
Perfect for use with stock, modified, forced induction, or swapped vehicles
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

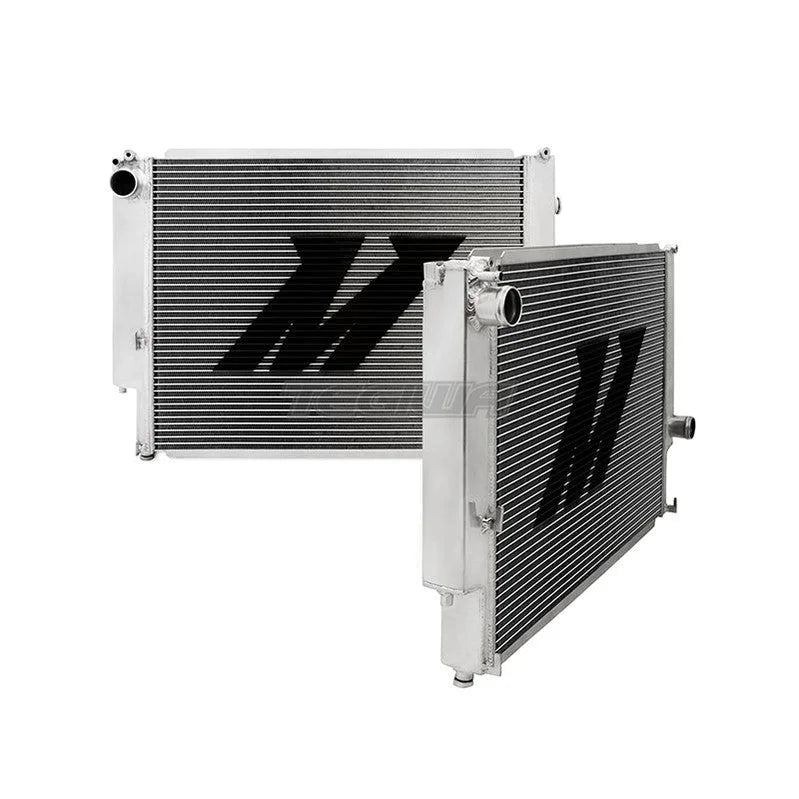

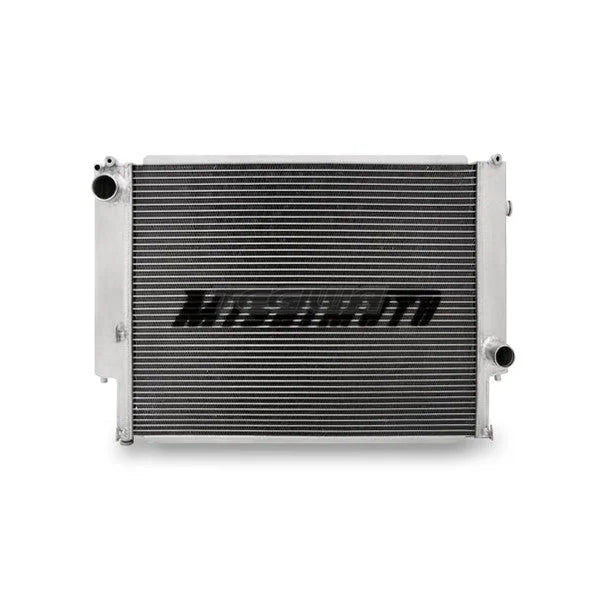

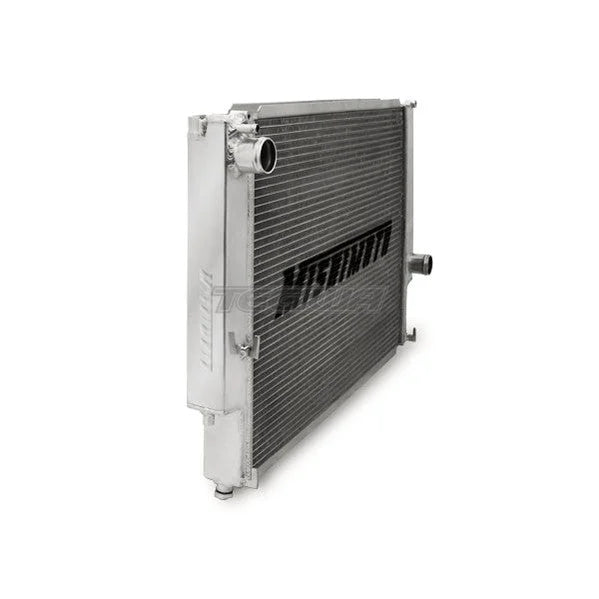

An ideal upgrade for the brittle OEM radiator, the Mishimoto E30/E36 Performance Aluminum Radiator provides your vehicle with enhanced reliability and improved cooling efficiency. BMWs are known to have frequent cooling-related failures due to the use of numerous plastic components throughout the system. A simple coolant leak can result in overheating, accelerated engine wear, or head gasket failure. Whether you have a daily-driven E36 M3 or an M20 spinning a large turbocharger, this radiator provides ideal temperatures on and off the track. Most people overlook the importance of installing an upgraded radiator in their vehicle. Along with providing increased coolant capacity, this radiator improves heat dissipation, which is beneficial for both stock and modified applications. The Mishimoto E30/E36 Performance Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections, and all factory overflow and temperature sensor ports are present on the Mishimoto aluminum radiator for use with OEM sensors and hoses. This radiator also includes a magnetic drain plug with dowty seal, which effectively removes metal fragments circulating in the cooling system. The Mishimoto BMW Performance Aluminum Radiator incorporates mounting points for the factory external automatic transmission cooler, and it is a direct bolt-on fit for all 6-cylinder E30/E36 models from 1988 to 1991. As with all our products, this radiator includes the Mishimoto Lif Mishimoto E30/E36 performance aluminum radiators are constructed of durable aircraft-quality aluminum, precision TIG welded to an efficient brazed aluminum dual core.This radiator incorporates mounting points for the factory automatic transmission cooler and is a direct bolt-on fit requiring no modification to your vehicle.As with all our products, this radiator includes the Mishimoto lifetime warrant
