Color: Silver
Finish: Brushed
Installation Difficulty: 3
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
TechSpec Includes: (1) Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1300
Note: Electric fans already come attached to the shroud.----Fans may require additional wiring.
TechSpec Height (in): 19.56
TechSpec Length (in): 29.5
TechSpec Width (in): 3.69
TechSpec Applications: 1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8--1969-1972 Chevrolet Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1967-1971 GM G-Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1968-1979 GM P-Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8
Features:
Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
All-aluminum construction
Optional fan controller provides complete control of coolant temperatures at idle
Designed to mate exclusively with Mishimoto's Chevrolet/GM C/K Performance Radiator
Replaces failure-prone stock mechanical fan
No cutting or bending of shroud required
Includes all mounting hardware for installation
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: No Controller
Color: Silver
Finish: Brushed
Installation Difficulty: 3
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8
TechSpec Includes: (1) Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1300
Note: Electric fans already come attached to the shroud.----Fans may require additional wiring.
TechSpec Height (in): 19.56
TechSpec Length (in): 29.5
TechSpec Width (in): 3.69
TechSpec Applications: 1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8--1969-1972 Chevrolet Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1967-1971 GM G-Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1968-1979 GM P-Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
Features:
Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
All-aluminum construction
Optional fan controller provides complete control of coolant temperatures at idle
Designed to mate exclusively with Mishimoto's Chevrolet/GM C/K Performance Radiator
Replaces failure-prone stock mechanical fan
No cutting or bending of shroud required
Includes all mounting hardware for installation
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: w/ Fan Controller

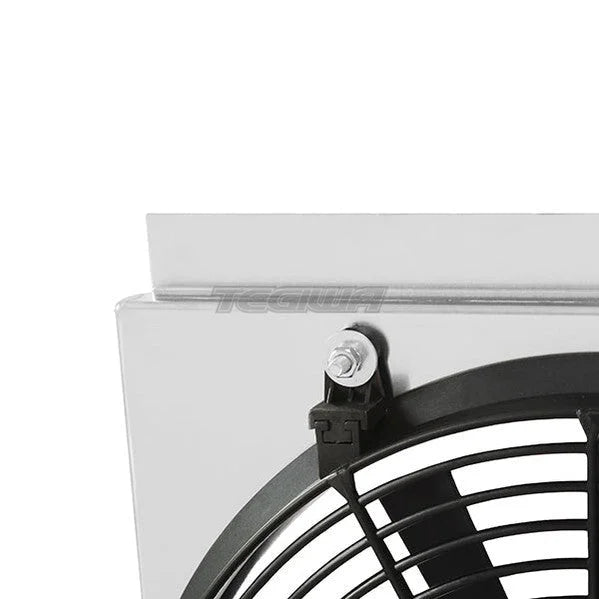

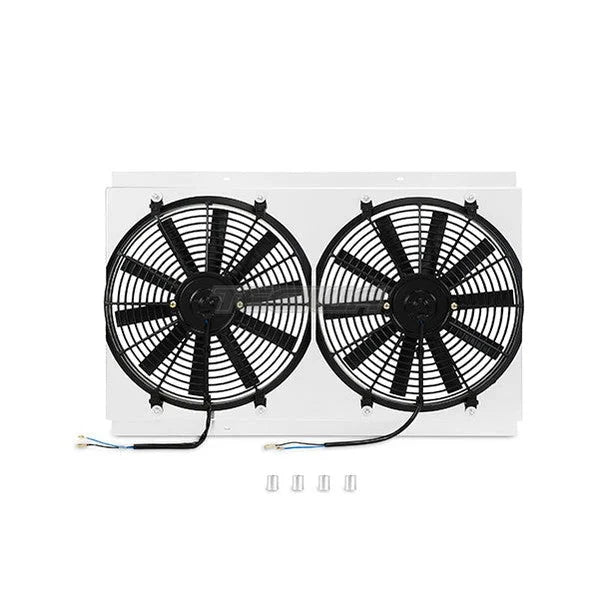

Keep your 1967-72 GM C/K Series cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto's Chevrolet/GM C/K Performance Radiator and includes two 14in high-flow electric fans that produce over 1300 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
