TechSpec Installation Notes: Sandwich Plate Adapter: 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 2.8
TechSpec Overall Length (in): 3
TechSpec Overall Width (in): 1.125

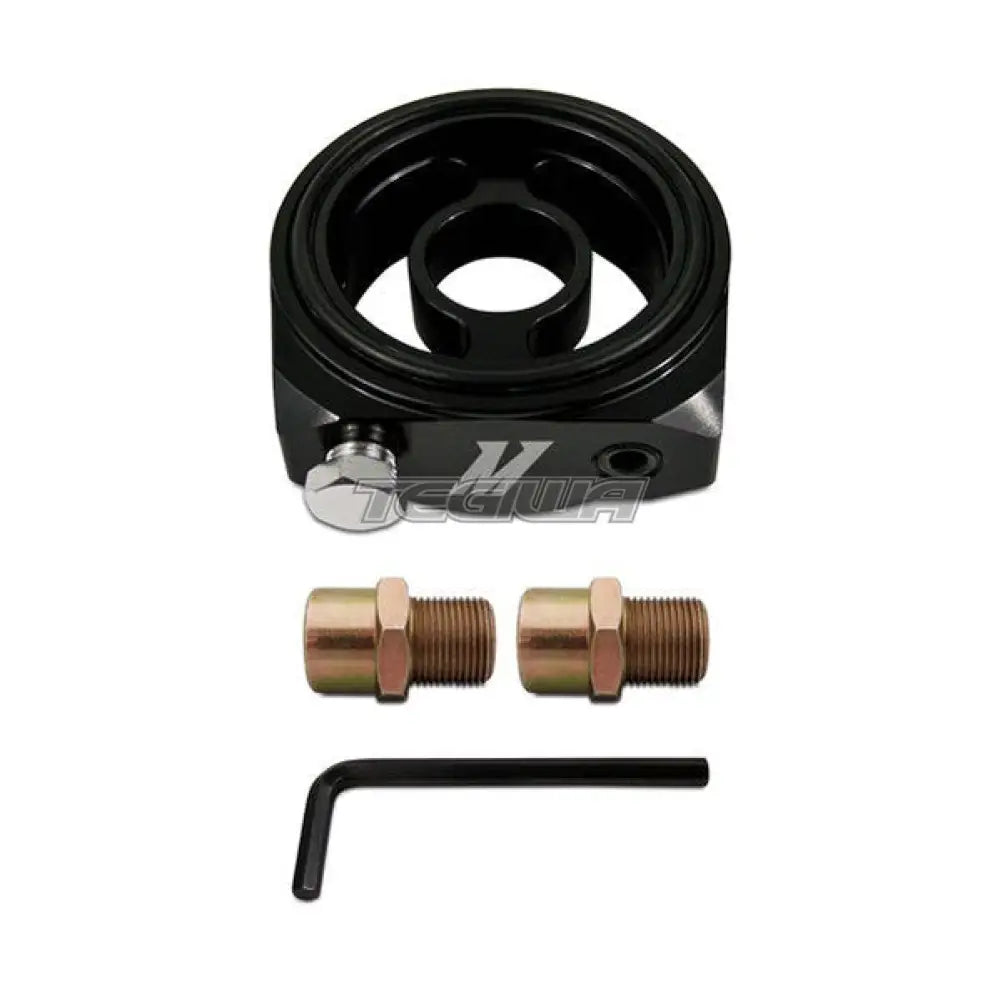

TechSpec Includes: Oil Plate Sandwich Adapter with 1/8-in NPT Ports--Large O-ring--Sandwich Plate Adapters--Black Flush Fittings w/ Allen Key Bolt--Allen Key--Hex Head Fitting--Installation Guide--Mishimoto Lifetime Warranty
Features:6061 aluminum, CNC-machined
Three 1/8-in NPT ports (with plug) for sensors/oil feed/etc.
M20 x 1.5 and 3/4-UNF
16 Sandwich Plate Adapters
Mishimoto Lifetime Warranty
Install Difficulty: 2
The Mishimoto Oil Filter Sandwich Plate Adapters are made with 3 NPT ports to allow you to install an oil temperature sensor, oil pressure sensor, and/or a turbo oil feed.This easy-to-install plate eliminates the need to drill into your block by using the mounting point on your engine oil filter.Two adapters are included with purchase for fitment with multiple applications.
