TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255--EJ257
TechSpec Chassis Codes: GD
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.

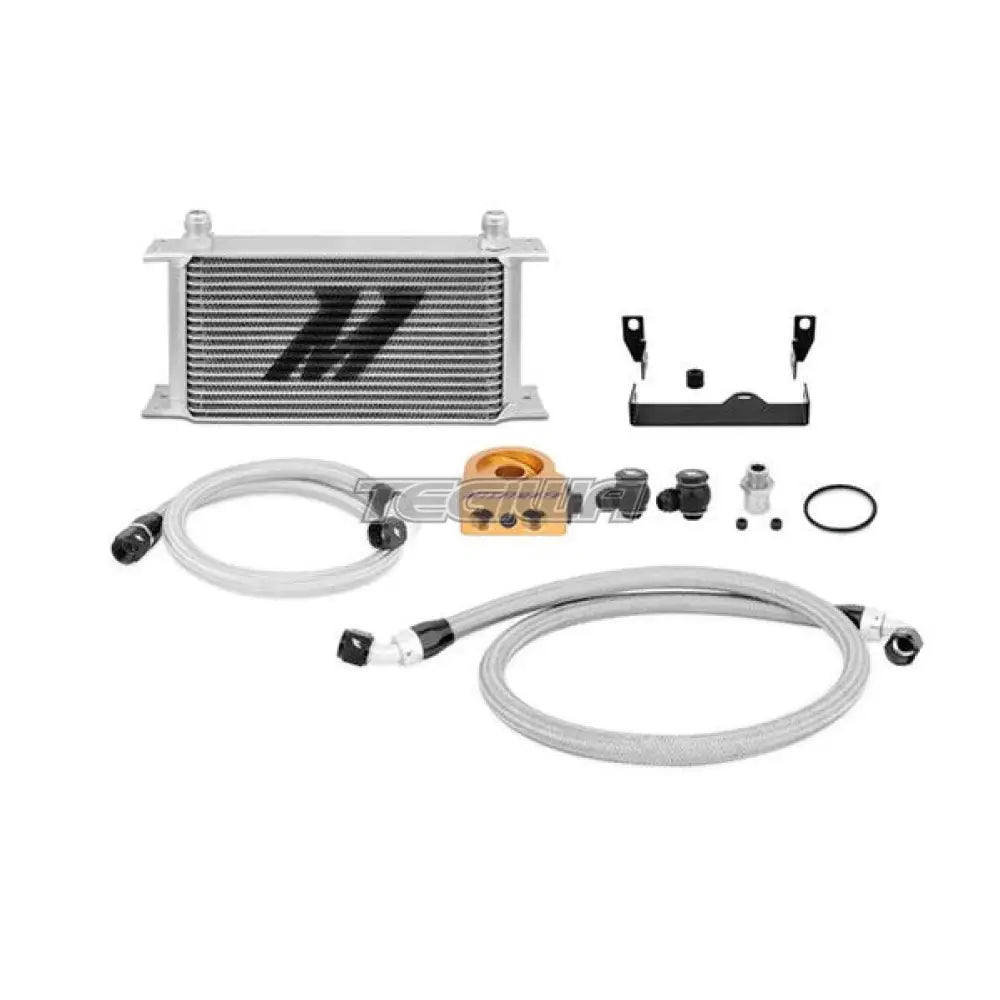

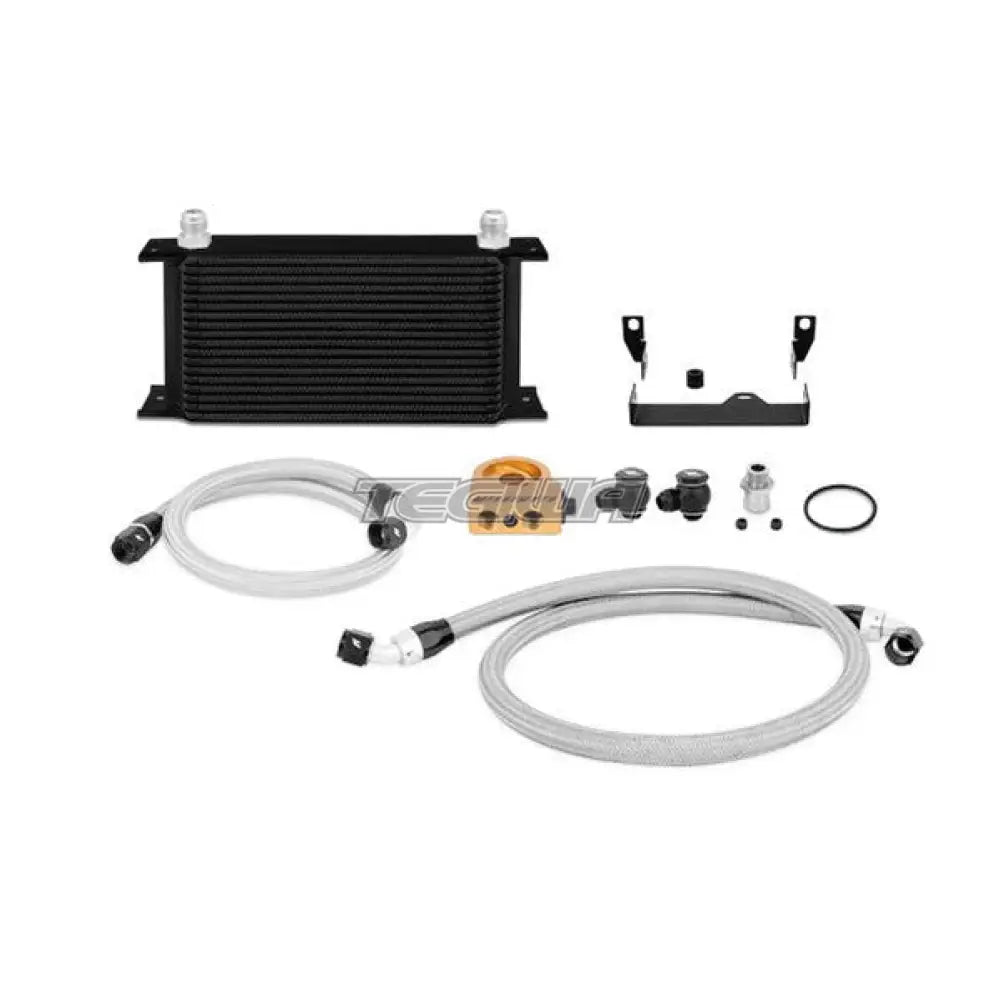

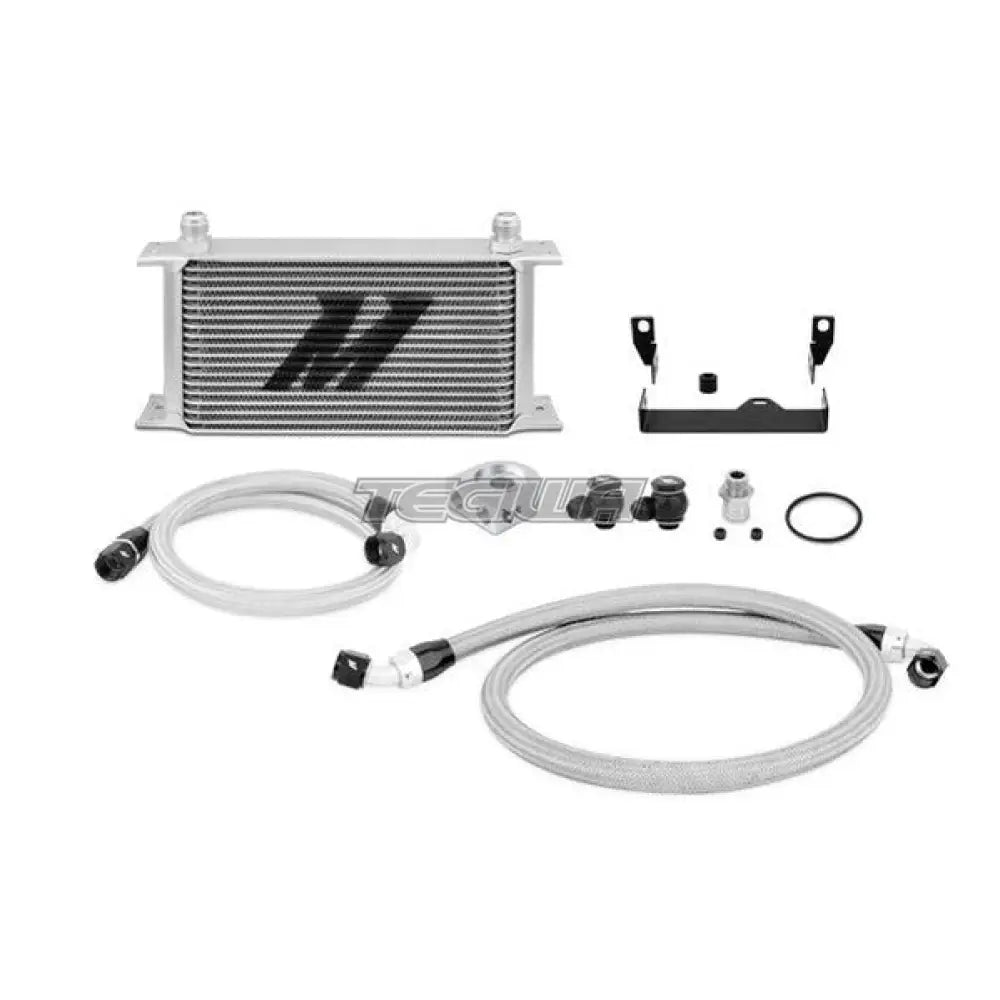

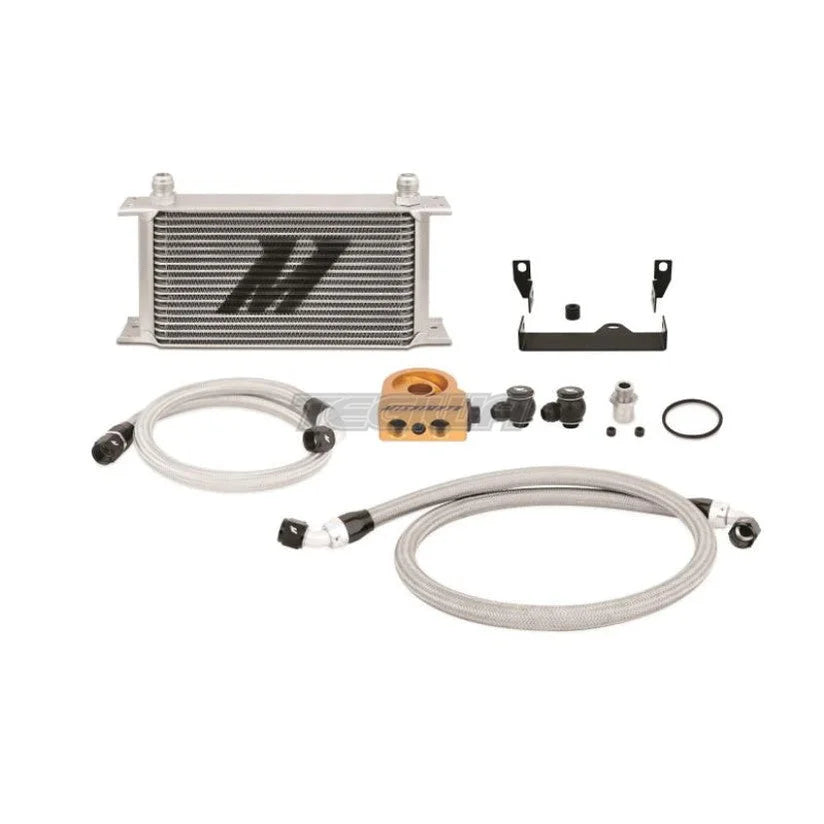

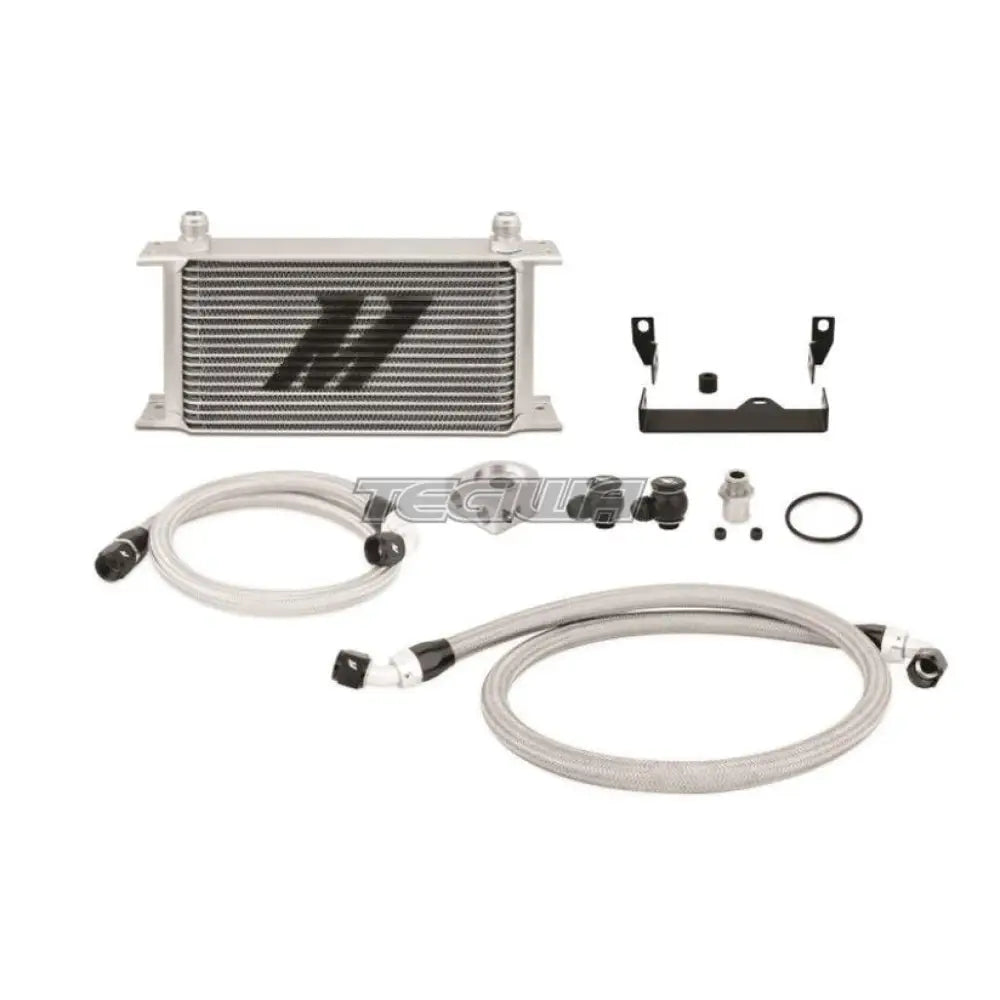

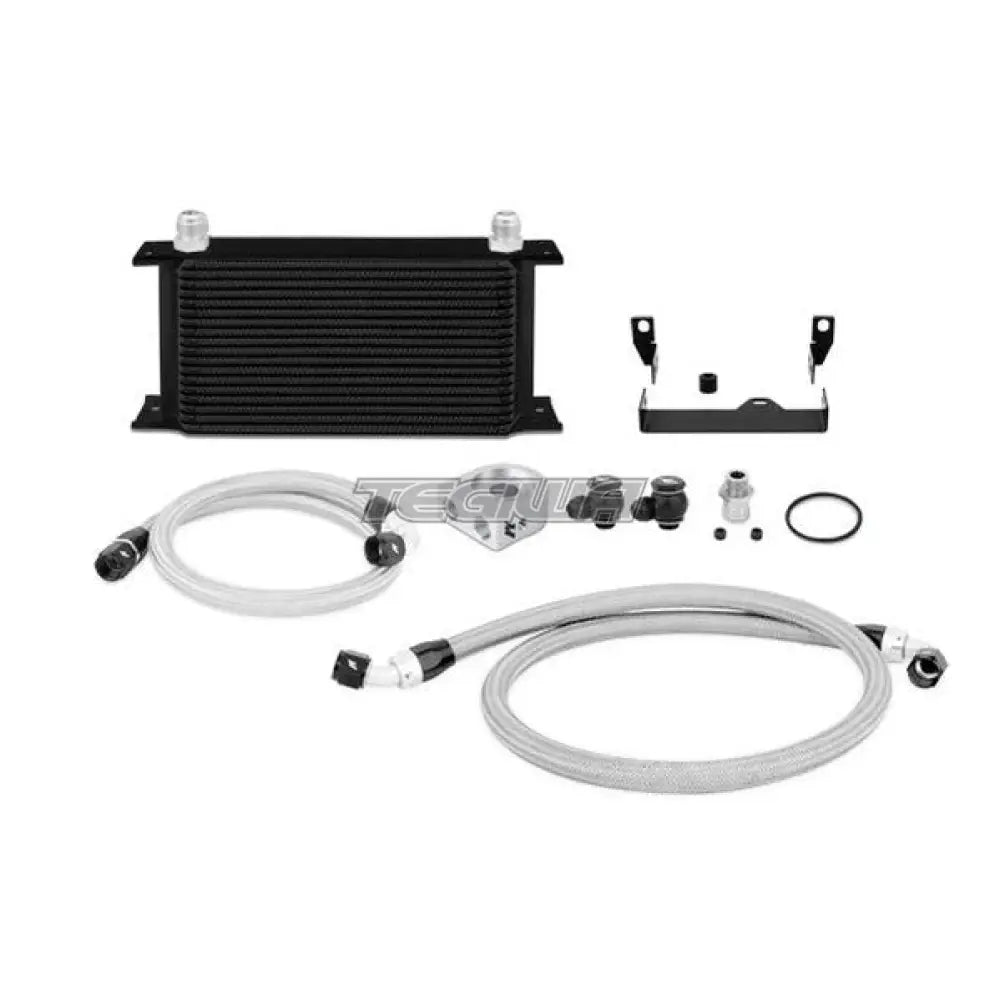

TechSpec Includes: Application Specific Mounting Brackets--19-Row Oil Cooler--2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings--2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--2Ã Thermashield Silver Braided Line Protector--Black Rubber Protector Square--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2006-2007 Subaru WRX--2006-2007 Subaru STI
Note: Will not fit on vehicles equipped with front mount intercoolers.----Fits automatic and manual applications.----Please inspect oil filter housing for installation compatibility. Fitment confirmed with Subaru part 21311AA051--
Features:
50 F (34 C) temperature drop
Minimal pressure loss
Direct fit for the WRX
CNC-machined spacer for easy install without heat shield removal
Stealth Black and Sleek
Silver cooler options
Thermostatic option available
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255--EJ257
TechSpec Chassis Codes: GD
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Brackets--19-Row Oil Cooler--2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings--2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--2Ã Thermashield Silver Braided Line Protector--Black Rubber Protector Square--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2006-2007 Subaru WRX--2006-2007 Subaru STI
Note: Will not fit on vehicles equipped with front mount intercoolers.----Fits automatic and manual applications.----Please inspect oil filter housing for installation compatibility. Fitment confirmed with Subaru part 21311AA051--
Features:
50 F (34 C) temperature drop
Minimal pressure loss
Direct fit for the WRX
CNC-machined spacer for easy install without heat shield removal
Stealth Black and Sleek
Silver cooler options
Thermostatic option available
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255--EJ257
TechSpec Chassis Codes: GD
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Brackets--19-Row Oil Cooler--2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings--2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--2Ã Thermashield Silver Braided Line Protector--Black Rubber Protector Square--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2006-2007 Subaru WRX--2006-2007 Subaru STI
Note: Will not fit on vehicles equipped with front mount intercoolers.----Fits automatic and manual applications.----Please inspect oil filter housing for installation compatibility. Fitment confirmed with Subaru part 21311AA051--
Features:
50 F (34 C) temperature drop
Minimal pressure loss
Direct fit for the WRX
CNC-machined spacer for easy install without heat shield removal
Stealth Black and Sleek
Silver cooler options
Thermostatic option available
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255--EJ257
TechSpec Chassis Codes: GD
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Brackets--19-Row Oil Cooler--2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings--2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--2Ã Thermashield Silver Braided Line Protector--Black Rubber Protector Square--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2006-2007 Subaru WRX--2006-2007 Subaru STI
Note: Will not fit on vehicles equipped with front mount intercoolers.----Fits automatic and manual applications.----Please inspect oil filter housing for installation compatibility. Fitment confirmed with Subaru part 21311AA051--
Features:
50 F (34 C) temperature drop
Minimal pressure loss
Direct fit for the WRX
CNC-machined spacer for easy install without heat shield removal
Stealth Black and Sleek
Silver cooler options
Thermostatic option available
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler, Thermostatic

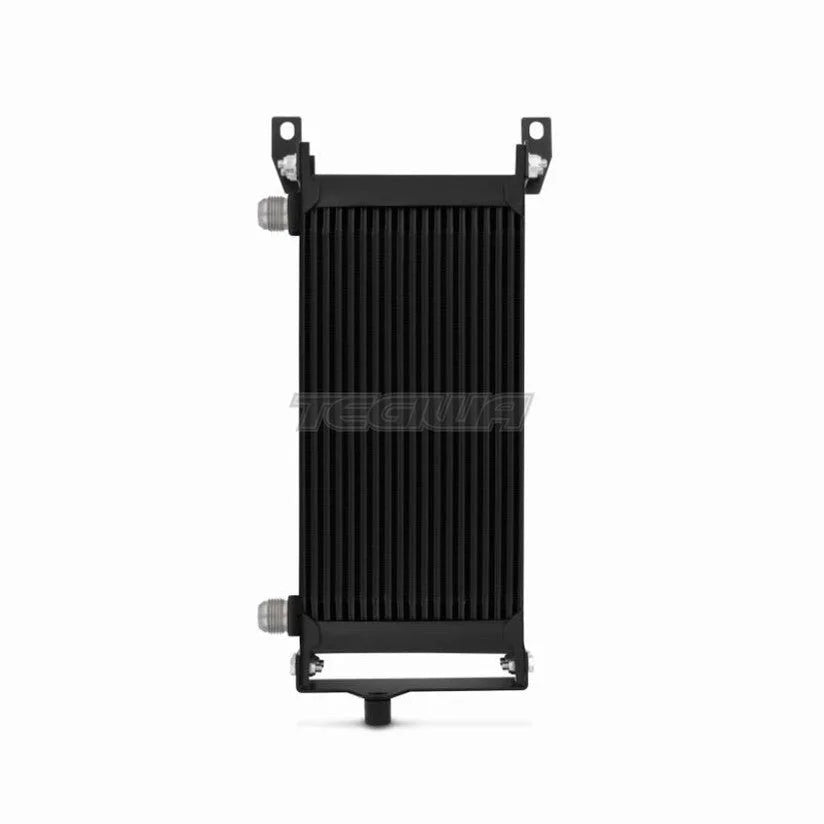

Keep your Hawkeye cool on the street or track with the all-new Mishimoto direct-fit oil cooler kit.A high horsepower Subaru needs a reliable and efficient means of reducing and maintaining proper oil temperatures.High engine temperatures can result in rapid oil degradation and potential engine damage.The Mishimoto oil cooler kit features a large 19-row oil cooler mounted behind the front bumper and grill for optimum airflow and cooling efficiency.This oil cooler kit adds .65 qt to the total oil capacity and substantially reduces temperatures with minimal pressure loss.The Mishimoto direct-fit oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.
