Features:
Direct fit for 2022+ Subaru WRX

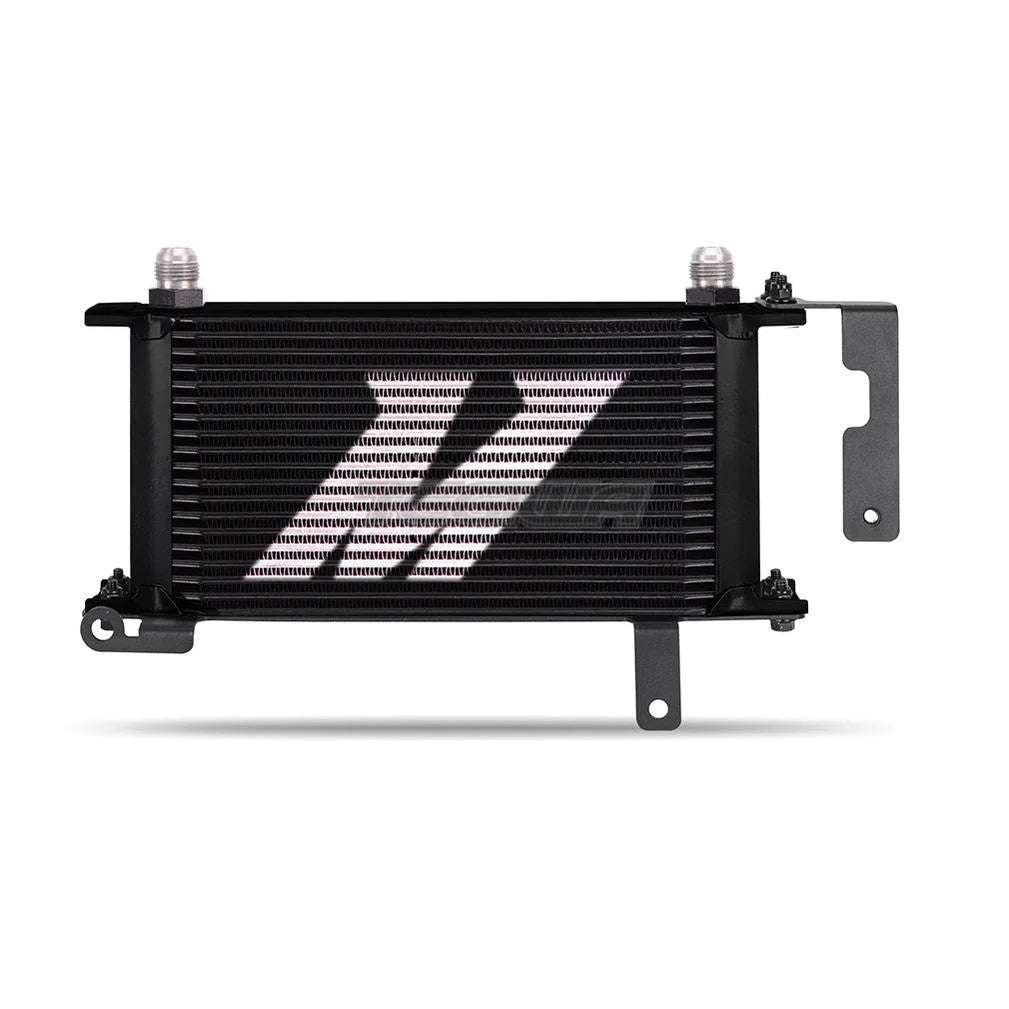

19-row oil cooler strategically mounted in the upper grille for maximum airflow
Includes everything needed for installation including brackets, lines, sandwich plate, and cooler

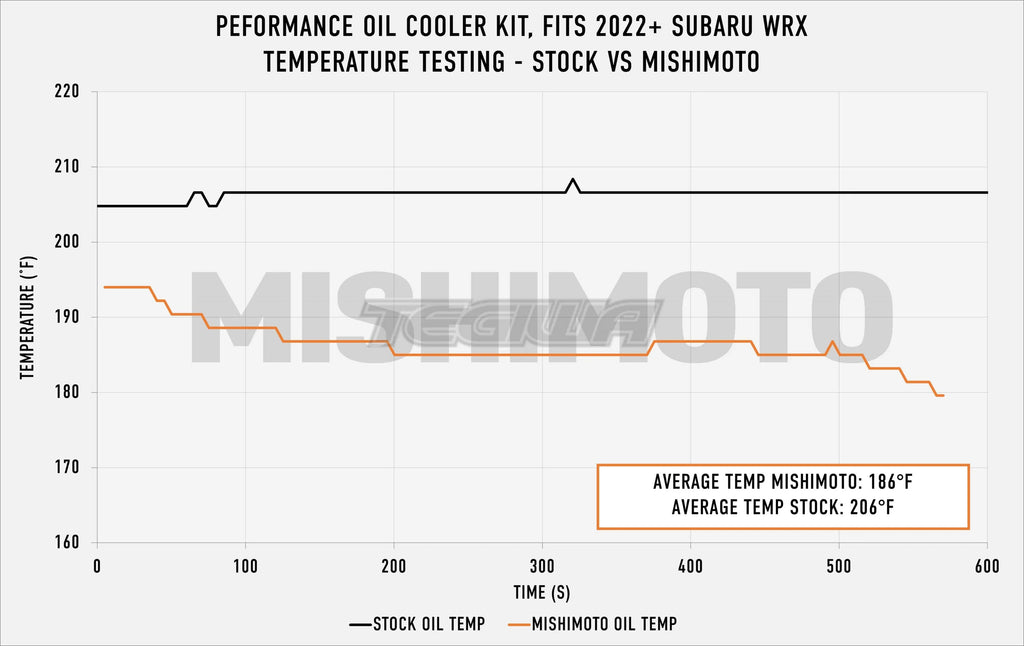

Dyno-proven 20-degree reduction in oil temperature
Optional thermostatic sandwich plate for daily-driven vehicles or cold climates
Retains stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
Adds 0.75 qts of oil for more cooling capacity
Black nylon covered stainless-steel lines for added abrasion resistance and an OEM look

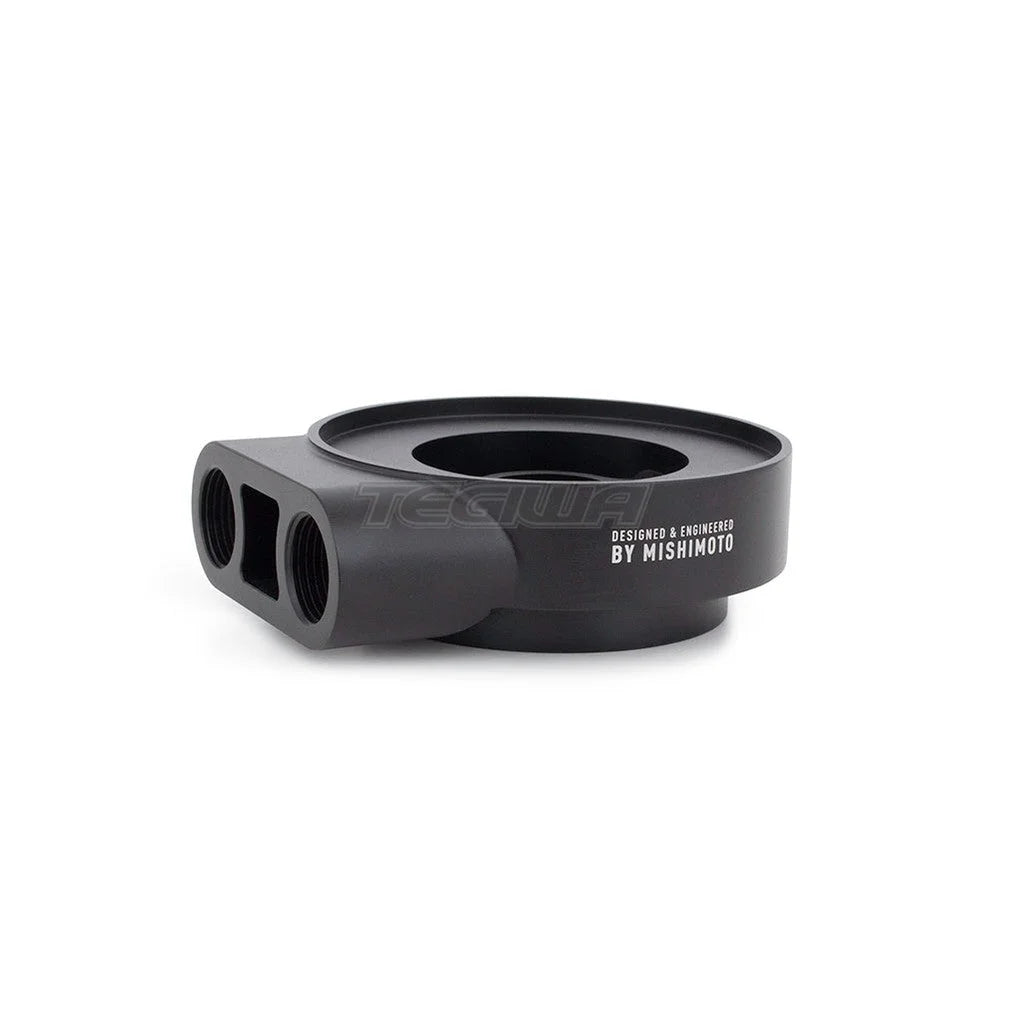

Thermostatic sandwich plate includes NPT ports for pressure or temp sensors
Thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats
Available with Sleek Silver or Stealth Black cooler
Mishimoto Lifetime Warranty
TechSpec Rows: 19
TechSpec Core Construction: Stacked Plate
TechSpec Core Length (in): 11
TechSpec Core Height (in): 12.95
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA24F
TechSpec Chassis Codes: VB
TechSpec Overall Height (in): 6.44
TechSpec Overall Length (in): 12.95
TechSpec Overall Width (in): 1.97
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN

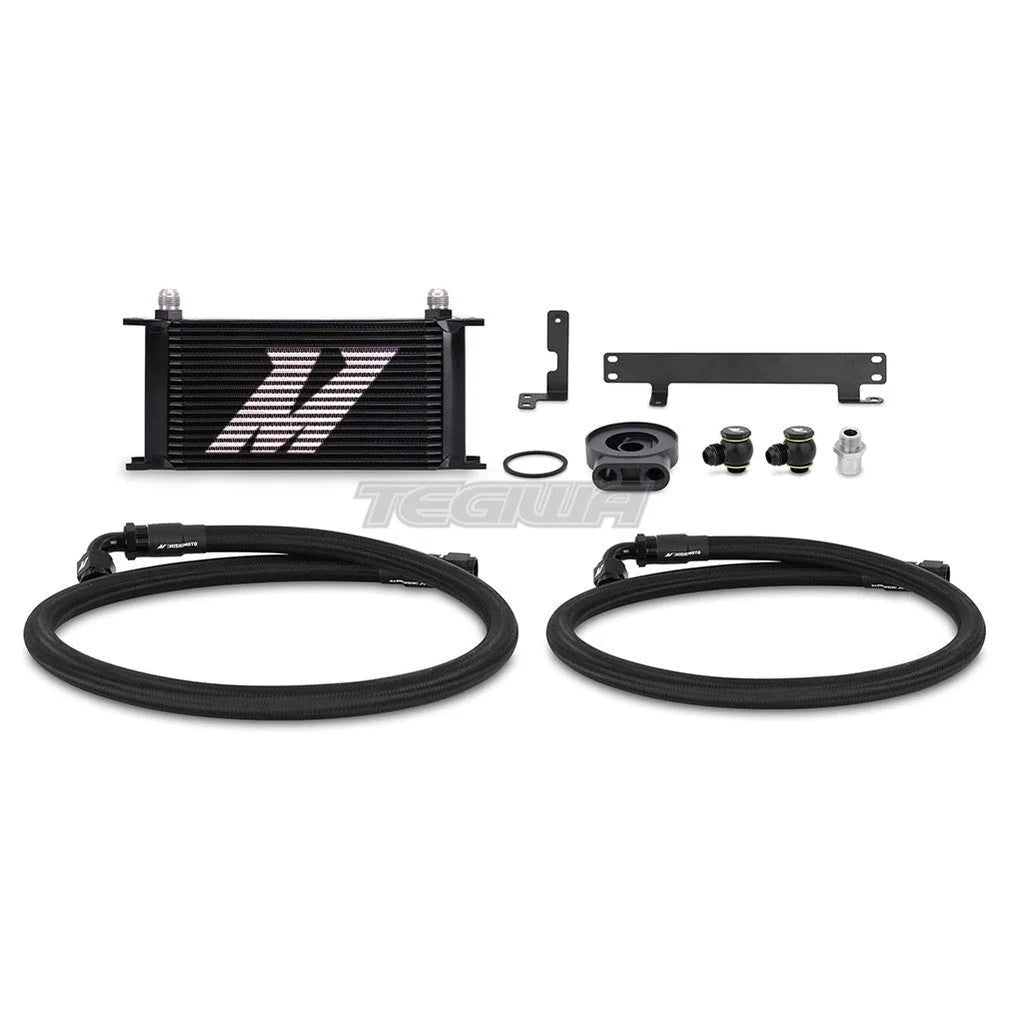

TechSpec Includes: (2) Application-Specific Mounting Brackets--(1) 19-Row Oil Cooler--(2) Stainless-Steel Braided Hoses w/ Fittings--(1) Application-Specific Oil Sandwich Plate--(2) Banjo Fittings w/ Bolt--Mounting Hardware--Mishimoto Lifetime Warranty----Thermostatic Option:--(1) Thermostatic Oil Sandwich Plate--(1) Stainless-Steel Sandwich Plate Adapter--(1) Silicone Hose--(2) Worm Gear Clamps
TechSpec Applications: Subaru WRX 2.4L H4 2022+
TechSpec Fluid Capacity (qts): 0.75
Note: Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping. Please feel free to contact us at support@mishimoto.com if you have any questions.
Features:
Direct fit for 2022+ Subaru WRX
19-row oil cooler strategically mounted in the upper grille for maximum airflow
Includes everything needed for installation including brackets, lines, sandwich plate, and cooler
Dyno-proven 20-degree reduction in oil temperature
Optional thermostatic sandwich plate for daily-driven vehicles or cold climates
Retains stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
Adds 0.75 qts of oil for more cooling capacity
Black nylon covered stainless-steel lines for added abrasion resistance and an OEM look
Thermostatic sandwich plate includes NPT ports for pressure or temp sensors
Thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats
Available with Sleek Silver or Stealth Black cooler
Mishimoto Lifetime Warranty
TechSpec Rows: 19
TechSpec Core Construction: Stacked Plate
TechSpec Core Length (in): 11
TechSpec Core Height (in): 12.95
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA24F
TechSpec Chassis Codes: VB
TechSpec Overall Height (in): 6.44
TechSpec Overall Length (in): 12.95
TechSpec Overall Width (in): 1.97
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN
TechSpec Includes: (2) Application-Specific Mounting Brackets--(1) 19-Row Oil Cooler--(2) Stainless-Steel Braided Hoses w/ Fittings--(1) Application-Specific Oil Sandwich Plate--(2) Banjo Fittings w/ Bolt--Mounting Hardware--Mishimoto Lifetime Warranty----Thermostatic Option:--(1) Thermostatic Oil Sandwich Plate--(1) Stainless-Steel Sandwich Plate Adapter--(1) Silicone Hose--(2) Worm Gear Clamps
TechSpec Applications: Subaru WRX 2.4L H4 2022+
TechSpec Fluid Capacity (qts): 0.75
Note: Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping. Please feel free to contact us at support@mishimoto.com if you have any questions.
Features:
Direct fit for 2022+ Subaru WRX
19-row oil cooler strategically mounted in the upper grille for maximum airflow
Includes everything needed for installation including brackets, lines, sandwich plate, and cooler
Dyno-proven 20-degree reduction in oil temperature
Optional thermostatic sandwich plate for daily-driven vehicles or cold climates
Retains stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
Adds 0.75 qts of oil for more cooling capacity
Black nylon covered stainless-steel lines for added abrasion resistance and an OEM look
Thermostatic sandwich plate includes NPT ports for pressure or temp sensors
Thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats
Available with Sleek Silver or Stealth Black cooler
Mishimoto Lifetime Warranty
TechSpec Rows: 19
TechSpec Core Construction: Stacked Plate
TechSpec Core Length (in): 11
TechSpec Core Height (in): 12.95
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA24F
TechSpec Chassis Codes: VB
TechSpec Overall Height (in): 6.44
TechSpec Overall Length (in): 12.95
TechSpec Overall Width (in): 1.97
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN
TechSpec Includes: (2) Application-Specific Mounting Brackets--(1) 19-Row Oil Cooler--(2) Stainless-Steel Braided Hoses w/ Fittings--(1) Application-Specific Oil Sandwich Plate--(2) Banjo Fittings w/ Bolt--Mounting Hardware--Mishimoto Lifetime Warranty----Thermostatic Option:--(1) Thermostatic Oil Sandwich Plate--(1) Stainless-Steel Sandwich Plate Adapter--(1) Silicone Hose--(2) Worm Gear Clamps
TechSpec Applications: Subaru WRX 2.4L H4 2022+
TechSpec Fluid Capacity (qts): 0.75
Note: Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping. Please feel free to contact us at support@mishimoto.com if you have any questions.
Features:
Direct fit for 2022+ Subaru WRX
19-row oil cooler strategically mounted in the upper grille for maximum airflow
Includes everything needed for installation including brackets, lines, sandwich plate, and cooler
Dyno-proven 20-degree reduction in oil temperature
Optional thermostatic sandwich plate for daily-driven vehicles or cold climates
Retains stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
Adds 0.75 qts of oil for more cooling capacity
Black nylon covered stainless-steel lines for added abrasion resistance and an OEM look
Thermostatic sandwich plate includes NPT ports for pressure or temp sensors
Thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats
Available with Sleek Silver or Stealth Black cooler
Mishimoto Lifetime Warranty
TechSpec Rows: 19
TechSpec Core Construction: Stacked Plate
TechSpec Core Length (in): 11
TechSpec Core Height (in): 12.95
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA24F
TechSpec Chassis Codes: VB
TechSpec Overall Height (in): 6.44
TechSpec Overall Length (in): 12.95
TechSpec Overall Width (in): 1.97
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN
TechSpec Includes: (2) Application-Specific Mounting Brackets--(1) 19-Row Oil Cooler--(2) Stainless-Steel Braided Hoses w/ Fittings--(1) Application-Specific Oil Sandwich Plate--(2) Banjo Fittings w/ Bolt--Mounting Hardware--Mishimoto Lifetime Warranty----Thermostatic Option:--(1) Thermostatic Oil Sandwich Plate--(1) Stainless-Steel Sandwich Plate Adapter--(1) Silicone Hose--(2) Worm Gear Clamps
TechSpec Applications: Subaru WRX 2.4L H4 2022+
TechSpec Fluid Capacity (qts): 0.75
Note: Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping. Please feel free to contact us at support@mishimoto.com if you have any questions.
The 2022+ WRX has tons to offer with its new FA24 turbocharged engine and top-notch AWD system, but not every component lives up to the WRX's rally pedigree. The 2022 WRX oil cooling system consists of a very small liquid-to-liquid heat exchanger that serves to heat the engine oil as much as it cools it. If you’ve modified your vehicle or spend time tracking your WRX, prolonged high oil temps can cause catastrophic failure of your FA24. Protect your investment with the Mishimoto direct-fit oil cooler kit designed specifically for the 2022+ Subaru WRX.----This 2022+ WRX performance oil cooler kit is designed to work in tandem with the stock liquid-to-liquid to maintain ideal oil temperature and alleviate stress on the primary cooling system. This kit adds 0.75-quarts of oil to the system for more cooling capacity and showed a 20-degree reduction in oil temps in dyno testing. The included 19-row oil cooler mounts in the front bumper for optimal airflow and cooling using robust application-specific brackets. This kit includes everything needed for install, including pre-assembled black nylon-covered stainless-steel lines with -10AN fittings and your choice of thermostatic or non-thermostatic sandwich plate. As with all Mishimoto products this 2022+ Subaru WRX performance oil cooler kit includes our Mishimoto Lifetime Warranty.
