TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA20DIT
TechSpec Chassis Codes: VA
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.

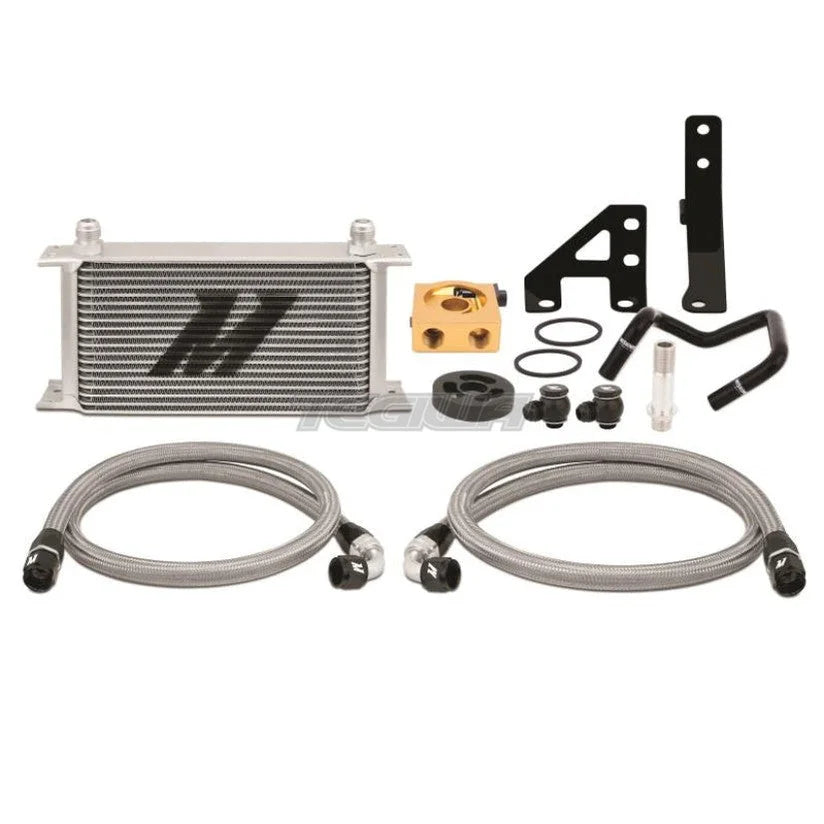

TechSpec Includes: Application-Specific Mounting Brackets--Application-Specific Oil Sandwich Plate--19-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--5ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--Stainless Steel Sandwich Plate Adapter, M20 x M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--Large O-Ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2015-2021 Subaru WRX
Note: THIS OIL COOLER KIT WILL NOT FIT WITH THE MISHIMOTO 2015+ WRX FRONT-MOUNT INTERCOOLER KIT
Features:
Direct fit for the 2015-2021 Subaru WRX
Proven 20 F (11.1 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation
Billet aluminum thermostatic oil sandwich plate allows oil to reach optimum temperature

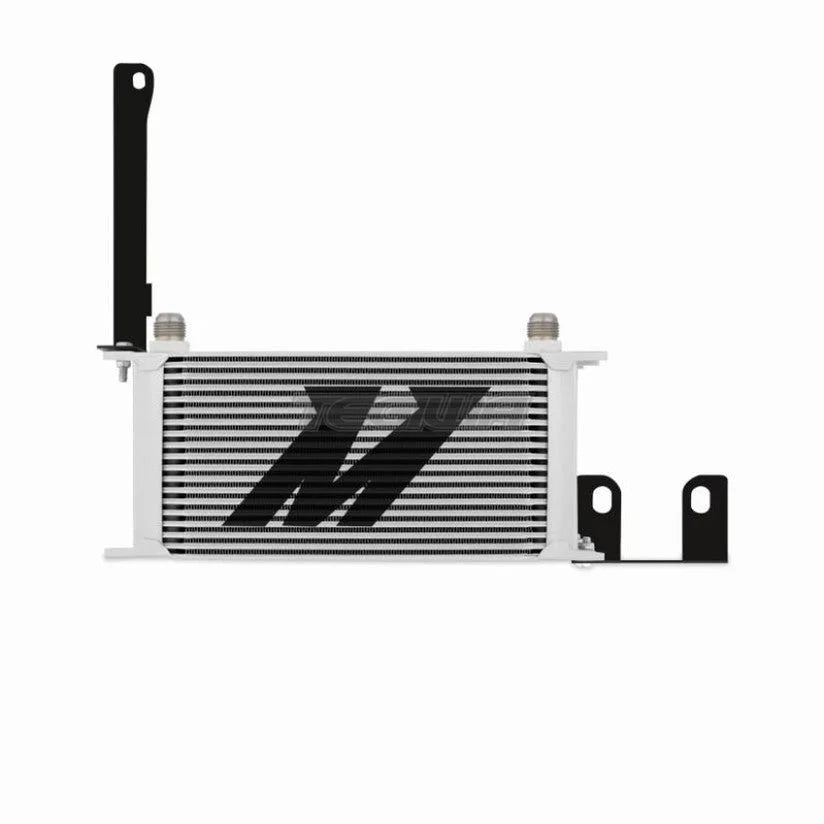

19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined aluminum spacer for the oil sandwich plate
Silicone hose bypasses stock liquid-to-liquid heat exchanger
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty
Install Difficulty: 3

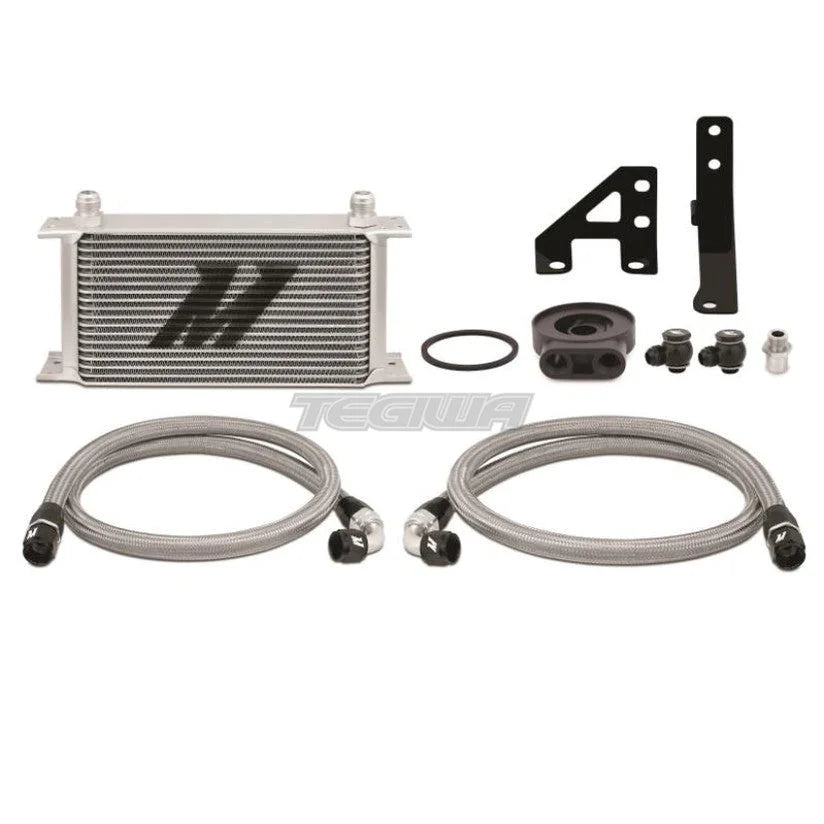

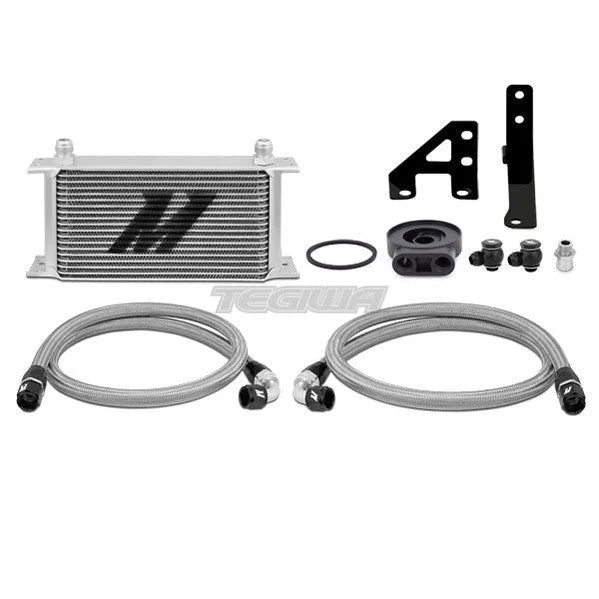

OptionLabel: Silver Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA20DIT
TechSpec Chassis Codes: VA
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Includes: Application-Specific Mounting Brackets--Application-Specific Oil Sandwich Plate--19-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--5ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--Stainless Steel Sandwich Plate Adapter, M20 x M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--Large O-Ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2015-2021 Subaru WRX
Note: THIS OIL COOLER KIT WILL NOT FIT WITH THE MISHIMOTO 2015+ WRX FRONT-MOUNT INTERCOOLER KIT
Features:
Direct fit for the 2015-2021 Subaru WRX
Proven 20 F (11.1 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation
Billet aluminum thermostatic oil sandwich plate allows oil to reach optimum temperature
19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined aluminum spacer for the oil sandwich plate
Silicone hose bypasses stock liquid-to-liquid heat exchanger
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty
Install Difficulty: 3

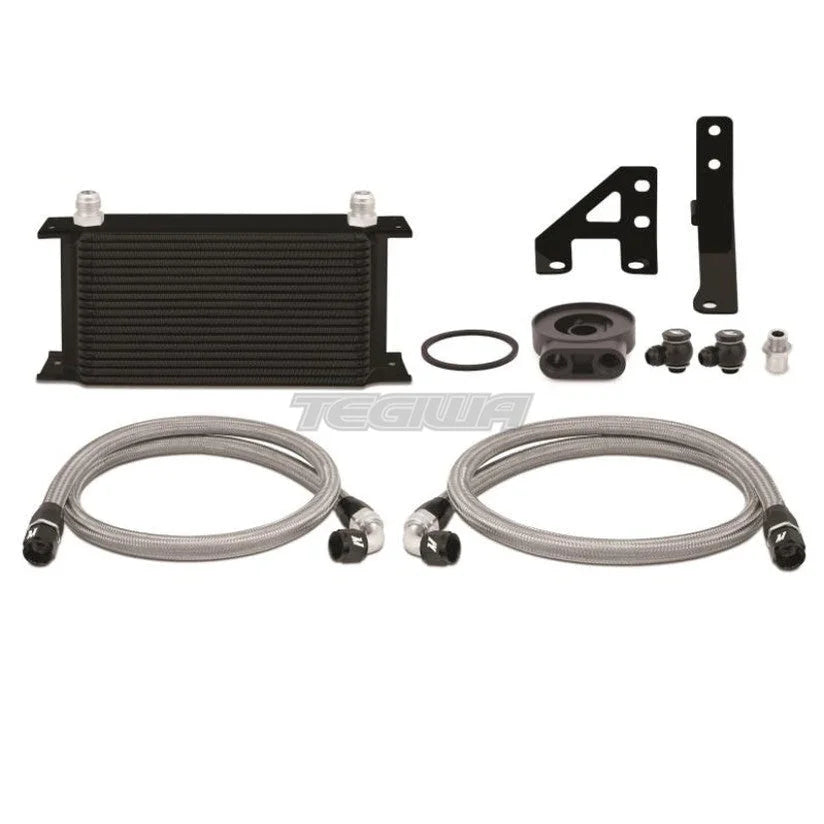

OptionLabel: Black Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA20DIT
TechSpec Chassis Codes: VA
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Includes: Application-Specific Mounting Brackets--Application-Specific Oil Sandwich Plate--19-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--5ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--Stainless Steel Sandwich Plate Adapter, M20 x M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--Large O-Ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2015-2021 Subaru WRX
Note: THIS OIL COOLER KIT WILL NOT FIT WITH THE MISHIMOTO 2015+ WRX FRONT-MOUNT INTERCOOLER KIT
Features:
Direct fit for the 2015-2021 Subaru WRX
Proven 20 F (11.1 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation
Billet aluminum thermostatic oil sandwich plate allows oil to reach optimum temperature
19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined aluminum spacer for the oil sandwich plate
Silicone hose bypasses stock liquid-to-liquid heat exchanger
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty

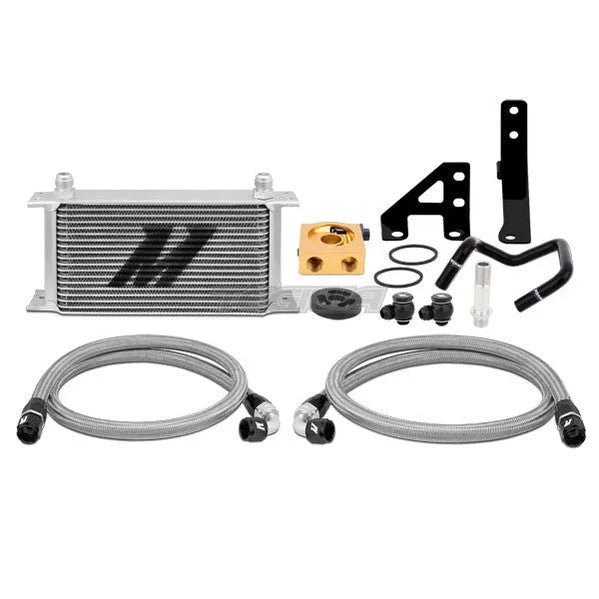

OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA20DIT
TechSpec Chassis Codes: VA
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Includes: Application-Specific Mounting Brackets--Application-Specific Oil Sandwich Plate--19-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--5ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--Stainless Steel Sandwich Plate Adapter, M20 x M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--Large O-Ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2015-2021 Subaru WRX
Note: THIS OIL COOLER KIT WILL NOT FIT WITH THE MISHIMOTO 2015+ WRX FRONT-MOUNT INTERCOOLER KIT
Features:
Direct fit for the 2015-2021 Subaru WRX
Proven 20 F (11.1 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation
Billet aluminum thermostatic oil sandwich plate allows oil to reach optimum temperature
19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined aluminum spacer for the oil sandwich plate
Silicone hose bypasses stock liquid-to-liquid heat exchanger
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty

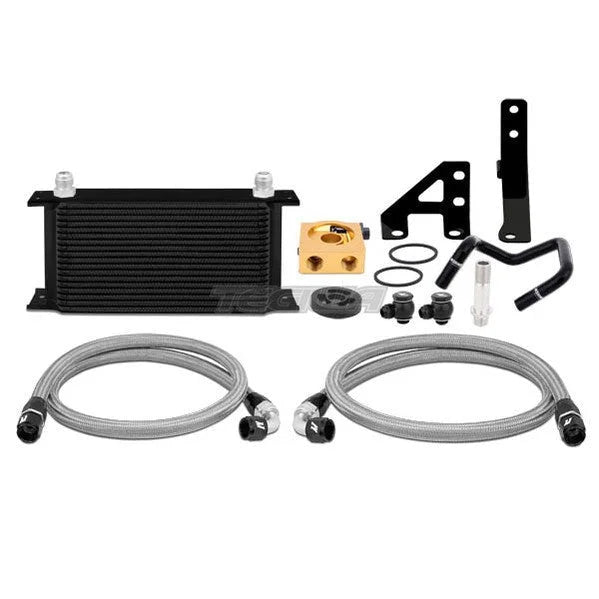

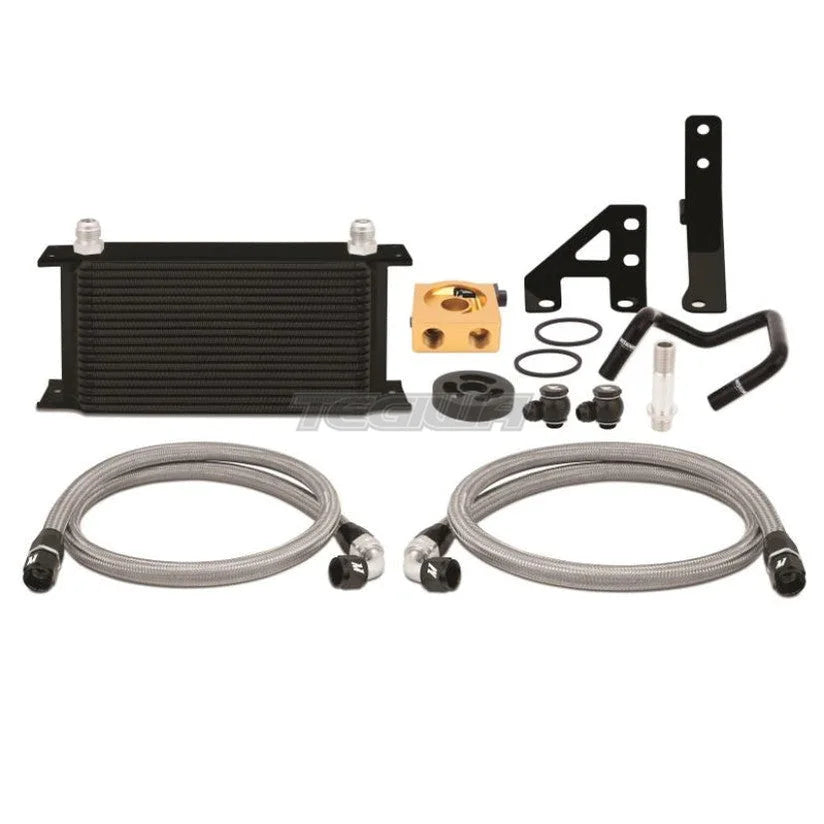

OptionLabel: Black Cooler, Thermostatic
High oil temperatures can wreak havoc on your high-performance FA20 DIT. Protect your investment with the Mishimoto direct-fit oil cooler kit designed specifically for the 2015+ Subaru WRX. The WRX has tons to offer with its turbocharged engine and fantastic AWD system, but the stock liquid-to-liquid oil cooler cannot handle prolonged aggressive driving conditions. This kit is designed to work in conjunction with the stock liquid-to-liquid to maintain optimal oil temperature. Properly regulated oil temperatures become even more important if you have modified your vehicle or spend time tracking your WRX. Mishimoto's direct-fit oil cooler is engineered to reduce oil temperatures and extend the life of your engine. For optimal airflow and cooling, this kit includes a large 19-row cooler that is mounted in the front bumper with robust application-specific brackets. The included application-specific CNC-machined aluminum sandwich plate has been designed to allow proper clearance of the stock oil filter. This kit includes preassembled stainless steel lines with -10AN fittings to help direct the oil to and from the cooler. With this setup, your WRX can achieve a +25 degree Fahrenheit (13.9 degree Celsius) drop in oil temperatures with minimal pressure loss. The Mishimoto Subaru WRX Oil Cooler Kit is available with either a Sleek Silver or Stealth Black oil cooler. As with all our products, this kit includes the Mishimoto Lifetime Warranty.
