TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255
TechSpec Chassis Codes: GH--GE--GR--GV
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.

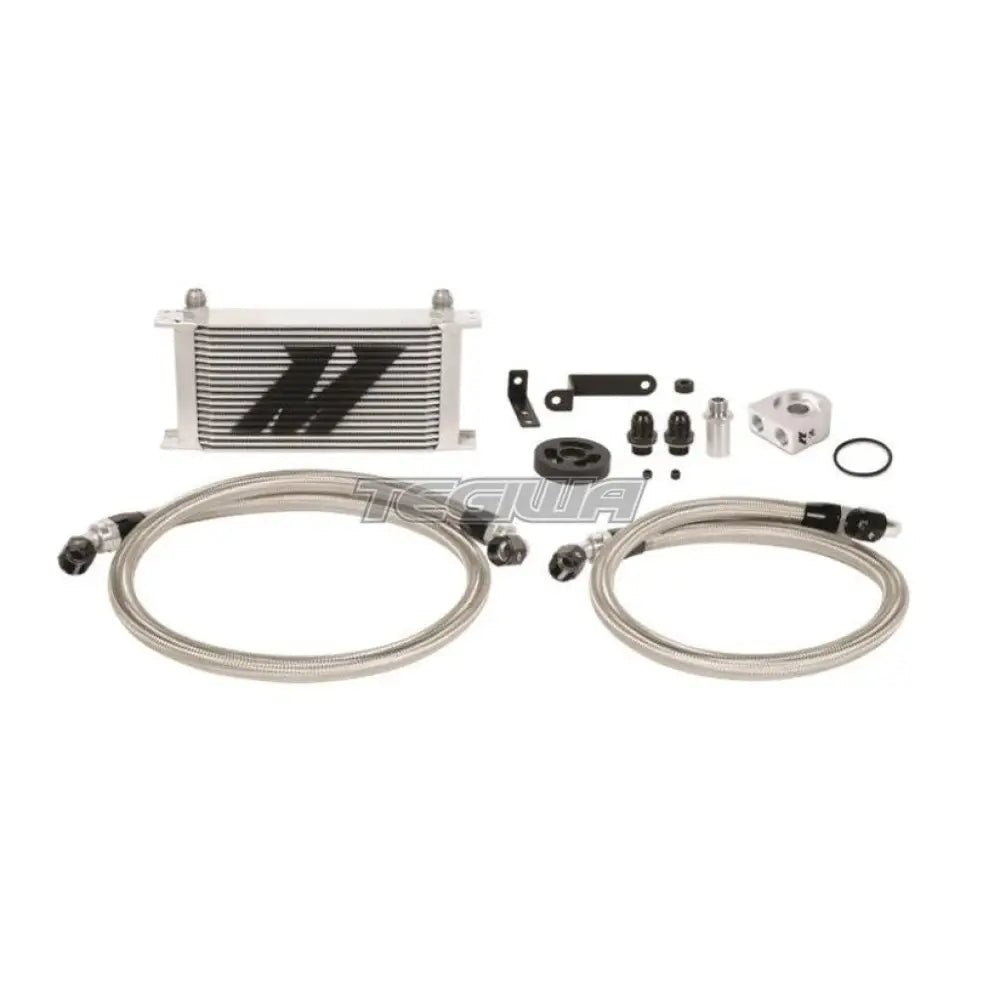

TechSpec Includes: Application Specific Mounting Brackets and Spacer--19-Row Oil Cooler--2ft, 11in Stainless Steel Braided Hose with 45-degree and 150-degree -10AN Fittings--3ft, 6in Stainless Steel Braided Hose with 45-degree and 90-degree -10AN Fittings--M20 Thermostatic Sandwich Plate--15mm CNC Sandwich Plate Spacer--Application specific M20 Sandwich Plate Adapter--M20 x -10AN Straight Fittings--2ft of thermal reflective wrap--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct fit for the 2008-2014 Subaru WRX
Proven 25 F (13.9 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation, functions with all stock equipment

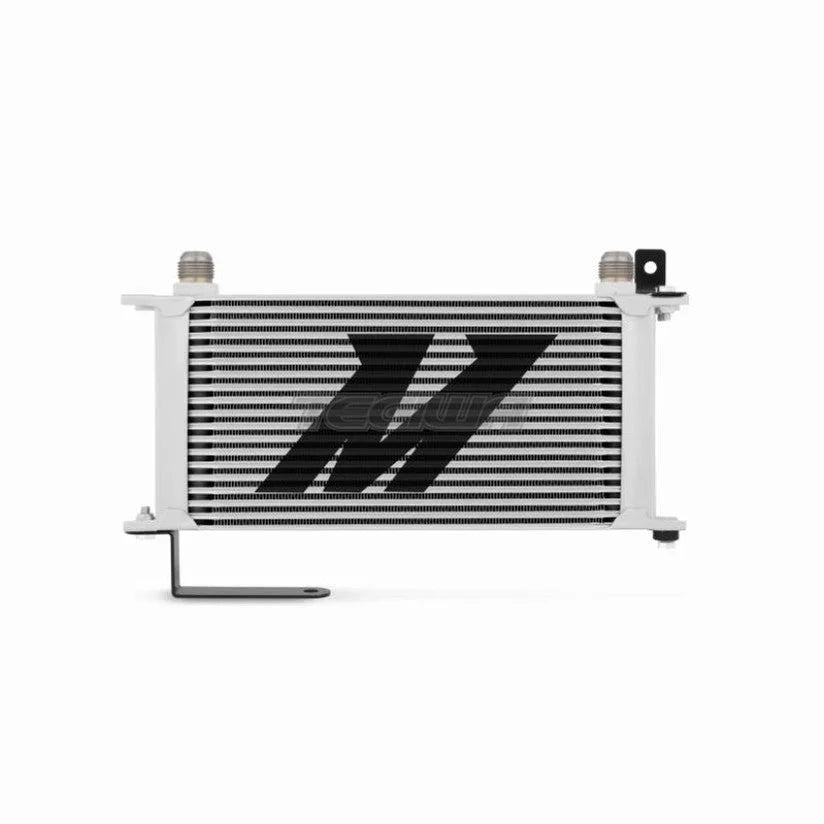

19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined application-specific sandwich plate
Works in conjunction with stock liquid-to-liquid heat exchanger for proper fluid warm-up and regulation
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255
TechSpec Chassis Codes: GH--GE--GR--GV
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Brackets and Spacer--19-Row Oil Cooler--2ft, 11in Stainless Steel Braided Hose with 45-degree and 150-degree -10AN Fittings--3ft, 6in Stainless Steel Braided Hose with 45-degree and 90-degree -10AN Fittings--M20 Thermostatic Sandwich Plate--15mm CNC Sandwich Plate Spacer--Application specific M20 Sandwich Plate Adapter--M20 x -10AN Straight Fittings--2ft of thermal reflective wrap--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct fit for the 2008-2014 Subaru WRX
Proven 25 F (13.9 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation, functions with all stock equipment
19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined application-specific sandwich plate
Works in conjunction with stock liquid-to-liquid heat exchanger for proper fluid warm-up and regulation
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty
Install Difficulty: 3

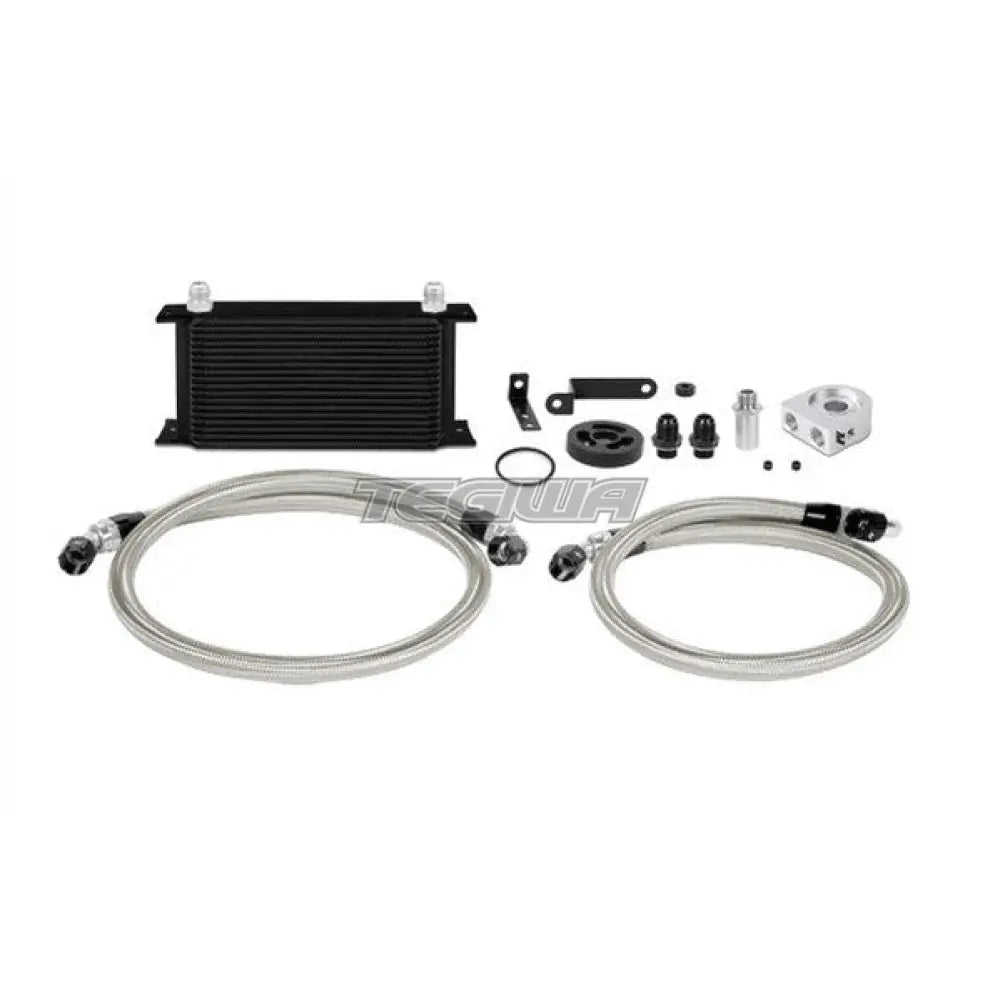

OptionLabel: Black Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255
TechSpec Chassis Codes: GH--GE--GR--GV
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Brackets and Spacer--19-Row Oil Cooler--2ft, 11in Stainless Steel Braided Hose with 45-degree and 150-degree -10AN Fittings--3ft, 6in Stainless Steel Braided Hose with 45-degree and 90-degree -10AN Fittings--M20 Thermostatic Sandwich Plate--15mm CNC Sandwich Plate Spacer--Application specific M20 Sandwich Plate Adapter--M20 x -10AN Straight Fittings--2ft of thermal reflective wrap--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct fit for the 2008-2014 Subaru WRX
Proven 25 F (13.9 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation, functions with all stock equipment
19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined application-specific sandwich plate
Works in conjunction with stock liquid-to-liquid heat exchanger for proper fluid warm-up and regulation
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty
Install Difficulty: 3

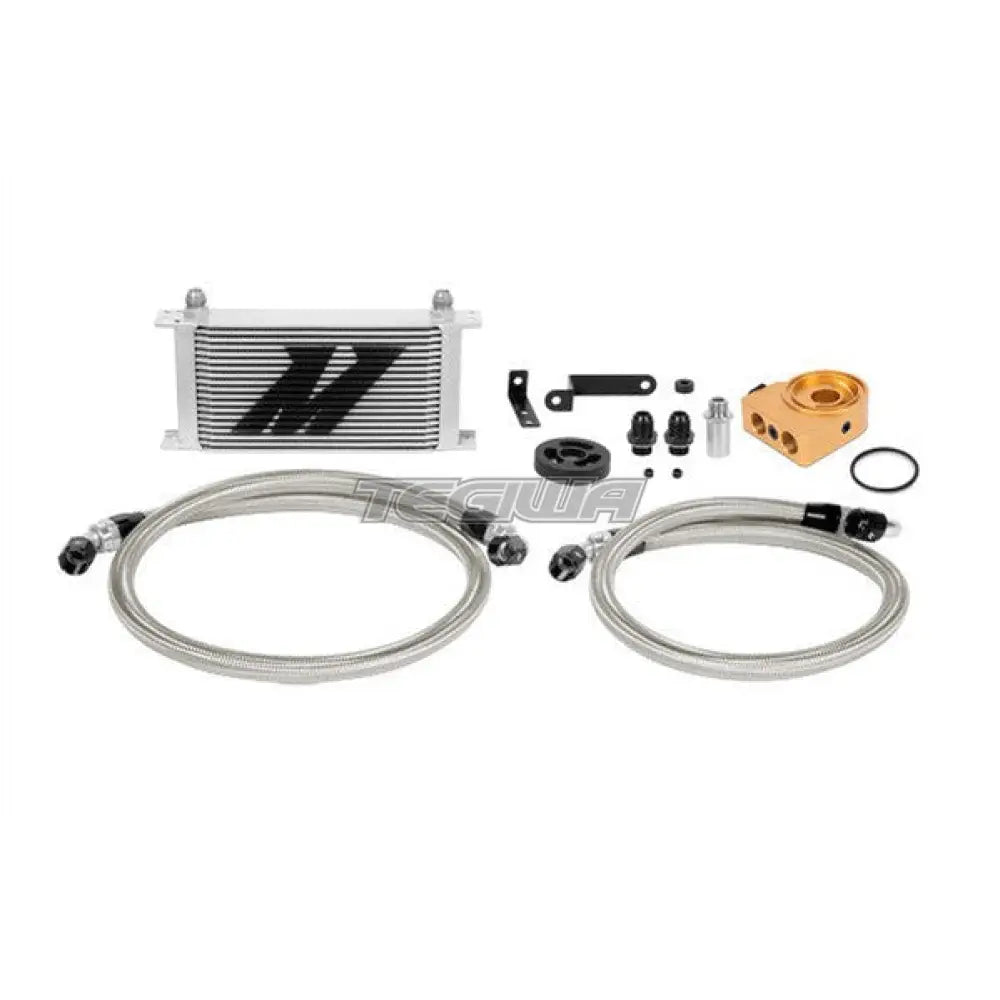

OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ255
TechSpec Chassis Codes: GH--GE--GR--GV
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Brackets and Spacer--19-Row Oil Cooler--2ft, 11in Stainless Steel Braided Hose with 45-degree and 150-degree -10AN Fittings--3ft, 6in Stainless Steel Braided Hose with 45-degree and 90-degree -10AN Fittings--M20 Thermostatic Sandwich Plate--15mm CNC Sandwich Plate Spacer--Application specific M20 Sandwich Plate Adapter--M20 x -10AN Straight Fittings--2ft of thermal reflective wrap--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct fit for the 2008-2014 Subaru WRX
Proven 25 F (13.9 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation, functions with all stock equipment
19-row oil cooler strategically mounted in the lower grille for maximum airflow
CNC-machined application-specific sandwich plate
Works in conjunction with stock liquid-to-liquid heat exchanger for proper fluid warm-up and regulation
Includes preassembled stainless steel braided oil lines with -10AN fittings
Cooler available in Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Mishimoto Lifetime Warranty
Install Difficulty: 3

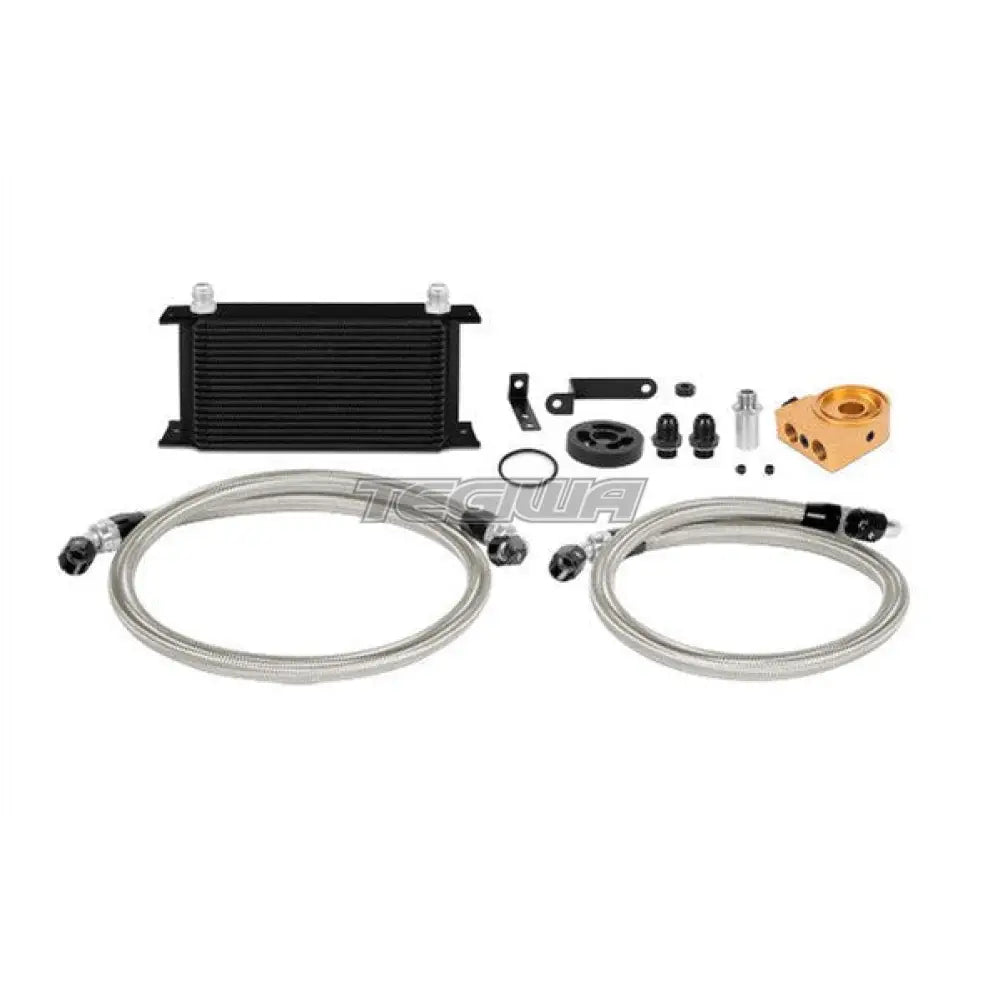

OptionLabel: Black Cooler, Thermostatic
High oil temperatures can wreak havoc on your high-performance flat four.Protect your investment with the Mishimoto direct-fit oil cooler kit designed specifically for the 2008+ Subaru WRX.The WRX has a lot to offer with its turbocharged engine and fantastic AWD system, but these vehicles are not factory-equipped with an oil cooler.Properly regulated oil temperatures become even more important if you have modified your vehicle or spend time tracking your WRX.Mishimoto's direct-fit oil cooler is engineered to reduce oil temperatures and extend the life of your engine.For optimal airflow and cooling, this kit includes a large 19-row cooler that is mounted in the front bumper with robust application-specific brackets.The included CNC-machined aluminum spacer provides ample room for our oil sandwich plate, making this kit compatible with the factory exhaust manifold heat shields.This kit includes preassembled stainless steel lines with -10AN fittings and a thermal reflective wrap that deflects radiant heat from the exhaust.With this setup, your WRX can achieve a 60-degree drop in oil temperatures with minimal pressure loss.The Mishimoto Subaru WRX oil cooler kit is available with a silver or black cooler and your choice of standard or thermostatic sandwich plates, for even greater control over your oil temperatures.As with all our products, this kit includes the Mishimoto lifetime warranty.
