TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 2.3 EcoBoost
TechSpec Chassis Codes: S-550
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application-Specific Mounting Brackets and Spacer--19-Row Oil Cooler--4-ft 3.5-in Stainless Steel Braided Hose with 45 and 120 -10AN Fittings--4-ft 10.5-in Stainless Steel Braided Hose with 90 and 120 -10AN Fittings--Oil Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: To provide maximum airflow to the front of your vehicle and the EcoBoost oil cooler, Mishimoto suggests disconnecting the connector for the front shutter doors--Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct-fit for 2015-2017 Ford Mustang EcoBoost
Reduces oil temperatures by up to 40 F (23 C)
Minimal pressure drop
Application-specific mounting bracket
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum Oil Sandwich Plate or Thermostatic Oil Sandwich Plate
19-row stacked-plate oil cooler for optimal reduction in fluid temperature
Thermostatic and non-thermostatic options available
Cooler available in Sleek Silver and Stealth Black
Increases oil capacity by 0.75 qt
Mishimoto Lifetime Warranty
Install Difficulty: 3

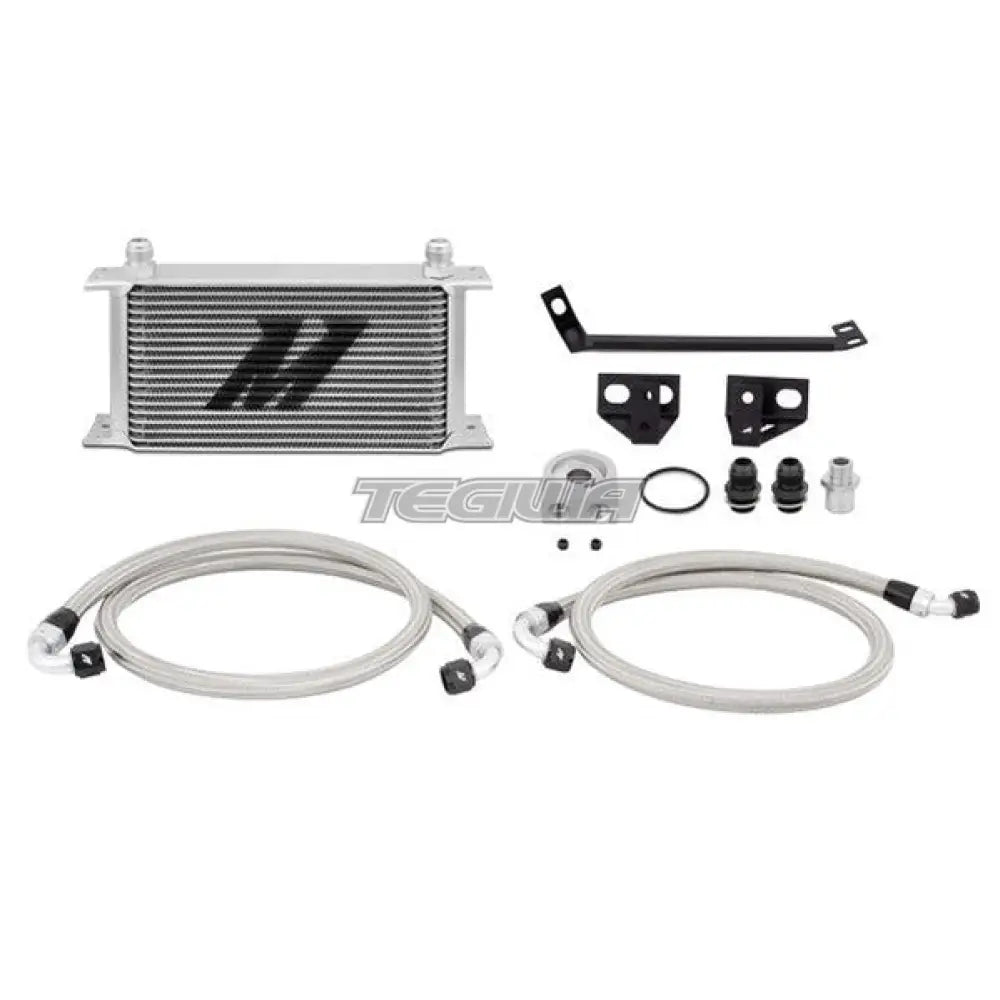

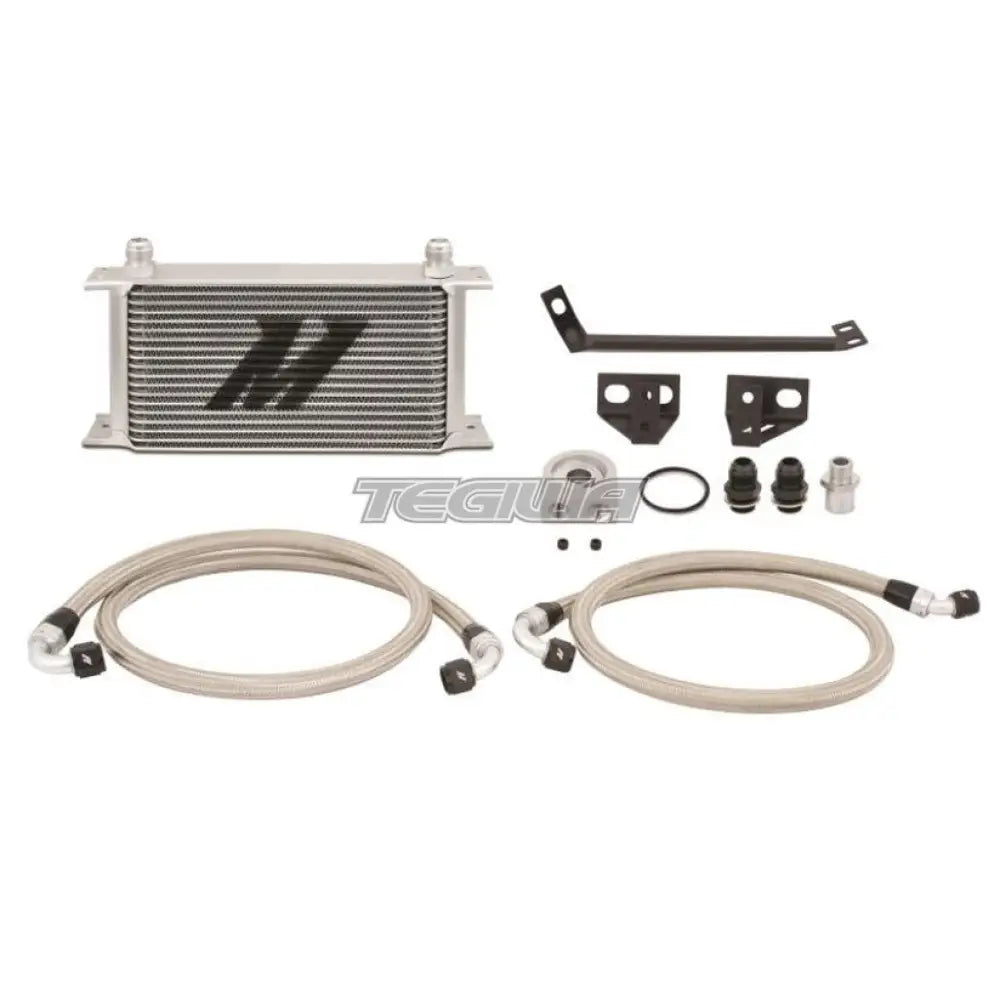

OptionLabel: Silver Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 2.3 EcoBoost
TechSpec Chassis Codes: S-550
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application-Specific Mounting Brackets and Spacer--19-Row Oil Cooler--4-ft 3.5-in Stainless Steel Braided Hose with 45 and 120 -10AN Fittings--4-ft 10.5-in Stainless Steel Braided Hose with 90 and 120 -10AN Fittings--Oil Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: To provide maximum airflow to the front of your vehicle and the EcoBoost oil cooler, Mishimoto suggests disconnecting the connector for the front shutter doors--Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct-fit for 2015-2017 Ford Mustang EcoBoost
Reduces oil temperatures by up to 40 F (23 C)
Minimal pressure drop
Application-specific mounting bracket
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum Oil Sandwich Plate or Thermostatic Oil Sandwich Plate
19-row stacked-plate oil cooler for optimal reduction in fluid temperature
Thermostatic and non-thermostatic options available
Cooler available in Sleek Silver and Stealth Black
Increases oil capacity by 0.75 qt
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 2.3 EcoBoost
TechSpec Chassis Codes: S-550
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.

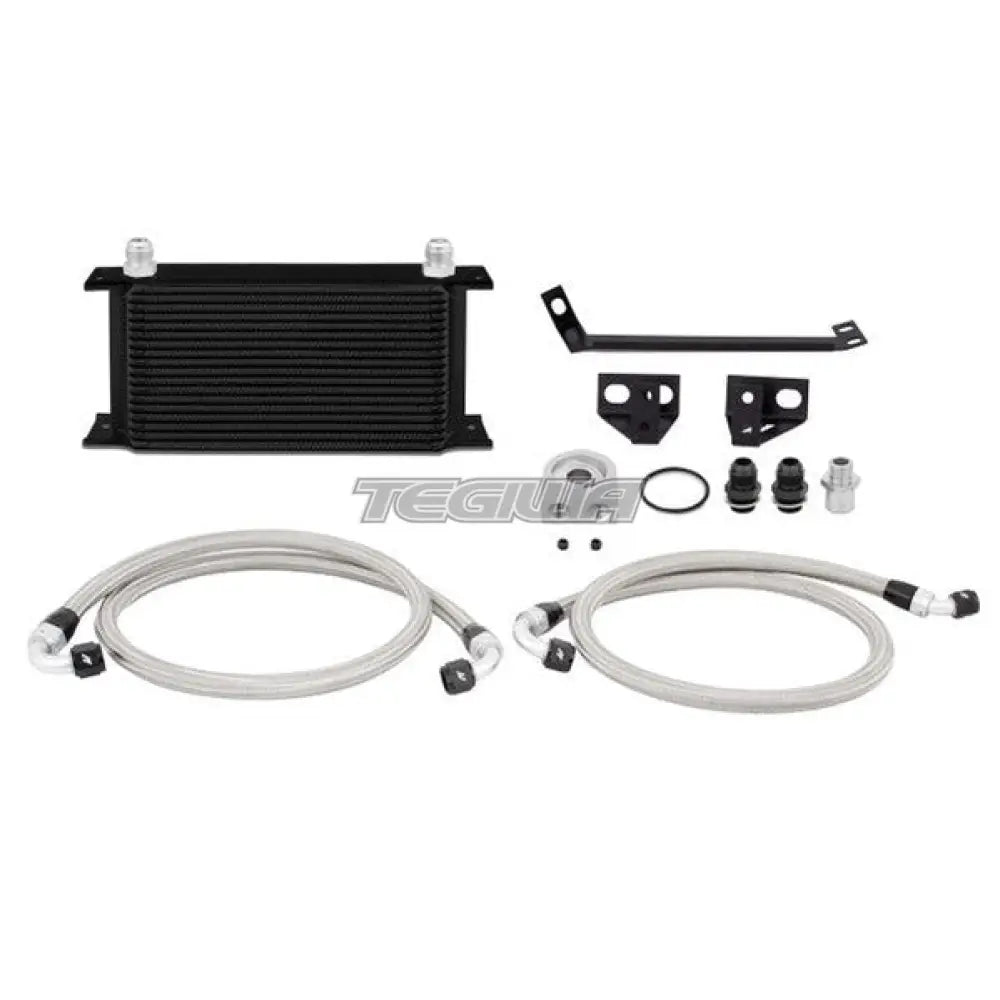

TechSpec Includes: Application-Specific Mounting Brackets and Spacer--19-Row Oil Cooler--4-ft 3.5-in Stainless Steel Braided Hose with 45 and 120 -10AN Fittings--4-ft 10.5-in Stainless Steel Braided Hose with 90 and 120 -10AN Fittings--Oil Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: To provide maximum airflow to the front of your vehicle and the EcoBoost oil cooler, Mishimoto suggests disconnecting the connector for the front shutter doors--Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct-fit for 2015-2017 Ford Mustang EcoBoost
Reduces oil temperatures by up to 40 F (23 C)
Minimal pressure drop
Application-specific mounting bracket
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum Oil Sandwich Plate or Thermostatic Oil Sandwich Plate
19-row stacked-plate oil cooler for optimal reduction in fluid temperature
Thermostatic and non-thermostatic options available
Cooler available in Sleek Silver and Stealth Black
Increases oil capacity by 0.75 qt
Mishimoto Lifetime Warranty
Install Difficulty: 3

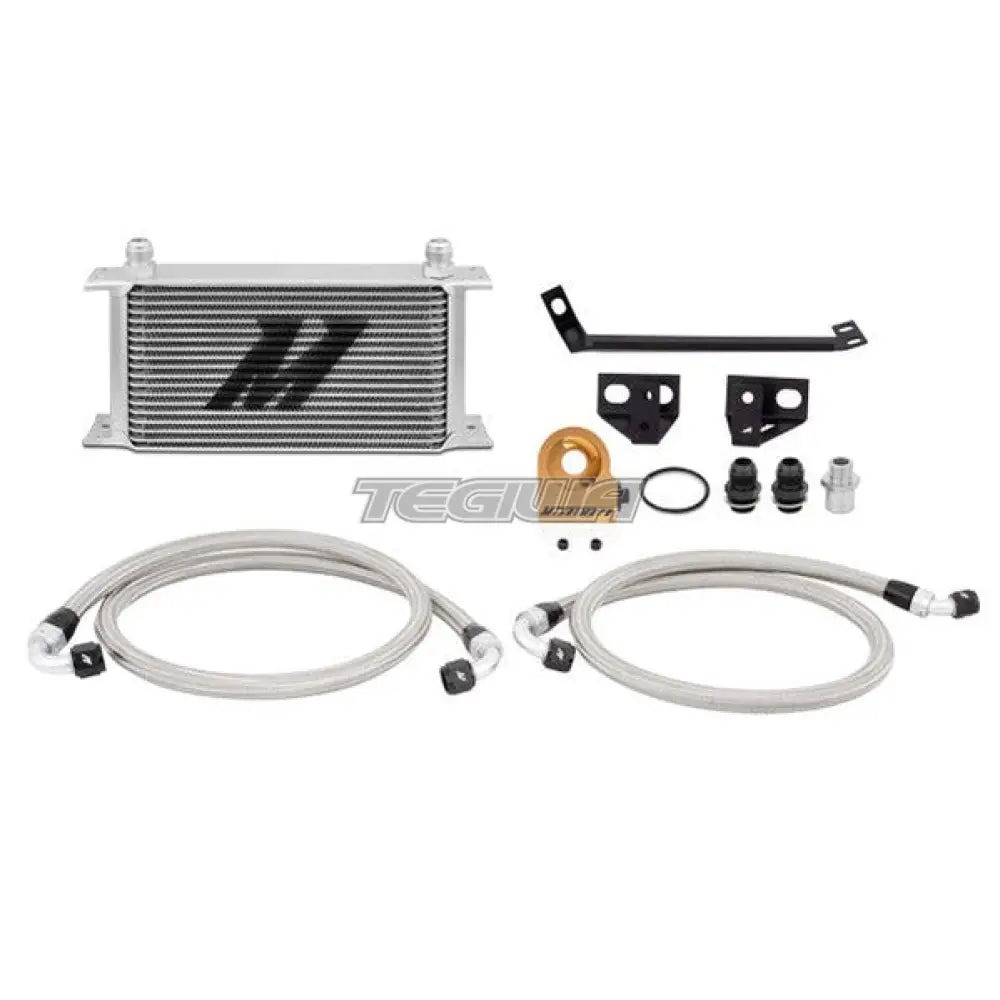

OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 2.3 EcoBoost
TechSpec Chassis Codes: S-550
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application-Specific Mounting Brackets and Spacer--19-Row Oil Cooler--4-ft 3.5-in Stainless Steel Braided Hose with 45 and 120 -10AN Fittings--4-ft 10.5-in Stainless Steel Braided Hose with 90 and 120 -10AN Fittings--Oil Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty
Note: To provide maximum airflow to the front of your vehicle and the EcoBoost oil cooler, Mishimoto suggests disconnecting the connector for the front shutter doors--Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct-fit for 2015-2017 Ford Mustang EcoBoost
Reduces oil temperatures by up to 40 F (23 C)
Minimal pressure drop
Application-specific mounting bracket
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum Oil Sandwich Plate or Thermostatic Oil Sandwich Plate
19-row stacked-plate oil cooler for optimal reduction in fluid temperature
Thermostatic and non-thermostatic options available
Cooler available in Sleek Silver and Stealth Black
Increases oil capacity by 0.75 qt
Mishimoto Lifetime Warranty
Install Difficulty: 3

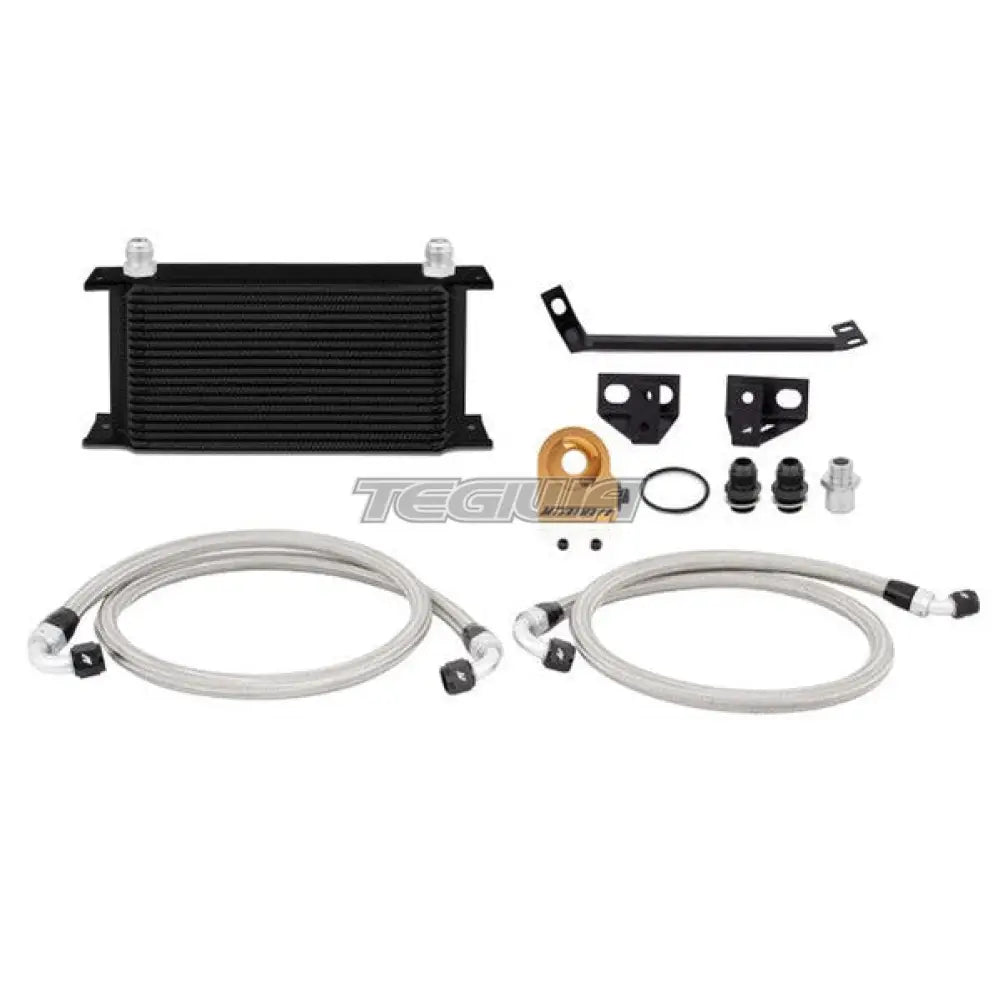

OptionLabel: Black Cooler, Thermostatic
For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4 cylinder engine producing over 300 horsepower! Turbocharged 4 cylinder engines can overheat their oil very quickly within a few laps on the track or aggressive street driving. Did you know that unlike the 5.0 liter V8, the 2.3 liter EcoBoost Mustang does not come with a factory oil cooler? Aggressive tunes and some track miles can significantly overheat your oil wear down your engine. Leave it to Mishimoto to come up with an oil cooling solution to your Mustang EcoBoost! The Mishimoto engineers started with a large 19-row oil cooler and mounted it in the front of the vehicle where it receives the most airflow. Application specific braided stainless steel lines transfer the oil from the cooler to the engine and feature -10AN fittings for an easy installation. Mishimoto engineers saw consistent temperature decreases of over 40 degrees Fahrenheit using our non-thermostatic sandwich plate. Proving that this oil cooler kit can wIt'stand the stresses of the most extreme applications. This 2015-2017 Mustang EcoBoost oil cooler kit is available with either a Sleek Silver or Stealth Black cooler and your choice of the MIshimoto Oil Sandwich Plate or the MIshimoto Thermostatic Oil Sandwich Plate. As with all our products, this Mishimoto Mustang EcoBoost Oil Cooler Kit includes the Mishimoto Lifetime Warranty.
