TechSpec Rows: 25
TechSpec Core Length (in): 11
TechSpec Core Height (in): 7.32
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 5.0L Coyote
TechSpec Chassis Codes: S-197
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.

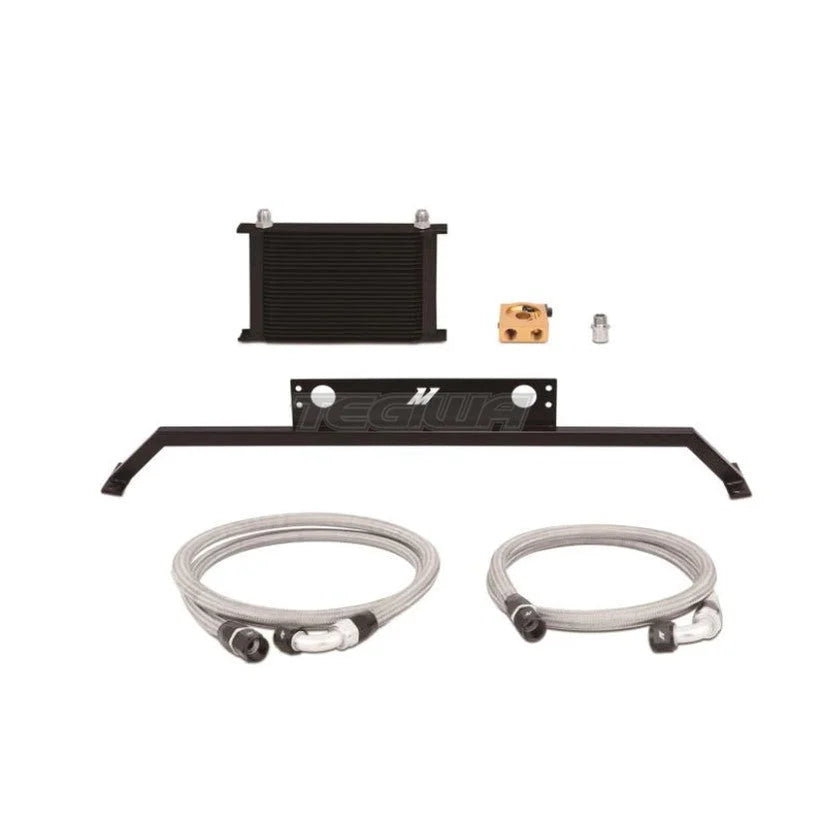

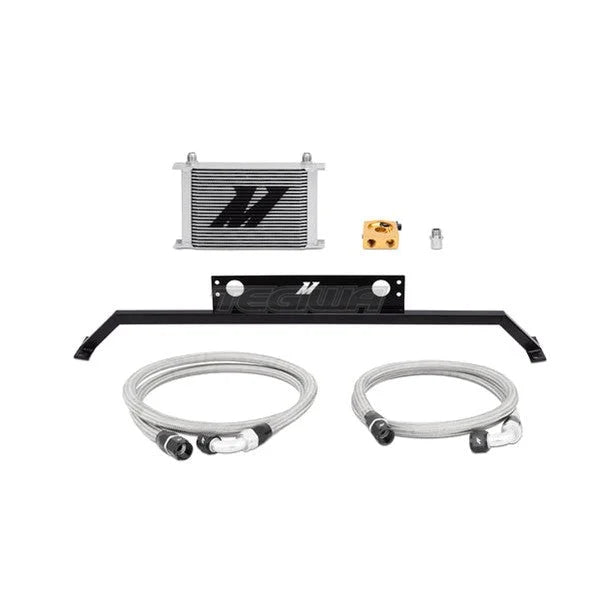

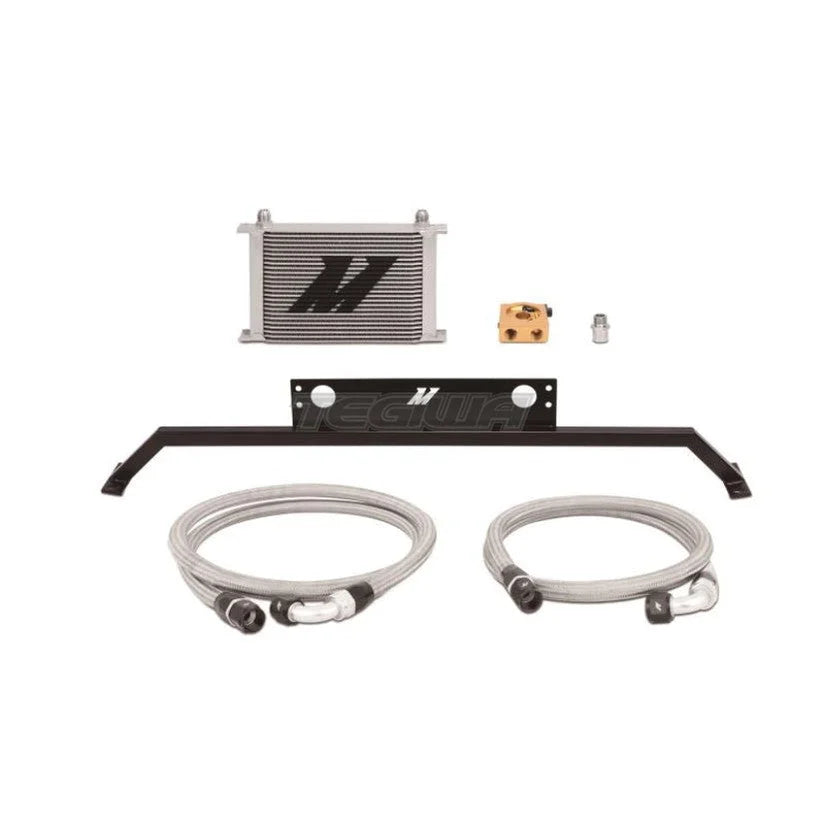

TechSpec Includes: Application Specific Mounting Bracket--25-Row Oil Cooler--3ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--4ft 7.5in Stainless Steel Braided Hose w/ -10AN Fittings--M22 Thermostatic Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M22 x 1.5--M20 x -10AN Straight Fittings--1/8-in NPT Plugs--Large O-ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2011-2014 Ford Mustang GT
Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct-fit for the 2011-2014 Ford Mustang 5.0L
Reduces oil temperatures by 35 F

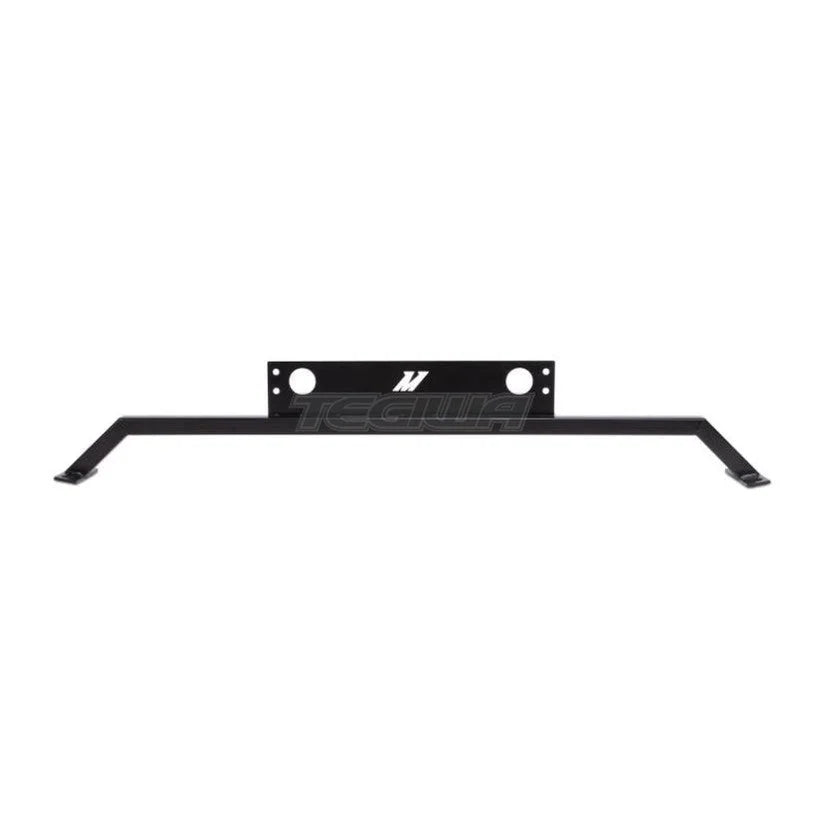

Application-specific mounting bracket
Pre-made stainless steel braided oil lines with durable -AN fittings
Billet aluminum thermostatic oil sandwich plate
25-row stacked-plate oil cooler for optimal fluid temperature reduction
Cooler available in either Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 25
TechSpec Core Length (in): 11
TechSpec Core Height (in): 7.32
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 5.0L Coyote
TechSpec Chassis Codes: S-197
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Bracket--25-Row Oil Cooler--3ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--4ft 7.5in Stainless Steel Braided Hose w/ -10AN Fittings--M22 Thermostatic Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M22 x 1.5--M20 x -10AN Straight Fittings--1/8-in NPT Plugs--Large O-ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2011-2014 Ford Mustang GT
Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct-fit for the 2011-2014 Ford Mustang 5.0L
Reduces oil temperatures by 35 F
Application-specific mounting bracket
Pre-made stainless steel braided oil lines with durable -AN fittings
Billet aluminum thermostatic oil sandwich plate
25-row stacked-plate oil cooler for optimal fluid temperature reduction

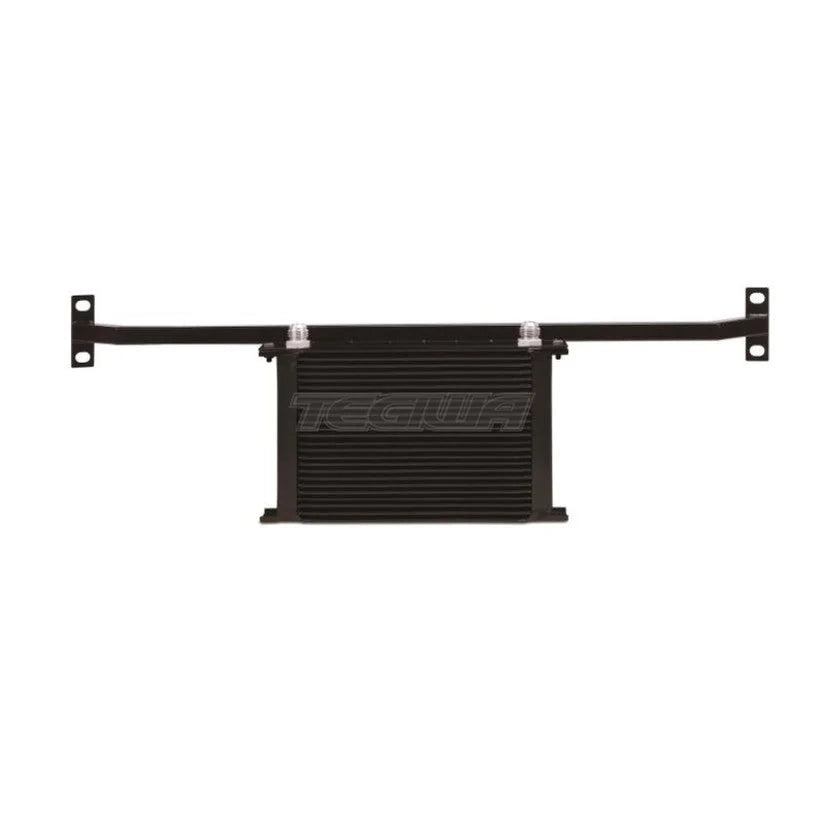

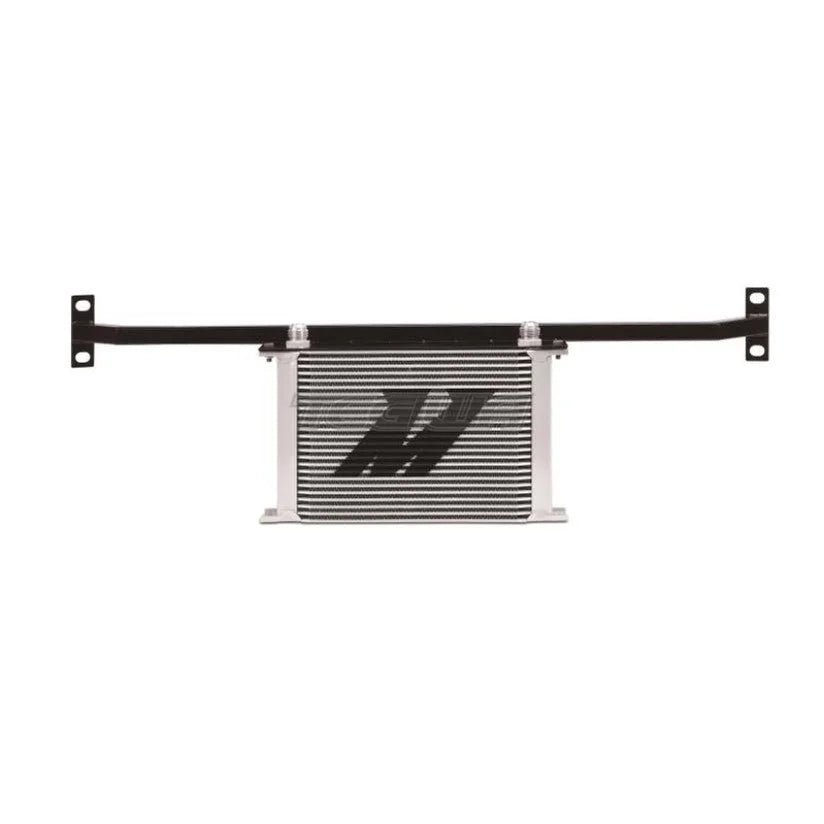

Cooler available in either Sleek Silver or Stealth Black
Increases oil capacity by 0.75 qt
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler, Thermostatic
Keep your Coyote-powered Mustang cool on the street and track with the Mishimoto direct-fit oil cooler kit. The 5.0L Mustang is a powerful vehicle that has proven effective on the street, track, drag strip, and drift circuit. Aggressive driving has a direct effect on oil temperatures. High oil temperatures can result in a loss of oil viscosity, which leads to inferior lubrication and premature engine wear. This kit increases oil capacity by 0.75 qt and is proven to reduce oil temperatures by 35 degrees Fahrenheit! The Mishimoto Ford Mustang Oil Cooler Kit features an application-specific mounting bracket that mounts to existing points on the front bumper support. This bracket places the efficient Mishimoto 25-row stacked-plate oil cooler in a location for maximum airflow and fluid temperature reduction. This kit also includes preassembled stainless steel braided oil lines with durable -AN fittings, a billet aluminum thermostatic sandwich plate and all necessary hardware for installation. The included thermostatic sandwich plate provides quicker oil warm-up and enhanced regulation of oil temperatures, perfect for your street or track car. As with all our products, this kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
