TechSpec Rows: 25
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97

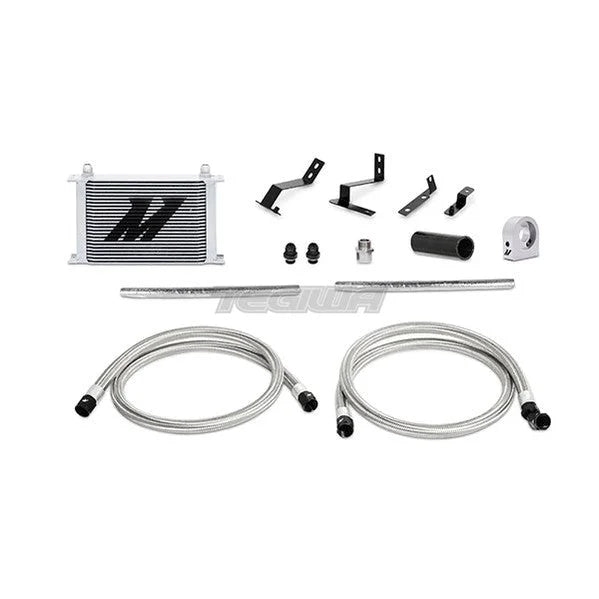

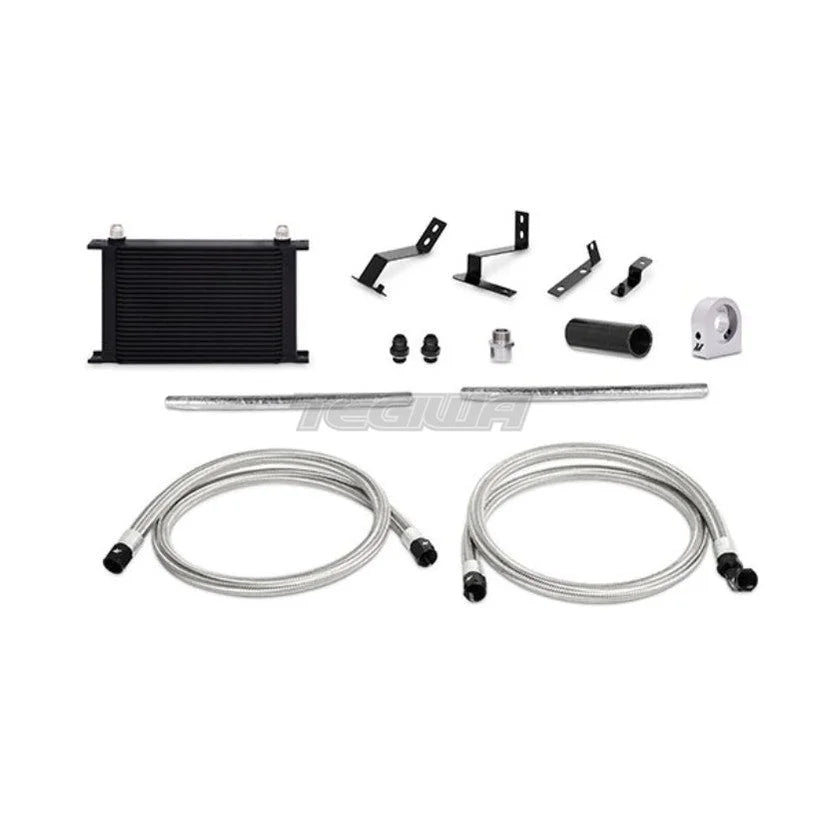

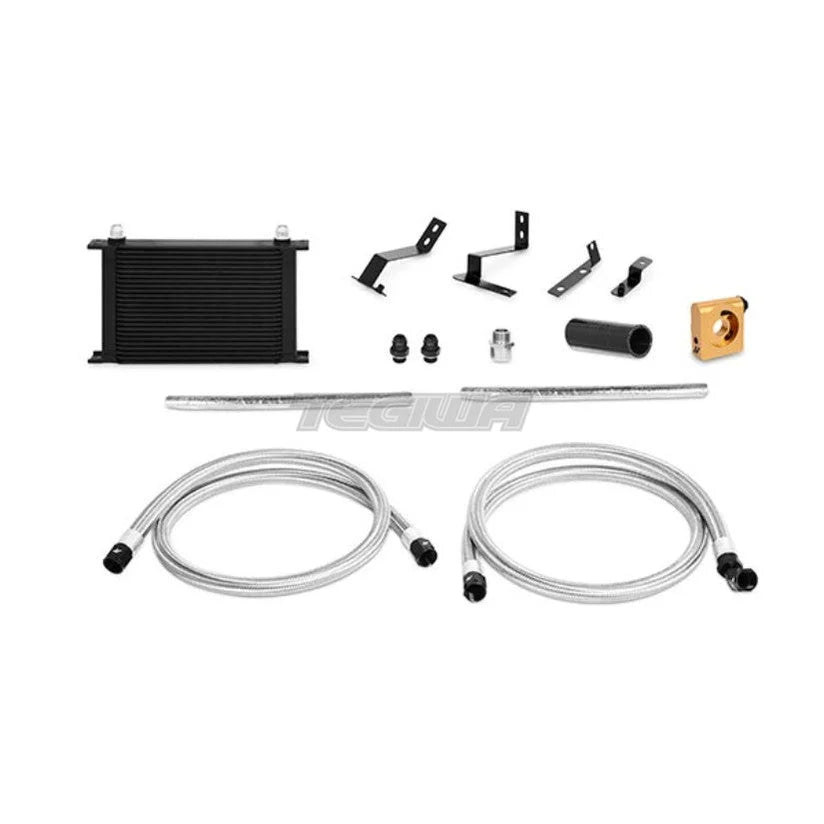

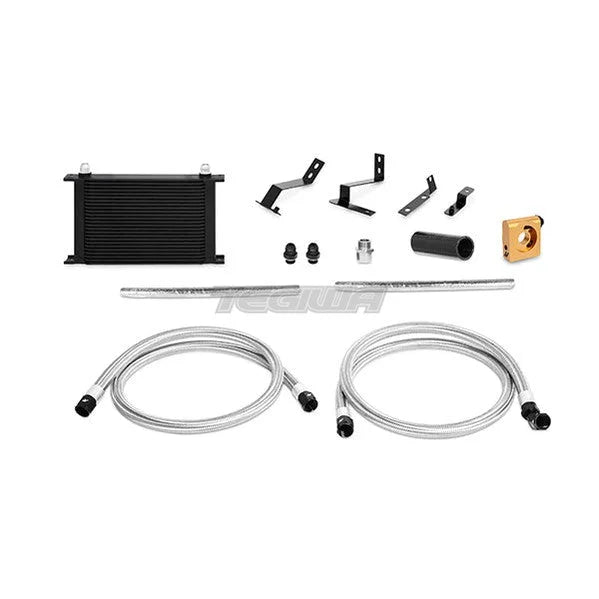

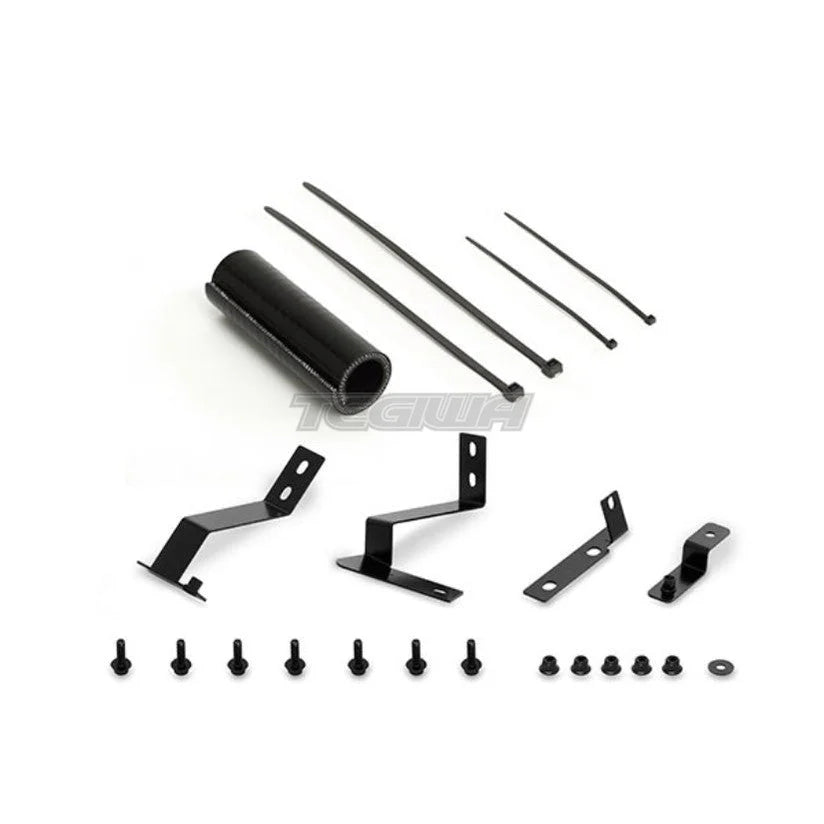

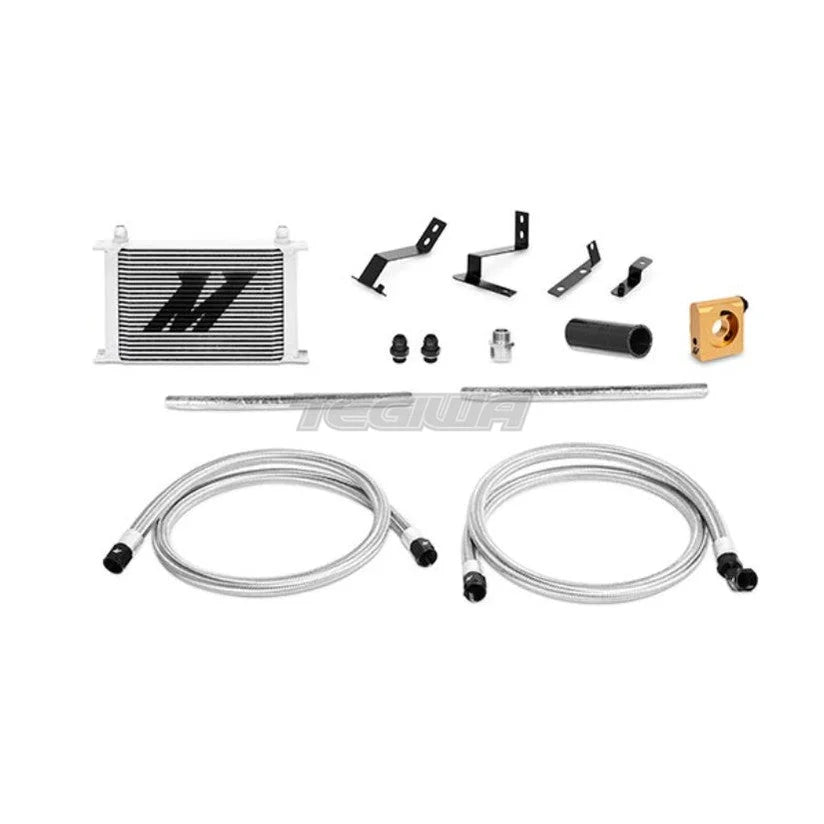

TechSpec Includes: Application Specific Mounting Brackets w/ Corrosion Resistant Mounting Hardware--Horn Relocation Mounting Bracket--25 Row Oil Cooler--4ft 4in Stainless Steel Braided Hose with Straight -10AN Fittings--4ft 10in Stainless Steel Braided Hose with Straight and 45 -10AN Fittings--M22 Oil Sandwich Plate--M22 x 1.5 Sandwich Plate Adapter--M20 x -10AN Sandwich Plate Fitting with Dowty Seal, Black--1ft Thermal Heat Wrap--Zip ties--4-in Hose
Note: This oil cooler kit retains the use of any stock oil cooler components your vehicle came with.
Features:
Direct-fit for the 2016 Chevrolet Camaro 2.0T
Reduces oil temperatures by up to 60F
Minimal pressure drop
Application-specific mounting brackets
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
Thermostatic and non-thermostatic options available
25-row stacked-plate oil cooler for optimal reduction in fluid temperature
Increases oil capacity by 0.75qt
Cooler available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Stealth Black, Non-Thermostatic
TechSpec Rows: 25
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: Application Specific Mounting Brackets w/ Corrosion Resistant Mounting Hardware--Horn Relocation Mounting Bracket--25 Row Oil Cooler--4ft 4in Stainless Steel Braided Hose with Straight -10AN Fittings--4ft 10in Stainless Steel Braided Hose with Straight and 45 -10AN Fittings--M22 Oil Sandwich Plate--M22 x 1.5 Sandwich Plate Adapter--M20 x -10AN Sandwich Plate Fitting with Dowty Seal, Black--1ft Thermal Heat Wrap--Zip ties--4-in Hose
Note: This oil cooler kit retains the use of any stock oil cooler components your vehicle came with.
Features:
Direct-fit for the 2016 Chevrolet Camaro 2.0T
Reduces oil temperatures by up to 60F
Minimal pressure drop
Application-specific mounting brackets
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
Thermostatic and non-thermostatic options available
25-row stacked-plate oil cooler for optimal reduction in fluid temperature
Increases oil capacity by 0.75qt
Cooler available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Sleek Silver, Non-Thermostatic
TechSpec Rows: 25
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: Application Specific Mounting Brackets w/ Corrosion Resistant Mounting Hardware--Horn Relocation Mounting Bracket--25 Row Oil Cooler--4ft 4in Stainless Steel Braided Hose with Straight -10AN Fittings--4ft 10in Stainless Steel Braided Hose with Straight and 45 -10AN Fittings--M22 Oil Sandwich Plate--M22 x 1.5 Sandwich Plate Adapter--M20 x -10AN Sandwich Plate Fitting with Dowty Seal, Black--1ft Thermal Heat Wrap--Zip ties--4-in Hose
Note: This oil cooler kit retains the use of any stock oil cooler components your vehicle came with.
Features:
Direct-fit for the 2016 Chevrolet Camaro 2.0T
Reduces oil temperatures by up to 60F
Minimal pressure drop
Application-specific mounting brackets
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
Thermostatic and non-thermostatic options available
25-row stacked-plate oil cooler for optimal reduction in fluid temperature
Increases oil capacity by 0.75qt
Cooler available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Stealth Black, Thermostatic
TechSpec Rows: 25
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: Application Specific Mounting Brackets w/ Corrosion Resistant Mounting Hardware--Horn Relocation Mounting Bracket--25 Row Oil Cooler--4ft 4in Stainless Steel Braided Hose with Straight -10AN Fittings--4ft 10in Stainless Steel Braided Hose with Straight and 45 -10AN Fittings--M22 Oil Sandwich Plate--M22 x 1.5 Sandwich Plate Adapter--M20 x -10AN Sandwich Plate Fitting with Dowty Seal, Black--1ft Thermal Heat Wrap--Zip ties--4-in Hose
Note: This oil cooler kit retains the use of any stock oil cooler components your vehicle came with.
Features:
Direct-fit for the 2016 Chevrolet Camaro 2.0T
Reduces oil temperatures by up to 60F
Minimal pressure drop
Application-specific mounting brackets
Premade braided stainless steel oil lines with durable -AN fittings
Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
Thermostatic and non-thermostatic options available
25-row stacked-plate oil cooler for optimal reduction in fluid temperature
Increases oil capacity by 0.75qt
Cooler available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
OptionLabel: Sleek Silver, Thermostatic
As car enthusiasts, we know how important it is to protect your beloved vehicle. To us, and to you, our cars and the parts they comprise are so valuable to us that they take on a life of their own ? make sure the life of your Camaro and its turbocharged LTG under the hood is a long one with the Mishimoto Direct-Fit Oil Cooler kit for the 2016+Camaro 2.0T.Available in either thermostatic or non-thermostatic configurations, our oil cooler kit incorporates a high-quality billet aluminum sandwich plate, an all-aluminum 25-row stacked heat exchanger core, and braided stainless steel lines with durable -AN fittings to cool the oil in your LTG by up to 60?F. Oil that gets too hot will not properly lubricate your engine?s internals, and that could spell disaster for your LTG, especially if you like to push the limits of your ride on the track, at the strip, or on the autocross course. This oil cooler sits behind the front bumper of your Camaro, securely mounted on the provided application-specific mounting brackets. Available in Sleek Silver or Stealth Black, every Mishimoto Oil Cooler Kit includes the Mishimoto lifetime warranty.
