TechSpec Engine Codes: S55
TechSpec Chassis Codes: F80--F82--F83--F87
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 7
TechSpec Overall Length (in): 29.2
TechSpec Overall Width (in): 1.6

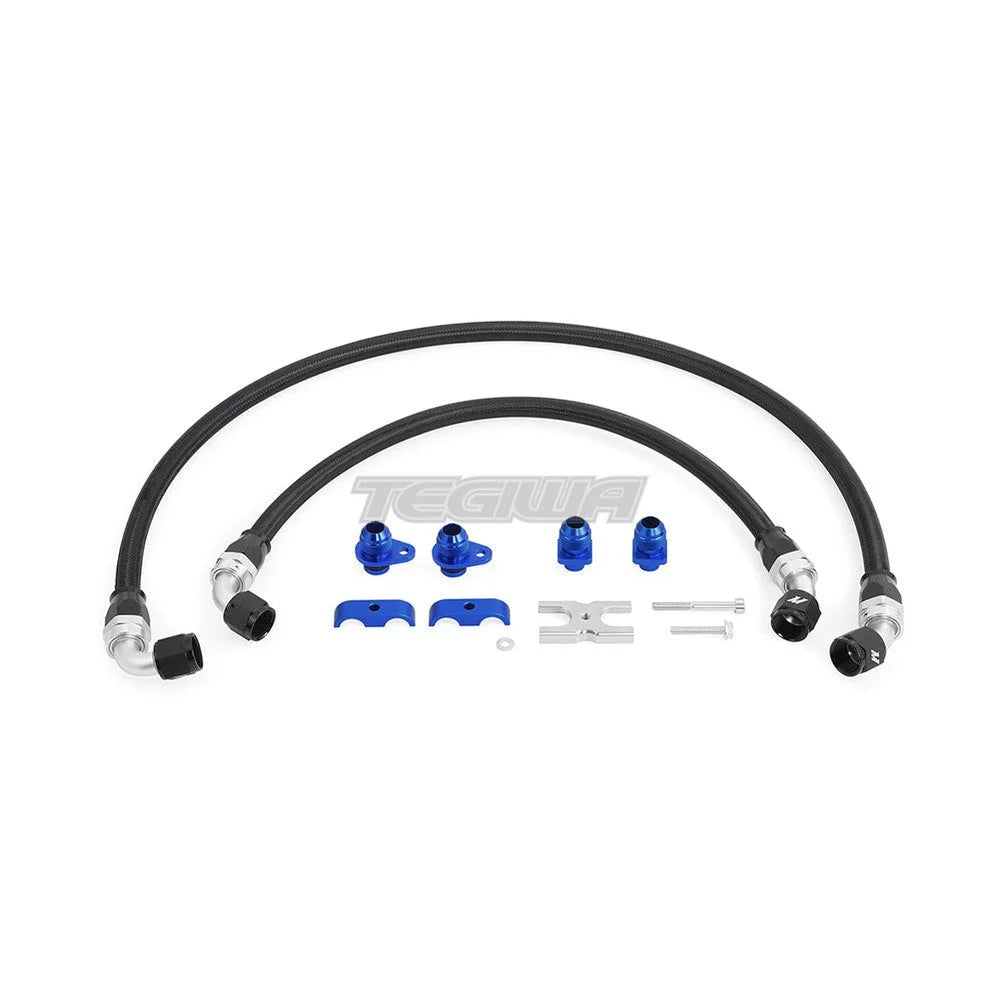

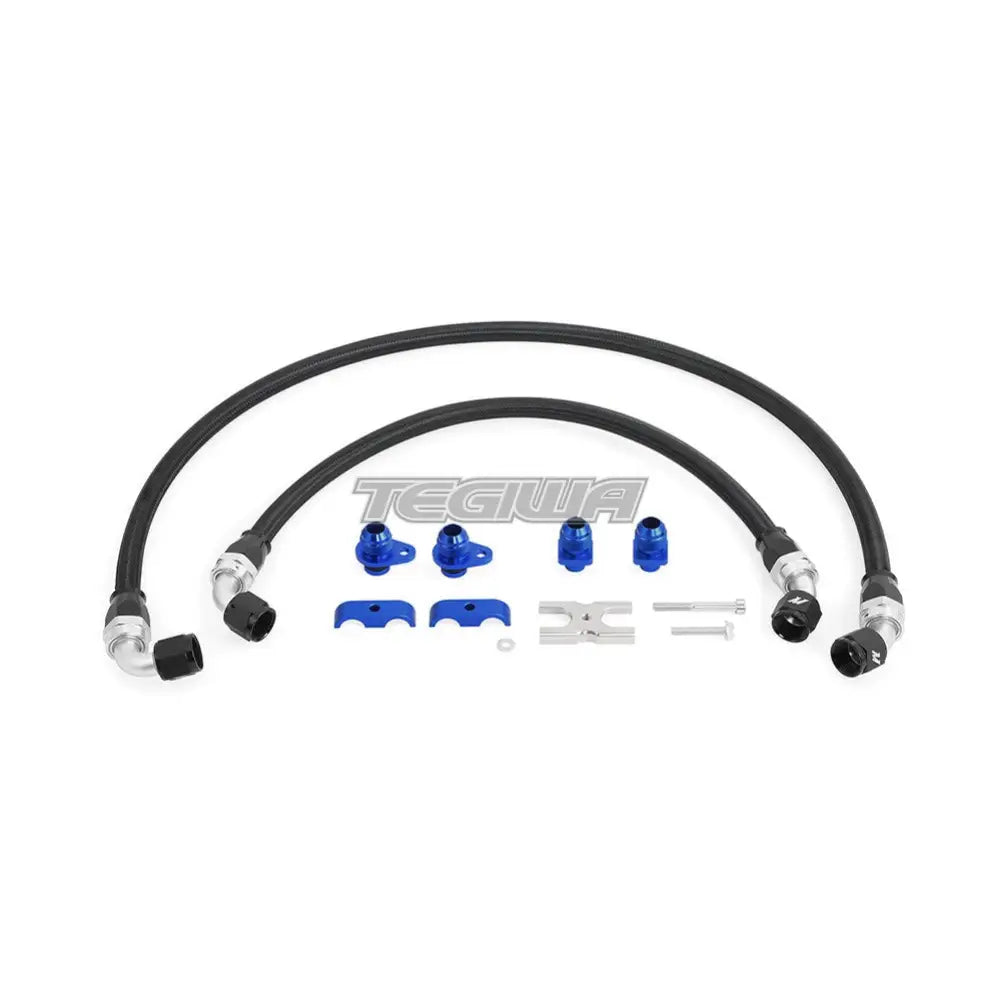

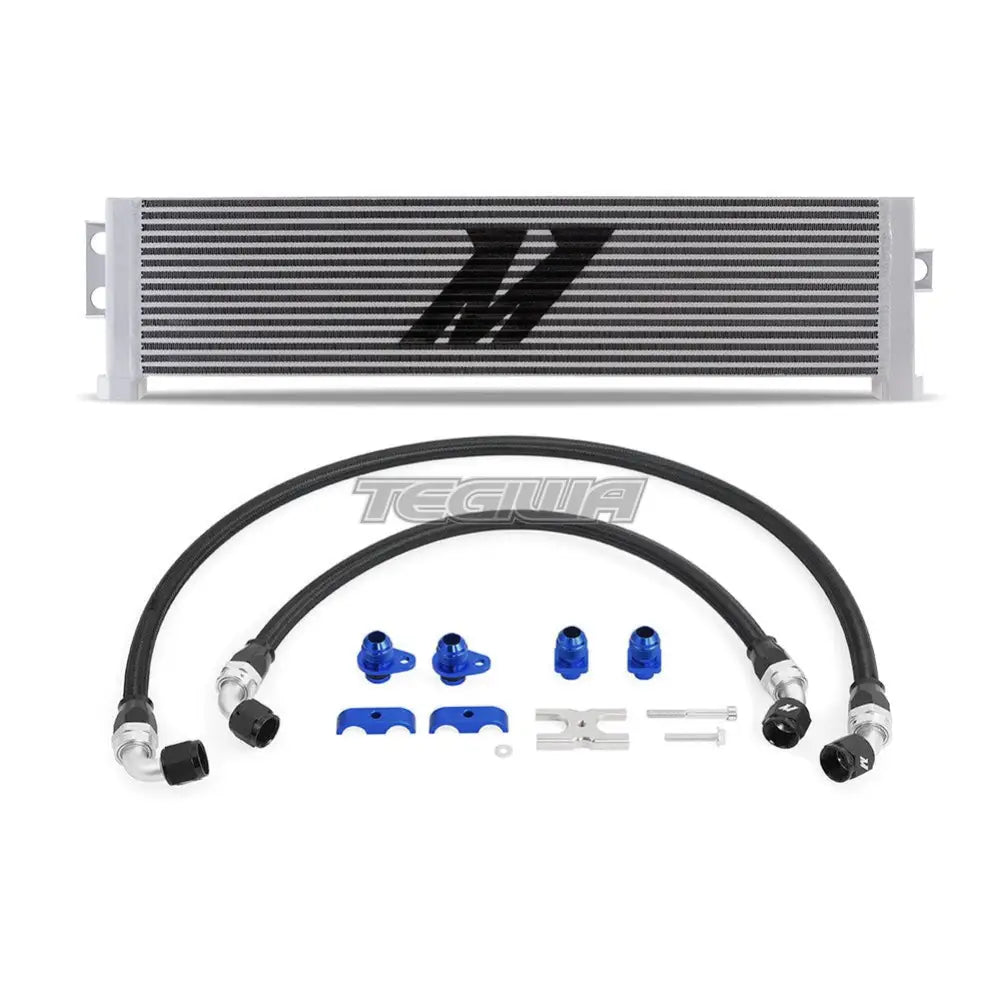

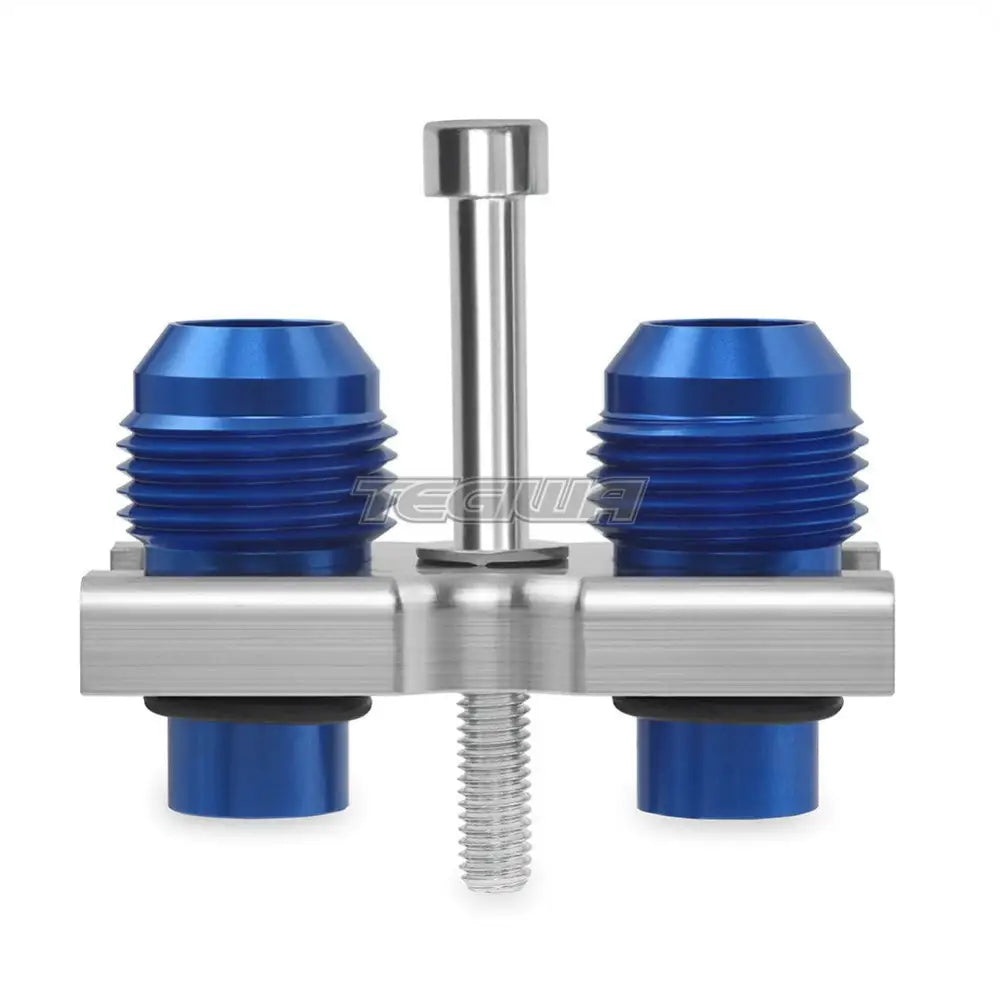

TechSpec Includes: Oil Cooler--1ft, 10in Nylon Braided hose with 45 and 70 -10AN Fittings--3ft, 3in Nylon Braided Hose with 45 and 90 -10AN Fittings--MMOCF-F80--Application Specific Oil Cooler Adaptors--Braided Line Separator Bracket--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2015-2018 BMW M3 Sedan--2015-2020 BMW M4 Coupe--2015-2020 BMW M4 Convertible--2016 BMW M4 GTS Coupe--2019-2020 BMW M4 CS Coupe--2019-2020 BMW M2 Competition--2020 BMW X3 M--2021 BMW X3 M--2022 BMW X3 M--2020 BMW X4 M--2021 BMW X4 M
Features:Direct fit for the 2015-2020 BMW F8X M3, M4, and M2 Competition
Kit includes oil line fitting kit, along with oil cooler adapters for use of nylon braided lines
Full aluminum TIG-welded construction
46-percent increase in core volume
Increases oil capacity by .44 quarts
Robust bar-and-plate construction for improved durability and heat rejection
Silver powder-coated finish for maximum protection
Application-specific nylon braided hoses with -10AN fittings
No cutting or modifications required
Mishimoto Lifetime Warranty
Install Difficulty: 2
Add some much-needed durability and cooling power to your M3 or M4 with the Mishimoto 2015-2020 BMW M3/M4 Oil Cooler kit. True to form, the BMW engineers designed the M3/M4's oil cooler with efficient space use in mind. Suspended perpendicular from the rest of the cooling stack, this location utilizes the Bimmer's aerodynamics in order to cool the oil, all while putting the lightweight, tube-and-fin cooler in harm's way of road hazards. We here at Mishimoto made sure to beef up the entire oil cooling system design for the F80/82 with our performance oil cooler. We ditched the lightweight design for a full aluminum, TIG-welded bar-and-plate cooler for added strength and cooling. The bars and plates are a much more robust form of heat exchanger core construction intended for improved heat transfer and have the strength to shrug off potential road debris, keeping your oil temps down and where it should be. We also added 10mm to the core's thickness, equating in a 46-percent increase in core volume, and increased the oil capacity by .4 qt. In addition we wanted to add an extra degree of protection to the system by improving on the lines. From the factory, these vehicles are equipped with unforgiving hardlines that are prone to abrasion and corrosion damage. Our oil cooler kit provides a pair of application-specific, flexible, and robust nylon braided lines for a more secure channel for your M's oil. Also included are our specially designed adaptors allowing for AN fittings from the S55's oil pump and a secure connection to the oil cooler.The Mishimoto 2015-2020 BMW M3/M4 Oil Cooler Kit fits directly in place of the stock unit, and includes the Mishimoto Lifetime Warranty for a simplified and worry-free installation.
