TechSpec Overall Height (in): 20
TechSpec Overall Length (in): 27
TechSpec Overall Width (ins): 3
TechSpec Core Length (in): 22.24
TechSpec Core Height (in): 18.43
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 2.2
TechSpec Material: Aluminum
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
Features:Universal fitment for projects requiring exceptional fluid cooling
Unique dual pass design is precision engineered to provide substantial heat transfer
Full aluminum construction with brazed core for optimal durability and pressure tolerance
1.3 Bar High-Pressure Radiator Cap raises the coolant boiling point, providing a safer and more efficient system
Efficient, two-row core measuring 55mm thick, provides substantial fluid capacity and superior fluid temperature reduction
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

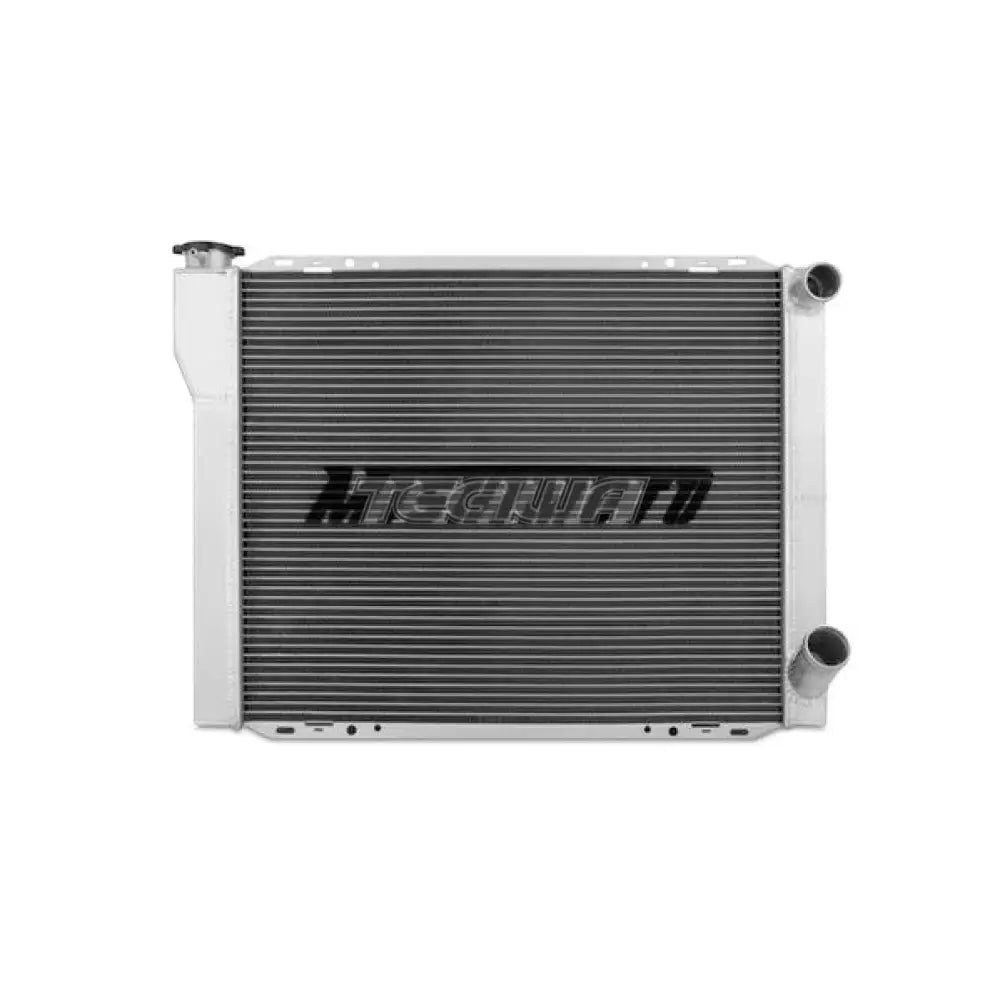

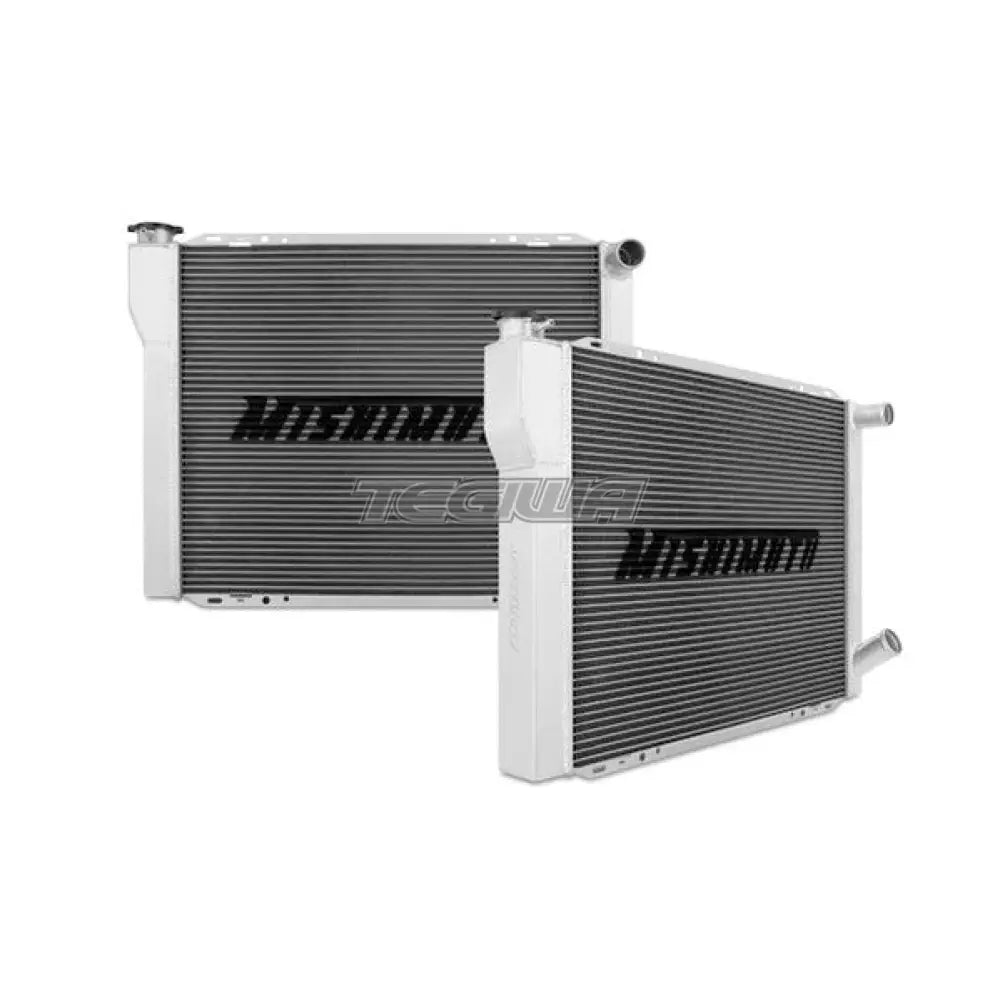

Mishimoto'sports 27in x 19in x 3in Dual Pass Race Radiator.Perfect for any vehicle competing in motorsports.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.
