TechSpec Overall Height (in): 2.5
ASM: Universal
TechSpec Overall Length (in): 2.13
TechSpec Overall Width (ins): 0.051
TechSpec Inlet (in): 0.24
TechSpec Outlet (in): 0.24
TechSpec Material: Aluminum
Note: 0.25-inch/6mm vacuum hoses recommended.--Mishimoto recommends making adjustments in small incremements and testing until your desired boost level is reached.--Tuning is required when adjusting boost levels.--The boost adjustment knob has a left handed thread. Please do not over tighten as this will damage the boost controller.

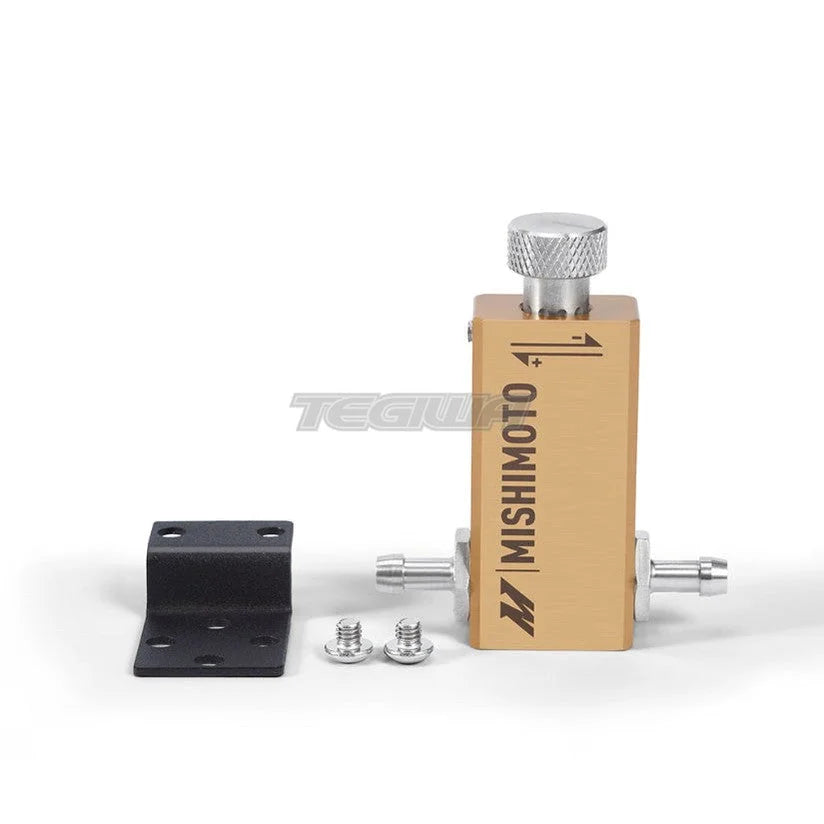

TechSpec Includes: Mishimoto Manual Boost Controller-- Mounting Bracket--Mishimoto Lifetime Warranty
Features:
Adjust boost level with the turn of a knob
Constructed from 6061 anodized aluminum and stainless-steel
Precision machined detents for linear and repeatable boost adjustments
Nitrile O-rings resist degradation from oil and fuel
CNC-machined stainless-steel fittings to ensure leak free connections
Knurled stainless-steel knob for easy adjustment
Can be mounted anywhere with included universal bracket
30psi Maximum Boost
Precision CNC machined body ensures smooth flow and reliable performance
Available in durable black or gold anodized finish
Easy to install
Mishimoto Lifetime Warranty
Install Difficulty: 1
OptionLabel: Black
TechSpec Overall Height (in): 2.5
ASM: Universal
TechSpec Overall Length (in): 2.13
TechSpec Overall Width (ins): 0.051
TechSpec Inlet (in): 0.24
TechSpec Outlet (in): 0.24
TechSpec Material: Aluminum
Note: 0.25-inch/6mm vacuum hoses recommended.--Mishimoto recommends making adjustments in small incremements and testing until your desired boost level is reached.--Tuning is required when adjusting boost levels.--The boost adjustment knob has a left handed thread. Please do not over tighten as this will damage the boost controller.
TechSpec Includes: Mishimoto Manual Boost Controller-- Mounting Bracket--Mishimoto Lifetime Warranty
Features:
Adjust boost level with the turn of a knob
Constructed from 6061 anodized aluminum and stainless-steel
Precision machined detents for linear and repeatable boost adjustments
Nitrile O-rings resist degradation from oil and fuel
CNC-machined stainless-steel fittings to ensure leak free connections
Knurled stainless-steel knob for easy adjustment
Can be mounted anywhere with included universal bracket
30psi Maximum Boost
Precision CNC machined body ensures smooth flow and reliable performance

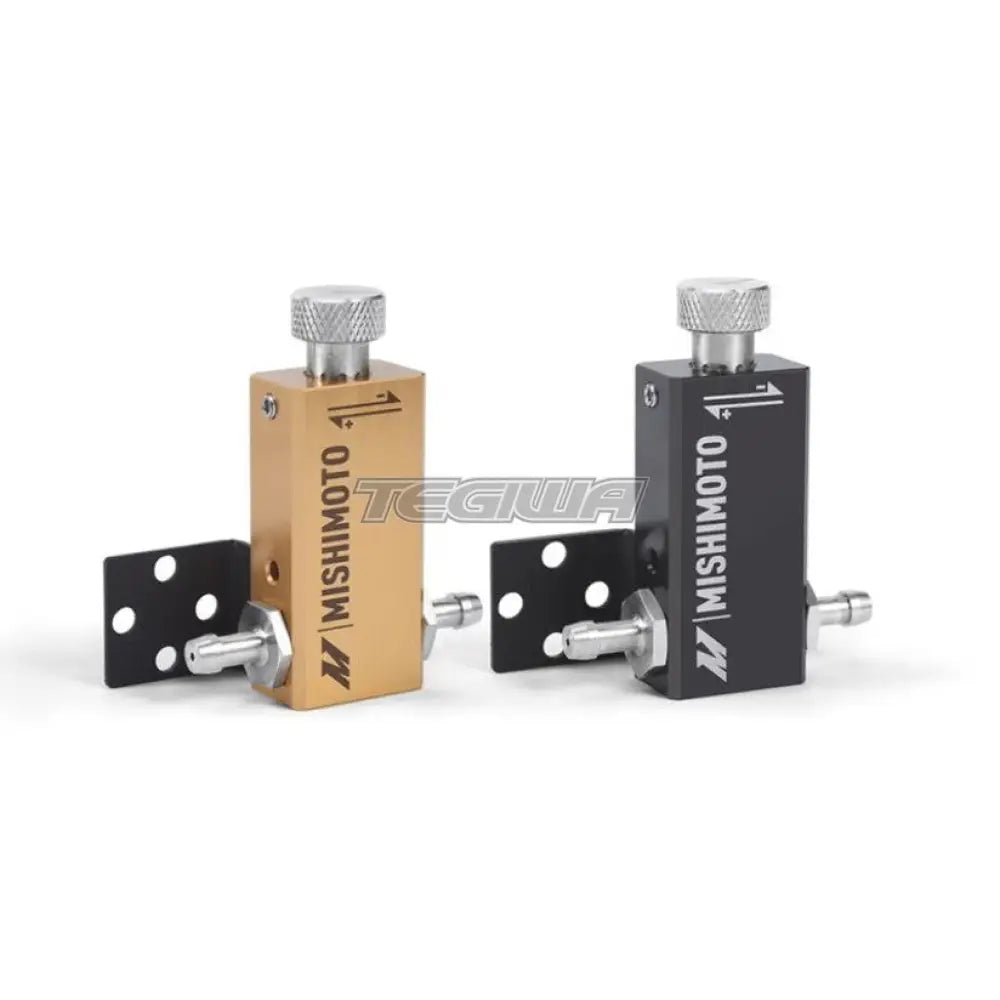

Available in durable black or gold anodized finish
Easy to install
Mishimoto Lifetime Warranty
Install Difficulty: 1
OptionLabel: Gold

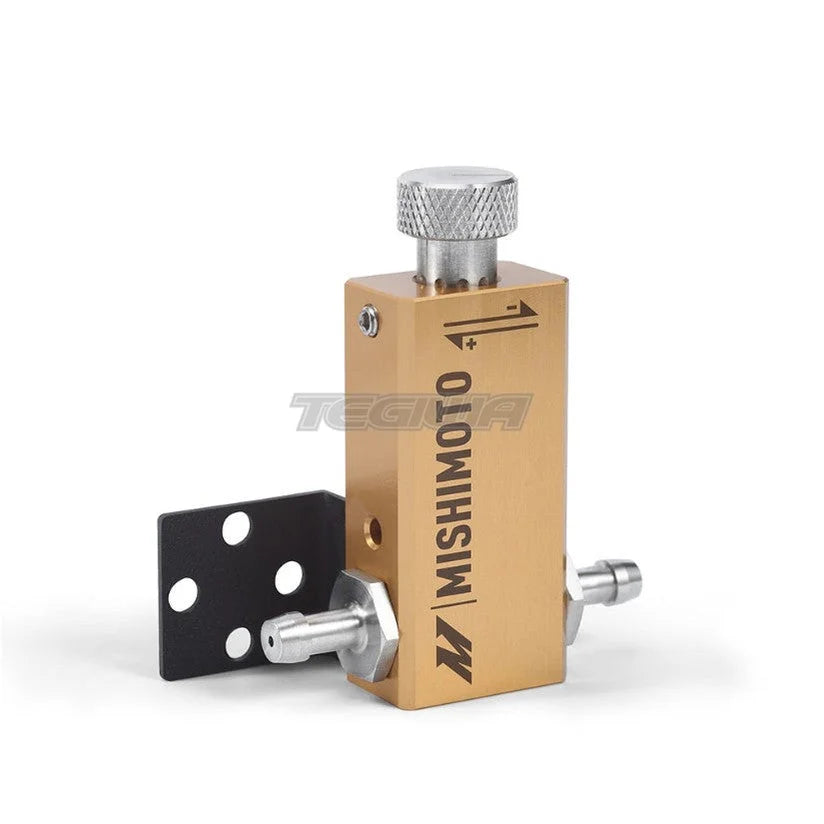

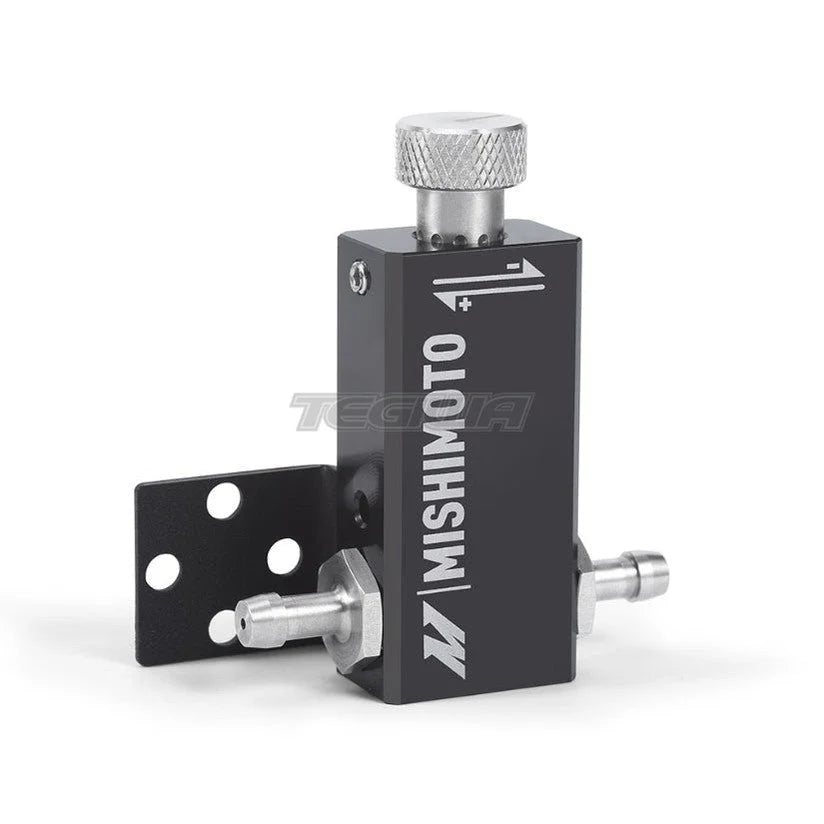

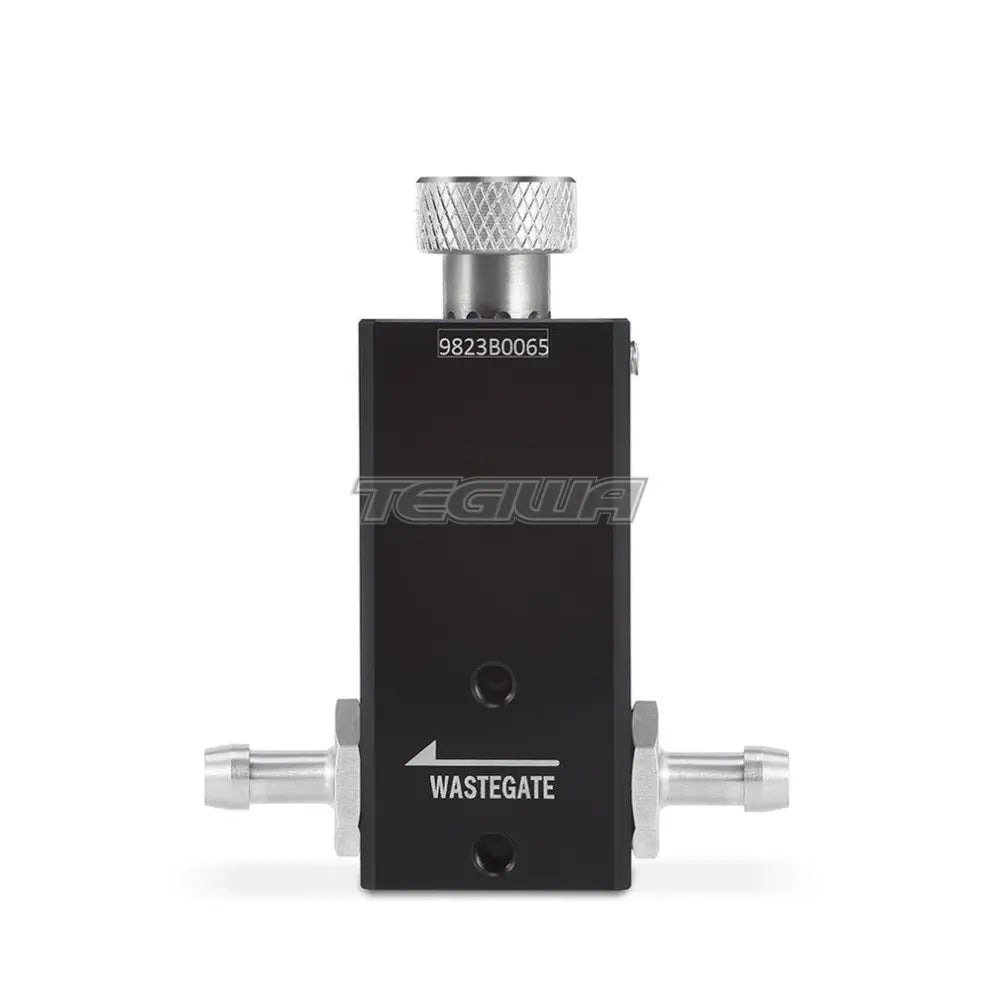

Take full control of your boost levels with the Mishimoto Manual Boost Controller. Constructed from high quality 6061 anodized aluminum and stainless-steel, this boost controller is sure to withstand the harshest of environments in your engine bay. The anodized aluminum body and stainless-steel internal components are designed to provide you a lifetime of service. Utilizing a stainless-steel ball-style detent system will ensure that your boost level is consistent and stays exactly where you set it. Easily adjust boost levels from under the hood with the turn of a knob with no additional tools needed. The knurled stainless steel adjustment knob makes it quick and easy to adjust. The Mishimoto Manual Boost controller is easy to install and offers an affordable solution to get better turbo response and increased boost levels. Includes mounting bracket to keep your controller safe and secure in the location of your choosing. Like all Mishimoto products, this manual boost controller is backed by our Mishimoto Lifetime Warranty.
