TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 3.19
TechSpec Overall Length (in): 2.8
TechSpec Overall Width (in): 1.18
TechSpec Includes: Oil Sandwich Plate--Rubber O-ring--Built-in Thermostat--Stainless Steel Sandwich Plate Adapter, M22 x 1.5--Black 1/8-in NPT Plugs--Mishimoto Lifetime Warranty
TechSpec Applications: 2008+ Chrysler/Dodge V8 Engines--1992+ Ford/Lincoln/Mercury 4.6L, 5.0L, 5.4L V8 Engines--1995+ Ford/Lincoln/Mercury 2.5L Engine--1995+ Ford/Lincoln/Mercury 3.0L (24V) Engine--1984-1987 Honda Civic / CRX--1986-1987 Honda Integra--1999+ Ford 6.8L V10 Engine
Features:Constructed from billet 6061 CNC-machined aluminum
Two 1/8-in NPT ports for sensors, oil feeds, etc
Built-in thermostat (185 F, 85 C)
Square O-ring design for superior sealing
M22 X 1.5 thread pitch fits numerous Ford and GM engines; see tech specs for specific details
Thermostat is interchangeable with alternate temperatures (160 F, 200 F) for additional fluid temperature regulation
Mishimoto Lifetime Warranty
Install Difficulty: 2

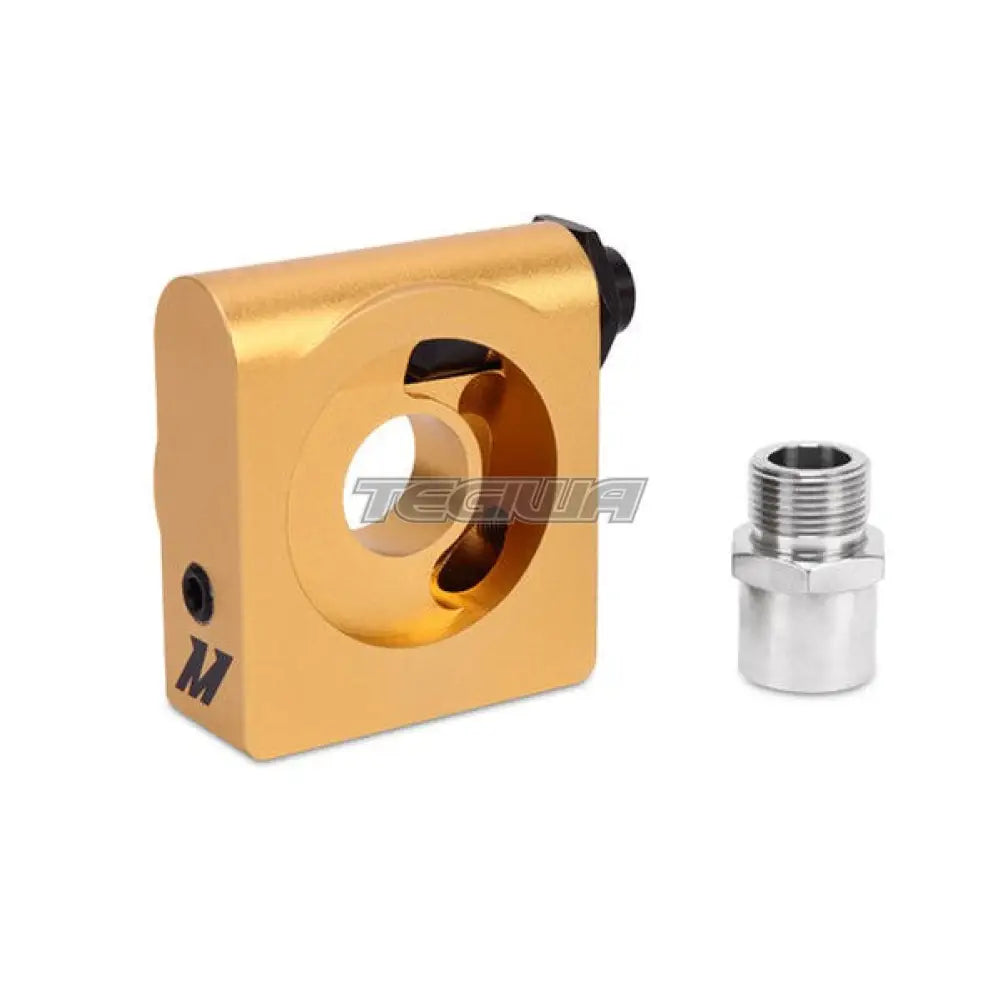

Whether you have a daily driven Vette or a built Mustang, proper oil temperatures are crucial for engine longevity and performance. Keep temperatures in check with the Mishimoto Oil Sandwich Plate with Rear-Mounted Thermostat. This high-flow sandwich plate is constructed from lightweight CNC-machined billet 6061 aluminum, providing unmatched precision and quality. The internal oil thermostat will restrict flow to the heat exchanger until the activation temperature is reached this provides improved warm-up while maintaining efficient cooling properties. Thanks to a small footprint and rear-mounted thermostat, the Mishimoto'sandwich plate can be installed in even the tightest engine bays where the exhaust or other engine components create strict space constraints. This sandwich plate includes two 1/8-inch NPT ports for use with temperature or pressure sensors. The included M22 X 1.5 sandwich plate adapter allows for fitment on various GM LSX vehicles and Ford V8's including the 4.6L, 5.4L, and Coyote 5.0L. For more specific fitment information, check our tech specs below! As with all our products, this sandwich plate includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
