TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 3.15
TechSpec Overall Length (in): 2.83
TechSpec Overall Width (in): 1.24
TechSpec Includes: Oil Sandwich Plate--Rubber O-ring--Black 1/8-in NPT Plugs--Mishimoto Lifetime Warranty
Note: This sandwich plate was designed to only be used with an M22 Sandwich Plate Adapter
Features:CNC-Machined 6061 Aluminum
Two 1/8-in NPT Ports (with plug) for sensors/oil feed/etc.
Square O-ring design
Mishimoto Lifetime Warranty
Install Difficulty: 2

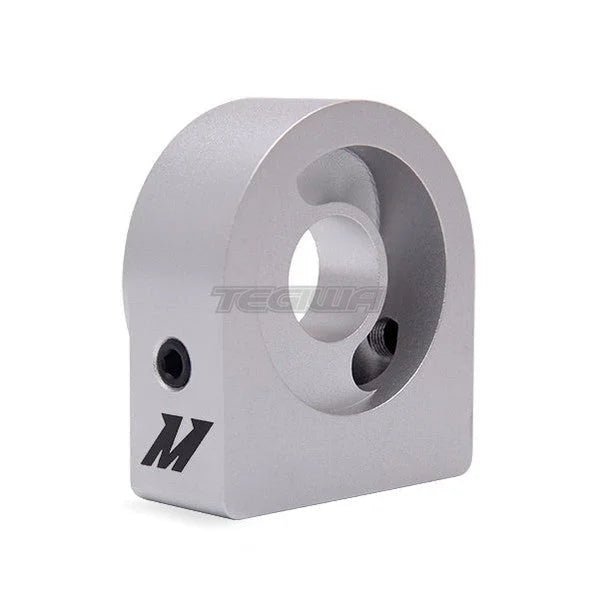

This Mishimoto Oil Sandwich Plate is a lightweight, high-flow sandwich plate that's built from 6061 aluminum. It's used to add an external cooler to your vehicles oil system. This Oil Sandwich Plate is designed specifically for M22 Stainless Steel Center Bolts and includes two 1/8in NPT plugged ports for optional sensors or gauges as well as our Mishimoto Lifetime Warranty.
