TechSpec Applications: 2017-2020 Ford F-150 3.5L V6 EcoBoost--2017-2020 Ford Raptor 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost

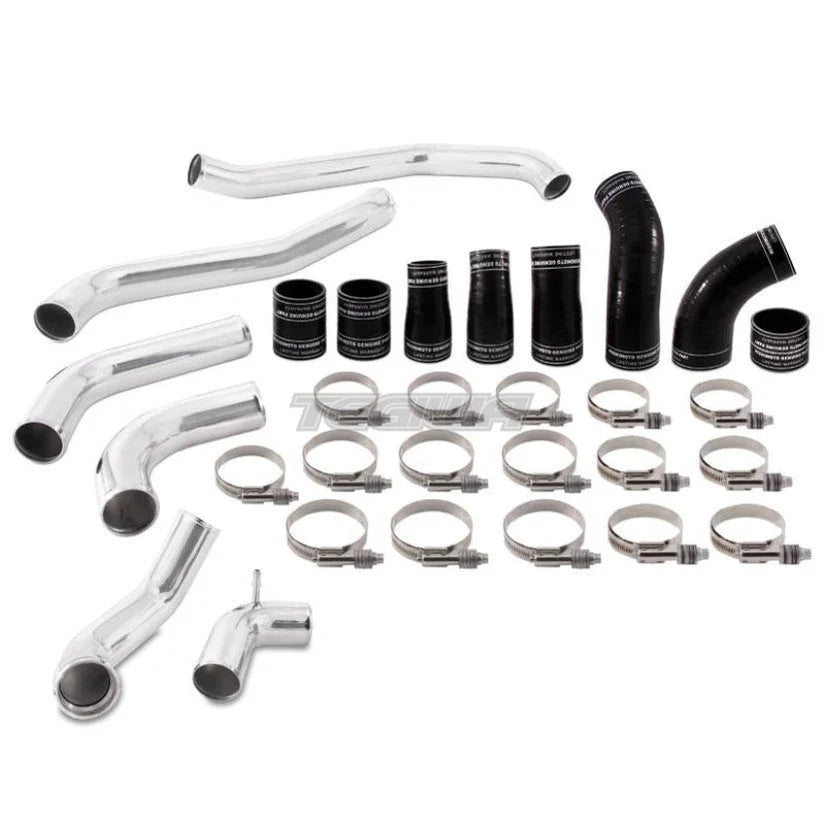

TechSpec Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Hot-Side Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(16) Constant-Tension Worm Gear Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct-fit for 2017-2020 Ford F-150 3.5L EcoBoost
Increased volume for better flow and power potential
Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract
Available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty

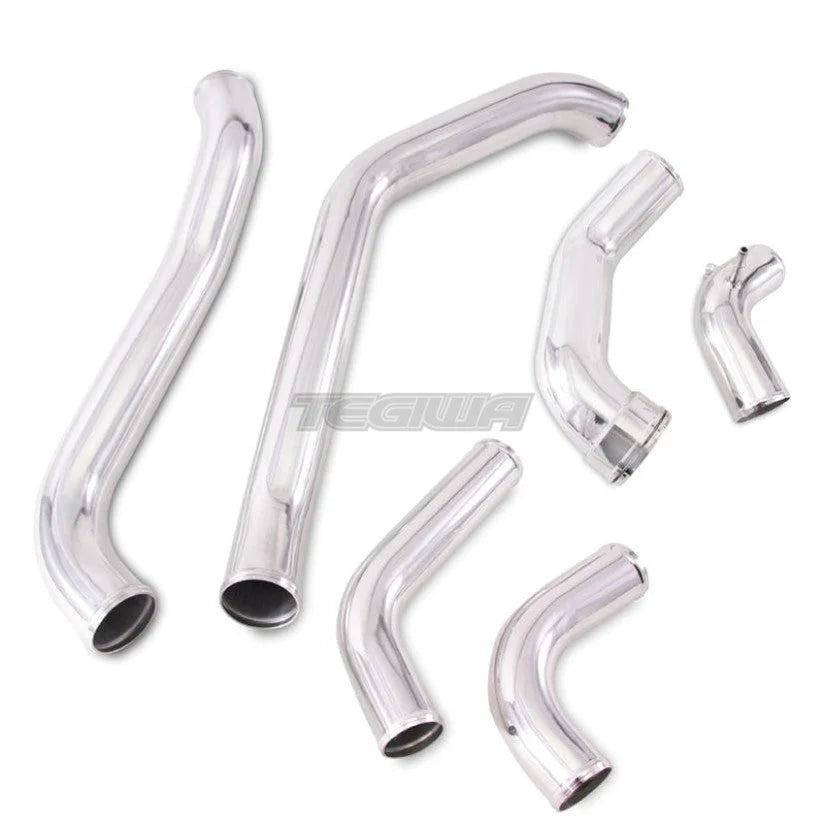

OptionLabel: Polished
TechSpec Applications: 2017-2020 Ford F-150 3.5L V6 EcoBoost--2017-2020 Ford Raptor 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Hot-Side Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(16) Constant-Tension Worm Gear Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct-fit for 2017-2020 Ford F-150 3.5L EcoBoost
Increased volume for better flow and power potential
Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract

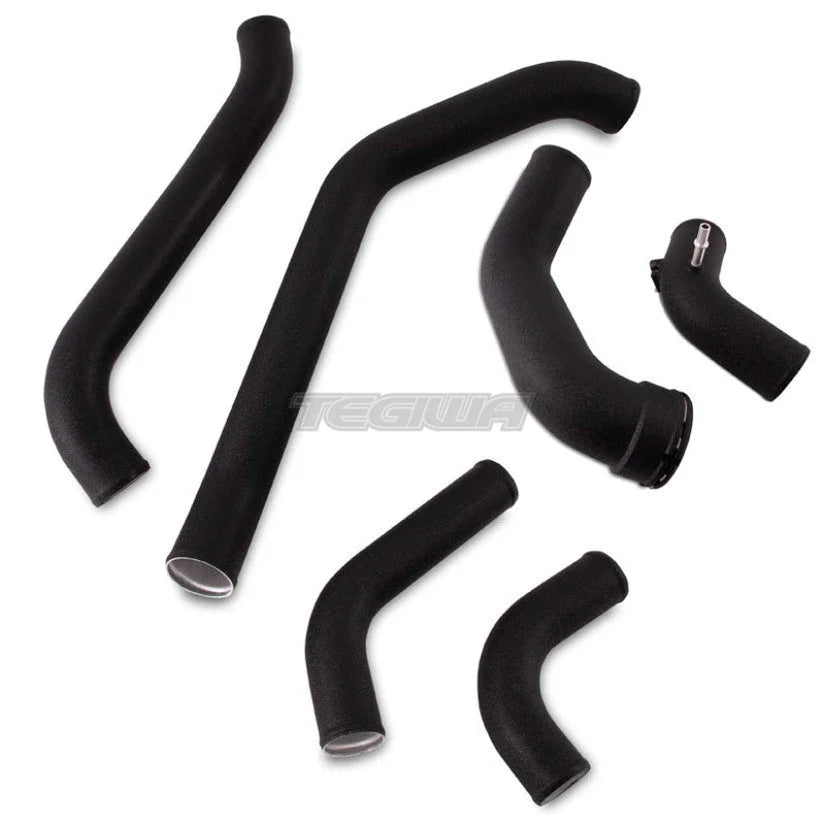

Available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty

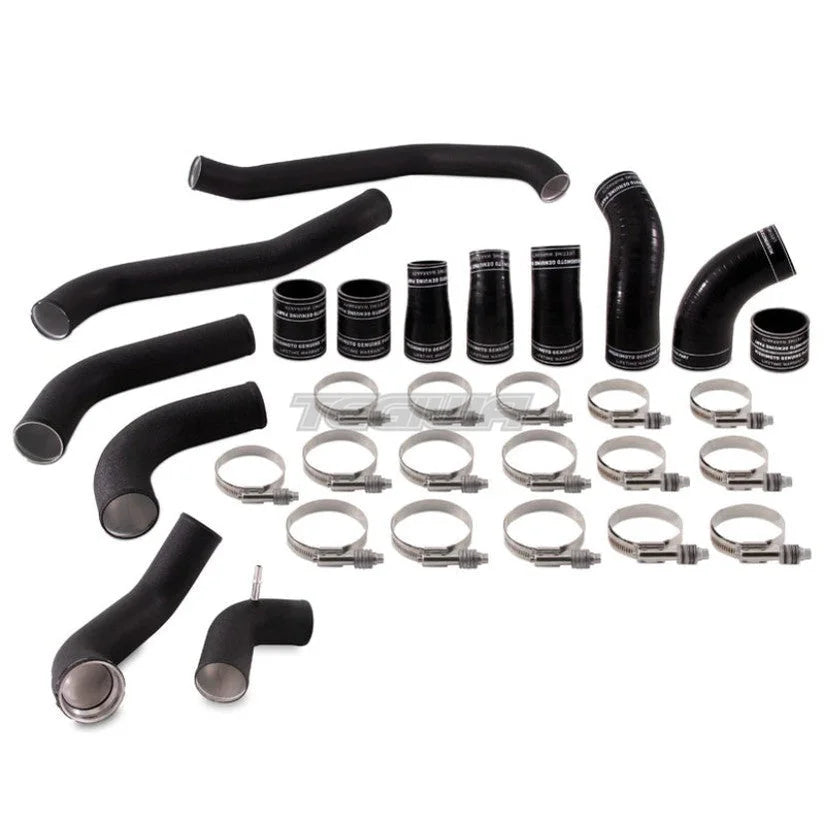

OptionLabel: Wrinkle Black

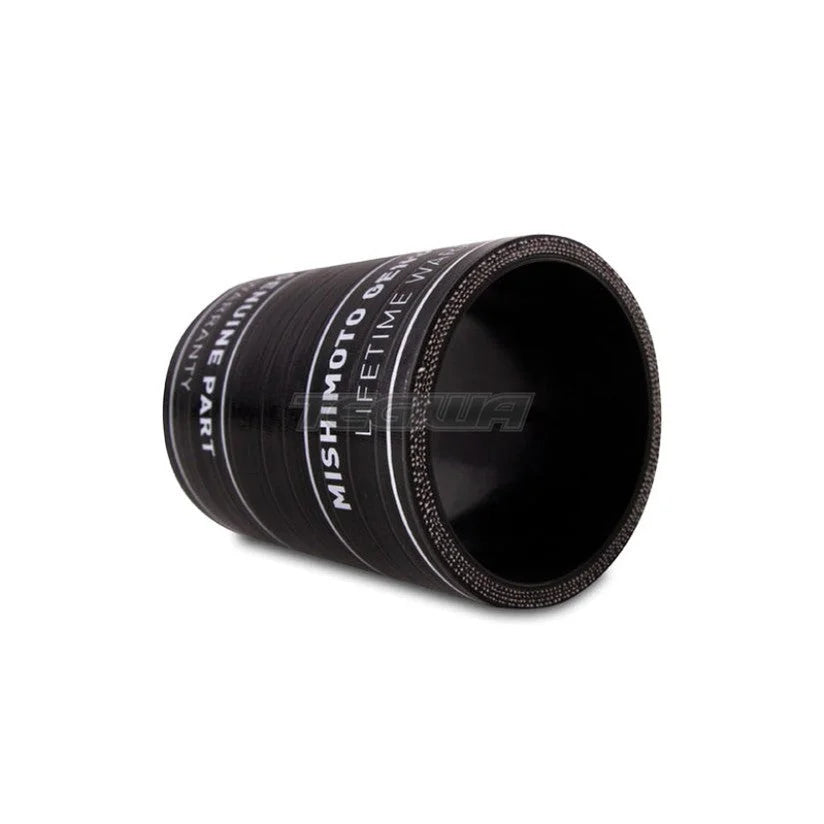

Mishimoto has developed a direct-fit 2017-2021 3.5L F-150 EcoBoost Intercooler Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore? technology. The larger volume of our pipes allows your 2017-2021 3.5L F-150 EcoBoost to breathe freely and make the most of the its two turbochargers. DuraCore? boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black, these pipes are a great addition to every F-150 EcoBoost or second-gen Raptor from the show to the track. Combine this kit with the Mishimoto 2015-2021 F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. As with all Mishimoto products, this 2017-2021 3.5L F-150 EcoBoost Intercooler Pipe kit is backed by our Lifetime Warranty.
