Description
TechSpec Chassis Codes: C346
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
CNC-machined ribbed inlet and outlet for secure coupler connections
Increases core size by 128-percent and fin surface area by 32-percent
10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor
No modification to front bumper and retains stock fog lights
Pipes available in polished or wrinkle black powder-coating
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

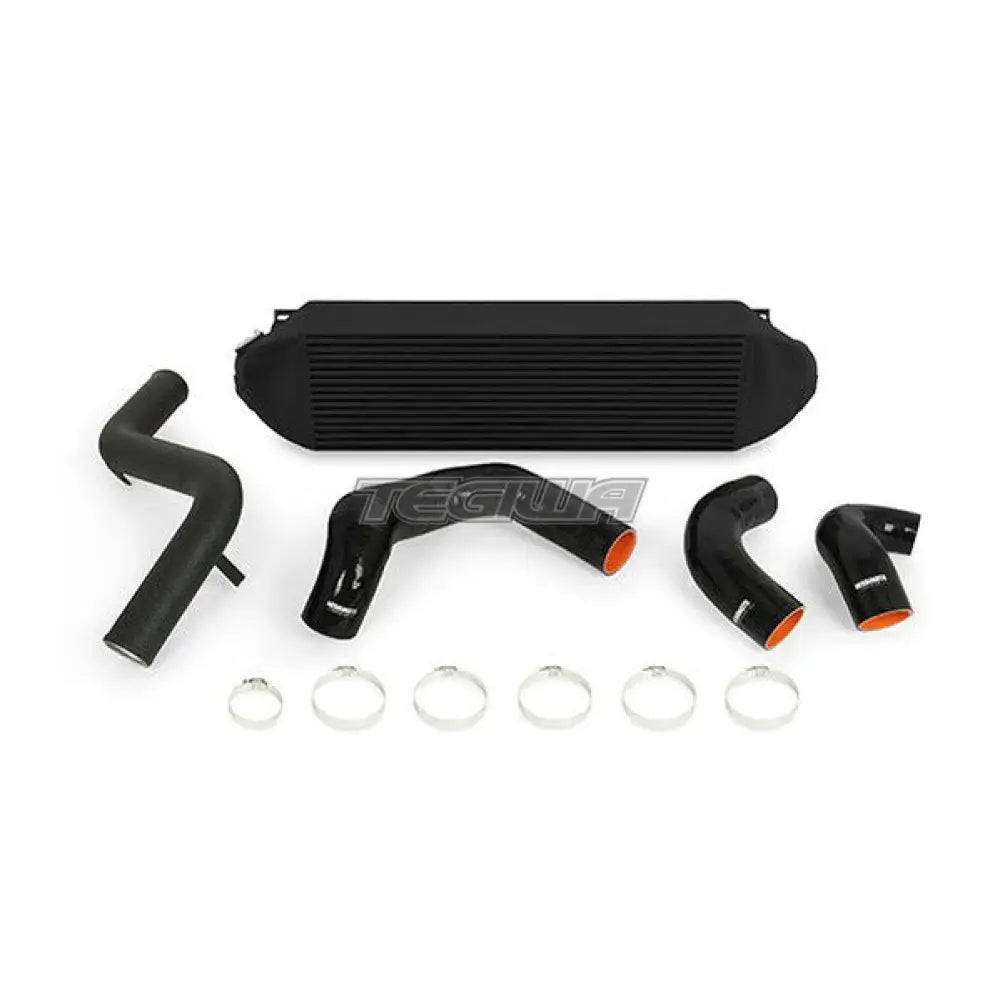

OptionLabel: Ford Focus ST Intercooler Kit, 2013+, Black Cooler Black Pipes
TechSpec Chassis Codes: C346
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
CNC-machined ribbed inlet and outlet for secure coupler connections
Increases core size by 128-percent and fin surface area by 32-percent
10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor
No modification to front bumper and retains stock fog lights
Pipes available in polished or wrinkle black powder-coating
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

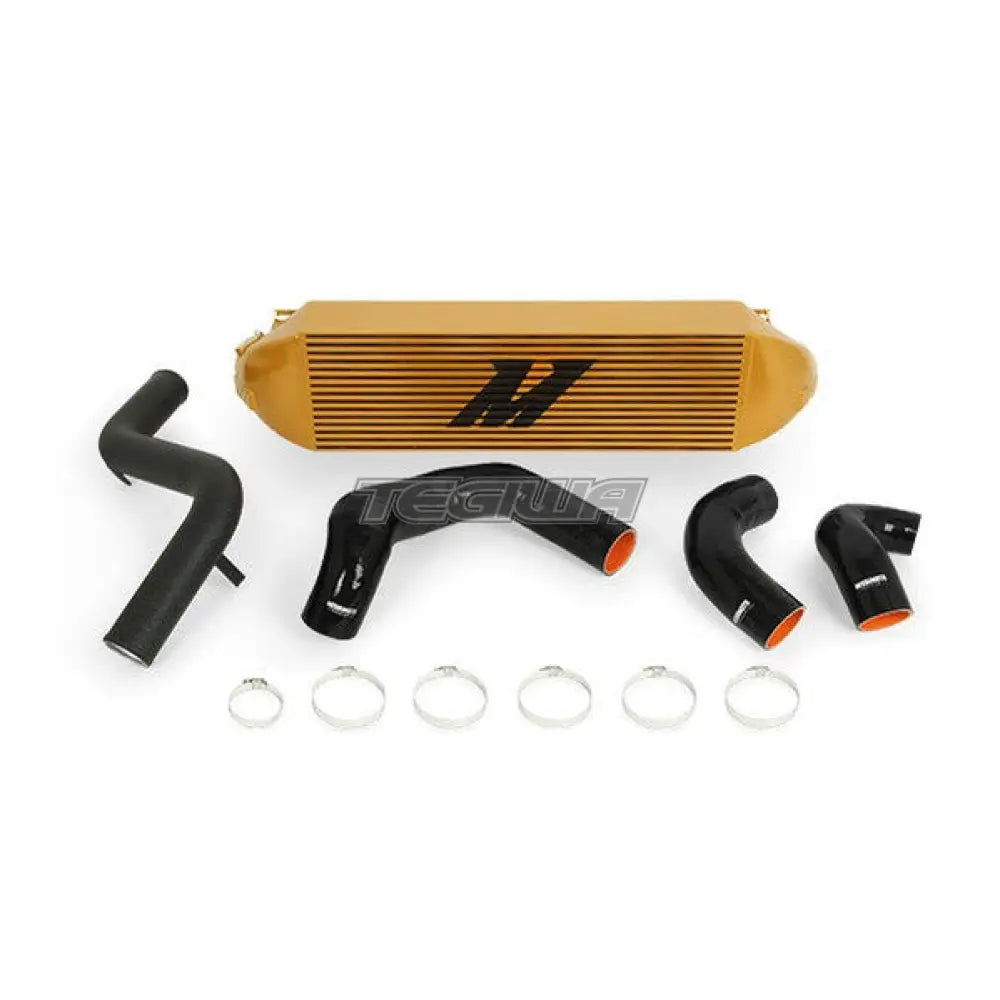

OptionLabel: Ford Focus ST Intercooler Kit, 2013+, Gold Cooler Black Pipes
TechSpec Chassis Codes: C346
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
CNC-machined ribbed inlet and outlet for secure coupler connections
Increases core size by 128-percent and fin surface area by 32-percent
10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor
No modification to front bumper and retains stock fog lights
Pipes available in polished or wrinkle black powder-coating
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

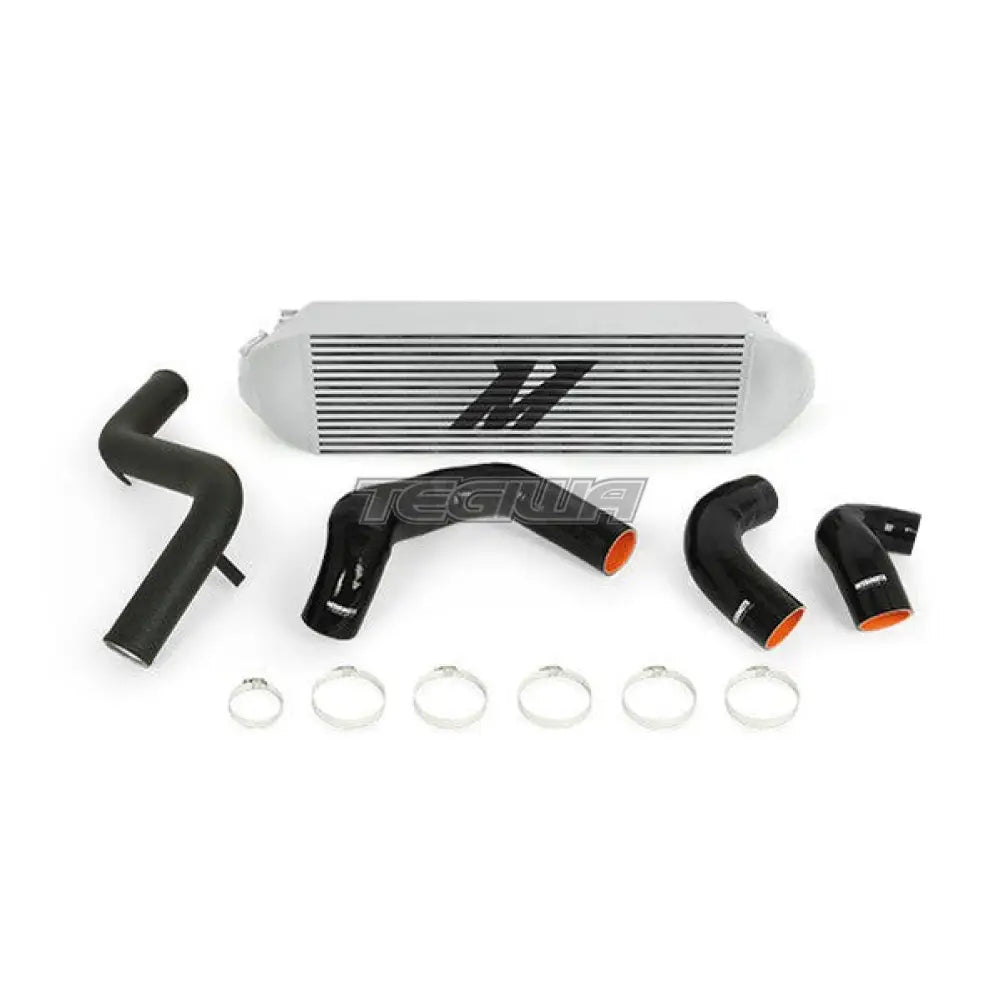

OptionLabel: Ford Focus ST Intercooler Kit, 2013+, Silver Cooler Black Pipes
TechSpec Chassis Codes: C346
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
CNC-machined ribbed inlet and outlet for secure coupler connections
Increases core size by 128-percent and fin surface area by 32-percent
10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor
No modification to front bumper and retains stock fog lights
Pipes available in polished or wrinkle black powder-coating
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

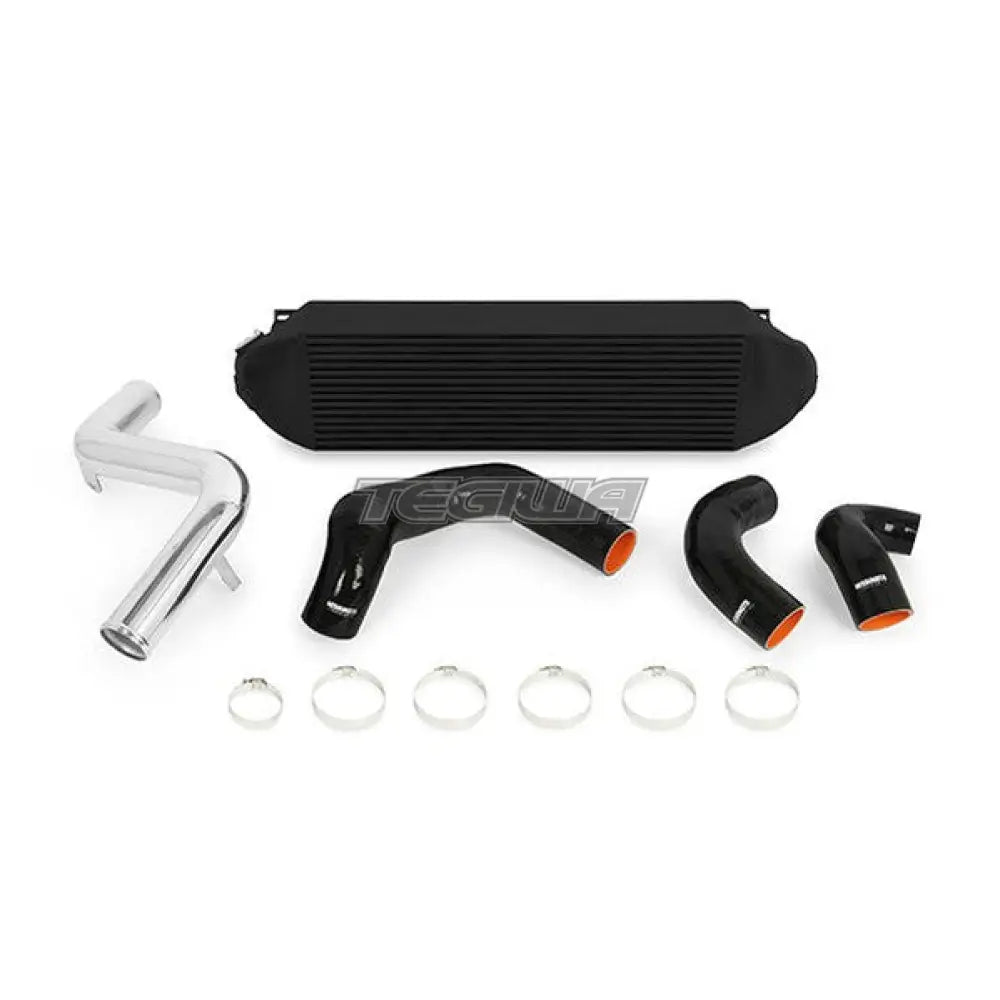

OptionLabel: Ford Focus ST Intercooler Kit, 2013+, Black Cooler Polished Pipes
TechSpec Chassis Codes: C346
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
CNC-machined ribbed inlet and outlet for secure coupler connections
Increases core size by 128-percent and fin surface area by 32-percent
10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor
No modification to front bumper and retains stock fog lights
Pipes available in polished or wrinkle black powder-coating
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

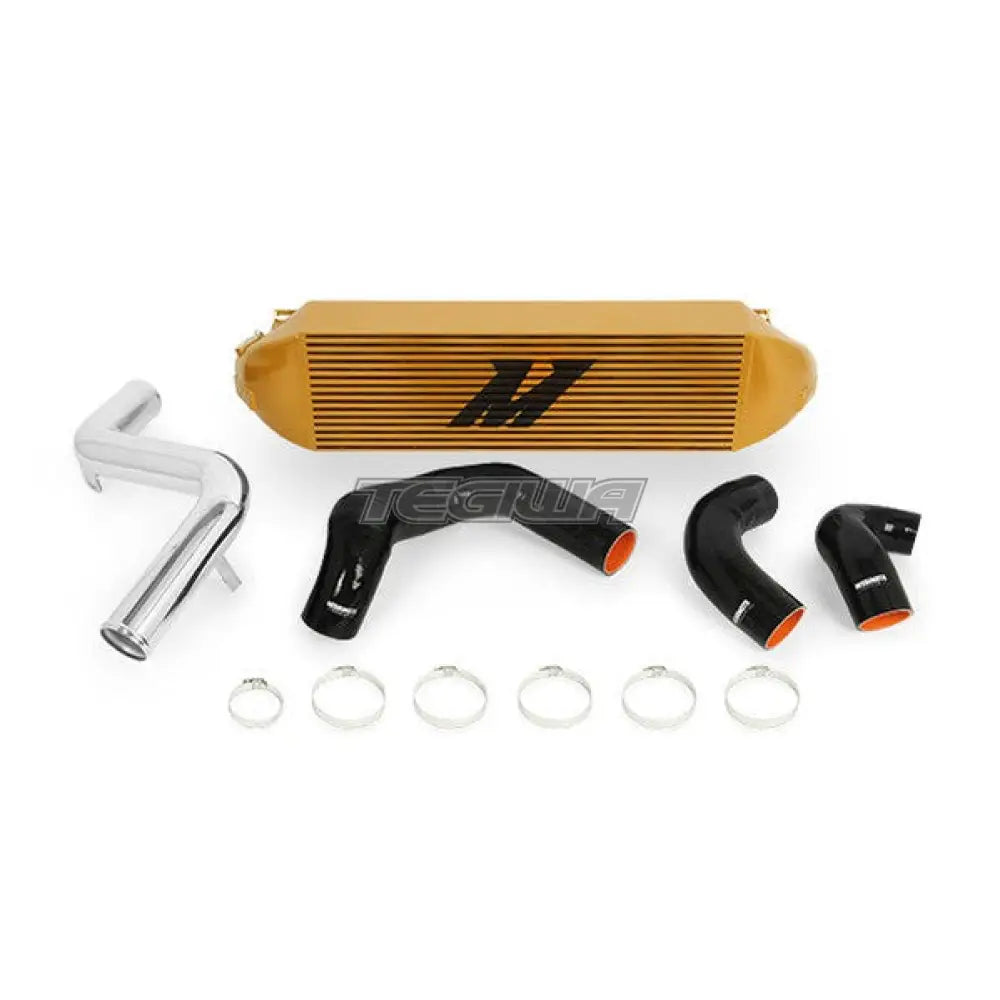

OptionLabel: Ford Focus ST Intercooler Kit, 2013+, Gold Cooler Polished Pipes
TechSpec Chassis Codes: C346
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
CNC-machined ribbed inlet and outlet for secure coupler connections
Increases core size by 128-percent and fin surface area by 32-percent
10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor
No modification to front bumper and retains stock fog lights
Pipes available in polished or wrinkle black powder-coating
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

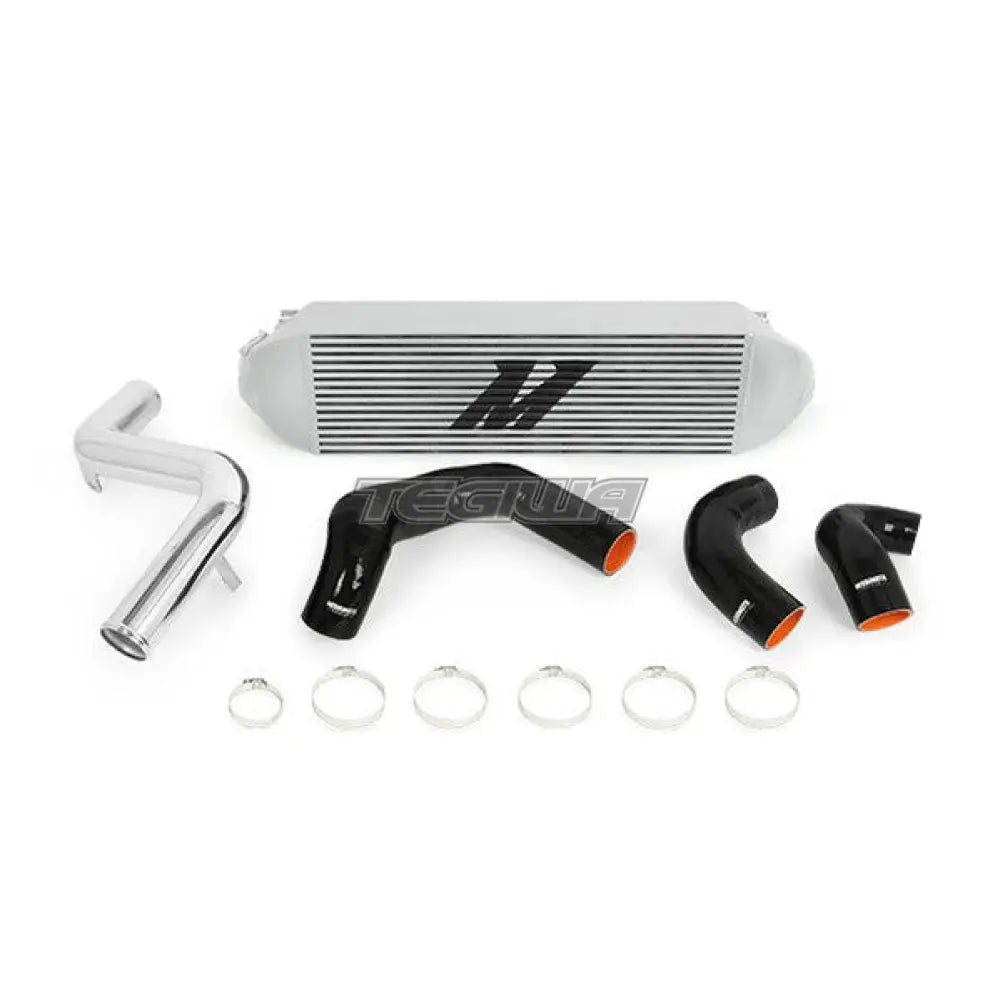

OptionLabel: Ford Focus ST Intercooler Kit, 2013+, Silver Cooler Polished Pipes
It's time to make your cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013-2018 Ford Focus ST. Ford released their 2.0T EcoBoost powered Focus boasting the perfect combination of performance and practicality, however the intercooling system left something to be desired. While the piping did feature sections of aluminum, the restrictive diameter, not to mention the turbo muffler put a damper on the Focus ST?s performance potential. We've replaced the hot-side pipe with mandrel-bent aluminum, both ditching the muffler and also opening up the diameter to allow a 26-percent better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone ensuring a long lasting connection on the hot-side, but also a soother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe kit grants a 21-percent increase in flow to and from the intercooler. The piping isn?t the only part of this kit that increases flow, the bar-and-plate construction opens up air channels within the core allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all aluminum construction also aids in heat dissipation, warding off the dreaded heat-soak under demanding driving conditions, and delivering properly cooled air through the ST?s intake manifold. The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP. The Mishimoto Performance Intercooler Kit for your 2013-2018 is available in silver, black, or gold, with an option of wrinkle black or polished piping. As always, this intercooler kit is covered under the Mishimoto Lifetime Warranty.
