TechSpec Applications: 1999-2003 Ford F-250 Super Duty--1999-2003 Ford F-350 Super Duty--1999-2003 Ford F-450 Super Duty--1999-2003 Ford F-550 Super Duty--2000-2003 Ford Excursion
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
TechSpec Includes: (1) Intercooler--(1) Intercooler Pipe Set--(4) Silicone Boots with DuraCore--(7) 3.5-in Constant-Tension T-bolt Clamps--(1) 3.75-in Constant-Tension T-bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Includes hot-side and cold-side intercooler pipes and boots
3.35-in bar-and-plate core is 33-percent thicker than factory
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3

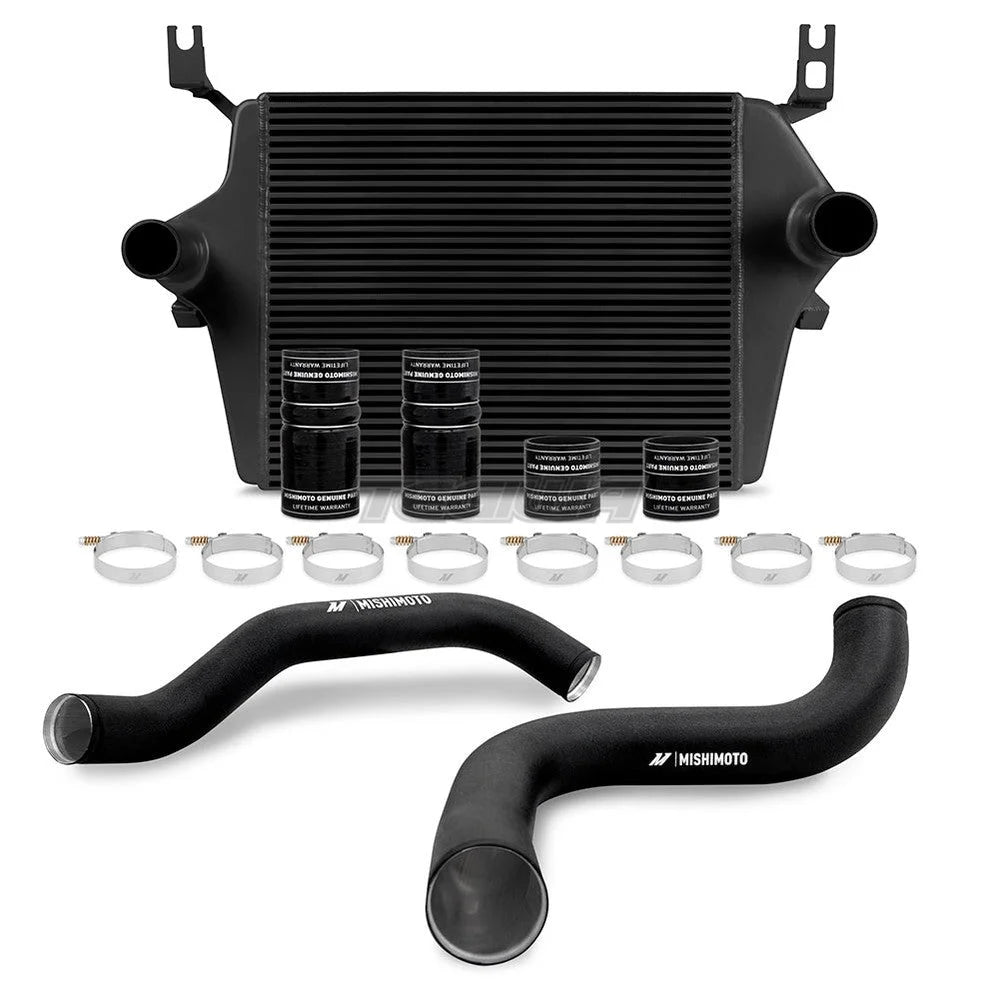

OptionLabel: Black Intercooler, Wrinkle-Black Pipes
TechSpec Applications: 1999-2003 Ford F-250 Super Duty--1999-2003 Ford F-350 Super Duty--1999-2003 Ford F-450 Super Duty--1999-2003 Ford F-550 Super Duty--2000-2003 Ford Excursion
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
TechSpec Includes: (1) Intercooler--(1) Intercooler Pipe Set--(4) Silicone Boots with DuraCore--(7) 3.5-in Constant-Tension T-bolt Clamps--(1) 3.75-in Constant-Tension T-bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Includes hot-side and cold-side intercooler pipes and boots
3.35-in bar-and-plate core is 33-percent thicker than factory
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3

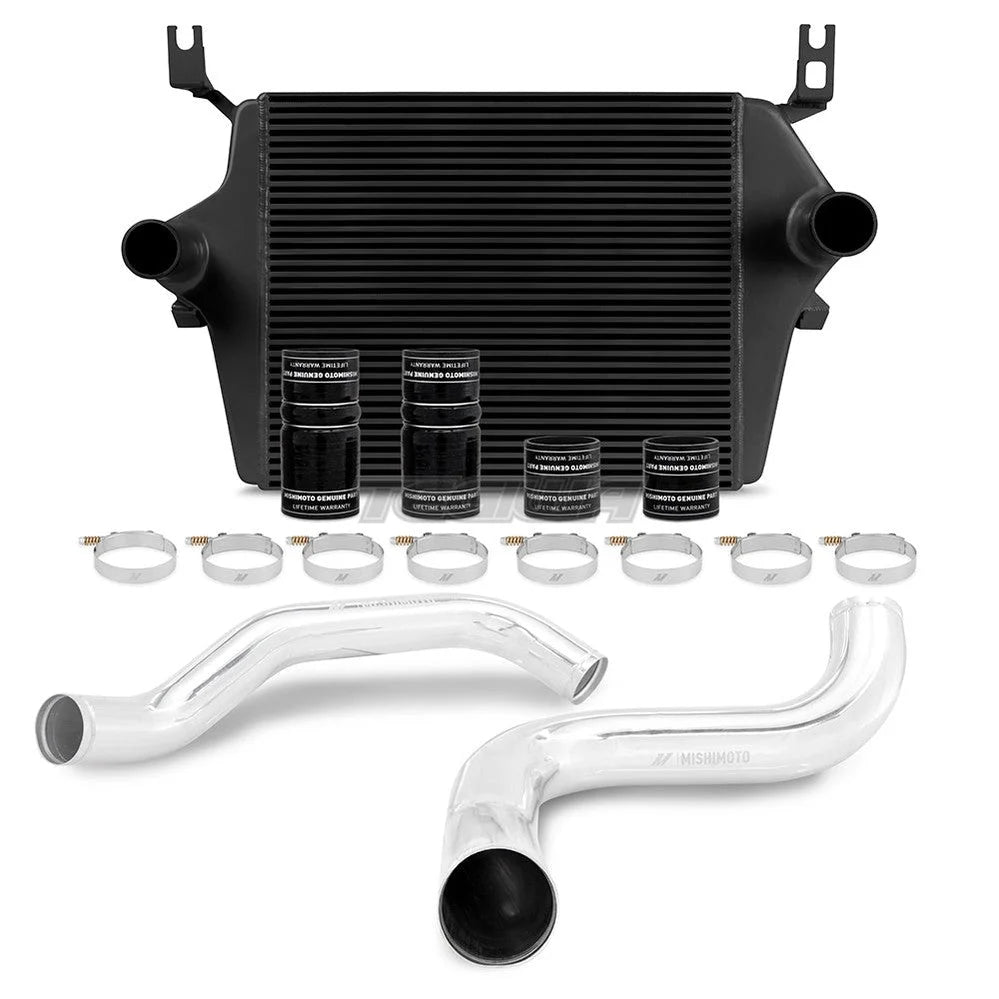

OptionLabel: Black Intercooler, Polished Pipes
TechSpec Applications: 1999-2003 Ford F-250 Super Duty--1999-2003 Ford F-350 Super Duty--1999-2003 Ford F-450 Super Duty--1999-2003 Ford F-550 Super Duty--2000-2003 Ford Excursion
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
TechSpec Includes: (1) Intercooler--(1) Intercooler Pipe Set--(4) Silicone Boots with DuraCore--(7) 3.5-in Constant-Tension T-bolt Clamps--(1) 3.75-in Constant-Tension T-bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Includes hot-side and cold-side intercooler pipes and boots
3.35-in bar-and-plate core is 33-percent thicker than factory
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3

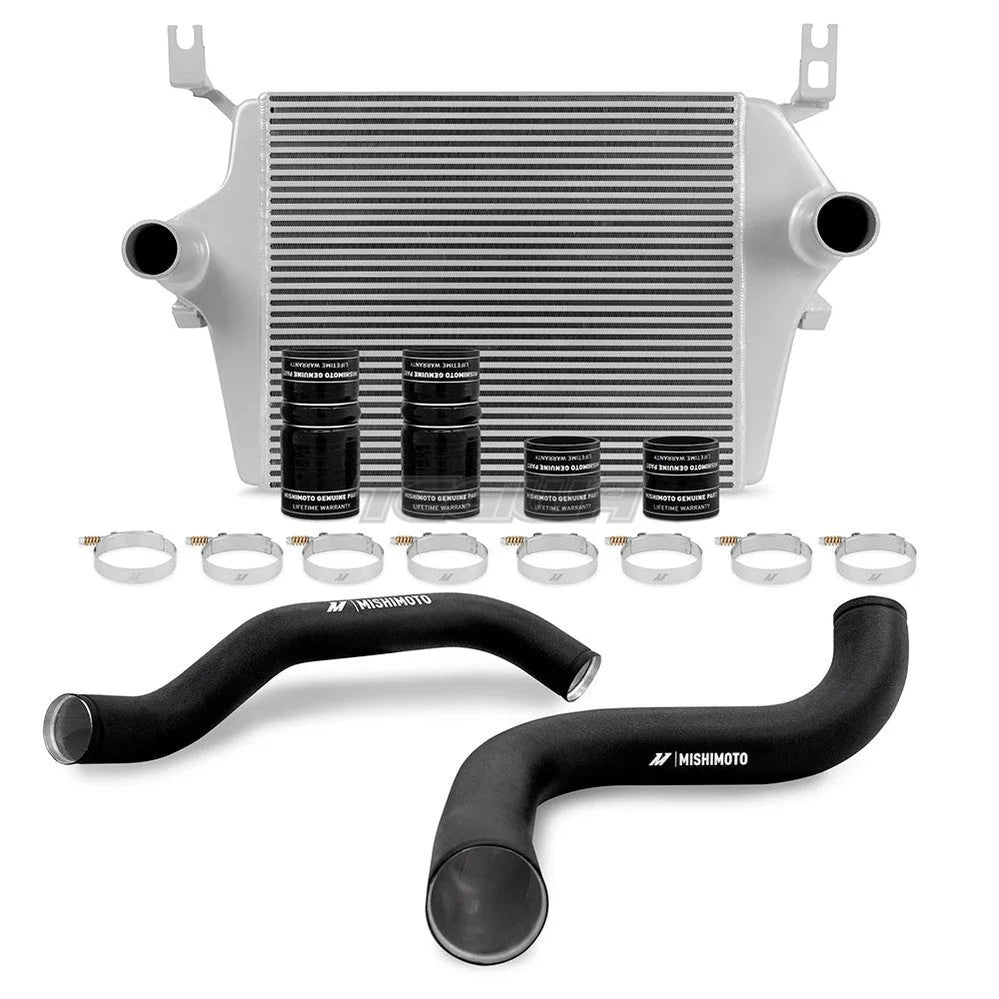

OptionLabel: Silver Intercooler, Wrinkle-Black Pipes
TechSpec Applications: 1999-2003 Ford F-250 Super Duty--1999-2003 Ford F-350 Super Duty--1999-2003 Ford F-450 Super Duty--1999-2003 Ford F-550 Super Duty--2000-2003 Ford Excursion
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
TechSpec Includes: (1) Intercooler--(1) Intercooler Pipe Set--(4) Silicone Boots with DuraCore--(7) 3.5-in Constant-Tension T-bolt Clamps--(1) 3.75-in Constant-Tension T-bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Includes hot-side and cold-side intercooler pipes and boots
3.35-in bar-and-plate core is 33-percent thicker than factory
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3

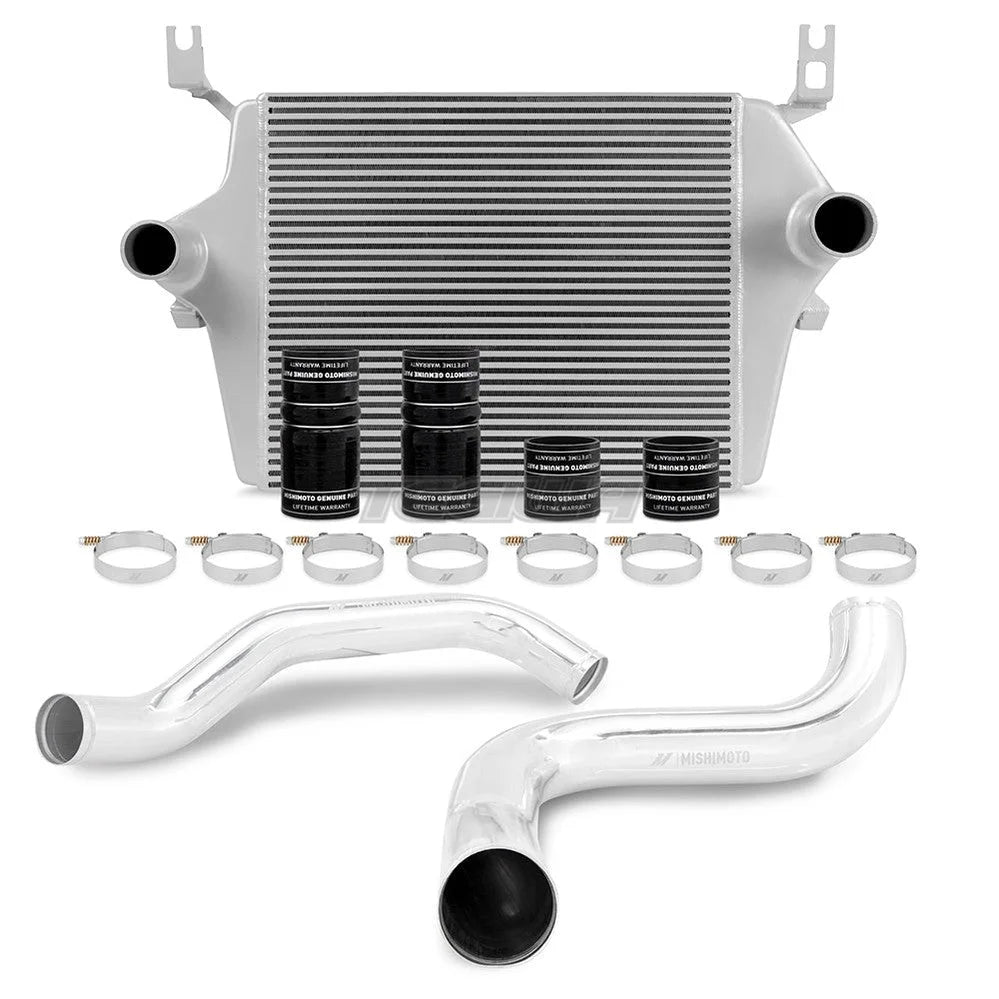

OptionLabel: Silver Intercooler, Polished Pipes

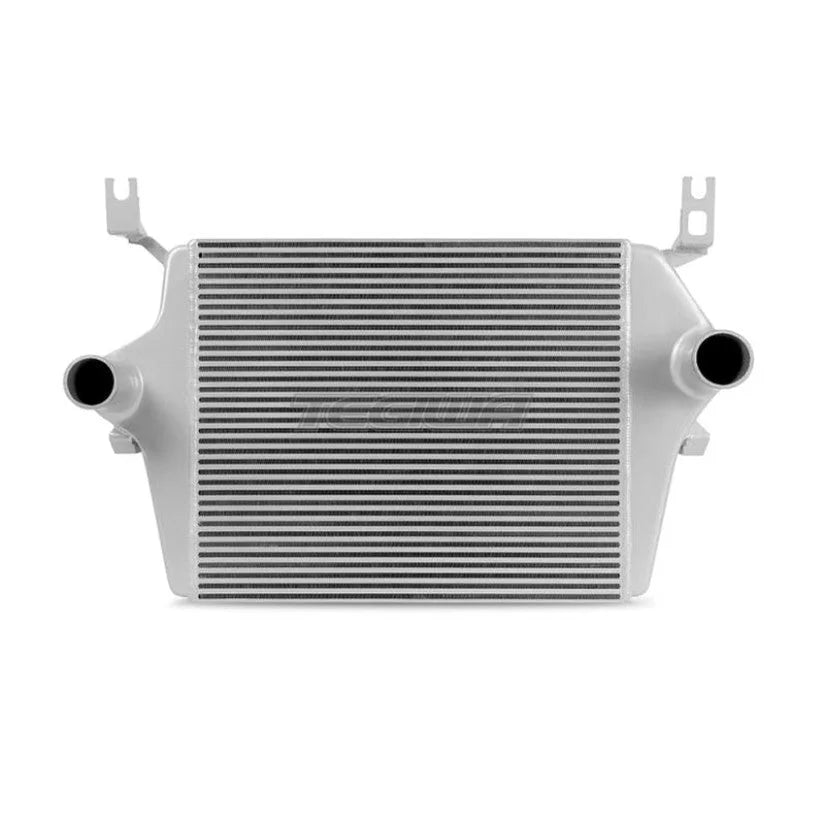

Add some cooling power to your 1999-2003 Ford F-Series 7.3L Powerstroke with the Mishimoto Performance Intercooler Kit. This kit includes everything you need to improve airflow, substantially lower air charge temperatures, reduce EGTs, and support your truck at any power level. The first key component is the Mishimoto intercooler piping. The pipes are constructed of mandrel-bent aluminum with the options of polished or wrinkle-black powder-coated finishes. This kit includes Mishimoto silicone boots with DuraCore technology and constant-tension T-bolt clamps for accurate and consistent holding power. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to regular silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler, featuring a significant increase in core volume, extremely durable cast aluminum end tanks, and a robust bar-and-plate core, all designed to provide cool, dense air to your engine. The application-specific DuraCore bootkit design allows for the installation of our performance bar-and-plate intercooler typically reserved for the 6.0L Powerstroke. The larger and more robust design is ideal for high-horsepower applications, with boost levels pushing well over the stock limits, and for use in the harshest conditions. Our kit also includes all necessary hardware for a secure installation of the intercooler to round out the conversion. Our intercooler design reduces pressure drop while cooling charged air, resulting in overall increased engine efficiency. All the components in this kit are engineered to last, just like your truck. Offered with either a black or silver core, the Mishimoto 7.3L Powerstroke intercooler kit is protected by our signature lifetime warranty.
