TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Overall Length (in): 28.9
TechSpec Overall Height (in): 31.9
TechSpec Overall Width (in): 5.1
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.76
TechSpec Core Length (in): 25.51
TechSpec Core Height (in): 23.11
TechSpec Inlet (in): 3.23
TechSpec Outlet (in): 3.23
Note: This product requires minor trimming of the upper radiator support for installation. Please use both our printable trimming template as well as our modification guide for best results.

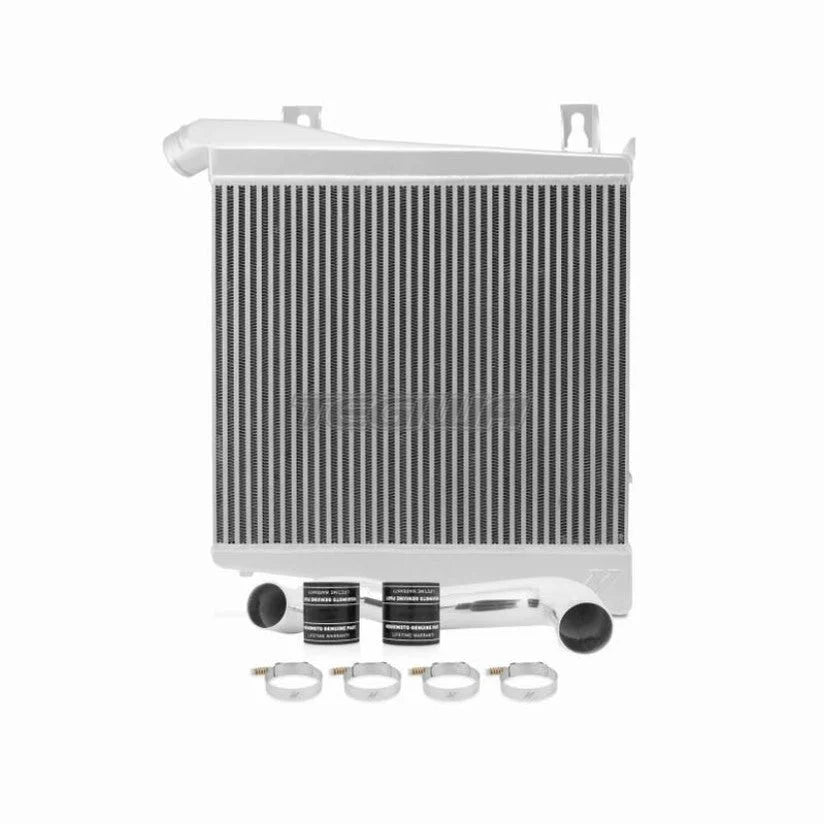

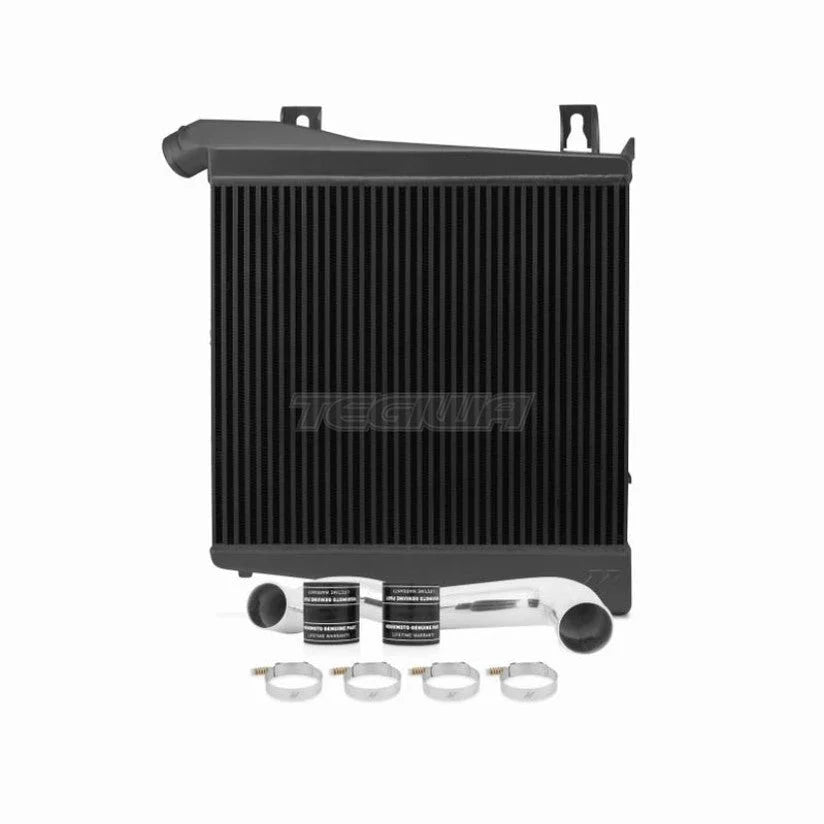

TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2008-2010 Ford 6.4L Powerstroke
Bar-and-plate construction with cast aluminum end tanks
End tanks strategically designed for optimal airflow
Mandrel-bent polished aluminum cold-side intercooler pipe
Reduces turbo stress and extends life
Reduce pressure drop and increase cooling and power
DuraCore technology provides superior resistance to heat, pressure, fuel, and oil
Includes high-quality constant-tension T-bolt clamps

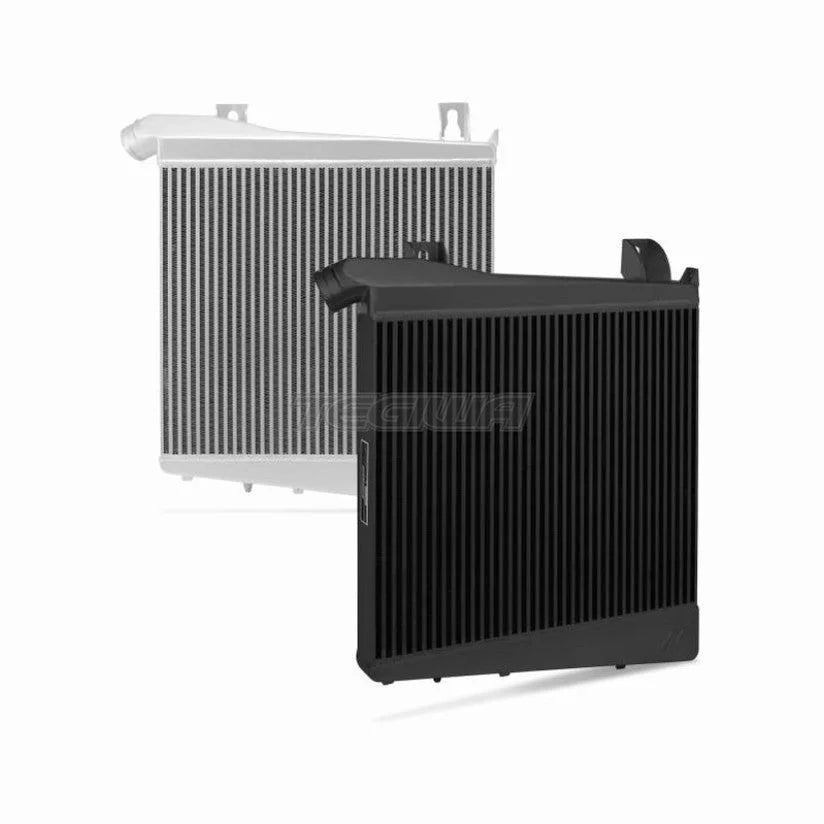

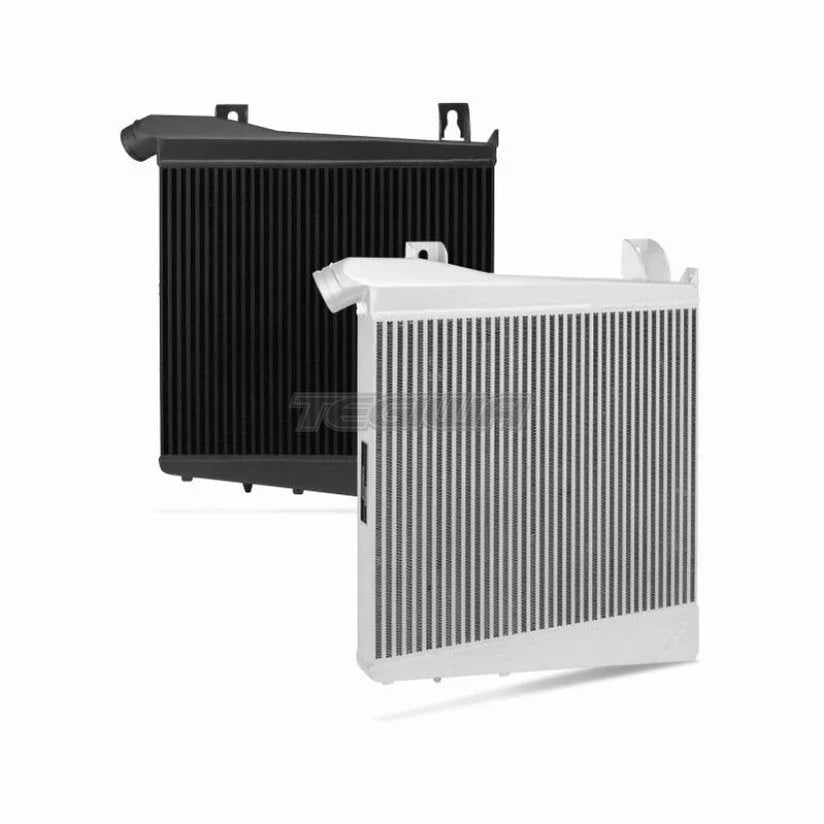

Sleek Silver or Stealth Black intercooler options available
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 5
OptionLabel: Black
TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Overall Length (in): 28.9
TechSpec Overall Height (in): 31.9
TechSpec Overall Width (in): 5.1
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.76
TechSpec Core Length (in): 25.51
TechSpec Core Height (in): 23.11
TechSpec Inlet (in): 3.23
TechSpec Outlet (in): 3.23
Note: This product requires minor trimming of the upper radiator support for installation. Please use both our printable trimming template as well as our modification guide for best results.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2008-2010 Ford 6.4L Powerstroke
Bar-and-plate construction with cast aluminum end tanks
End tanks strategically designed for optimal airflow
Mandrel-bent polished aluminum cold-side intercooler pipe
Reduces turbo stress and extends life
Reduce pressure drop and increase cooling and power
DuraCore technology provides superior resistance to heat, pressure, fuel, and oil
Includes high-quality constant-tension T-bolt clamps
Sleek Silver or Stealth Black intercooler options available
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 5
OptionLabel: Silver
Mishimoto has released a performance intercooler kit for the 2008-2010 Ford 6.4L Powerstroke.This kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, reduce EGTs, and support your truck at any power level.The first key component is the Mishimoto cold-side intercooler pipe our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow.The pipe is constructed of mandrel bent aluminum polished to a mirror finish.This kit includes Mishimoto silicone boots with DuraCore technology and constant-tension T-bolt clamps for accurate and consistent holding power.Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots.Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil.This effectively increases the life of our boots by preventing leaks and blowouts.This package is rounded out with the Mishimoto intercooler featuring a significant increase in core volume, extremely durable cast aluminum end tanks, and a bar-and-plate core, all designed to provide cool, dense air to your engine.Our intercooler reduces pressure drop, which results in an overall increase in engine efficiency.All the components in this kit are engineered to last, just like your truck.Offered with either a black or silver core, the Mishimoto 6.4L Powerstroke intercooler kit is protected by our signature lifetime warranty.
