TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.35
TechSpec Core Length (in): 25.75
TechSpec Core Height (in): 21.54
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
Note: Note: This kit will not fit vehicles equipped with dual alternators.----This kit replaces intercooler inlet pipes with the following part numbers:--2005-2007: C3Z-6K769-AA--2003-2004: 6C3Z-6K769-B

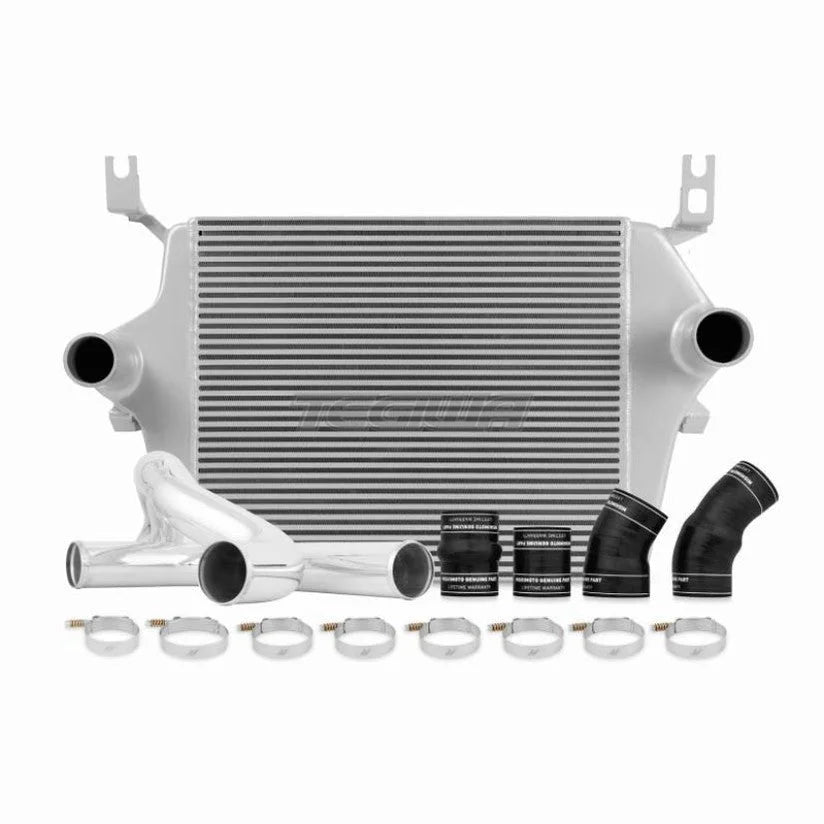

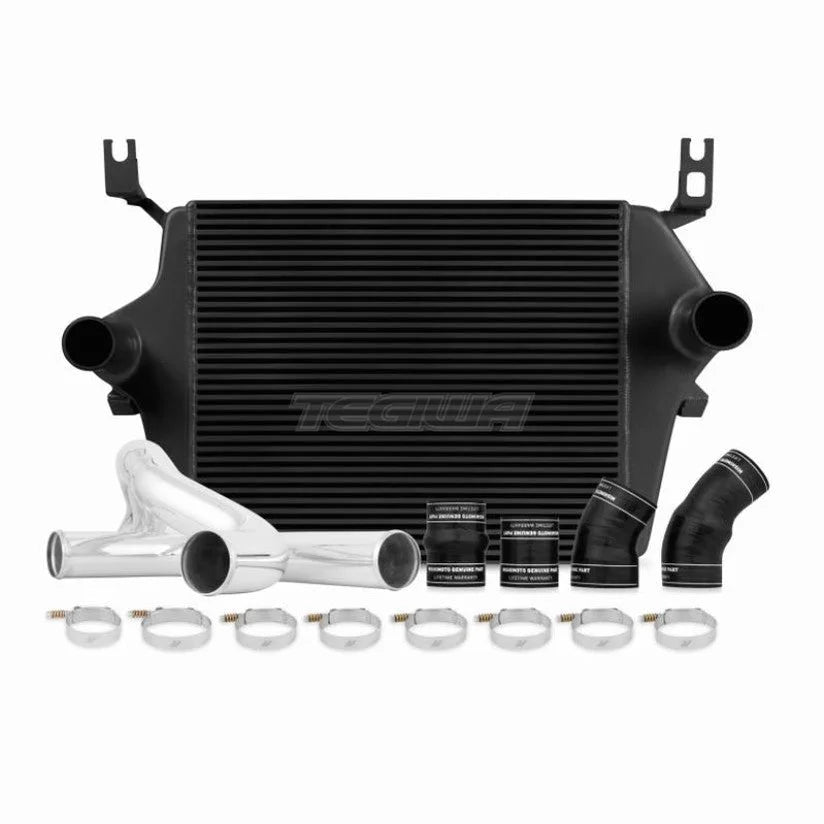

TechSpec Includes: (1) Mishimoto Intercooler--(2) Aluminum Intercooler Pipes--(4) Silicone Boots with DuraCore Technology--(8) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Includes hot-side and cold-side intercooler pipes and boots
3.35-in bar-and-plate core is 33-percent thicker than factory
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life

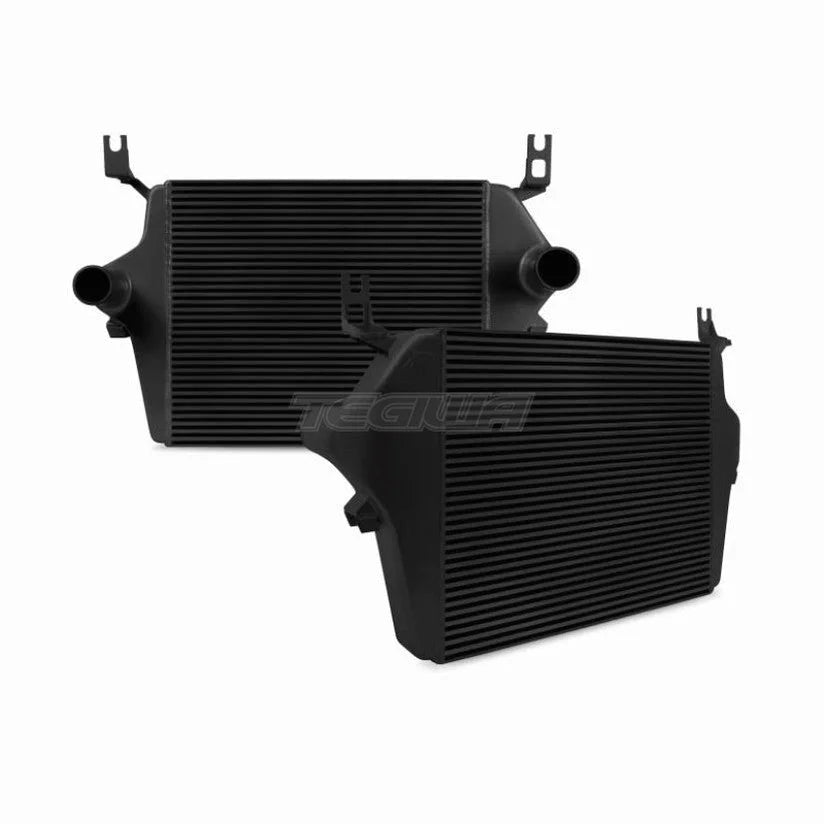

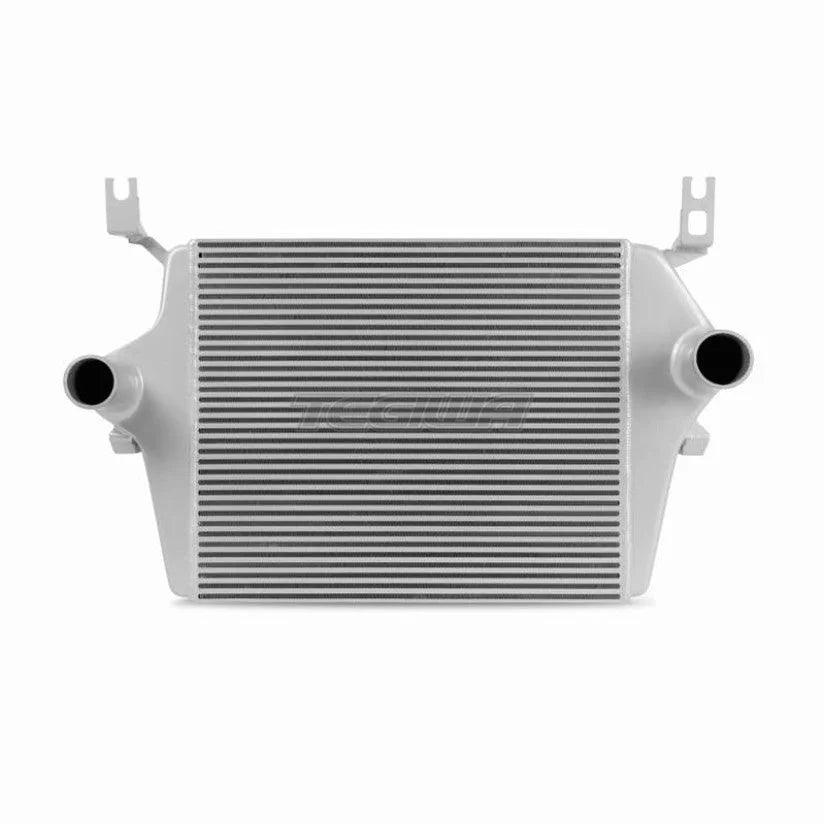

Intercooler available in Sleek Silver and Stealth Black
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.35
TechSpec Core Length (in): 25.75
TechSpec Core Height (in): 21.54
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
Note: Note: This kit will not fit vehicles equipped with dual alternators.----This kit replaces intercooler inlet pipes with the following part numbers:--2005-2007: C3Z-6K769-AA--2003-2004: 6C3Z-6K769-B
TechSpec Includes: (1) Mishimoto Intercooler--(2) Aluminum Intercooler Pipes--(4) Silicone Boots with DuraCore Technology--(8) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Includes hot-side and cold-side intercooler pipes and boots
3.35-in bar-and-plate core is 33-percent thicker than factory
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver
Mishimoto has released a performance intercooler kit for the 2003-2007 Ford 6.0L Powerstroke.This kit includes everything you need to improve airflow, substantially lower air charge temperatures, reduce EGTs, and support your truck at any power level.The first key component is the Mishimoto intercooler piping our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow.The pipes are constructed of mandrel bent aluminum polished to a mirror finish.This kit includes Mishimoto silicone boots with DuraCore technology and constant-tension T-bolt clamps for accurate and consistent holding power.Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots.Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil.This effectively increases the life of our boots by preventing leaks and blowouts.This package is rounded out with the Mishimoto intercooler, featuring a significant increase in core volume, extremely durable cast aluminum end tanks, and a bar-and-plate core, all designed to provide cool, dense air to your engine.Our intercooler reduces pressure drop, which results in an overall increase in engine efficiency.All the components in this kit are engineered to last, just like your truck.Offered with either a black or silver core, the Mishimoto 6.0L Powerstroke intercooler kit is protected by our signature lifetime warranty.
