TechSpec Applications: 2013-2018 Dodge Ram 6.7L Cummins
TechSpec Overall Length (in): 33
TechSpec Overall Height (in): 12.5
TechSpec Overall Width (in): 10
TechSpec Core Length (in): 25.7
TechSpec Core Height (in): 12.5
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.

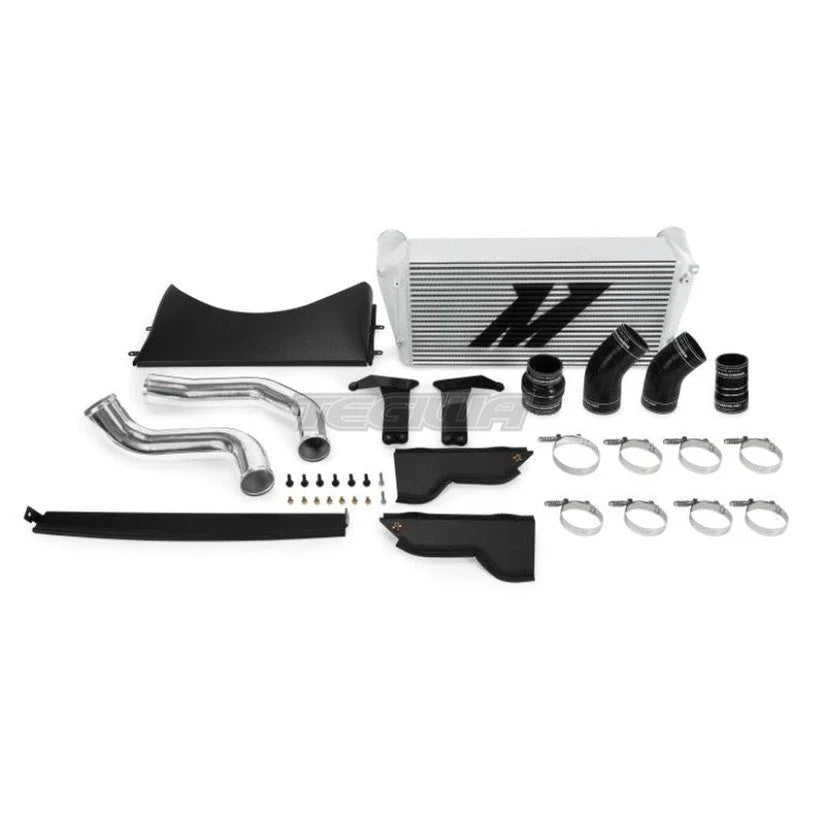

TechSpec Includes: (1) Mishimoto Intercooler--(3) Front Air Diversion Panels--(1) Replacement Lower Fan Shroud--(2) Mounting Brackets w/ Rubber Isolators--(2) Aluminum Pipes--(4) Silicone Boots with Duracore Technology--(8) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2013-2018 6.7L Cummins

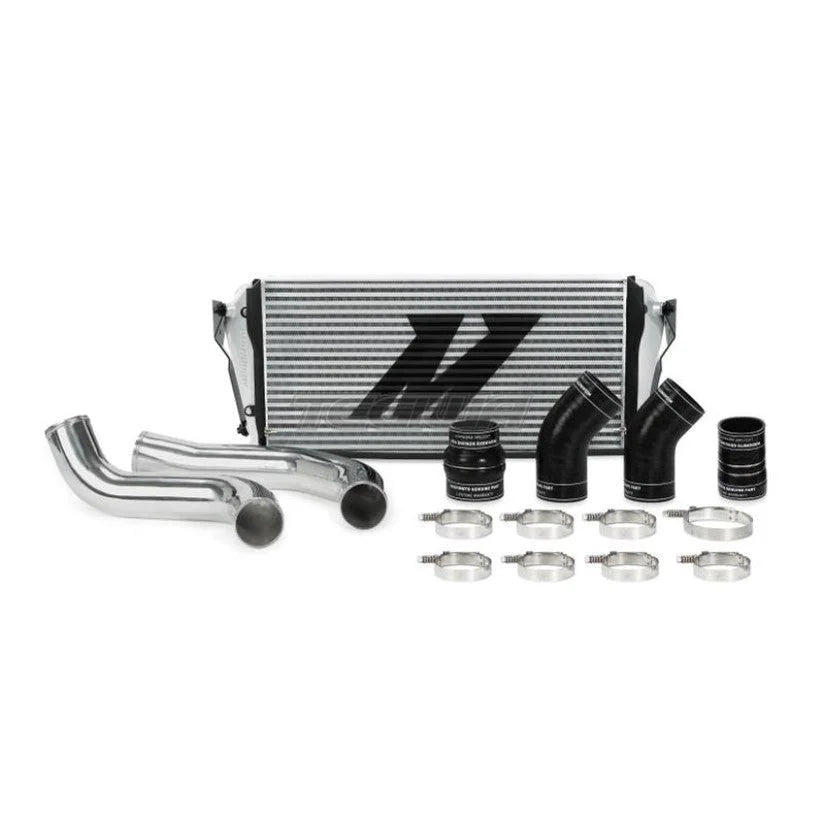

Includes hot-side and cold-side intercooler pipes and boots
Lowers AITs by 12.5-percent
3-in mandrel-bent polished aluminum piping

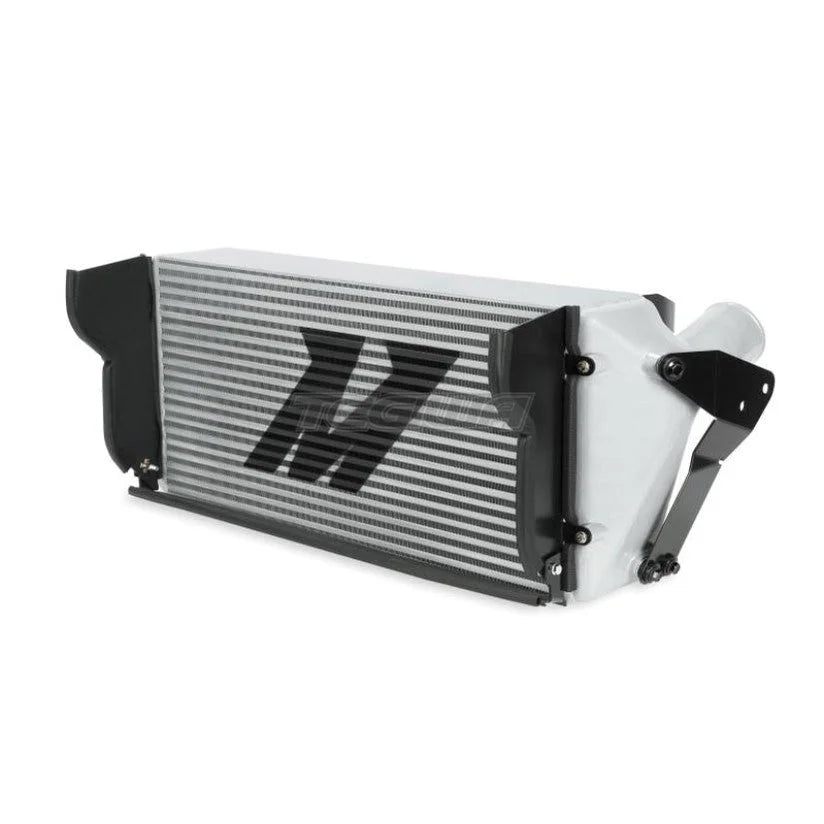

Bar-and-plate construction with cast aluminum end tanks
76.65-percent increase in external fin surface area
37.8-percent larger core volume than factory

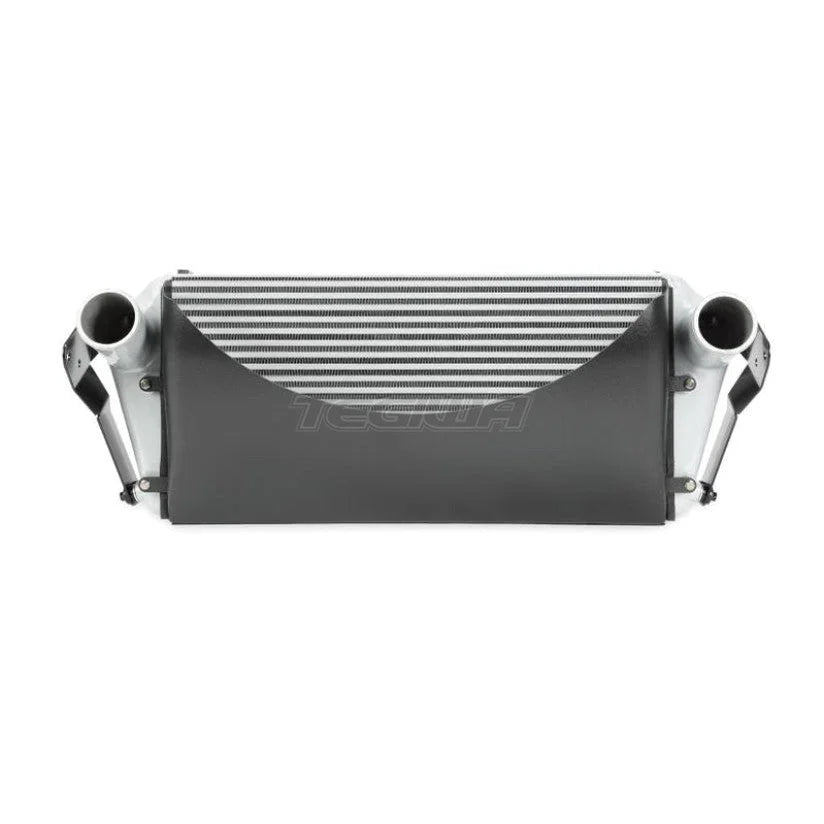

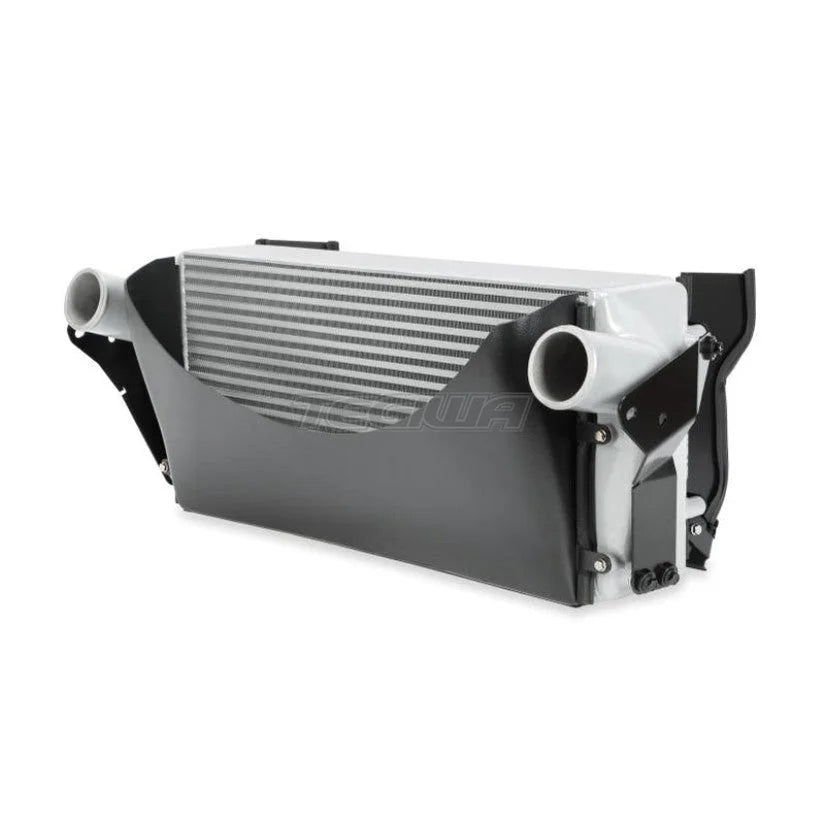

Includes new air ducts to divert air into the core and new lower fan shroud section
End tanks strategically designed for optimal airflow
Internal fins designed for maximum heat transfer with minimal pressure drop
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Sleek Silver or Stealth Black intercooler options available
Mishimoto Lifetime Warranty
Install Difficulty: 4

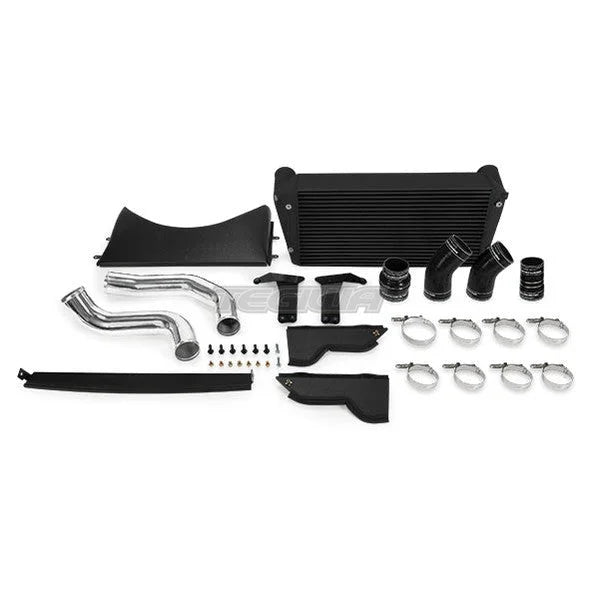

OptionLabel: Stealth Black
TechSpec Applications: 2013-2018 Dodge Ram 6.7L Cummins
TechSpec Overall Length (in): 33
TechSpec Overall Height (in): 12.5
TechSpec Overall Width (in): 10
TechSpec Core Length (in): 25.7
TechSpec Core Height (in): 12.5
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
TechSpec Includes: (1) Mishimoto Intercooler--(3) Front Air Diversion Panels--(1) Replacement Lower Fan Shroud--(2) Mounting Brackets w/ Rubber Isolators--(2) Aluminum Pipes--(4) Silicone Boots with Duracore Technology--(8) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2013-2018 6.7L Cummins
Includes hot-side and cold-side intercooler pipes and boots
Lowers AITs by 12.5-percent
3-in mandrel-bent polished aluminum piping
Bar-and-plate construction with cast aluminum end tanks
76.65-percent increase in external fin surface area
37.8-percent larger core volume than factory
Includes new air ducts to divert air into the core and new lower fan shroud section
End tanks strategically designed for optimal airflow
Internal fins designed for maximum heat transfer with minimal pressure drop
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
Sleek Silver or Stealth Black intercooler options available
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: Sleek Silver
Mishimoto has released a performance intercooler kit for the 2013-2018 Dodge 6.7L Cummins. This kit includes everything you need to improve airflow, substantially decrease charge-air temperatures and support your truck at any power level. The first key component is the Mishimoto 6.7L Cummins intercooler piping kit. Our engineers have maximized airflow by eliminating restrictive bends, allowing for smooth and unimpeded airflow. The piping is constructed of mandrel-bent 3in aluminum for smooth flow and rugged durability. Also included are Mishimoto silicone boots with DuraCore technology and Mishimoto Constant-Tension T-Bolt Clamps for accurate and consistent holding force. Mishimoto DuraCore technology comprises the innermost layer of all Mishimoto diesel silicone boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of your boots and prevents leaks or blowouts. This package also includes the Mishimoto 6.7L Cummins intercooler. Extremely durable cast aluminum end tanks and a bar-and-plate core provide cool, dense air to your engine, with the reliability you need. With a 76.65-percent increase in external fin surface area, and a 37.8-percent larger core, this intercooler is proven to reduce intake air temps by 12.5-percent. All the components in this kit are engineered to last, just like your truck. Offered with either a Sleek Silver or Stealth Black core, the Mishimoto 6.7L Cummins intercooler kit, like all our Dodge Ram performance parts, is protected by the Mishimoto Lifetime Warranty. Whether your Cummins is stock or modified, trust Mishimoto and our line of Dodge Ram performance parts to keep your Dodge cool.
