TechSpec Applications: 2016-2018 Ford Focus RS
TechSpec Engine Codes: 2.3L EcoBoost
TechSpec Overall Length (in): 36.75
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 8.2
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.6
TechSpec Core Height (in): 8.3
TechSpec Inlet (in): 2.75
TechSpec Outlet (in): 2.75
TechSpec Weight (lbs): 33

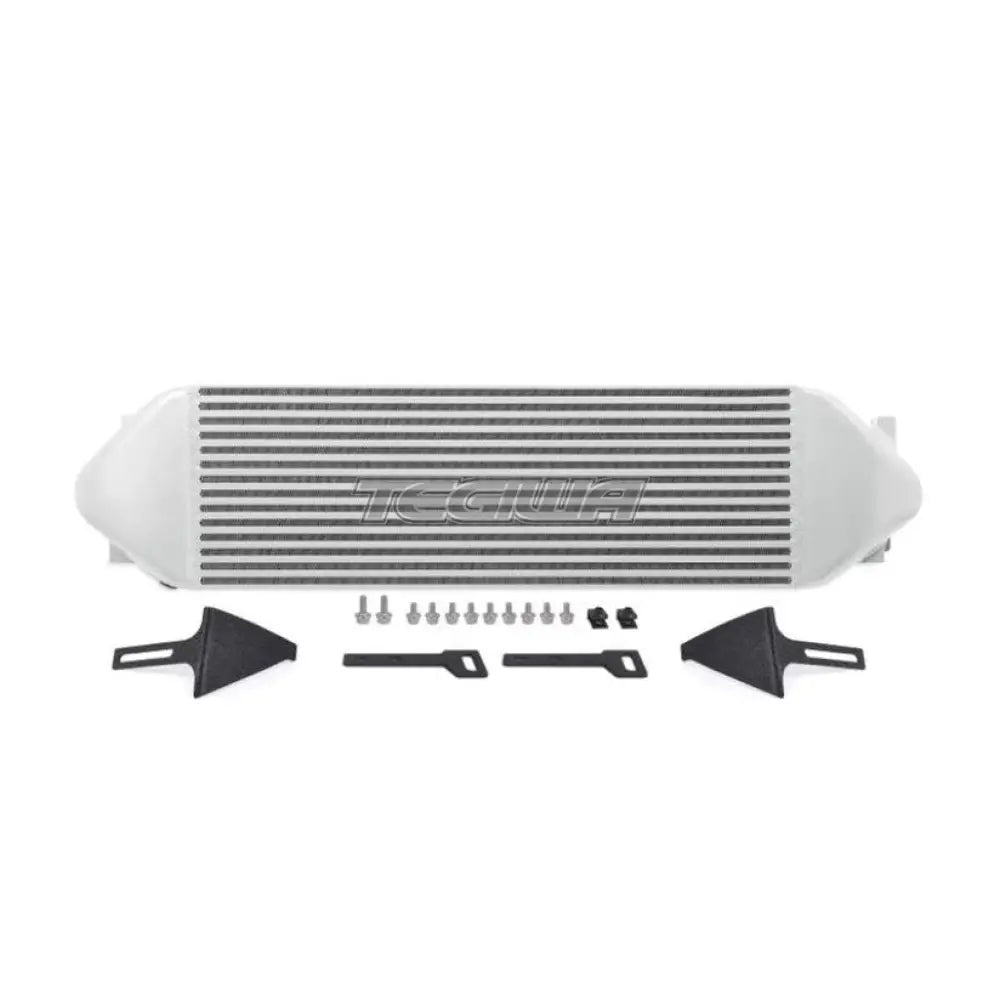

TechSpec Includes: (1) Mishimoto Intercooler--(1) Left & Right Diversion Plate--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2016-2018 Ford Focus RS
40-percent reduction in AIT
80-percent increase in core size
36-percent increase in internal core volume and 214-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
All-aluminum, TIG-welded construction
Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits
7 whp and 8 tq bolt-on power increase with stock tune
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 3

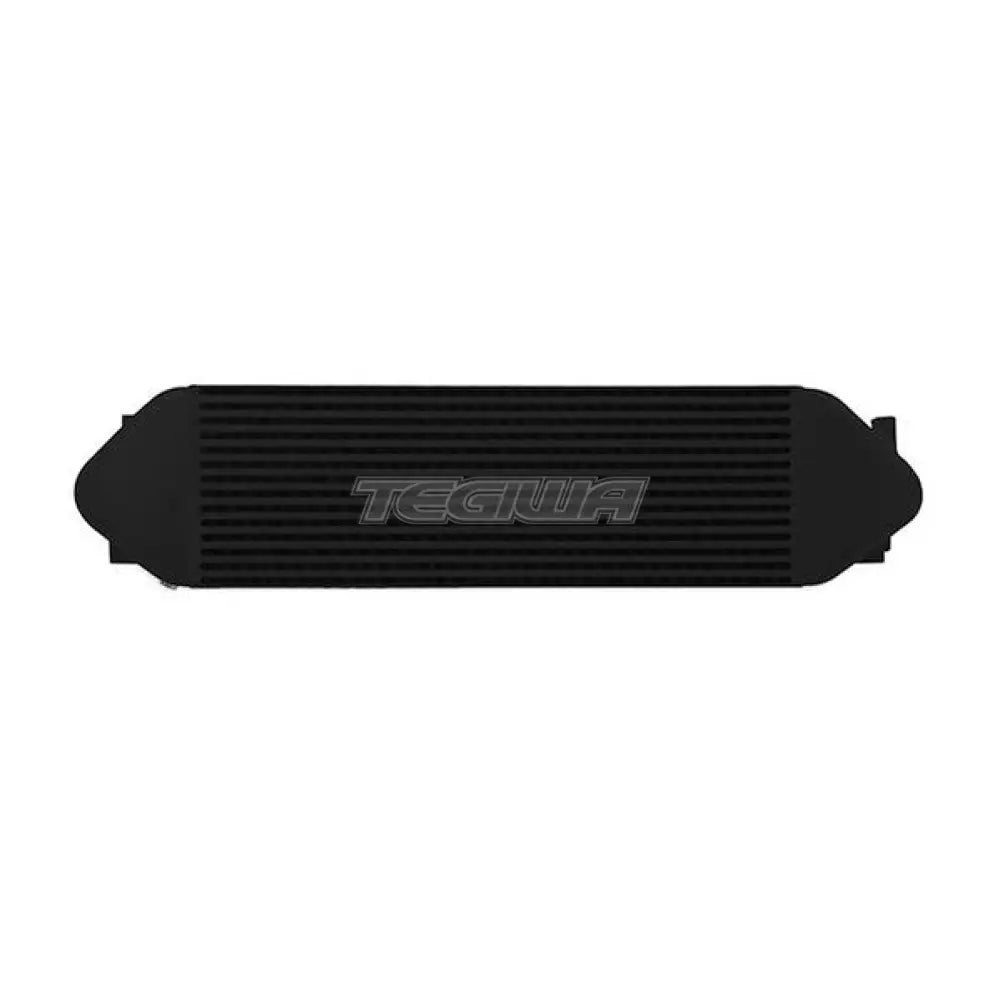

OptionLabel: Stealth Black
TechSpec Applications: 2016-2018 Ford Focus RS
TechSpec Engine Codes: 2.3L EcoBoost
TechSpec Overall Length (in): 36.75
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 8.2
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.6
TechSpec Core Height (in): 8.3
TechSpec Inlet (in): 2.75
TechSpec Outlet (in): 2.75
TechSpec Weight (lbs): 33
TechSpec Includes: (1) Mishimoto Intercooler--(1) Left & Right Diversion Plate--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2016-2018 Ford Focus RS
40-percent reduction in AIT
80-percent increase in core size
36-percent increase in internal core volume and 214-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
All-aluminum, TIG-welded construction
Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits
7 whp and 8 tq bolt-on power increase with stock tune
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 3

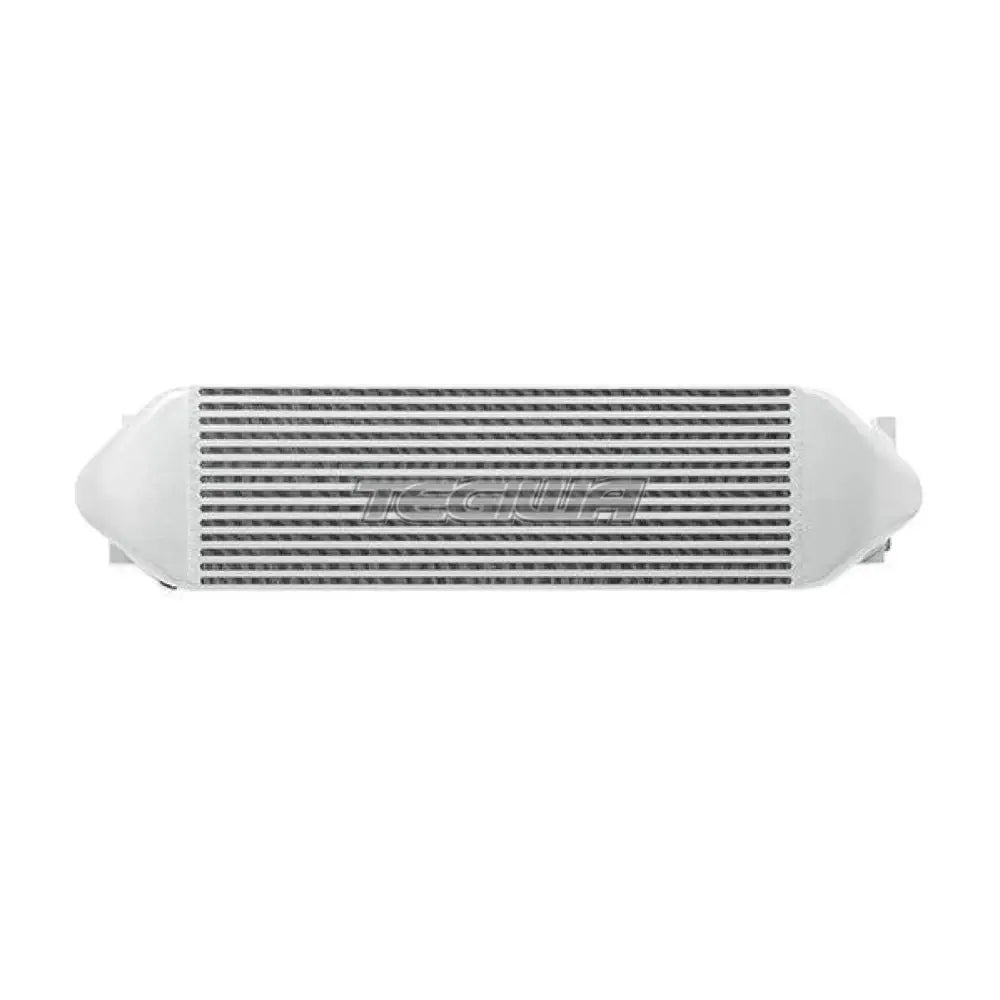

OptionLabel: Silver

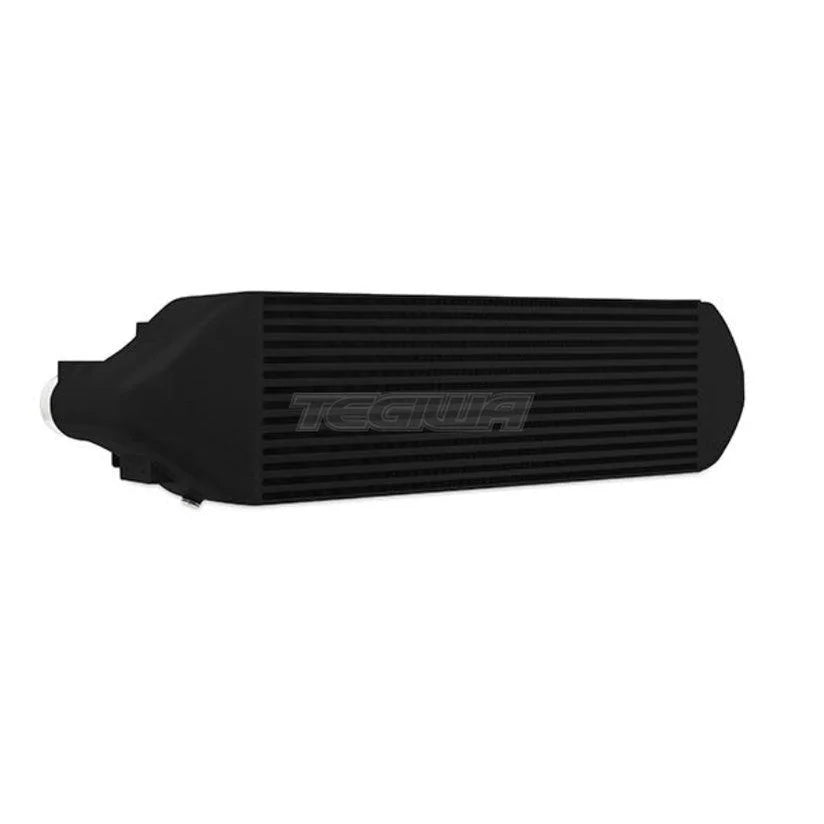

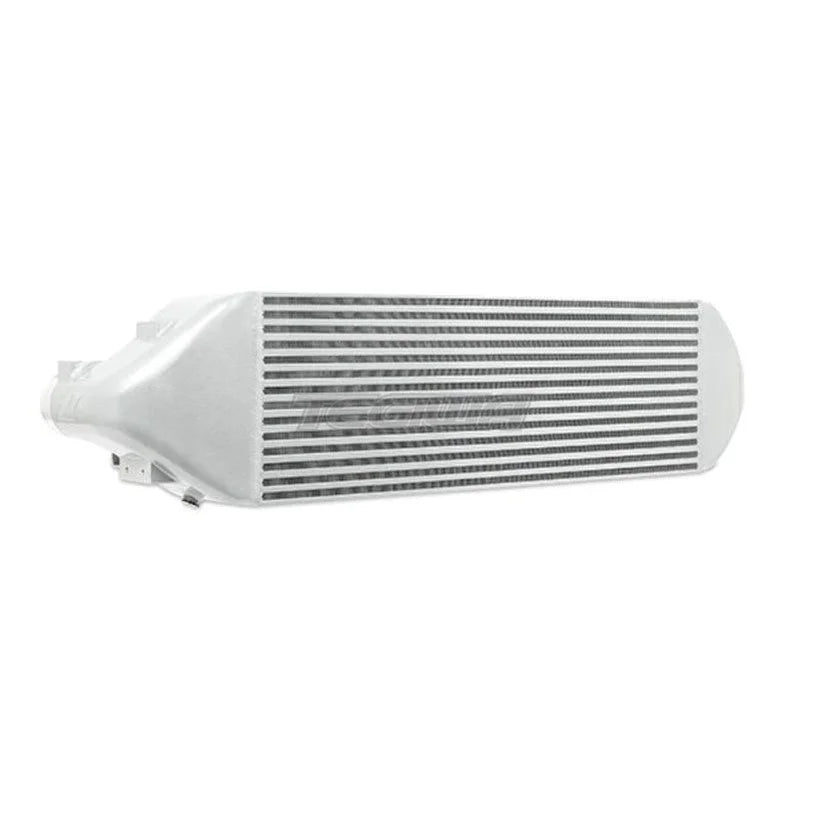

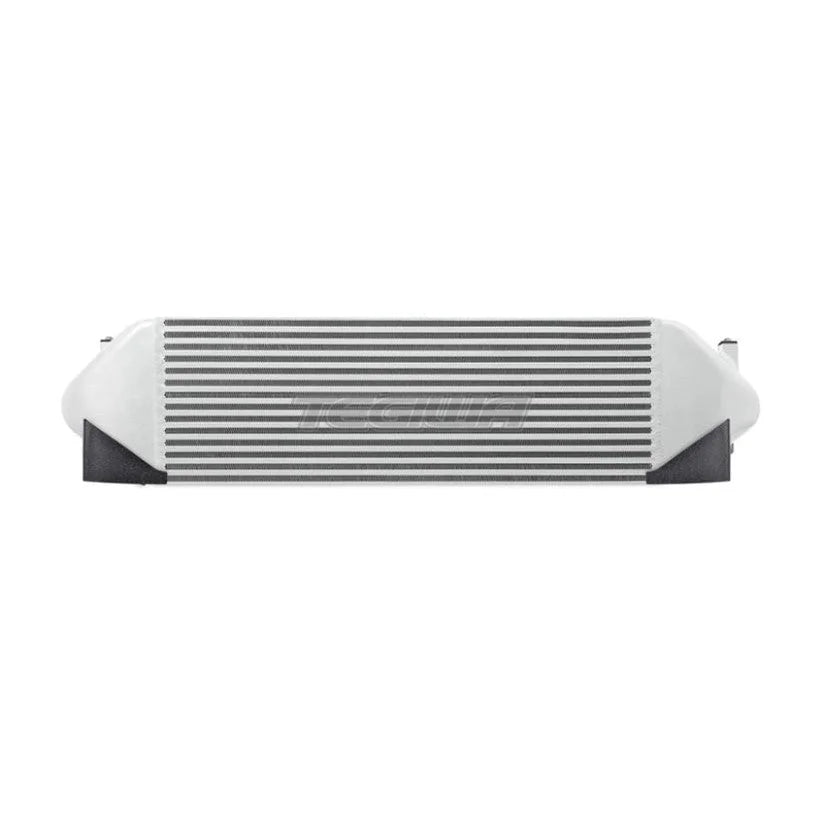

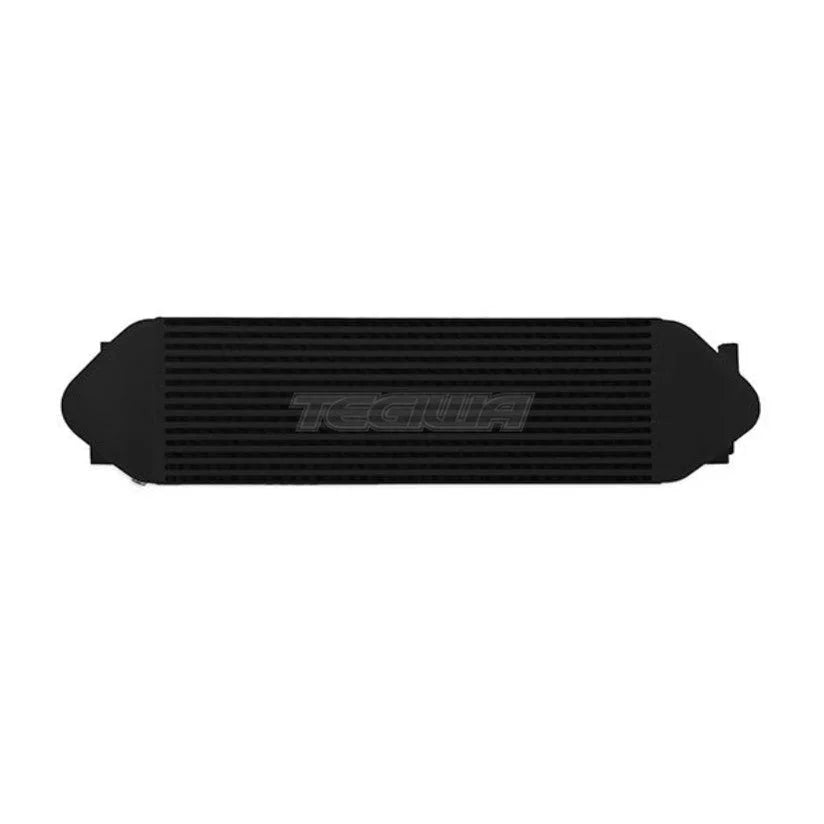

Say hello to our intercooler for the 2016-2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36-percent increase in core volume and a 214-percent increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40-percent while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! This hefty, direct-fit, bar-and-plate core is durable enough to wIt'stand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds. This intercooler is designed to function with all factory equipment on the 2016-2018 Focus RS as well as our upgraded intercooler pipes. There is no modification necessary for installation, making it a true bolt-on performance part. As with all our parts, this intercooler comes with the Mishimoto Lifetime Warranty. Order yours today!
