TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Overall Length (in): 28.9
TechSpec Overall Height (in): 31.9
TechSpec Overall Width (in): 5.1
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.51
TechSpec Core Height (in): 23.11
TechSpec Inlet (in): 3.23
TechSpec Outlet (in): 3.23
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the 6.4L Powerstroke
Lowers AITs 21-percent
50-percent less pressure drop than factory
Installs in 30 minutes
All-aluminum cast end tanks
Bar-and-plate core
18-percent thicker than factory
20-percent larger core volume than factory
Reduces turbo stress and extends life

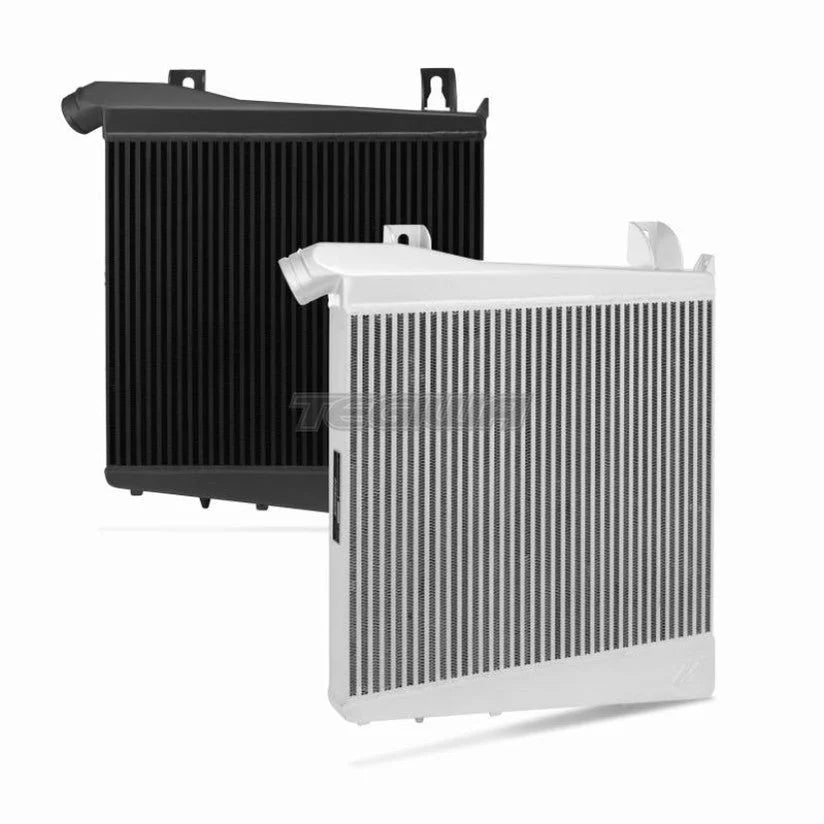

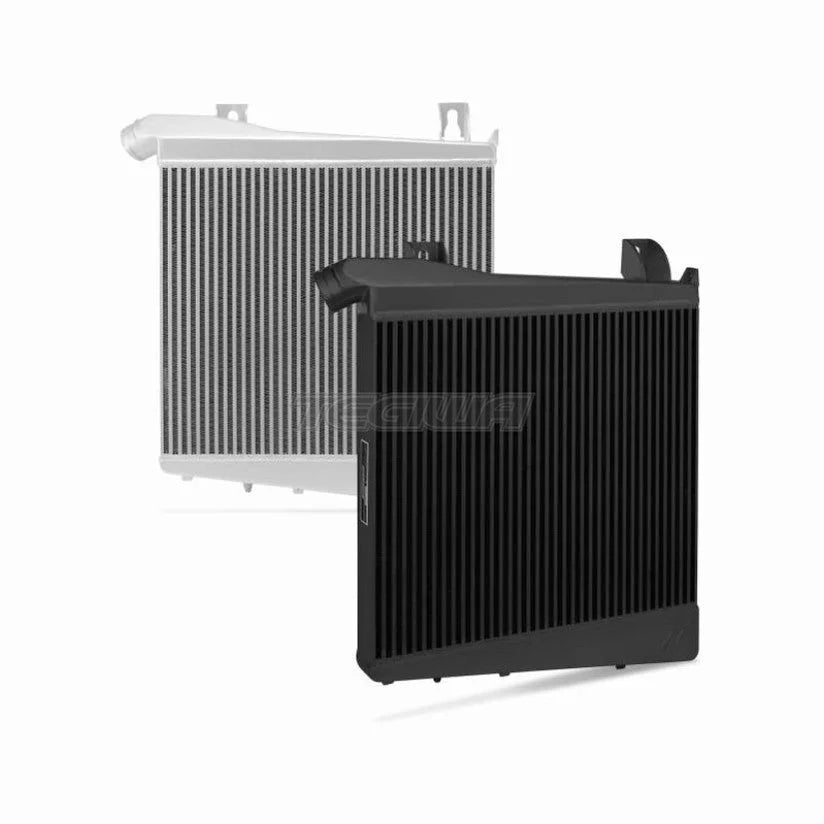

Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 2
OptionLabel: Black
TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Overall Length (in): 28.9
TechSpec Overall Height (in): 31.9
TechSpec Overall Width (in): 5.1
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.51
TechSpec Core Height (in): 23.11
TechSpec Inlet (in): 3.23
TechSpec Outlet (in): 3.23
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the 6.4L Powerstroke
Lowers AITs 21-percent
50-percent less pressure drop than factory
Installs in 30 minutes
All-aluminum cast end tanks
Bar-and-plate core
18-percent thicker than factory
20-percent larger core volume than factory
Reduces turbo stress and extends life
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
Install Difficulty: 2
OptionLabel: Silver

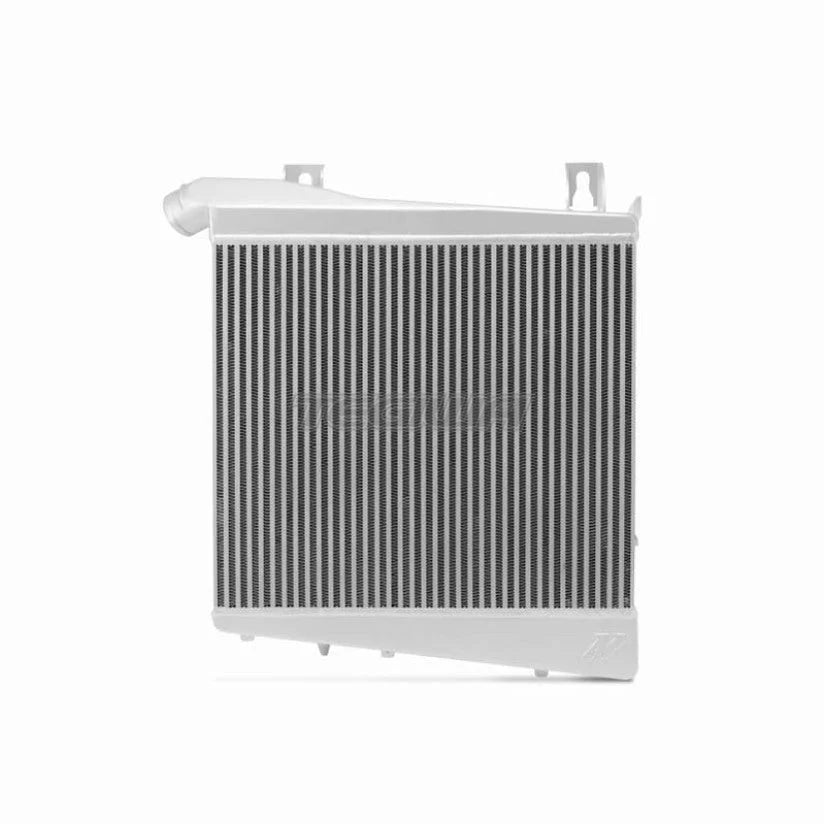

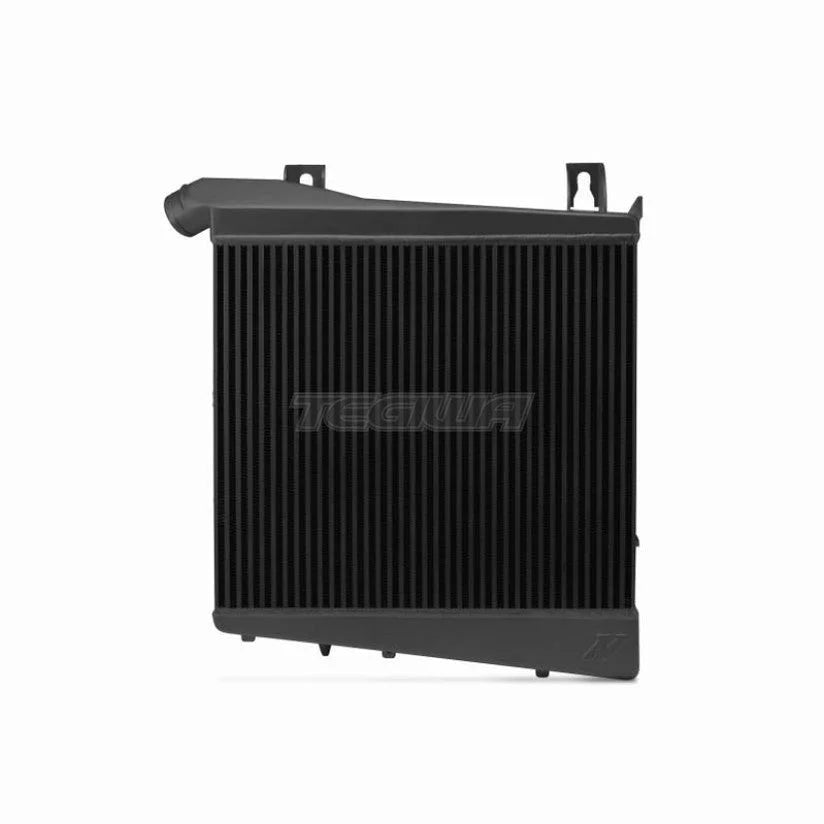

Mishimoto has released a performance intercooler for the 2008-2010 Ford 6.4L Powerstroke.Your 6.4L needs an intercooler that can effectively reduce intake temperatures and wIt'stand high boost pressures.The Mishimoto 6.4L Powerstroke intercooler is manufactured with heavy-duty cast aluminum end tanks and a durable bar-and-plate core, designed to decrease intake temperatures, improve airflow, and reduce pressure drop.By reducing pressure drop this intercooler will extend the life of your turbocharger and improve the efficiency of your Powerstroke.The Mishimoto Powerstroke intercooler features an increase in core volume compared to the factory cooler, which results in improved performance and lower EGTs.We engineered this intercooler to provide substantial benefits on a stock truck and also to support the power and boost levels of a highly modified truck.Whether you take your truck to the strip or to the job site, the Mishimoto intercooler is an ideal upgrade for the factory intercooler.Offered in black or silver, the Mishimoto 6.4L Powerstroke intercooler is protected by our signature lifetime warranty.
