TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.75
TechSpec Core Height (in): 21.54
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
3.35-in bar-and-plate core is 33-percent thicker than factory
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Available in Sleek Silver and Stealth Black
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
TechSpec Overall Length (in): 38.5
TechSpec Overall Height (in): 25.2
TechSpec Overall Width (in): 7.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.75
TechSpec Core Height (in): 21.54
TechSpec Inlet (in): 3.25
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
3.35-in bar-and-plate core is 33-percent thicker than factory
32.5-percent increase in core volume
End tanks strategically designed for optimal airflow
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Available in Sleek Silver and Stealth Black
Provides improved airflow and lowers intake air temperatures
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver

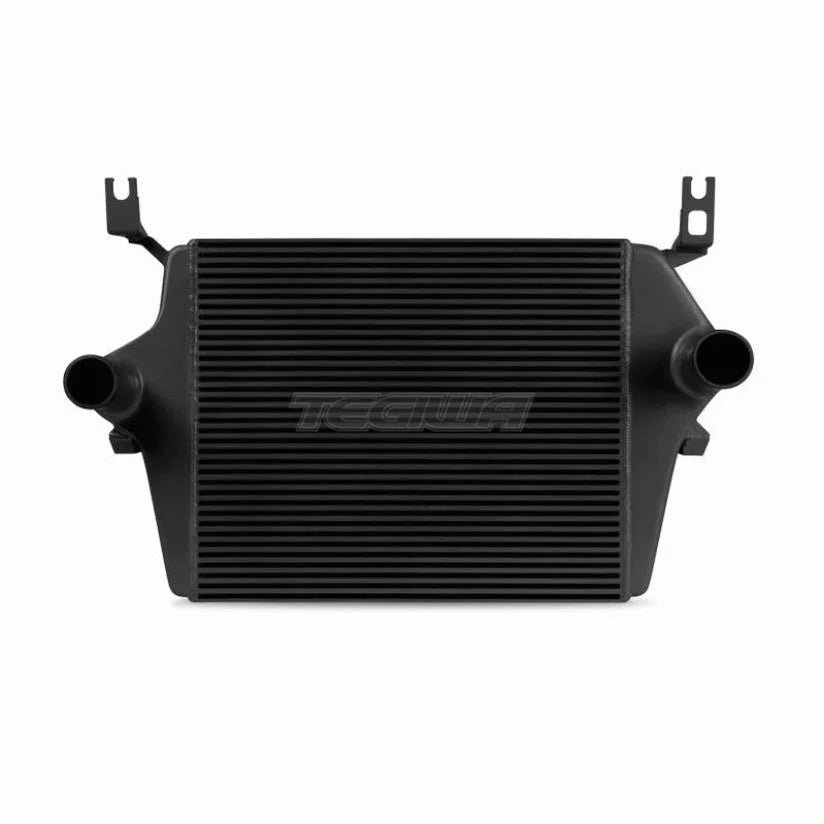

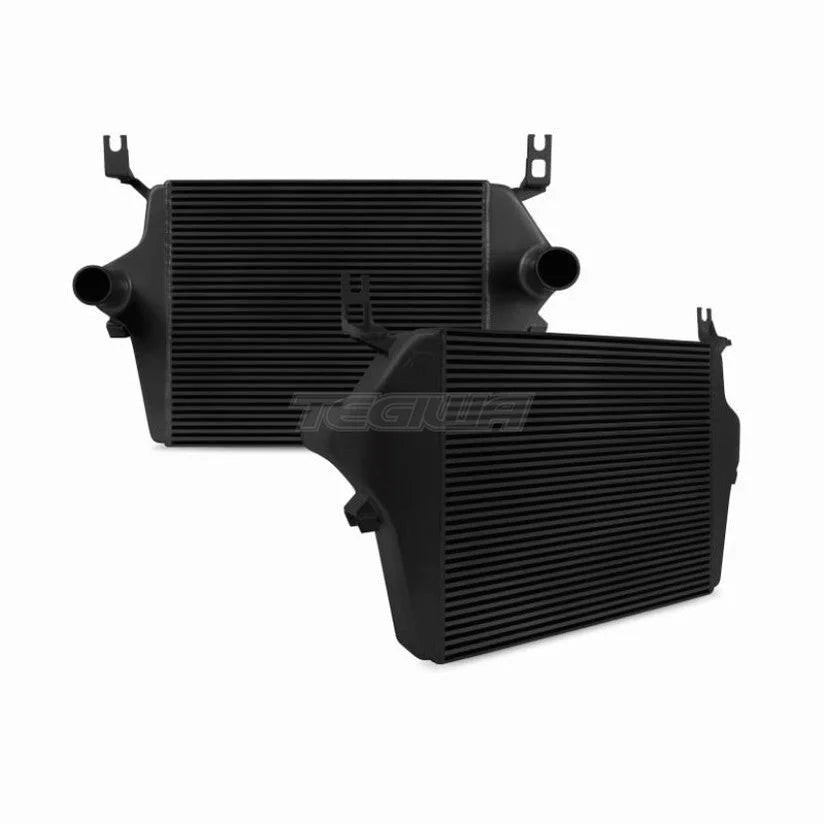

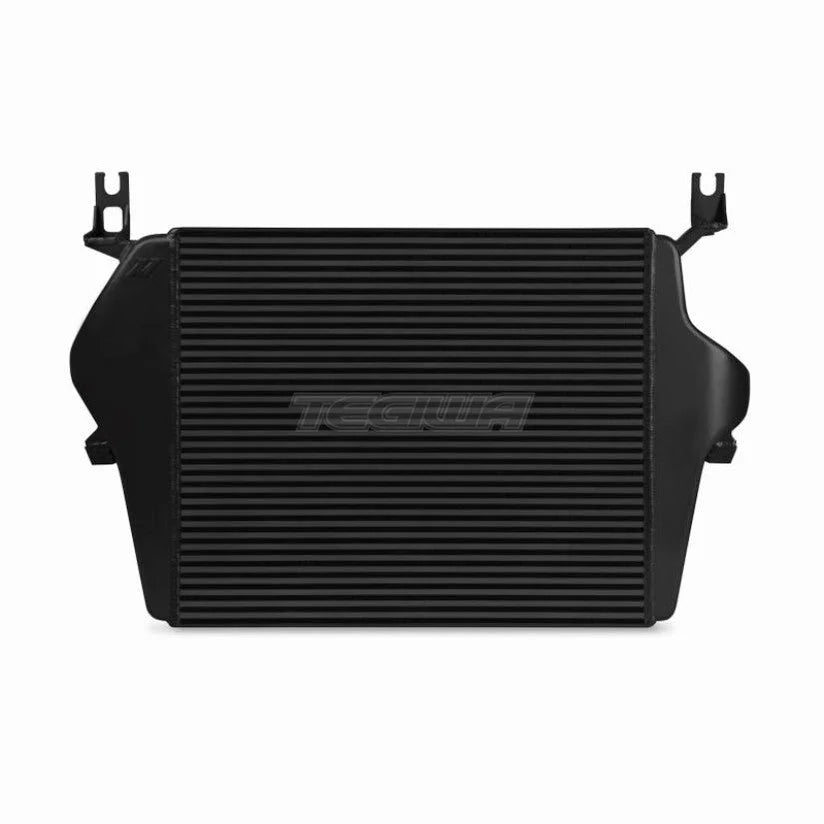

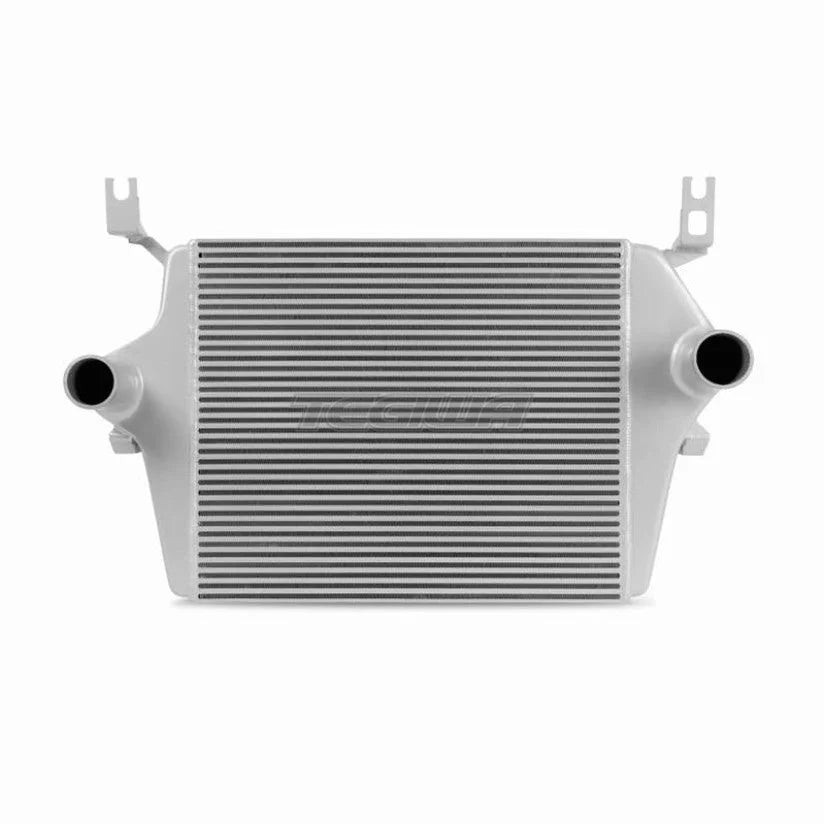

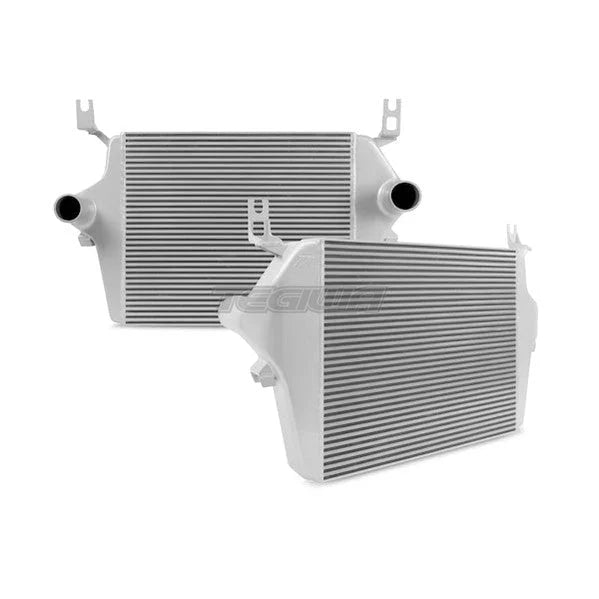

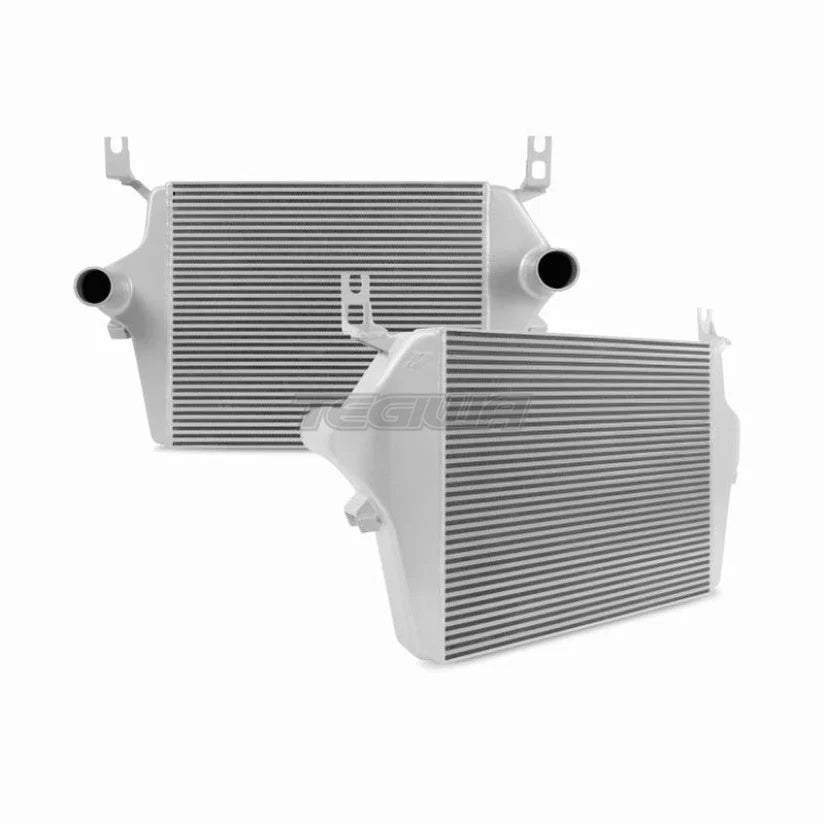

Mishimoto has released a performance intercooler for the 2003-2007 Ford 6.0L Powerstroke.A high-powered 6.0L engine needs an intercooler that can effectively reduce intake temperatures and wIt'stand high pressures.The Mishimoto 6.0L Powerstroke intercooler is manufactured with heavy-duty cast aluminum end tanks and a stout bar-and-plate core, designed to decrease intake temperatures, improve airflow, and reduce pressure drop.By decreasing pressure drop this intercooler will extend the life of your turbocharger and improve the efficiency of your Powerstroke.The Mishimoto Powerstroke intercooler features a core with greater volume than the factory cooler this results in numerous performance benefits including increased pressure tolerance and lower EGTs.We engineered this intercooler to provide substantial benefits on a stock truck, and also to support the power and boost levels of a highly modified truck.Offered in black or silver, the Mishimoto 6.0L Powerstroke intercooler is protected by our signature lifetime warranty.
