TechSpec Applications: 2013-2018 Dodge Ram 6.7L Cummins
TechSpec Overall Length (in): 33
TechSpec Overall Height (in): 12.5
TechSpec Overall Width (in): 10
TechSpec Core Length (in): 25.7
TechSpec Core Height (in): 12.5
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.

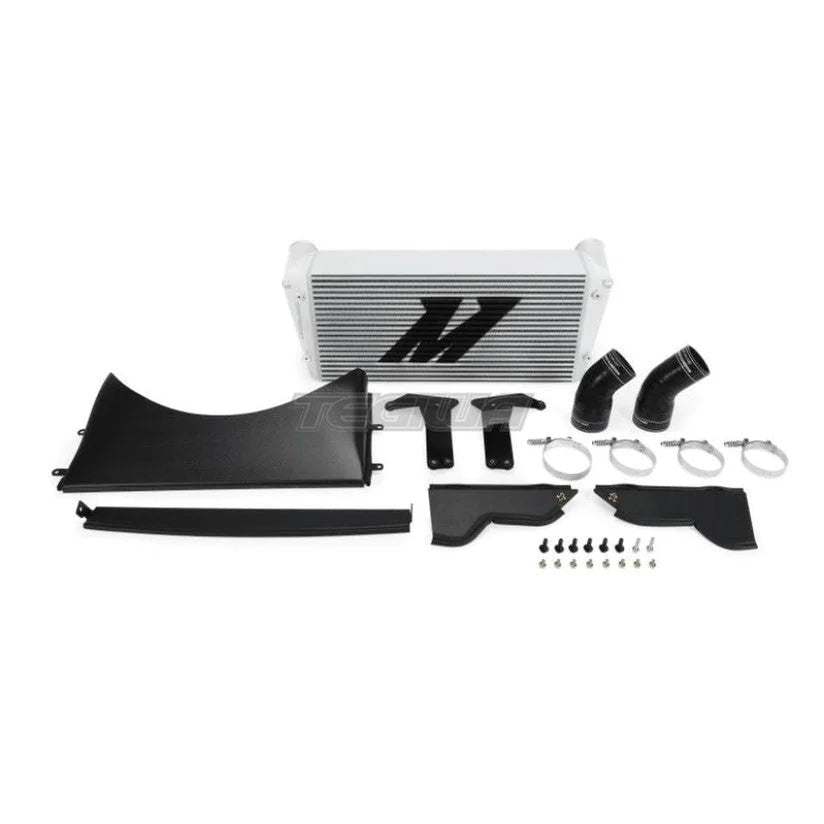

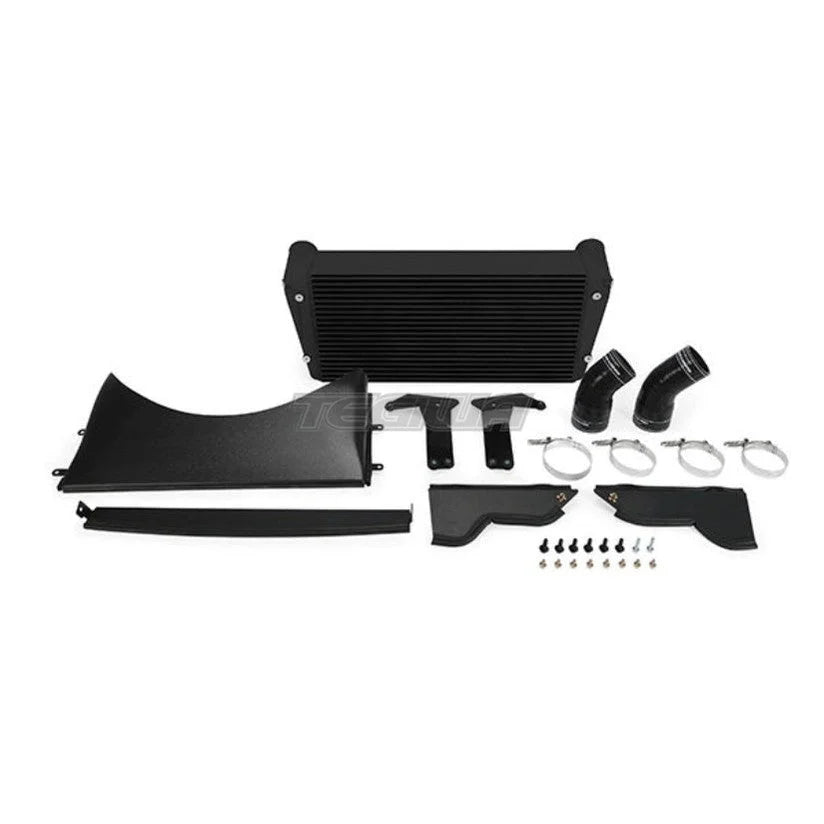

TechSpec Includes: (1) Mishimoto Intercooler--(3) Front Air Diversion Panels--(1) Replacement Lower Fan Shroud--(2) Mounting Brackets w/ Rubber Isolators--(2) Silicone Boots with Duracore Technology--(4) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins
Bar-and-plate construction with cast aluminum end tanks
Lowers AIT by 12.5-percent
76.65-percent greater internal volume than factory
37.8-percent larger core volume than factory
Includes new air ducts to divert air into the core and new lower fan shroud section
End tanks strategically designed for optimal airflow
Internal fins designed for maximum heat transfer with minimal pressure drop
Includes transition couplers for use with the stock intercooler pipes
Sleek Silver or Stealth Black intercooler options available
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: Stealth Black
TechSpec Applications: 2013-2018 Dodge Ram 6.7L Cummins
TechSpec Overall Length (in): 33
TechSpec Overall Height (in): 12.5
TechSpec Overall Width (in): 10
TechSpec Core Length (in): 25.7
TechSpec Core Height (in): 12.5
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
TechSpec Includes: (1) Mishimoto Intercooler--(3) Front Air Diversion Panels--(1) Replacement Lower Fan Shroud--(2) Mounting Brackets w/ Rubber Isolators--(2) Silicone Boots with Duracore Technology--(4) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins
Bar-and-plate construction with cast aluminum end tanks
Lowers AIT by 12.5-percent
76.65-percent greater internal volume than factory
37.8-percent larger core volume than factory
Includes new air ducts to divert air into the core and new lower fan shroud section
End tanks strategically designed for optimal airflow
Internal fins designed for maximum heat transfer with minimal pressure drop
Includes transition couplers for use with the stock intercooler pipes
Sleek Silver or Stealth Black intercooler options available
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: Sleek Silver
The Dodge Cummins straight-six is well known for its smooth power delivery and engine longevity. Mishimoto has released an intercooler for the 2013-2018 Dodge Ram 6.7L Cummins that is built to last, just like your truck. The Mishimoto Cummins intercooler is manufactured with robust cast aluminum end tanks and a dense bar-and-plate core. Our engineers developed an intercooler with increased core volume that can support substantial boost pressures and lower EGTs in your stock or modified truck. The Mishimoto Cummins performance intercooler features larger-than-factory intercooler outlets for increased flow. Included with this intercooler are two silicone boots with DuraCore technology and our signature Constant Tension T-bolt Clamps for consistent and reliable holding power. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel and oil. This effectively increases the life of our boots by preventing leaks and blowouts. Save time and money by upgrading to the full Mishimoto 2013-2018 Dodge Ram 6.7L Cummins intercooler and piping kit, which pairs this intercooler with the Mishimoto 2013-2018 Dodge Ram 6.7L Cummins pipe and boot kit, at a special discounted price. Whether your Cummins is stock or modified, trust Mishimoto and our line of Cummins performance parts to keep your Dodge cool. This Cummins performance intercooler is offered in Sleek Silver or Stealth Black, like all of our Cummins performance parts, and comes backed by the Mishimoto Lifetime Warranty.
