TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Overall Length (in): 28
TechSpec Overall Height (in): 7.5
TechSpec Overall Width (in): 2.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.35
TechSpec Core Length (in): 20.5
TechSpec Core Height (in): 6.25
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
Note: This item is for Manual Transmission vehicles.----Does not fit with factory air dam.--Does not fit with front factory splash shield.
TechSpec Includes: (1) Mishimoto Z Line Intercooler (Black or Silver)--Mishimoto Lifetime Warranty
Features:
Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
Smooth cast end tanks allow the best possible airflow in and out of the intercooler
Lightweight, mandrel-bent, aluminum pipes eliminate restrictive bends in the stock piping
No modifications to the front bumper or removal of the crash bar are necessary
Includes all necessary couplers, brackets, and accessories
Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 5

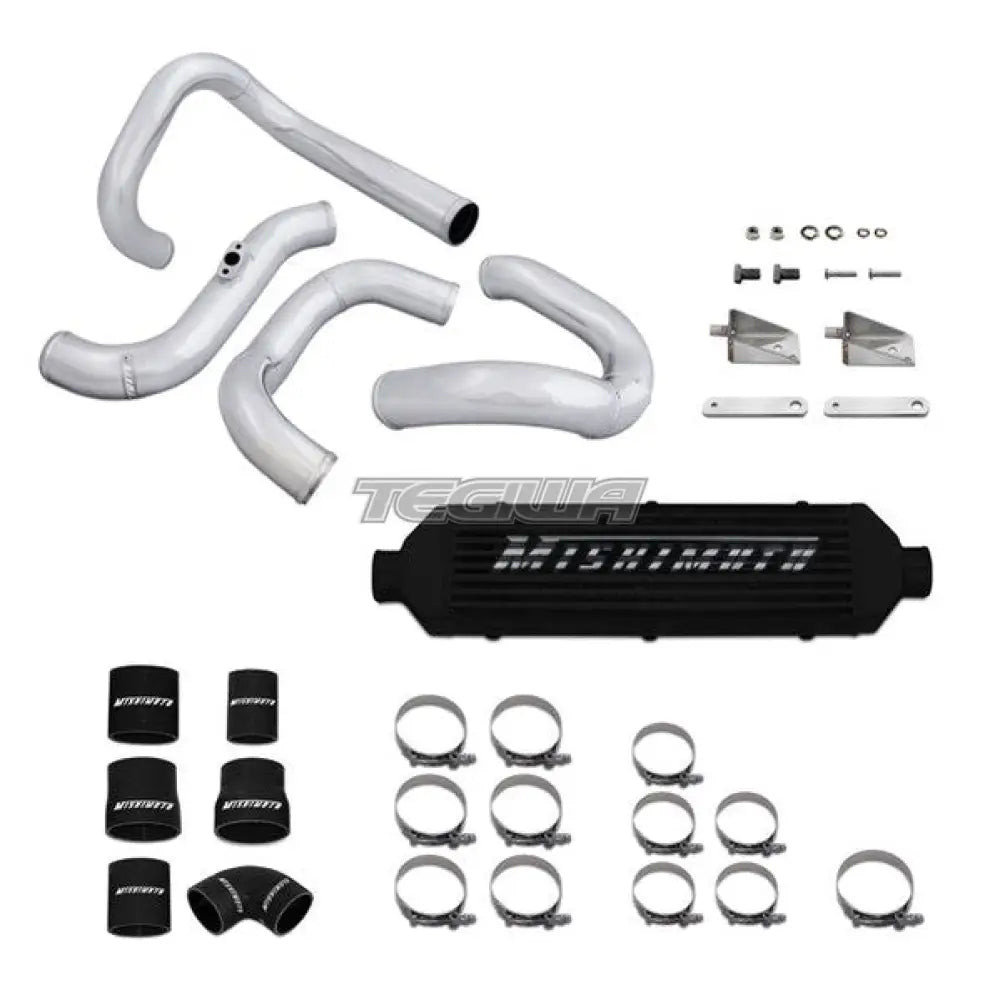

OptionLabel: Black
TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Overall Length (in): 28
TechSpec Overall Height (in): 7.5
TechSpec Overall Width (in): 2.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.35
TechSpec Core Length (in): 20.5
TechSpec Core Height (in): 6.25
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
Note: This item is for Manual Transmission vehicles.----Does not fit with factory air dam.--Does not fit with front factory splash shield.
TechSpec Includes: (1) Mishimoto Z Line Intercooler (Black or Silver)--Mishimoto Lifetime Warranty
Features:
Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
Smooth cast end tanks allow the best possible airflow in and out of the intercooler
Lightweight, mandrel-bent, aluminum pipes eliminate restrictive bends in the stock piping
No modifications to the front bumper or removal of the crash bar are necessary
Includes all necessary couplers, brackets, and accessories
Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 5

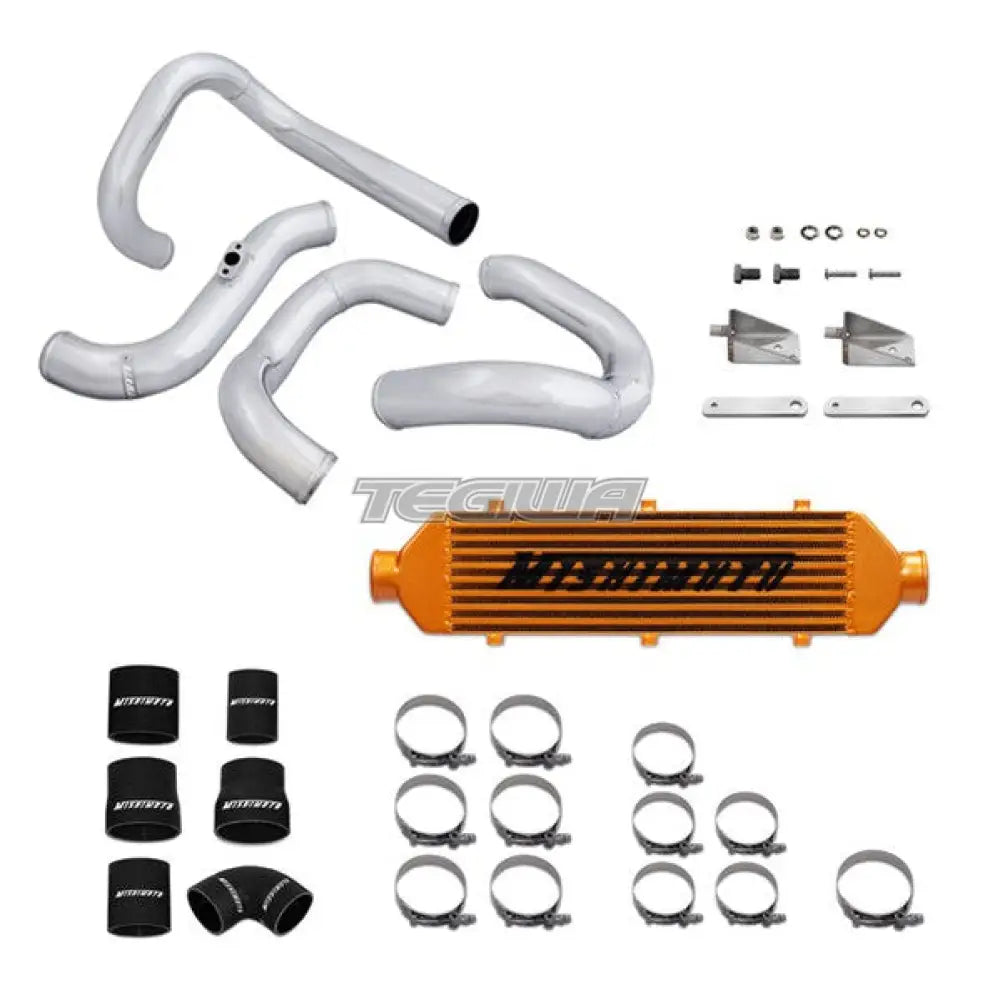

OptionLabel: Gold
TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Overall Length (in): 28
TechSpec Overall Height (in): 7.5
TechSpec Overall Width (in): 2.5
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.35
TechSpec Core Length (in): 20.5
TechSpec Core Height (in): 6.25
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
Note: This item is for Manual Transmission vehicles.----Does not fit with factory air dam.--Does not fit with front factory splash shield.
TechSpec Includes: (1) Mishimoto Z Line Intercooler (Black or Silver)--Mishimoto Lifetime Warranty
Features:
Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
Smooth cast end tanks allow the best possible airflow in and out of the intercooler
Lightweight, mandrel-bent, aluminum pipes eliminate restrictive bends in the stock piping
No modifications to the front bumper or removal of the crash bar are necessary
Includes all necessary couplers, brackets, and accessories
Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 5
OptionLabel: Silver

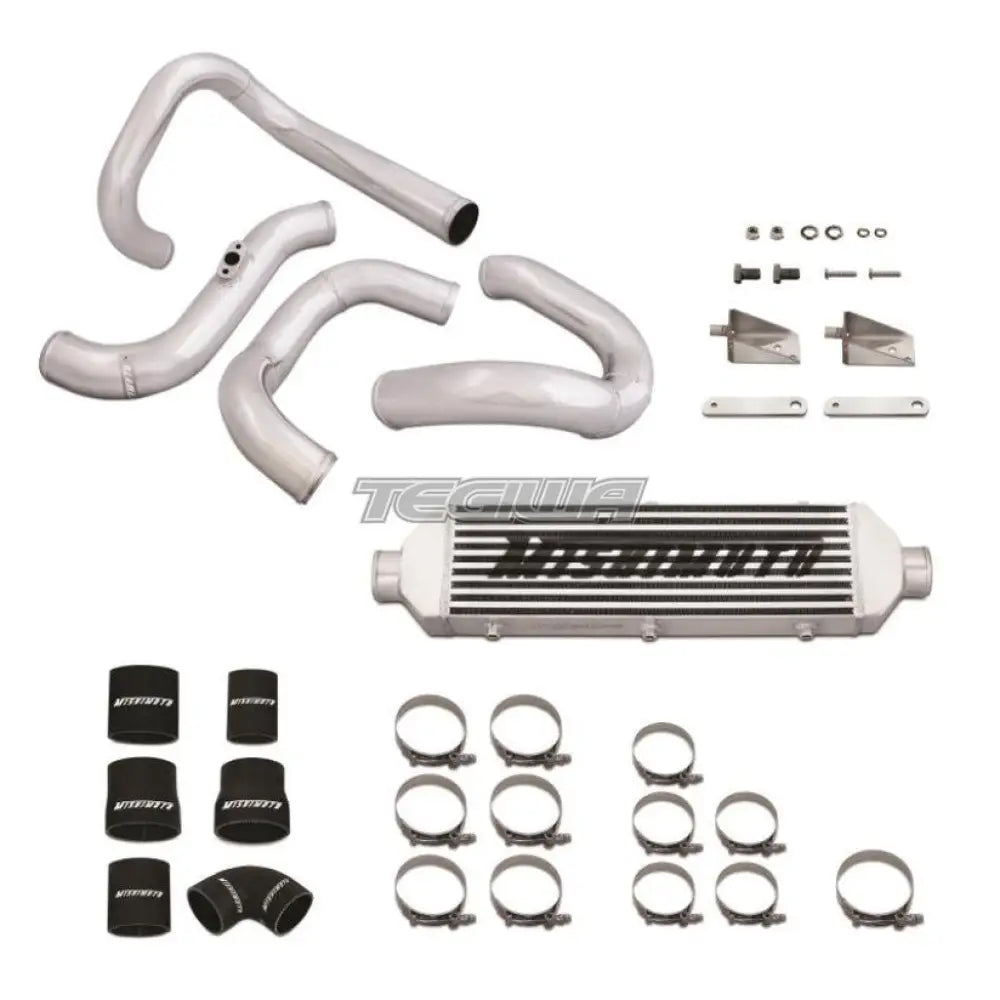

OEM intercooler setups are not designed to handle the higher levels of boost that come with modifying your turbocharged vehicle.The Mishimoto intercooler and piping kit is designed as an ideal upgrade for the 2010-2012 Hyundai Genesis Coupe 2.0T intercooler.The intercooler and piping kit reduces intake temperatures and increases overall cooling efficiency, resulting in a safe increase in horsepower.Unlike most other aftermarket intercooler kits available, modifications to the front bumper and removal of the crash bar are not necessary, since our kit retains OEM fitment.Included in this comprehensive kit is a polished aluminum, black, or gold bar and plate style Z Line intercooler, a complete set of aluminum charge piping, along with all t-bolt clamps and silicone couplers needed for direct bolt-on installation.The Mishimoto Hyundai Genesis Coupe intercooler and piping kit will fit with the OEM radiator, as well as the Mishimoto Hyundai Genesis Aluminum Radiator.Note: For your taste, only one side of the intercooler has the Mishimoto logo.
