TechSpec Fluid Capacity (gal): 8.36
TechSpec Rows: 2
TechSpec Core Thickness (in): 2.76
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
Note: For written installation instructions, please see the tech specs section of the individual product pages for the radiator and upper support bar
TechSpec Includes: Radiator:--Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts----Upper Support Bar:-- - Mishimoto Support Bar--(2) - Mounting Brackets--(2) - Rubber Hood Stops-- - Hardware Pack----Mishimoto Lifetime Warranty
Features:Direct fit for 2008-2010 Ford 6.4L Powerstroke
Upper support bar provides improved rigidity to minimize front end flex
Less twisting in radiator support = less stress on cooling components
Aluminum radiator incorporates co-molded aluminum/rubber mounting pegs to reduce the truck’s torque transfer to the radiator
Internally strutted radiator tubes for increased strength against high pressure and temperature
Patent numberD717,702
Mishimoto Lifetime Warranty
Install Difficulty: 3

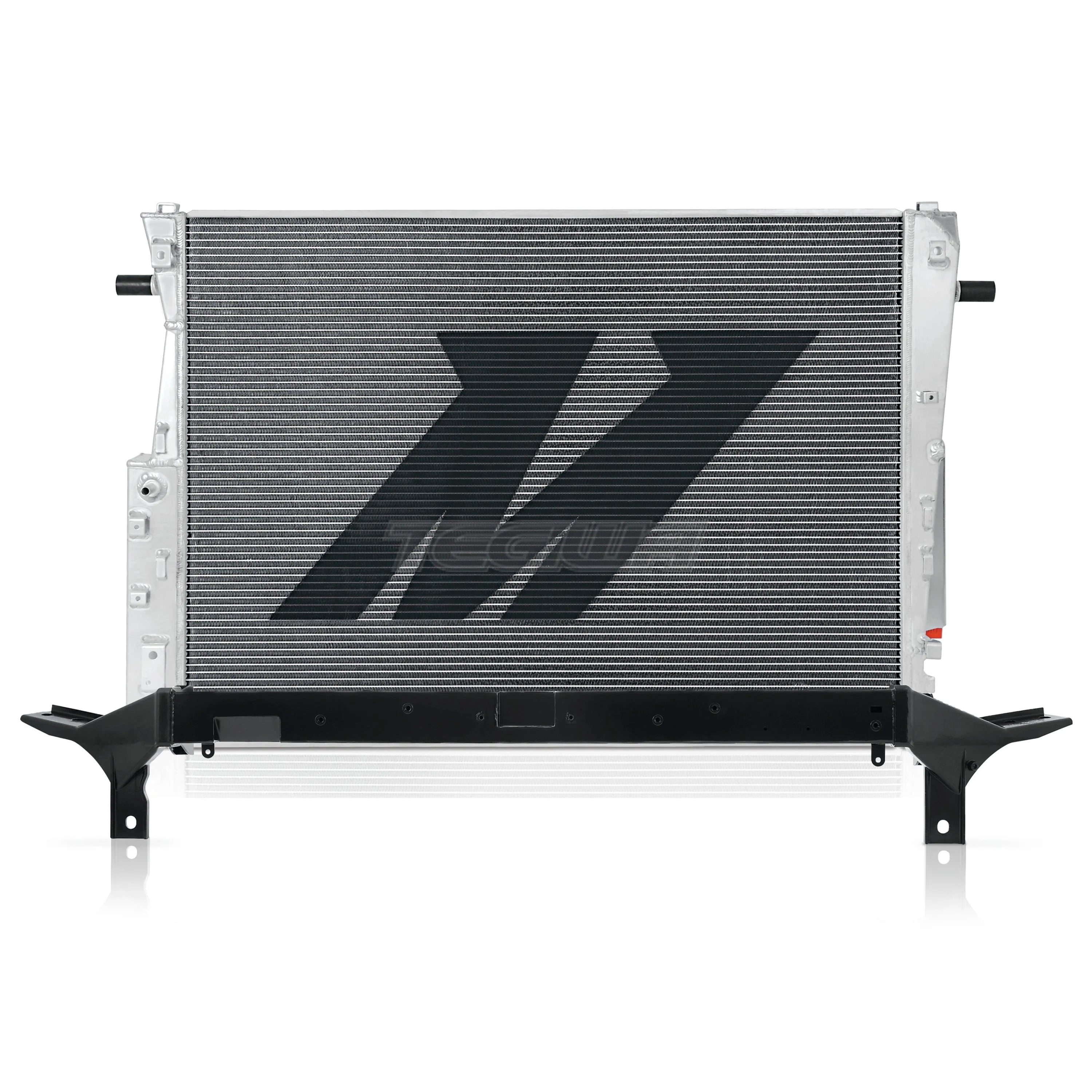

Tired of constantly filling your 6.4 Powerstroke radiator with coolant because you have a leak? The engineers at Mishimoto have been hard at work designing an all-aluminum 6.4 radiator and upper support bar bundle to put an end to puddles of coolant under your truck. The Mishimoto 6.4 Powerstroke radiator is constructed from high-quality, aircraft-grade aluminum with a 100-percent brazed aluminum core. The core is then TIG-welded to aluminum end tanks for superior durability and longevity. Couple that radiator with our upper support bar, and you have a recipe for a dry shop floor. Engineered right here in Delaware, our upper support bar is constructed of heavy-duty steel and firmly secures to your truck with cast-steel anchor points. All of that steel minimizes front end flex, improving the truck?s rigidity, and saving your radiator. Of course, both the 6.4L upper support bar and radiator are backed by the Mishimoto Lifetime Warranty so you'll never have to worry about leaks again!
