TechSpec Overall Height (in): 30.9
TechSpec Overall Length (in): 33.8
TechSpec Overall Width (ins): 4.6
TechSpec Core Length (in): 30
TechSpec Core Height (in): 23.4
TechSpec Fluid Capacity (gal): 8.18
TechSpec Rows: 3
TechSpec Inlet (in): 1.8
TechSpec Outlet (in): 2
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1165
TechSpec Material: Aluminum
TechSpec Applications: 1983-94 Ford F-250 Diesel--1983-94 Ford F-350 Diesel
TechSpec Engine Codes: 6.9L V8 (420ci)--7.3L V8 (444ci)
Note: Transmission Cooler Thread Info:--On Radiator: Male M14 x 1.5--Sealing Face: 70--Hose Fitting: 19mm Hex, 8mm OD

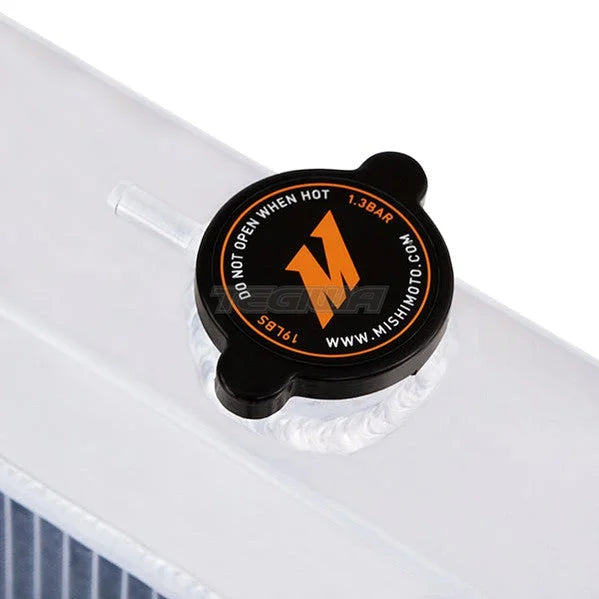

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction with durable, TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Increased coolant capacity and superior heat dissipation
Billet aluminum fill neck
Brazed aluminum core
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

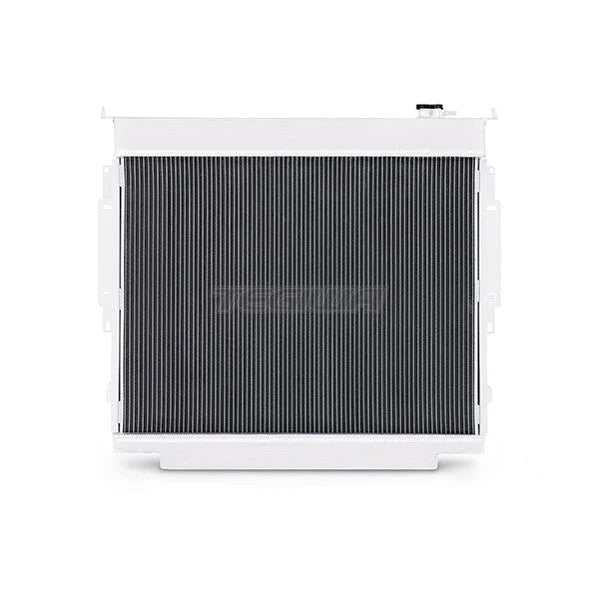

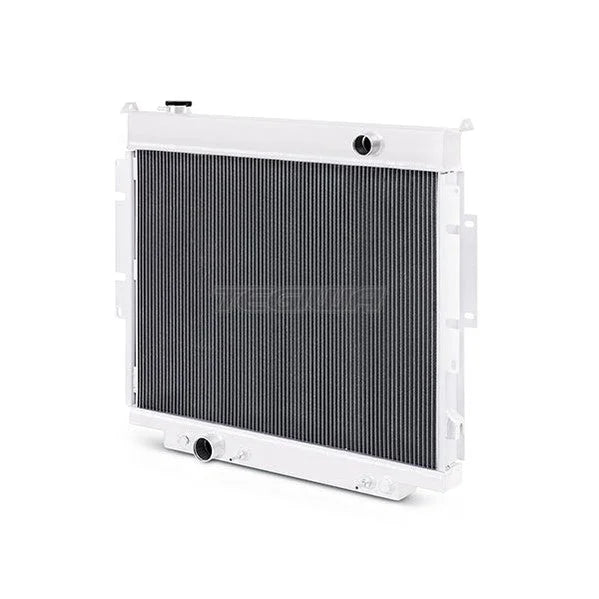

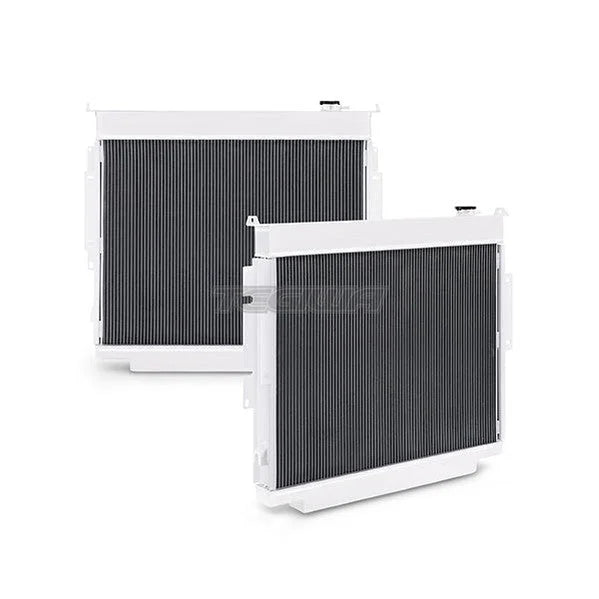

If you're looking to upgrade your F250 parts, look no further! The Mishimoto 1983--1994 Ford 6.9L and 7.3L IDI Diesel Performance Aluminum Radiator is an ideal upgrade for the brittle stock radiator, and provides your truck with enhanced reliability and improved cooling efficiency. Whether your 1990 Ford F250 is a daily driver or you use your 1989 Ford F250 for serious hauling, many people overlook the importance of installing an upgraded radiator in their engine. A stock Ford radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Ford 6.9L and 7.3L IDI Diesel Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance aluminum radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
