TechSpec Overall Height (in): 40.6
TechSpec Overall Length (in): 21
TechSpec Overall Width (ins): 4.6
TechSpec Core Length (in): 34.02
TechSpec Core Height (in): 19.61
TechSpec Fluid Capacity (gal): 6.63
TechSpec Rows: 2
TechSpec Inlet (in): 1.77
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1523
TechSpec Material: Aluminum
TechSpec Engine Codes: 6.5L Turbo Diesel V8
TechSpec Chassis Codes: GMT400
Note: Transmission Adapters Size:--1/2-inch-20 Female Thread by 5/8-inch-18 Male Thread
TechSpec Includes: Mishimoto Radiator--Transmission Adapters (2)--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for 1994-2000 Chevrolet/GMC vehicles equipped with the 6.5L Detroit Diesel

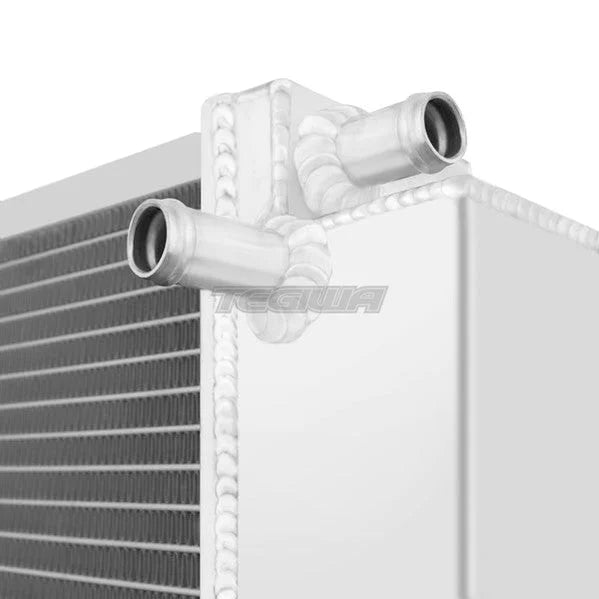

Full aluminum design with durable TIG-welded end tanks
Features a two-row, 2.20-in thick brazed aluminum core which provides efficient fluid temperature regulation
Perfect for use under stressful driving conditions such as towing and hauling
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

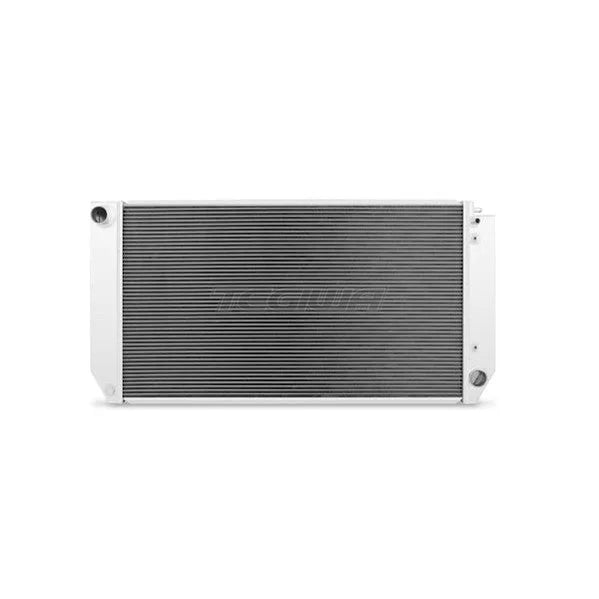

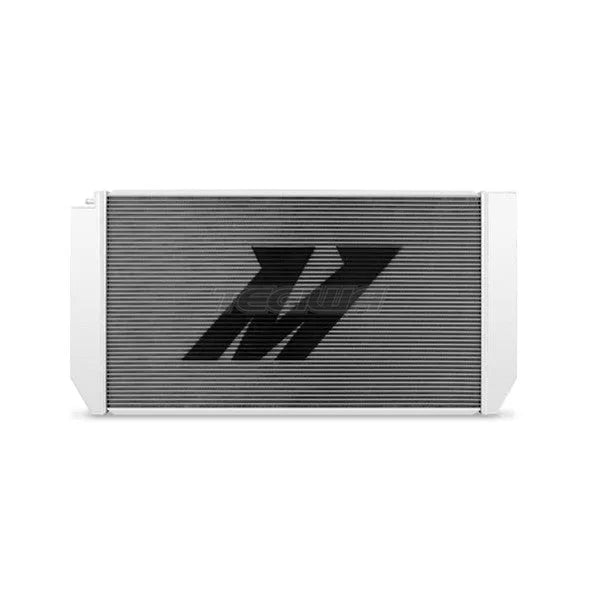

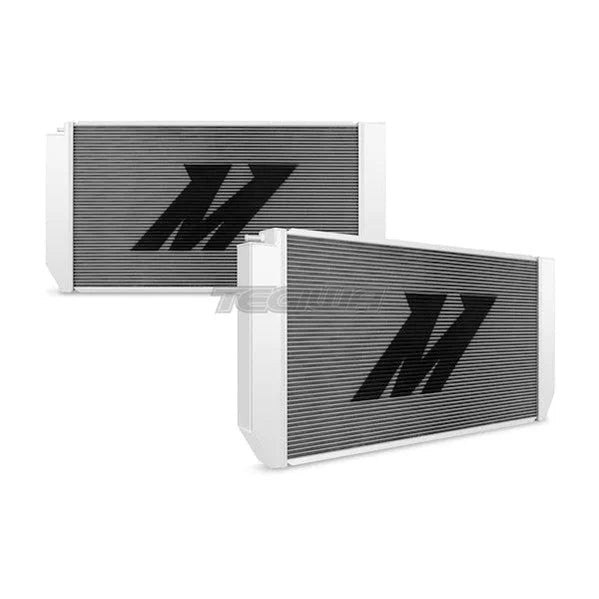

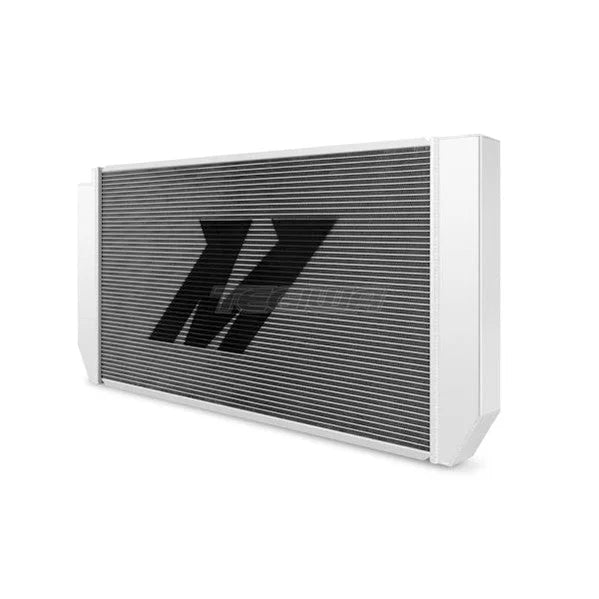

Mishimoto has developed a performance aluminum radiator for the 1994-2000 Chevrolet/GMC 6.5L turbo diesel engine.The Mishimoto performance aluminum radiator for the GM 6.5L is the ideal upgrade for the factory radiator.It was designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating.Whether you use your truck for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded radiator for your engine.The Mishimoto 6.5L diesel radiator features a lightweight two-row core made of 100-percent brazed aluminum, and it features TIG-welded end tanks for increased strength and durability.Every Mishimoto performance radiator is a direct factory fit, making installation effortless with no cutting or modification required.As with all our products, this radiator is protected by the Mishimoto lifetime warranty.
