TechSpec Overall Height (in): 22.5
TechSpec Overall Length (in): 21
TechSpec Overall Width (ins): 5.4
TechSpec Core Length (in): 16.16
TechSpec Core Height (in): 19.6
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.45
TechSpec Applications: 1967-1969 Ford Mustang (289ci 4.7L V8, 302ci 4.9L V8)----1967-1969 Ford Mustang Shelby GT350 (302ci 4.9L V8)----1969 Ford Mustang Boss 302 (302ci 4.9L V8)----1967-1969 Mercury Cougar (289ci 4.7L V8, 302ci 5.0L V8)
Note: MISHIMOTO ACTIVATION TEMPERATURE--180 F / 82 C----STOCK ACTIVATION TEMPERATURE--195 F / 90.5 C FAN SPECIFICATIONS------MOUNTING HARDWARE--(4) M6 x 1.00 Bolts--(4) M6 x 1.00 Nuts--(4) M6 Lock Washers--(8) M6 Washers----OVERALL SIZE--Length - 22.50-inch--Height - 17.5-inch--Width - .79-inch----CFM--1850----NOTE--Electric fans are shipped pre-installed to the shroud----The standard length water pump may cause fitment issues when installing this radiator and fan shroud combination. Mishimoto recommends installing a short neck water pump and pulley to avoid any clearance issues

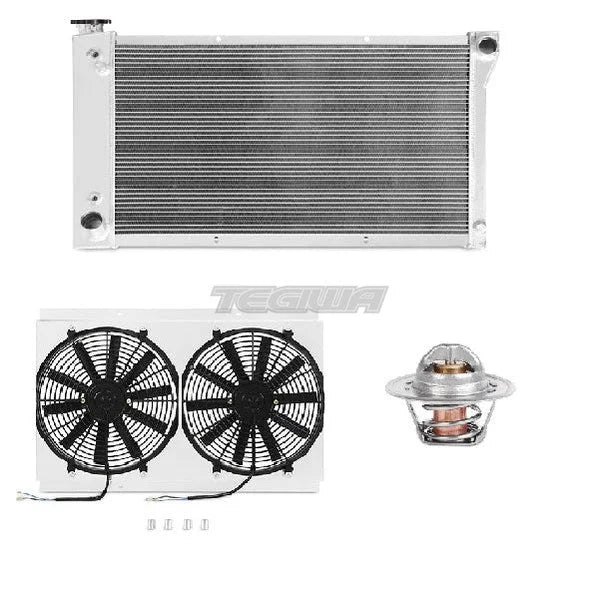

TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud--16-inch Mishimoto Slim Electric Fan--Mounting Hardware-- Mishimoto Thermostat--Mishimoto Lifetime Warranty
Features:Direct fit for 1969-1970 Ford Mustang with a 289 or 302
All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
3-Row brazed aluminum radiator core
Billet aluminum radiator fill neck
Radiator includes internal transmission cooler to ensure optimal fluid temperatures
Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
Fan Shroud replaces failure-prone stock mechanical fan
Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
Thermostat is digitally calibrated for precise, consistent operation
Mishimoto Lifetime Warranty
Install Difficulty: 4
Mishimoto's 1967-1969 Ford Mustang Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your Mustang is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this Ford Mustang cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
