TechSpec Overall Height (in): 18.9
TechSpec Overall Length (in): 33.7'
TechSpec Overall Width (ins): 4.6
TechSpec Core Length (in): 28.2
TechSpec Core Height (in): 16.9
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.6
TechSpec Core Thickness (in): 2.2
TechSpec Applications: 1968-1977 Chevrolet El Camino (250ci 4.1L)----1973-1986 Chevrolet/GMC C/K (250ci 4.1L/292ci 4.8L/305ci 5.0L)
Note: MISHIMOTO ACTIVATION TEMPERATURE--180 F / 82 C----STOCK ACTIVATION TEMPERATURE--195 F / 90.5 C----FAN SPECIFICATIONS------MOUNTING HARDWARE--(4) Mounting Spacers--(4) 1-inch Self-tapping Screws----OVERALL SIZE--Length - 28.74-inch--Height - 19.7-inch--Width - .91-inch----CFM--Each fan puts out 1,300 CFM----NOTE--Radiator is designed for vehicles with or without air conditioning.--Electric fans already come attached to the shroud

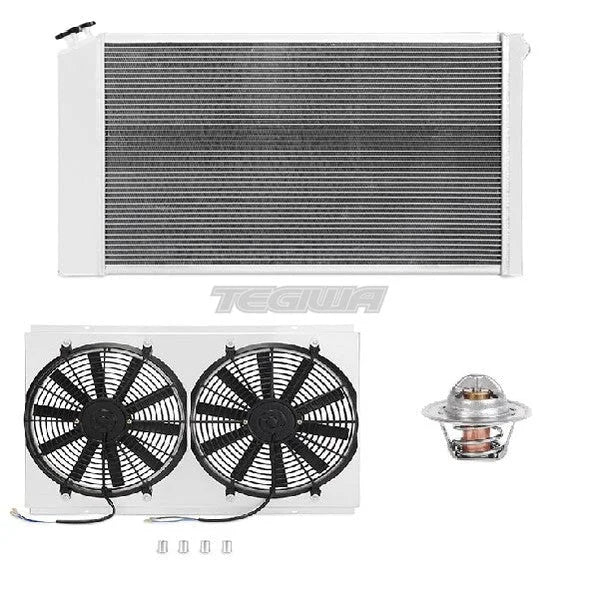

TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mounting Hardware-- Mishimoto Thermsotat--Mishimoto Lifetime Warranty
Features:Direct fit for 1973-1986 Chevy/GMC C/K Truck with a 250, 292, or 305
All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
3-Row brazed aluminum radiator core
Billet aluminum radiator fill neck
Radiator includes internal transmission cooler to ensure optimal fluid temperatures
Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
Fan Shroud replaces failure-prone stock mechanical fan
Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
Thermostat is digitally calibrated for precise, consistent operation
Mishimoto Lifetime Warranty
Install Difficulty: 4
Mishimoto's 1973-1986 C/K Truck Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this C/K Truck cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
