TechSpec Installation Notes: 22 in-lbs recommended for all worm gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs

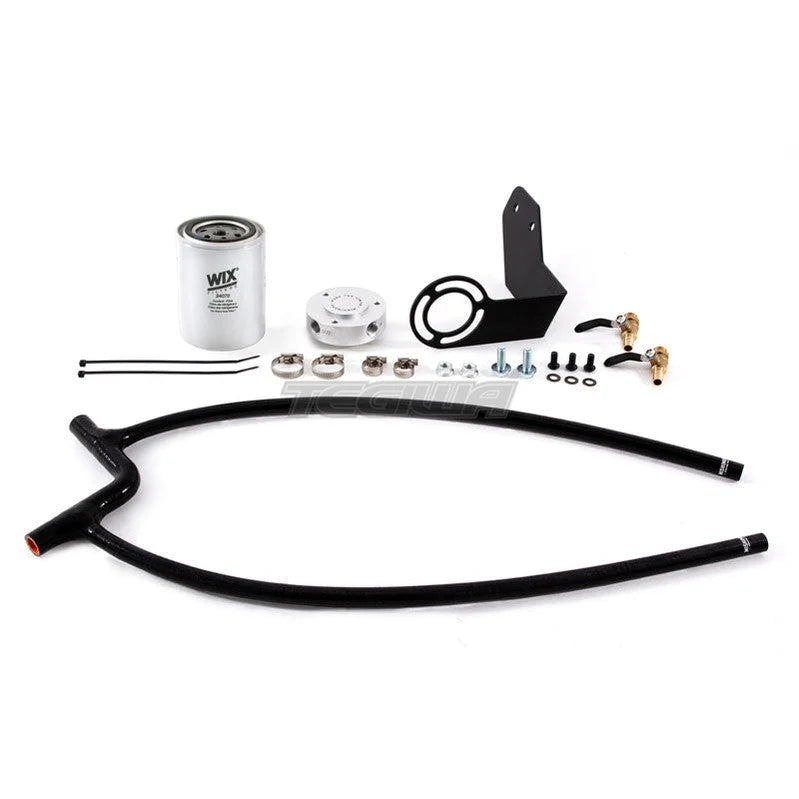

TechSpec Includes: Application-Specific Mounting Bracket--Silver, Anodized 6061 Aluminum Filter Mount--Coolant Filter--Direct-Fit Silicone Hoses--Brass Ball Valves--Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2012-2018 Jeep Wrangler JK 3.6L Pentastar
Note: This coolant filter kit will not repair or reverse damage caused by sediment or other solids in the cooling system. Mishimoto recommends following all manufacturer cooling system service procedures and maintenance intervals.----Mishimoto recommends changing the coolant filter after the first month, again after 3 months, and then every year after that, depending on driving conditions. Because each engine was cast differently, there will be a different amount of debris in each engine.
Features:Direct-fit for 2012-2018 Jeep Wrangler JK 3.6L
Filters solids from your Jeep's cooling system
Helps prevent clogging and extends the life of your Jeep's radiator, heater core, and other cooling system components
Installs in under 1 hour
Adjustable filter head and cut-to-length hoses can accommodate supercharger piping or other modifications
Includes Wix coolant filter to remove particles as small as 27 microns
4mm-thick steel bracket will stand up to anything the road or trail can throw at it
Includes durable ball valves for long-lasting and leak-free service
Direct-fit hoses make installation quick and easy
Mishimoto Lifetime Warranty
Install Difficulty: 2
The cooling system in your 2012-2018 Jeep Wrangler is one of the most crucial systems in the entire vehicle. If just one component in the cooling system fails or becomes clogged, it can be catastrophic. A clogged heater core is inconvenient on a chilly night's drive, but a clogged radiator can leave you out in the cold with a blown engine. Unfortunately for many JK Wrangler owners, repeated clogging and replacement of cooling system components is an all too familiar scenario. Normal engine wear and servicing can introduce damaging solids into the cooling system, wreaking havoc as they go. 2012-2018 JKs are particularly susceptible, however, thanks to excess casting sand left in the cylinder heads from the factory. But Mishimoto is here to help clean up your JK?s cooling system. Our 2012-2018 Jeep Wrangler JK Coolant Filter Kit will help keep anything that?s not liquid coolant from circulating around your engine and cooling components. This direct-fit kit installs in under an hour and the included Wix? filter traps particles as small as 27 microns. Our silicone hoses are a direct fit and the included ball valves make for a durable and long-lasting system. The 4mm-thick steel bracket can stand up to anything the street or trail can throw at it. Like all Mishimoto products, the Mishimoto 2012-2018 Jeep Wrangler JK Coolant Filtration Kit is backed by our Lifetime Warranty.
