TechSpec Installation Notes: 22 in-lbs recommended for all worm gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs

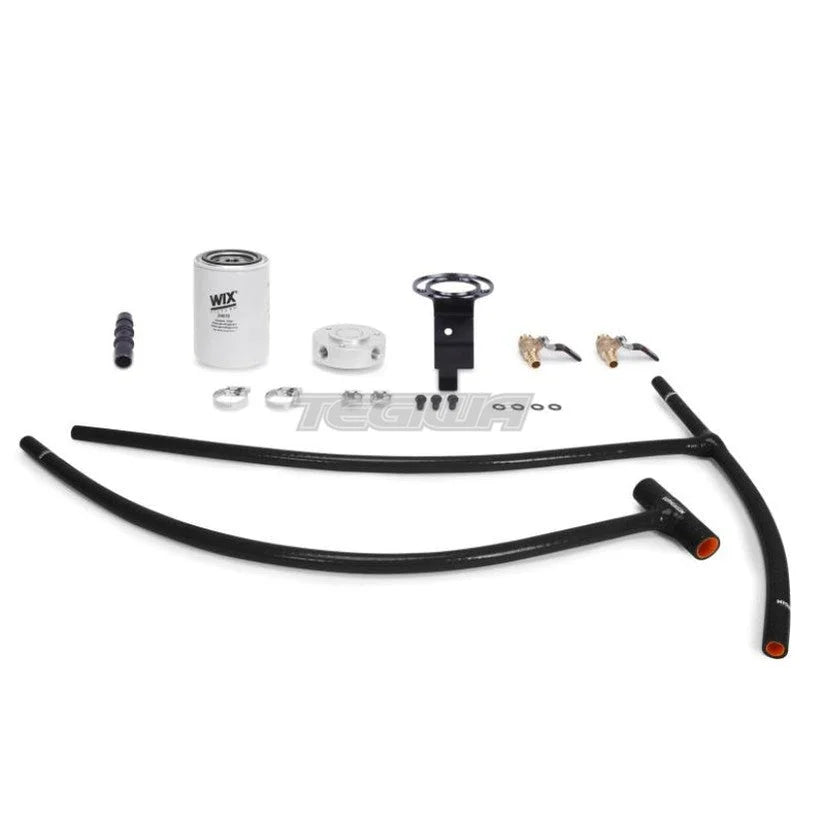

TechSpec Includes: Application-Specific Mounting Bracket--Silver, Anodized 6061 Aluminum Filter Mount--Coolant Filter--Direct-Fit Silicone Hoses--Brass Ball Valves--Worm Gear Clamps--Plastic Straight Barbed Fitting--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
Note: Mishimoto recommends changing the coolant filter after the first month, again after 3 months, and then every year after that, depending on driving conditions. Because each engine was cast differently, there will be a different amount of debris in each engine.
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Filters solid particles from your truck's coolant
Installs in under 45 minutes
Extends the life of your oil cooler, water pump, EGR cooler, coolant, and other critical components
One-piece application-specific silicone hoses available in black, blue, or red
6061 anodized aluminum filter mount
No modification of factory hoses
Includes Wix coolant filter (Model number24070)
Ball valve shut-offs included
Includes all components necessary for installation
Mishimoto Lifetime Warranty
Install Difficulty: 2
OptionLabel: Black
TechSpec Installation Notes: 22 in-lbs recommended for all worm gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs
TechSpec Includes: Application-Specific Mounting Bracket--Silver, Anodized 6061 Aluminum Filter Mount--Coolant Filter--Direct-Fit Silicone Hoses--Brass Ball Valves--Worm Gear Clamps--Plastic Straight Barbed Fitting--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
Note: Mishimoto recommends changing the coolant filter after the first month, again after 3 months, and then every year after that, depending on driving conditions. Because each engine was cast differently, there will be a different amount of debris in each engine.
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Filters solid particles from your truck's coolant
Installs in under 45 minutes
Extends the life of your oil cooler, water pump, EGR cooler, coolant, and other critical components
One-piece application-specific silicone hoses available in black, blue, or red
6061 anodized aluminum filter mount
No modification of factory hoses
Includes Wix coolant filter (Model number24070)
Ball valve shut-offs included
Includes all components necessary for installation
Mishimoto Lifetime Warranty
Install Difficulty: 2
OptionLabel: Blue
TechSpec Installation Notes: 22 in-lbs recommended for all worm gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs
TechSpec Includes: Application-Specific Mounting Bracket--Silver, Anodized 6061 Aluminum Filter Mount--Coolant Filter--Direct-Fit Silicone Hoses--Brass Ball Valves--Worm Gear Clamps--Plastic Straight Barbed Fitting--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
Note: Mishimoto recommends changing the coolant filter after the first month, again after 3 months, and then every year after that, depending on driving conditions. Because each engine was cast differently, there will be a different amount of debris in each engine.
Features:
Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Filters solid particles from your truck's coolant
Installs in under 45 minutes
Extends the life of your oil cooler, water pump, EGR cooler, coolant, and other critical components
One-piece application-specific silicone hoses available in black, blue, or red
6061 anodized aluminum filter mount
No modification of factory hoses
Includes Wix coolant filter (Model number24070)
Ball valve shut-offs included
Includes all components necessary for installation
Mishimoto Lifetime Warranty
Install Difficulty: 2
OptionLabel: Red

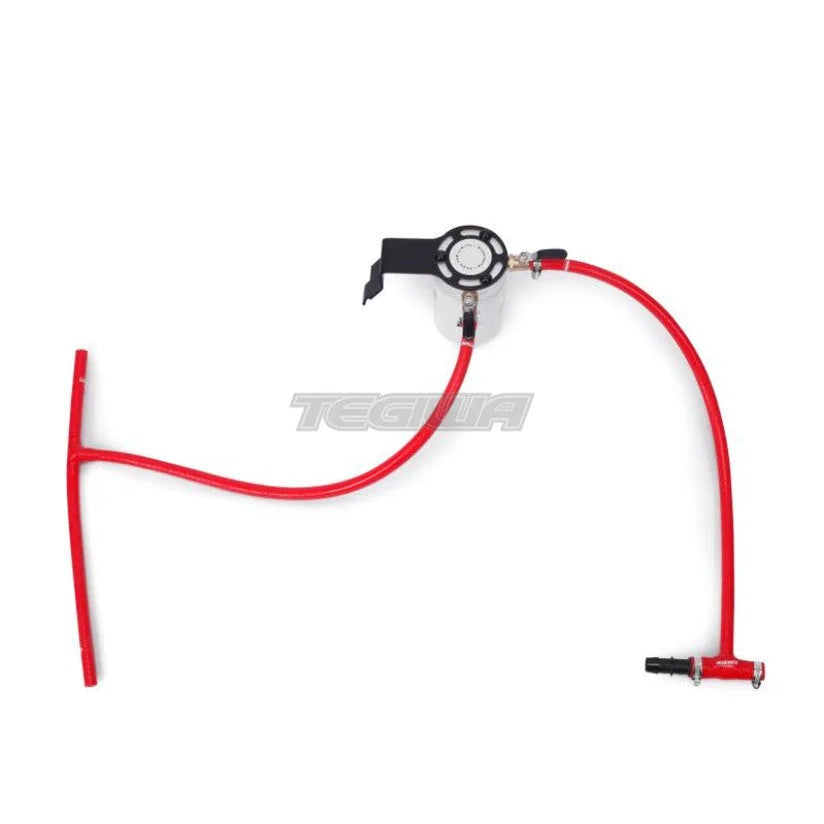

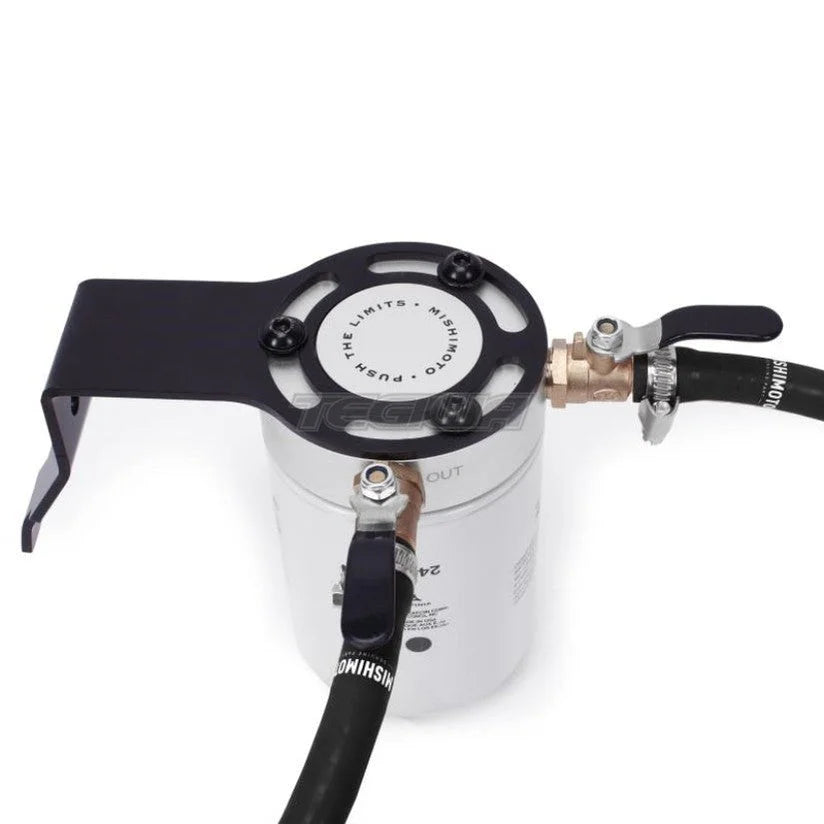

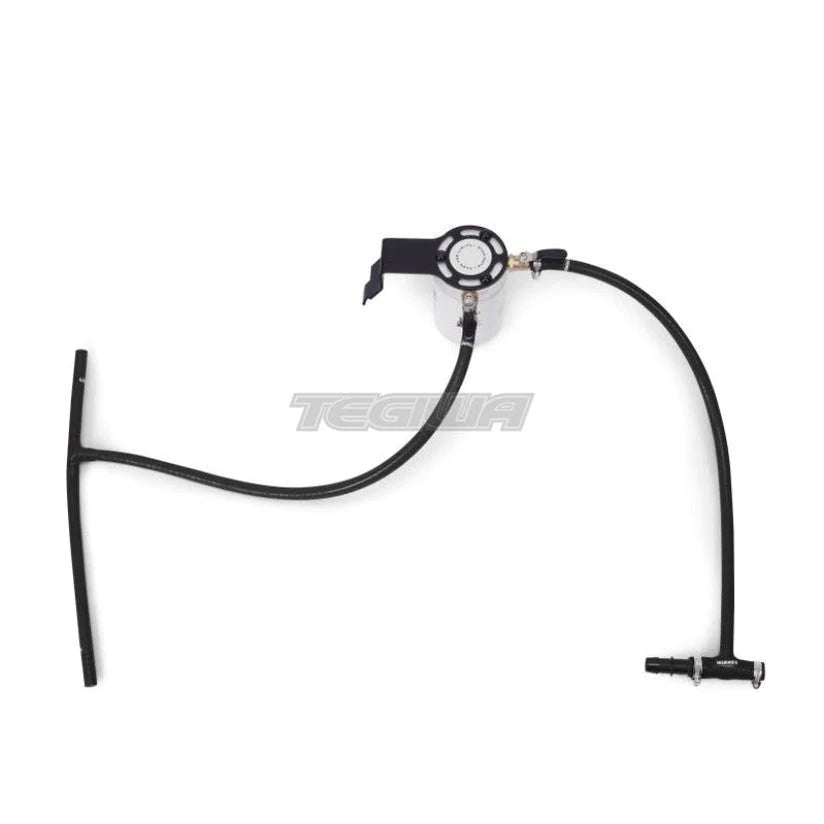

It is commonly known that Ford 6.0L Powerstroke engines have extra solid particles left over from casting the engine which can clog your trucks factory oil cooler, EGR cooler, and other critical engine components. Mishimoto has released a direct-fit coolant filtration kit for the 2003--2007 Ford 6.0L Powerstroke to help prevent your truck from being a victim of factory cooler clogs and failure. The application-specific mounting bracket mounts a precision CNC-machined 6061 aluminum filter mount and Wix coolant filter to the passenger side radiator support area, an ideal location for easily removing the filter. This Coolant Filtration Kit is routed in parallel with the flow path of your coolant system and allows a small amount of coolant to be filtered with each pass. The Mishimoto engineers also included two brass ball valves with this kit to help make changing the filters a clean process. The two silicone hoses have been designed as once piece hoses to reduce any possibility of leaks and are offered in black, blue and red, to compliment any engine bay. If you are in the process of bulletproofing your 6.0L Powerstroke, the Mishimoto Ford 6.0L Powerstroke Performance Aluminum Radiator and Mishimoto Coolant Hose Kit will pair perfectly with the Mishimoto Coolant Filtration Kit! This coolant filtration kit installs in under 45 minutes with modifications necessary. Protect your truck from harmful particles and help to extend the life of your trucks oil cooler, water pump, EGR cooler, coolant, and other critical engine components with the Mishimoto Coolant Filtration Kit for the Ford 6.0L Powerstroke.
