TechSpec Applications: 2017-2019 Chevrolet Silverado 2500 HD w/ 6.6L Duramax L5P--2017-2019 Chevrolet Silverado 3500 HD w/ 6.6L Duramax L5P----2017-2019 GMC Sierra 2500 HD w/ 6.6L Duramax L5P--2017-2019 GMC Sierra 3500 HD w/ 6.6L Duramax L5P
TechSpec Core Length (in): 24
TechSpec Core Height (in): 13

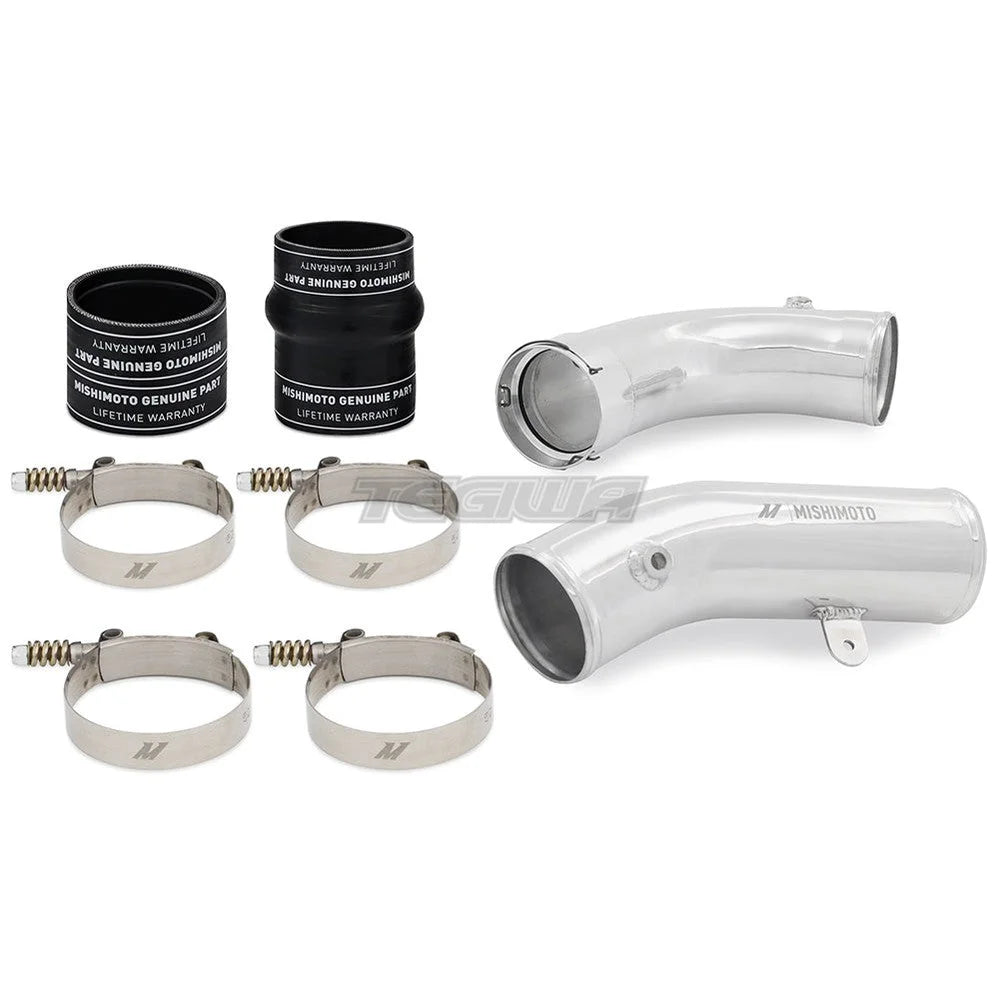

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ Bung--(1) Aluminum Intercooler Pipe w/ O-Ring and Spring Clip--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
Up to 16-percent less restrictive than stock piping
Includes new quick-disconnect O-ring and spring clip
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
Internal bead roll ensures secure connection between coupler and throttle valve
CNC-machined quick-disconnect ensures precise, leak-free fit
Additional bung can be drilled and tapped for sensors
Requires no additional tuning
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in polished or wrinkle-black powder coated finish
Install Difficulty: 3

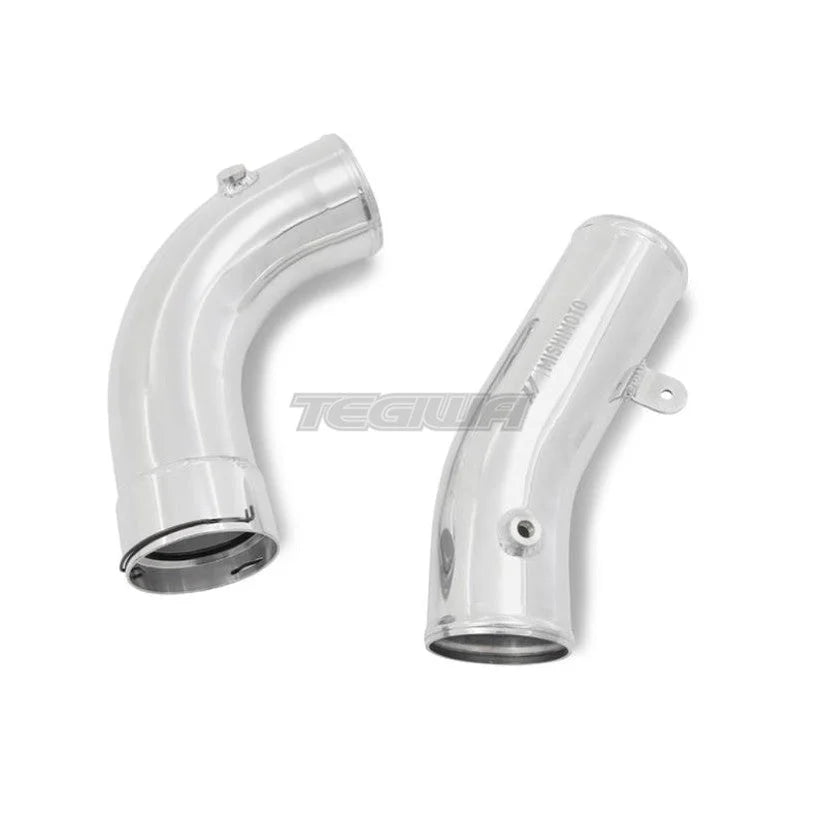

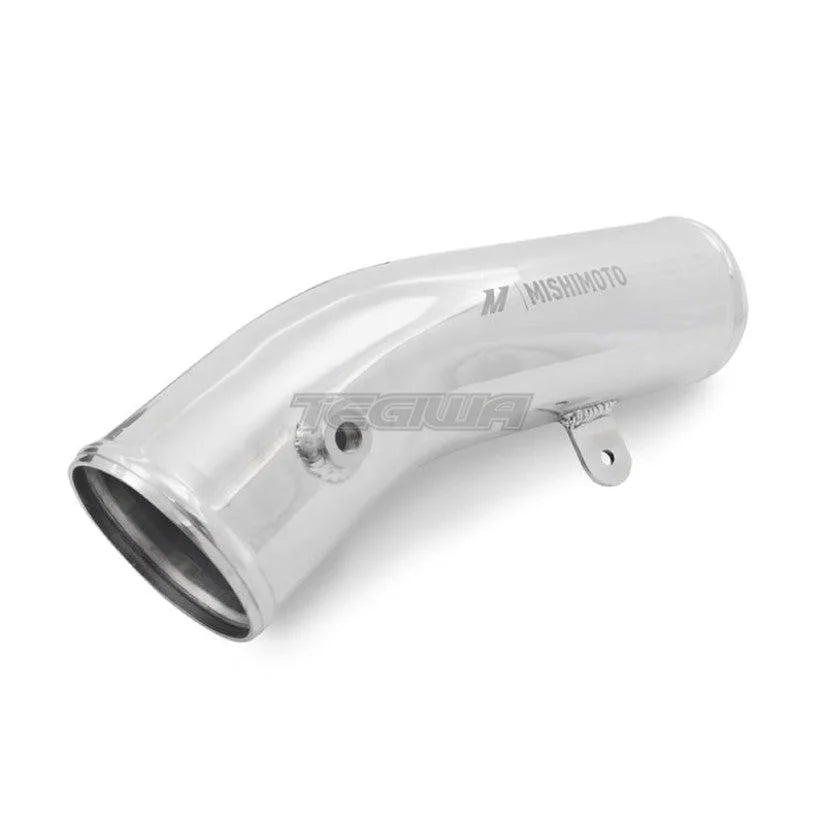

OptionLabel: Polished
TechSpec Applications: 2017-2019 Chevrolet Silverado 2500 HD w/ 6.6L Duramax L5P--2017-2019 Chevrolet Silverado 3500 HD w/ 6.6L Duramax L5P----2017-2019 GMC Sierra 2500 HD w/ 6.6L Duramax L5P--2017-2019 GMC Sierra 3500 HD w/ 6.6L Duramax L5P
TechSpec Core Length (in): 24
TechSpec Core Height (in): 13
TechSpec Includes: (1) Aluminum Intercooler Pipe w/ Bung--(1) Aluminum Intercooler Pipe w/ O-Ring and Spring Clip--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
Up to 16-percent less restrictive than stock piping
Includes new quick-disconnect O-ring and spring clip
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
Internal bead roll ensures secure connection between coupler and throttle valve
CNC-machined quick-disconnect ensures precise, leak-free fit
Additional bung can be drilled and tapped for sensors
Requires no additional tuning
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in polished or wrinkle-black powder coated finish
Install Difficulty: 3

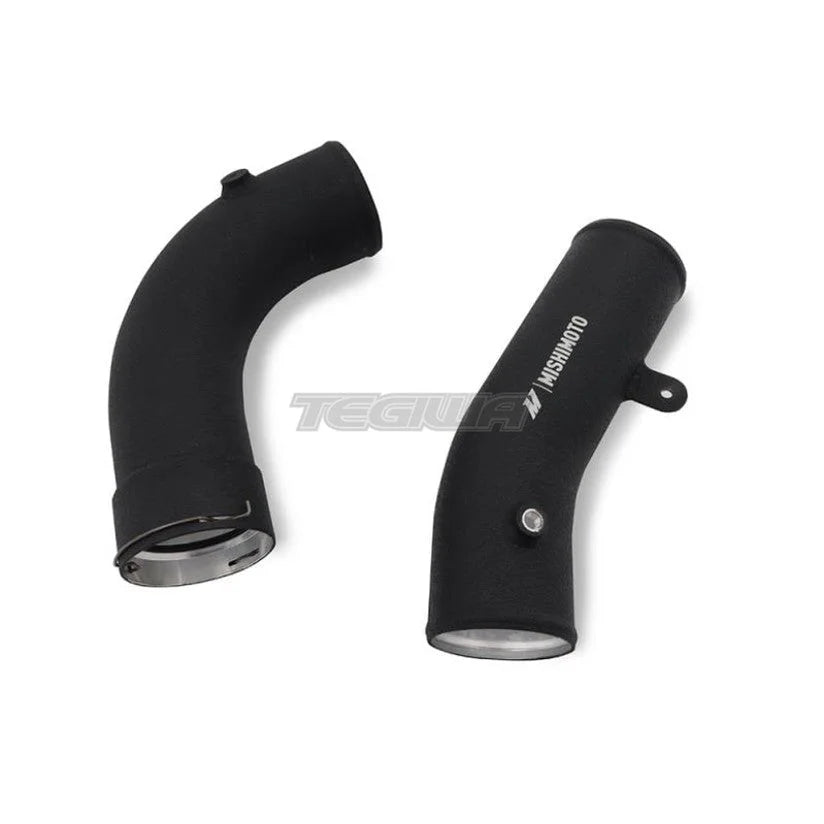

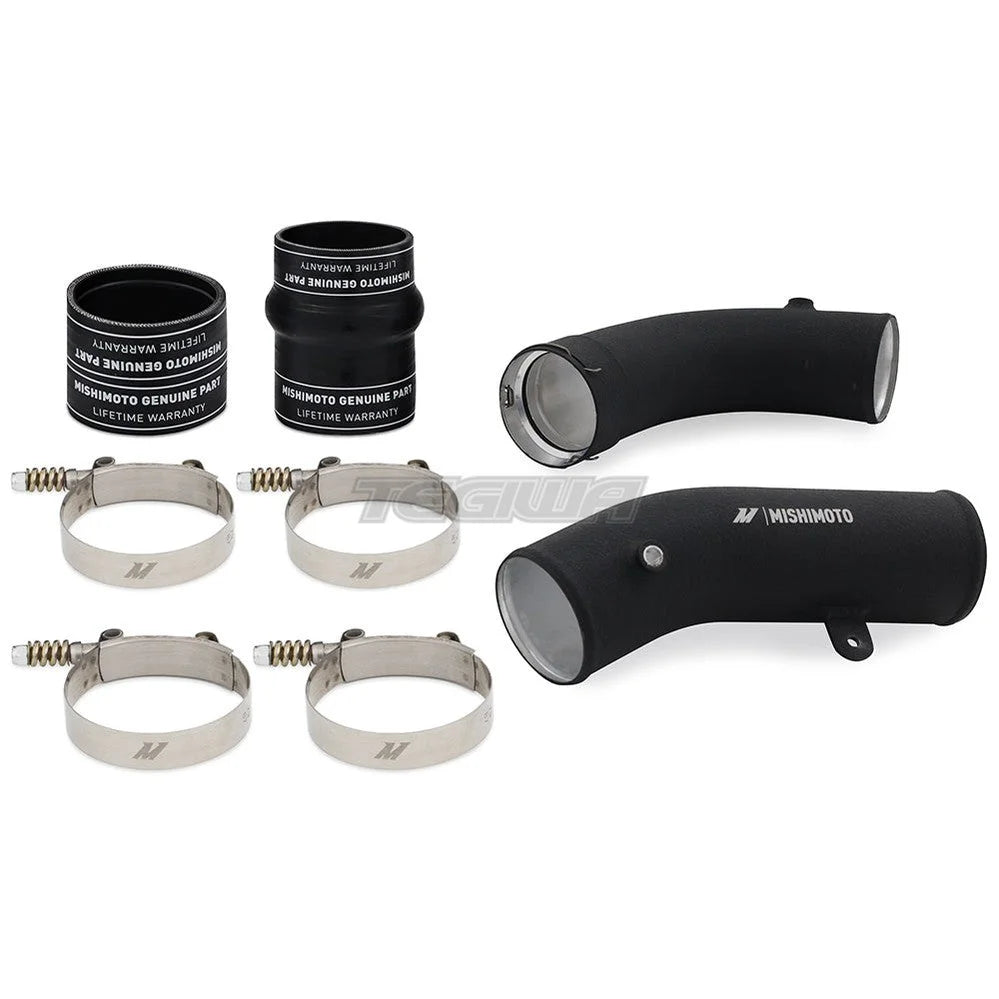

OptionLabel: Wrinkle Black
Improve the power and efficiency of your 2017-2019 Chevrolet/GMC 6.6L Duramax L5P with the Mishimoto cold-side intercooler pipe and boot kit. The factory cold-side pipe for the L5P is a measly 2.5in that chokes the engine and tight bends create even more restriction. The Mishimoto cold-side intercooler pipe is 3in in diameter throughout with smooth transitions to significantly increase airflow, resulting in more power potential. Mishimoto designed this pipe as two pieces, like the factory pipe, for ease of install. This kit also includes our silicone boots with DuraCore™ technology. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.To add even more reliability, this kit includes Mishimoto constant-tension T-bolt clamps for accurate and consistent holding power. Our cold-side intercooler pipes also feature a CNC-machined quick-disconnect fitting with new o-ring and spring clip to ensure a secure and leak-free fit. Unlike other available cold-side pipes on the market, our pipes retain the intake air temp harness mounting location for safe and secure wire routing, just as Chevy/GMC intended.The Mishimoto 2017-2019 Chevrolet/GMC 6.6L Duramax L5P cold-side intercooler pipe and boot kit is a direct bolt-on upgrade and is available in a polished or wrinkle black powder coated finish. Like all our Duramax products, this cold-side intercooler pipe and boot kit includes our Mishimoto Lifetime Warranty for a lifetime of performance.
