Color: Black
Finish: Powder Coat
Installation Difficulty: 3
Material: 6061 Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Features:Direct fit for 2011-2013 BMW 335I/335XI/135I
Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
Application-specific bracket mounts the can in a serviceable location
Direct-fit hoses allow for installation with no modification to engine cover
Application-specific lid designed so fitting size matches CCV line size
Billet 6061 aluminum sealed can
Defends intercooler, intake system, and VANOS system from oil blow-by
Helps maintain proper octane levels to reduce potential detonation
Internal air diverter increases air turbulence to improve oil separation
Filters and can are fully serviceable
US Patent # D966,372 S
Mishimoto Lifetime Warranty
Install Difficulty: 3

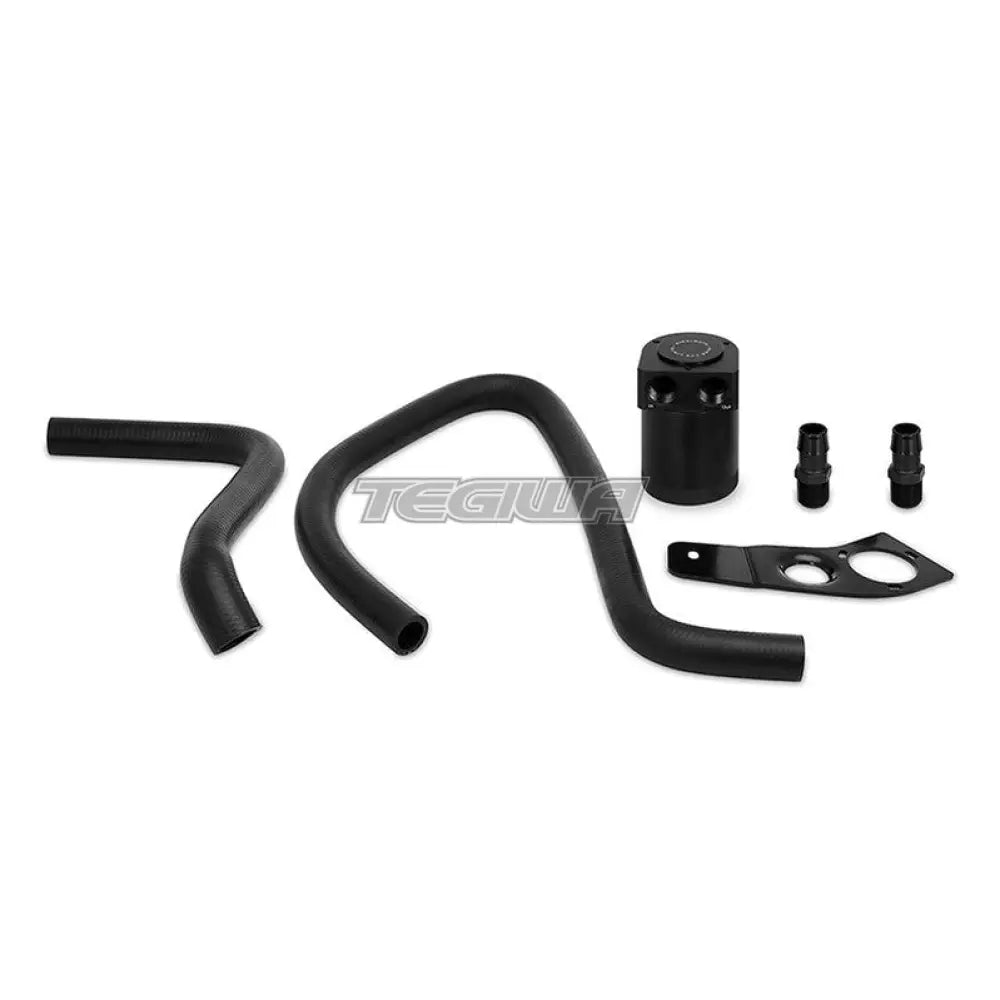

The Mishimoto BMW N55 Baffled Oil Catch Can is designed and engineered to reduce carbon build-up, a common issue with the direct fuel injection N55 engines. The Mishimoto BMW N55 catch can kit uses proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can, with its bronze filter and internal baffle, to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid that features large inlet and outlet ports in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil blow-by and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct-fit mounting bracket that not only is extremely easy to install, but also mounts the can in a serviceable location! Two CNC-machined aluminum, 3/4in barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.
