Color: Black
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes

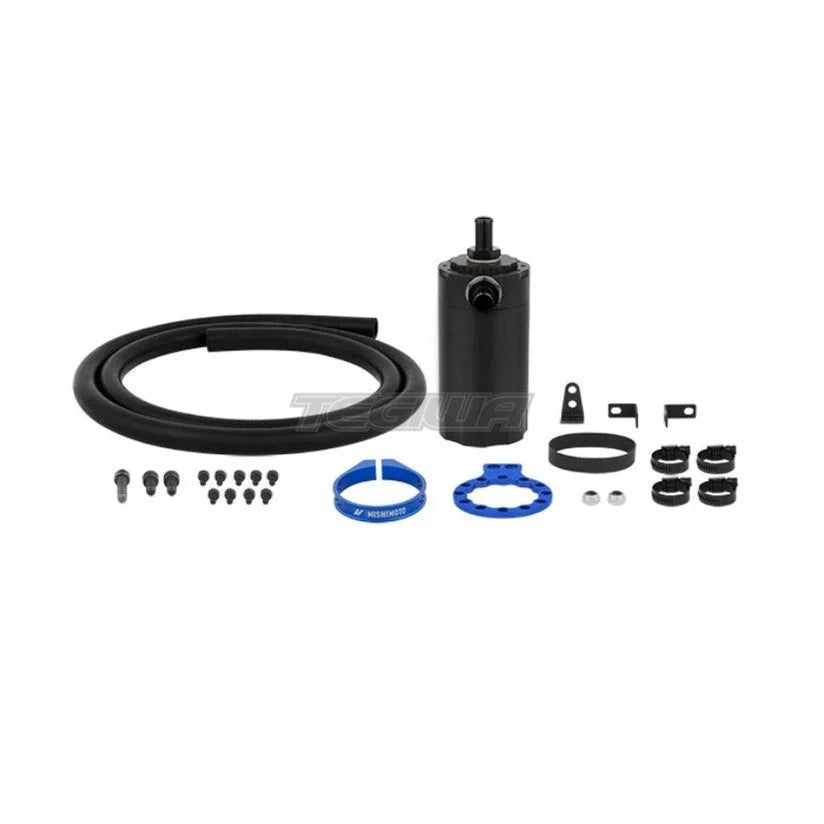

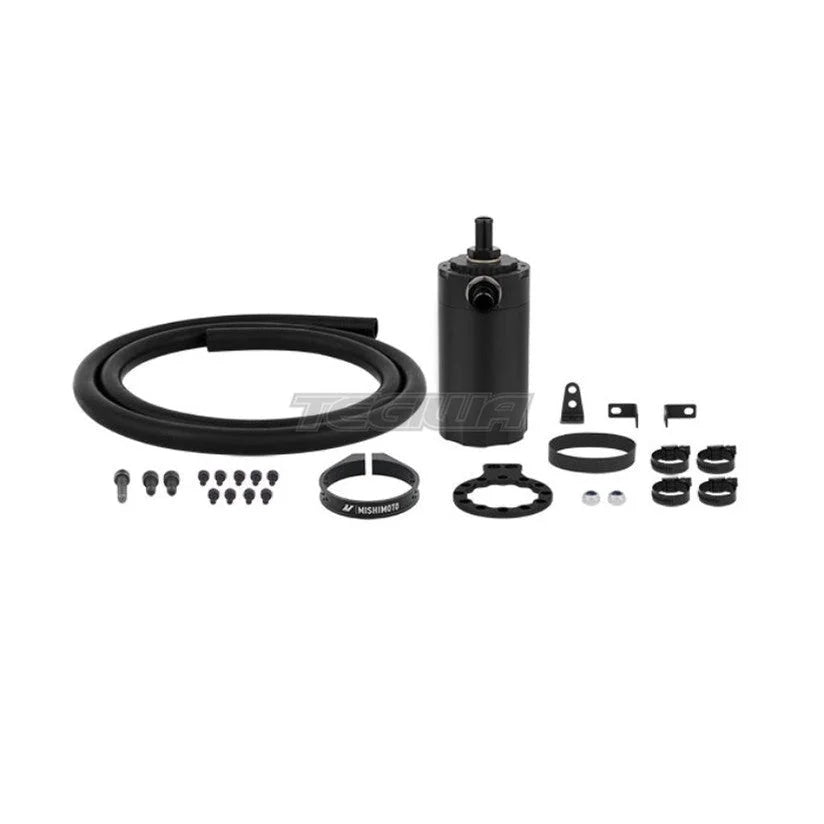

TechSpec Includes: (1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) Push-on Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
TechSpec Material: 6061 Aluminum
Features:
40-micron bronze filter blocks oil from depositing in ventilation system
Special engineered inlet pattern turbulates air longer, allowing oil to condense
Internal baffle ensures no oil escapes during high-speed cornering
Replaceable single-unit filter is easy to maintain
Inlet and outlet accept -AN fittings for various configurations
100-percent billet anodized 6061 aluminum with laser etched finish
Safe to use in pressurized systems
Drain plug can be removed to allow for -AN return to oil pan
Unique upper mounting bracket cogs provide versatile mounting options
Includes push-on fittings for easy installation
Install Difficulty: 2
OptionLabel: Black
Prop 65 Yes/No: Yes
Color: Blue
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
TechSpec Includes: (1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) Push-on Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
TechSpec Material: 6061 Aluminum
Features:
40-micron bronze filter blocks oil from depositing in ventilation system
Special engineered inlet pattern turbulates air longer, allowing oil to condense
Internal baffle ensures no oil escapes during high-speed cornering
Replaceable single-unit filter is easy to maintain
Inlet and outlet accept -AN fittings for various configurations
100-percent billet anodized 6061 aluminum with laser etched finish
Safe to use in pressurized systems
Drain plug can be removed to allow for -AN return to oil pan
Unique upper mounting bracket cogs provide versatile mounting options
Includes push-on fittings for easy installation
Install Difficulty: 2
OptionLabel: Blue
Color: Green
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes

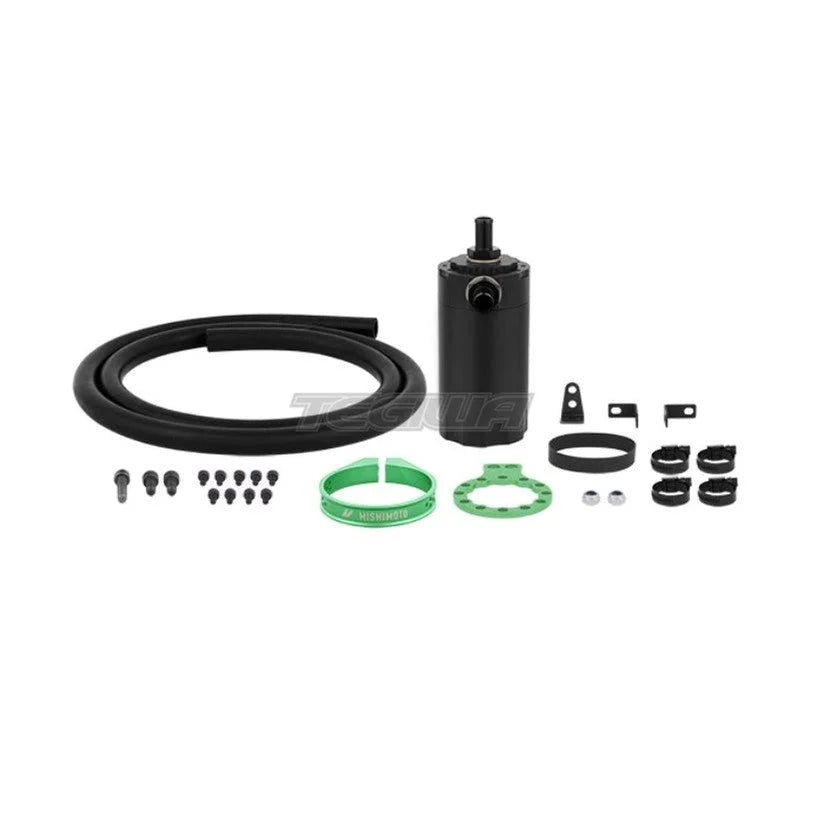

TechSpec Includes: (1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) Push-on Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
TechSpec Material: 6061 Aluminum
Features:
40-micron bronze filter blocks oil from depositing in ventilation system
Special engineered inlet pattern turbulates air longer, allowing oil to condense
Internal baffle ensures no oil escapes during high-speed cornering
Replaceable single-unit filter is easy to maintain
Inlet and outlet accept -AN fittings for various configurations
100-percent billet anodized 6061 aluminum with laser etched finish
Safe to use in pressurized systems
Drain plug can be removed to allow for -AN return to oil pan
Unique upper mounting bracket cogs provide versatile mounting options
Includes push-on fittings for easy installation
Install Difficulty: 2
OptionLabel: Green
Color: Purple
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes

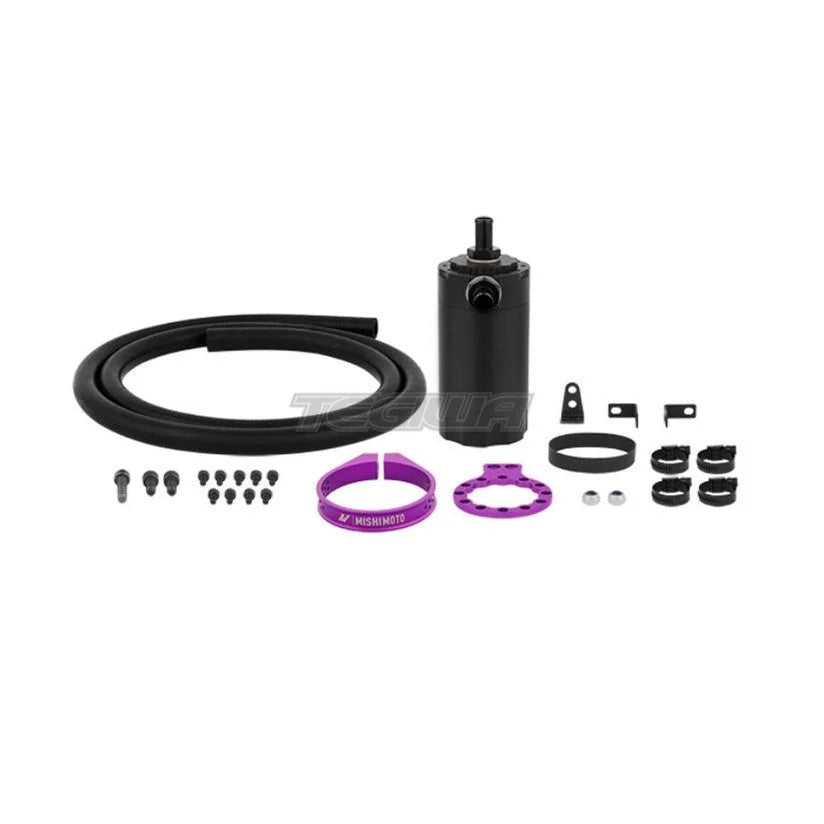

TechSpec Includes: (1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) Push-on Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
TechSpec Material: 6061 Aluminum
Features:
40-micron bronze filter blocks oil from depositing in ventilation system
Special engineered inlet pattern turbulates air longer, allowing oil to condense
Internal baffle ensures no oil escapes during high-speed cornering
Replaceable single-unit filter is easy to maintain
Inlet and outlet accept -AN fittings for various configurations
100-percent billet anodized 6061 aluminum with laser etched finish
Safe to use in pressurized systems
Drain plug can be removed to allow for -AN return to oil pan
Unique upper mounting bracket cogs provide versatile mounting options
Includes push-on fittings for easy installation
Install Difficulty: 2
OptionLabel: Purple
Color: Red
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
TechSpec Includes: (1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) Push-on Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
TechSpec Material: 6061 Aluminum
Features:
40-micron bronze filter blocks oil from depositing in ventilation system
Special engineered inlet pattern turbulates air longer, allowing oil to condense
Internal baffle ensures no oil escapes during high-speed cornering
Replaceable single-unit filter is easy to maintain
Inlet and outlet accept -AN fittings for various configurations
100-percent billet anodized 6061 aluminum with laser etched finish
Safe to use in pressurized systems
Drain plug can be removed to allow for -AN return to oil pan
Unique upper mounting bracket cogs provide versatile mounting options
Includes push-on fittings for easy installation
Install Difficulty: 2
OptionLabel: Red

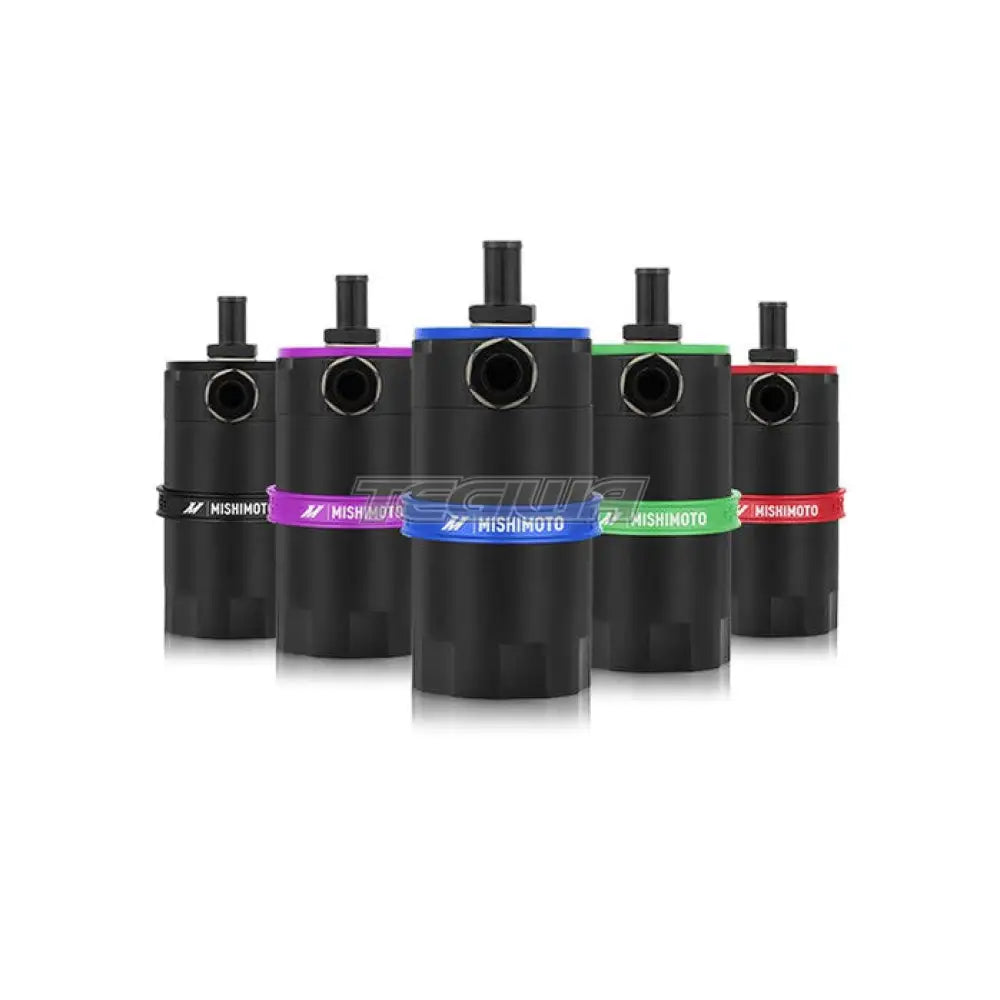

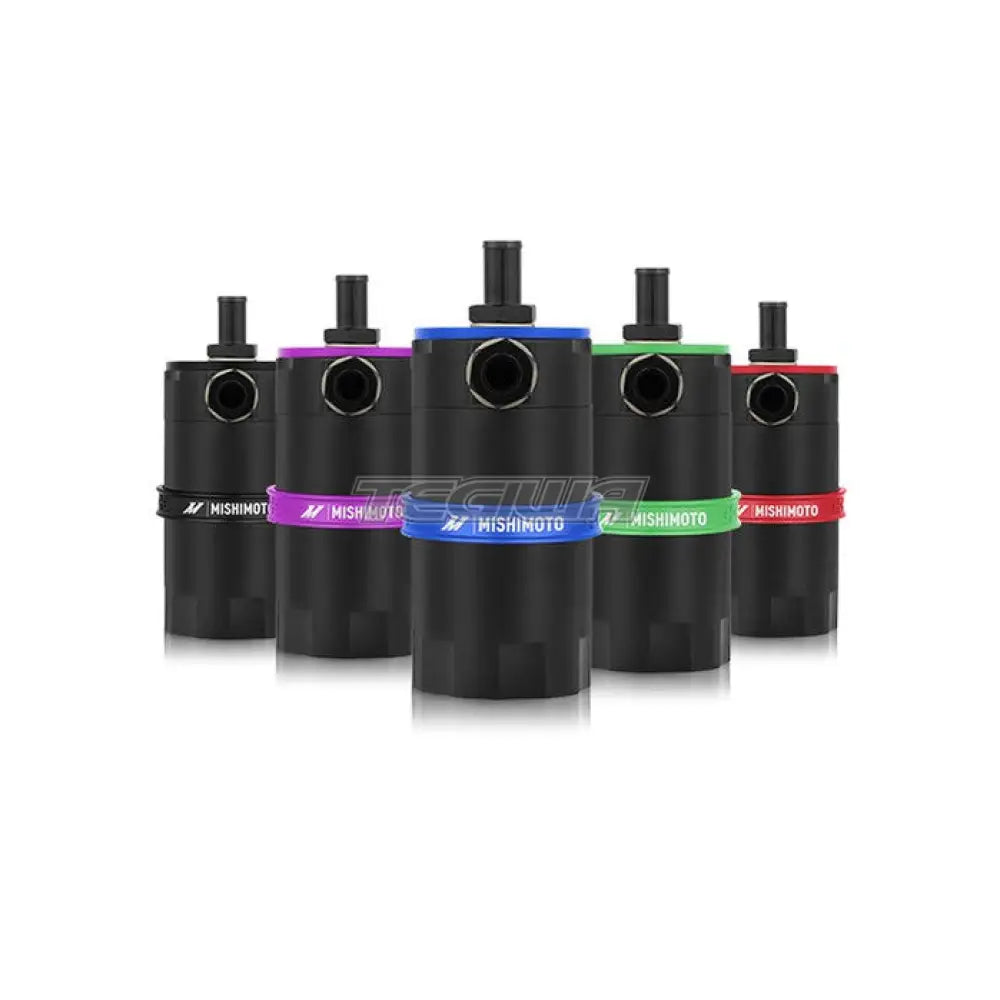

Mishimoto is proud to announce the release of our Baffled Oil Catch Can.With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market.The Mishimoto Baffled Oil Catch can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake.Custom grooves in the catch can's inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake.An internal baffle keeps the collected oil from splashing around under race conditions.The 100-percent billet, 6061 aluminum can accepts inAN fittings at the intlet, outlet, and drain area allowing over 25 possible configurations.For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles.To make maintenance easy, the drain plug can be removed to allow for inAN return to the oil pain.The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well, so it will be sure to match your style and taste!
