TechSpec Clamp Style: Aluminum V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 2.5
TechSpec Maximum Clamp Diameter (in): 2.5
TechSpec Material: Aluminum
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) O-Ring--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-AL-2750----MMICP-AL-2759----MMICP-AL-2751----MMICP-AL-40----MMICP-AL-30----MMICP-AL-39----MMICP-AL-31
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 2.5-in (63.5mm) pipes
Ideal for intercooler and charge pipes, intakes, and turbochargers

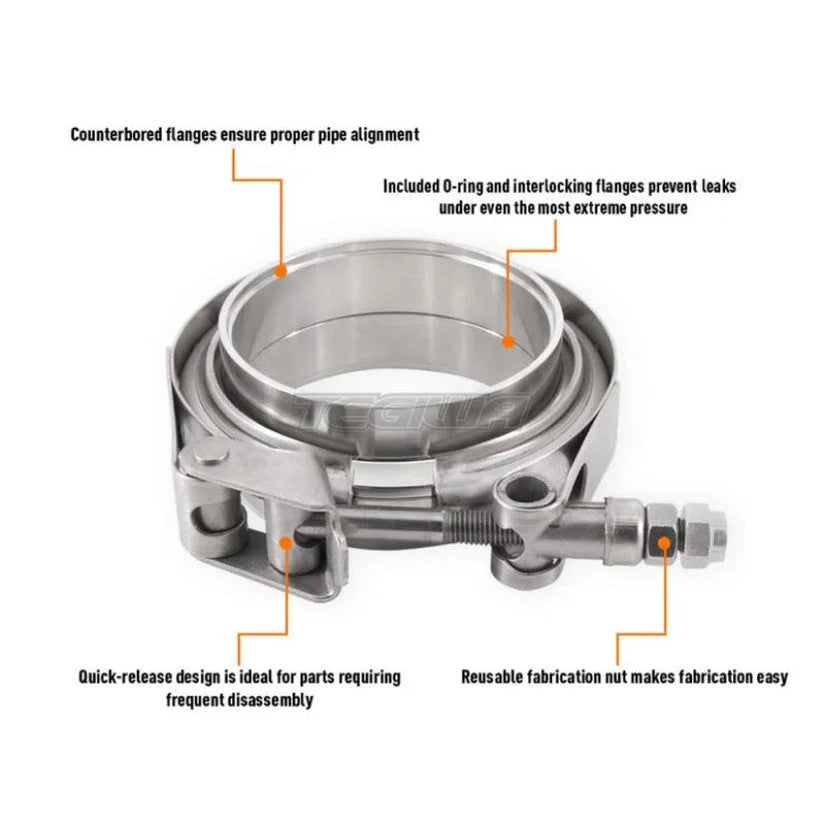

Counterbored flanges ensure proper pipe alignment for easy welding
Included O-ring prevents leaks under even the most extreme pressure
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Aluminum V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 3
TechSpec Maximum Clamp Diameter (in): 3
TechSpec Material: Aluminum
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) O-Ring--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-SS-21----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-SS-30----MMICP-SS-39----MMICP-SS-31
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 3-in (76.2mm) pipes
Ideal for intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Included O-ring prevents leaks under even the most extreme pressure
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Aluminum V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 3.5
TechSpec Maximum Clamp Diameter (in): 3.5
TechSpec Material: Aluminum
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) O-Ring--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 3.5-in (88.9mm) pipes
Ideal for intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Included O-ring prevents leaks under even the most extreme pressure
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Aluminum V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 4
TechSpec Maximum Clamp Diameter (in): 4
TechSpec Material: Aluminum
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) O-Ring--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-SS-25U----MMICP-SS-3U
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 4-in (101.6mm) pipes
Ideal for intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Included O-ring prevents leaks under even the most extreme pressure
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Mishimoto Lifetime Warranty
Install Difficulty: 1
Mishimoto V-Band Clamps are some of the strongest and most reliable clamps on the market. Tailored especially for the fabricator, this aluminum V-band clamp provides a rigid and secure connection between intake and intercooler pipes. The V-band design makes assembly and disassembly a breeze and the included fabrication nut makes mock-up easy. Simply assemble the V-band clamp with the reusable nut, tack weld your pipes in place, and disassemble for final welding. Once you?re done welding, assemble the clamp with the provided locking nut and never worry about loosening. The included O-ring and strong 360-degree clamp ensure leak free running under even the highest pressure. Like all our clamps, this aluminum V-band clamp is back by our Mishimoto Lifetime Warranty.
