TechSpec Fluid Capacity (gal): 3

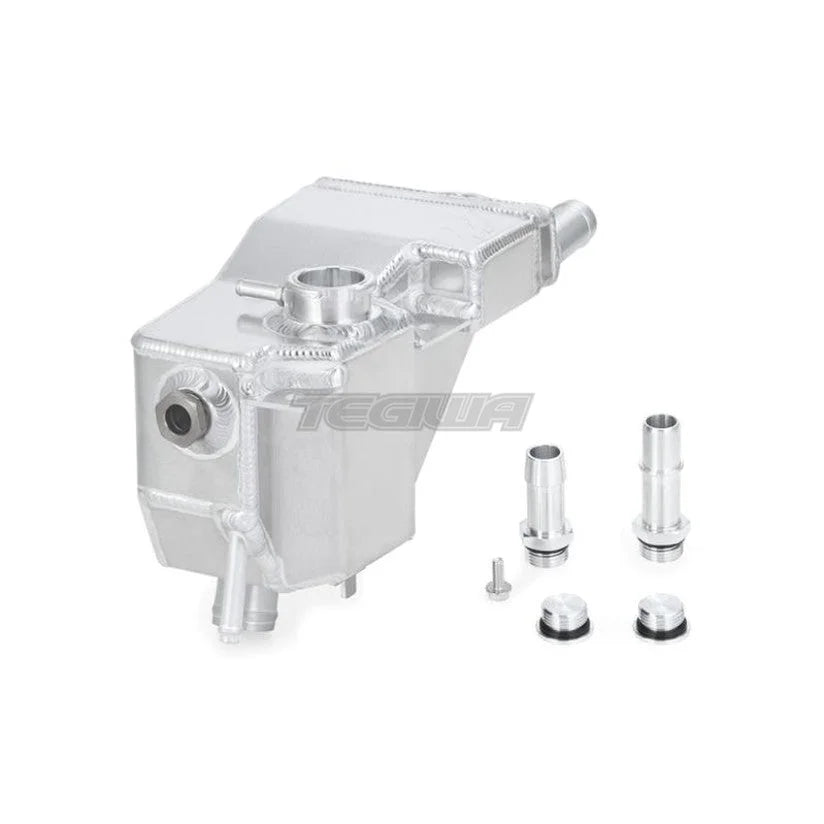

TechSpec Includes: (1) Mishimoto Aluminum Degas Tank w/ Sight Glass--(1) Removable Quick-Disconnect Fitting (2011-2016 Models)--(1) Removable Hose Barb (2011-2016 Models)--(2) Threaded Plugs (2017+ Models)--(2) Notecards--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2011+ Ford F-250 Super Duty 6.7L Powerstroke--2011+ Ford F-350 Super Duty 6.7L Powerstroke
TechSpec Engine Codes: 6.7L Powerstroke
TechSpec Chassis Codes: F-250--F-350
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Note: Mishimoto does not provide powder coating, anodizing, or hydro-dipping services for this product. Customers who purchase the natural finish must source these services independently. The natural finish may show some surface imperfections that will not affect powder coating or other customization.----After a few heat cycles, Mishimoto recommends checking the sight glass on the side of the degas tank to confirm proper coolant level.
Features:
Fits 2011+ Ford 6.7L Powerstroke
Full-aluminum construction with durable, precision TIG-welds
Sight glass allows for quick and easy reading of coolant level
Internal baffles keep coolant near overflow port during aggressive driving, preventing air entry into coolant system
15.65-percent increase in coolant capacity
Removable fittings for installation on both 2011-2016 and 2017+ models
Available natural finish makes customization easy through powder-coating, anodizing, or hydro-dipping
Fits with stock cap
Available in natural or micro-wrinkle black powder coated finish
Mishimoto Lifetime Warranty
Install Difficulty: 2

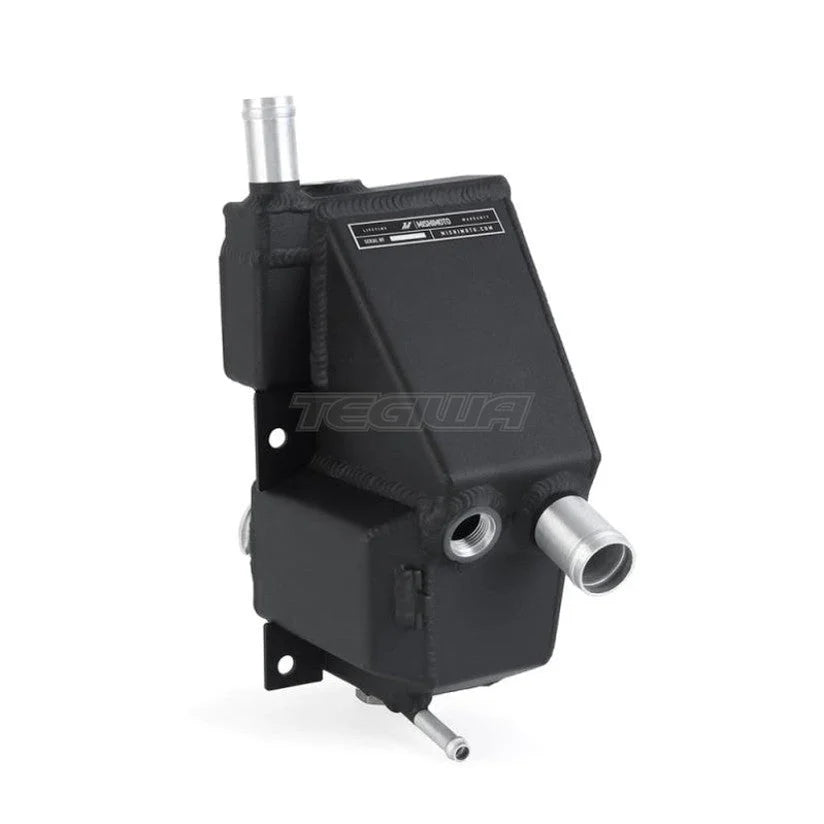

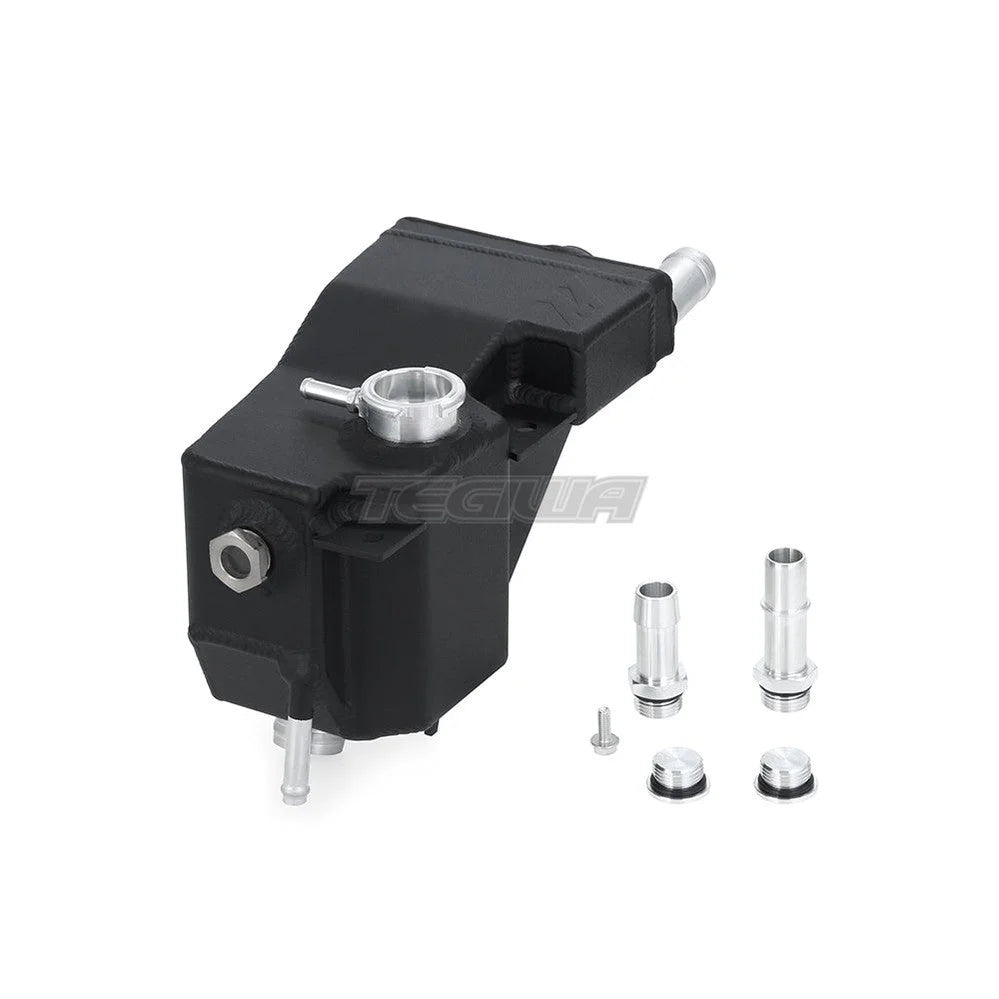

OptionLabel: Micro-Wrinkle Black
TechSpec Fluid Capacity (gal): 3
TechSpec Includes: (1) Mishimoto Aluminum Degas Tank w/ Sight Glass--(1) Removable Quick-Disconnect Fitting (2011-2016 Models)--(1) Removable Hose Barb (2011-2016 Models)--(2) Threaded Plugs (2017+ Models)--(2) Notecards--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2011+ Ford F-250 Super Duty 6.7L Powerstroke--2011+ Ford F-350 Super Duty 6.7L Powerstroke
TechSpec Engine Codes: 6.7L Powerstroke
TechSpec Chassis Codes: F-250--F-350
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Note: Mishimoto does not provide powder coating, anodizing, or hydro-dipping services for this product. Customers who purchase the natural finish must source these services independently. The natural finish may show some surface imperfections that will not affect powder coating or other customization.----After a few heat cycles, Mishimoto recommends checking the sight glass on the side of the degas tank to confirm proper coolant level.
Features:
Fits 2011+ Ford 6.7L Powerstroke
Full-aluminum construction with durable, precision TIG-welds
Sight glass allows for quick and easy reading of coolant level
Internal baffles keep coolant near overflow port during aggressive driving, preventing air entry into coolant system
15.65-percent increase in coolant capacity
Removable fittings for installation on both 2011-2016 and 2017+ models
Available natural finish makes customization easy through powder-coating, anodizing, or hydro-dipping
Fits with stock cap
Available in natural or micro-wrinkle black powder coated finish
Mishimoto Lifetime Warranty
Install Difficulty: 2

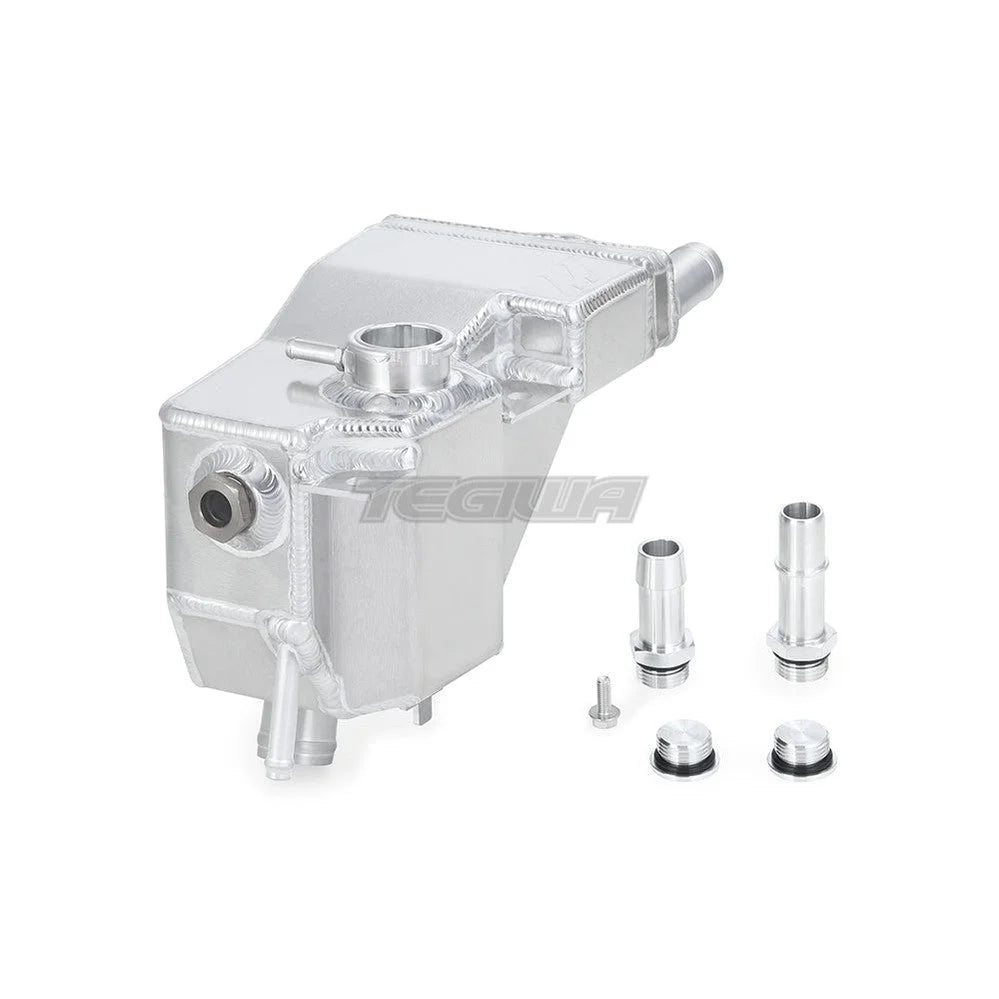

OptionLabel: Natural
The 2011+ Ford 6.7L Super Duty is a workhorse of a truck and the go-to pickup for many of the hardest working people on Earth. The 6.7L Powerstroke that propels the 2011+ F-250 and F-350 is robust and reliable, but it's not without its weaknesses. Like any large-displacement turbodiesel, the 6.7L generates an immense amount of heat and strain on the charge air cooling system. Luckily, the engineers at Ford fitted the Super Duty with a robust secondary cooling system that's dedicated to keeping fuel and air temps in check. While the secondary radiator and air-to-water intercooler are cut from the same cloth as the heavy-duty 6.7L, the degas tank that supplies them both with coolant is not quite as durable.Anybody who has worked on an aging cooling system knows that anything plastic tends to crack and shatter with time. The 6.7L Powerstroke's secondary cooling system degas tank is no exception, which is why Mishimoto has designed an all-aluminum replacement.Our secondary degas tank for the 2011+ Ford 6.7L Powerstroke ditches the plastic construction in favor of aircraft-grade aluminum that's as durable and hard-wearing as the rest of your Super Duty. Like the stock tank, our degas tank includes internal baffles to keep the coolant around the outlet and prevent aeration, no matter how rough the road gets. The Mishimoto secondary degas tank also features a 15.65-percent greater coolant capacity than the stock tank to add even more cooling potential to your 6.7L's secondary cooling system. The side of this degas tank also features a sight glass to make checking the coolant level a one-step operation.This all-aluminum secondary degas tank for the 2011+ Ford 6.7L Powerstroke is available in a natural aluminum finish or micro-wrinkle black powder coat and is built to last. We're so confident in our degas tank that we've backed it with our Mishimoto Lifetime Warranty for a lifetime of worry-free cooling.
