TechSpec Overall Height (in): 34.8
TechSpec Overall Length (in): 20.5
TechSpec Overall Width (ins): 4.2
TechSpec Core Length (in): 24.02
TechSpec Core Height (in): 15.28
TechSpec Fluid Capacity (gal): 3.97
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1488
TechSpec Material: Aluminum
TechSpec Applications: 1994-1995 Ford Mustang
TechSpec Engine Codes: 302ci (5.0L)--3.8L V6
TechSpec Chassis Codes: SN-95
Note: Transmission cooler thread size: 1/4-inch-18 NPT
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty--
Features:Direct fit for the 1994-1995 Ford Mustang 5.0L with automatic transmission
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Perfect for use on the street or strip
Efficient temperature regulation for both stock and modified vehicles

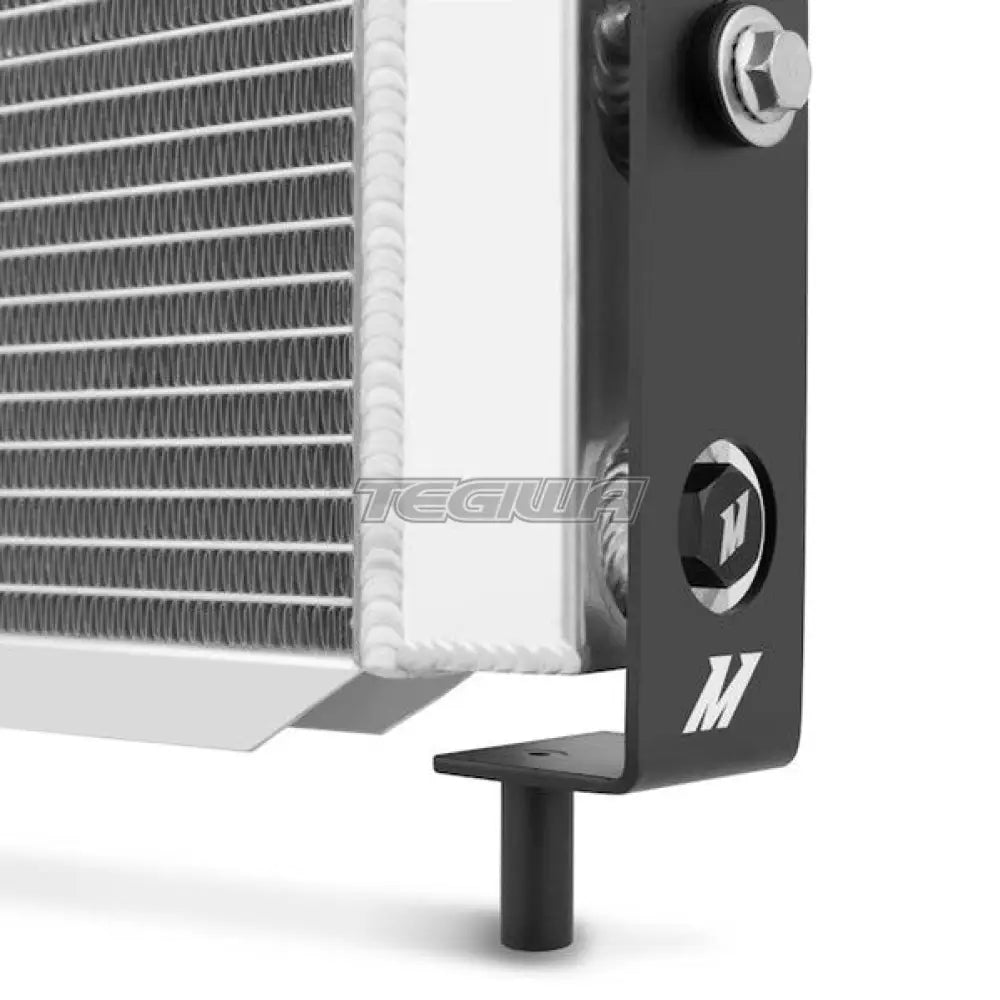

Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
Features internal transmission fluid cooler which accepts factory cooler lines

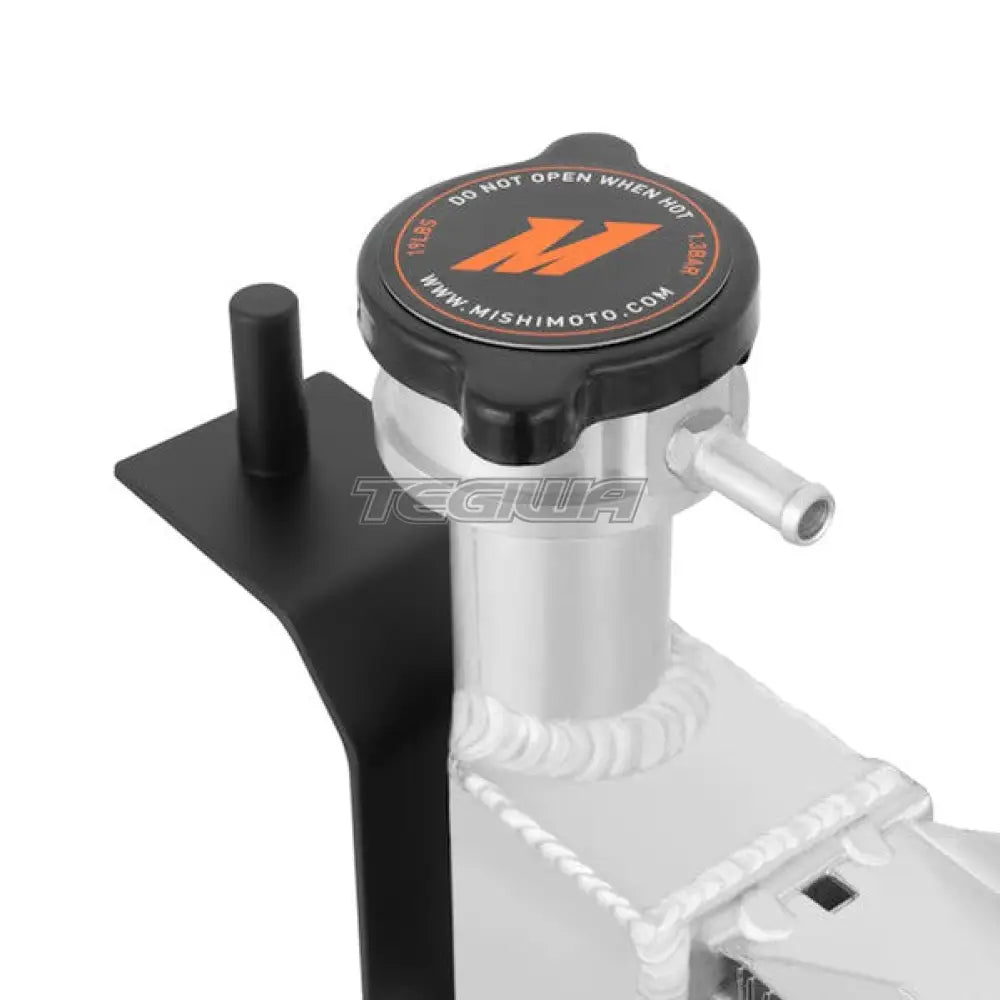

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Patent Number D703,126
Mishimoto Lifetime Warranty
Install Difficulty: 3

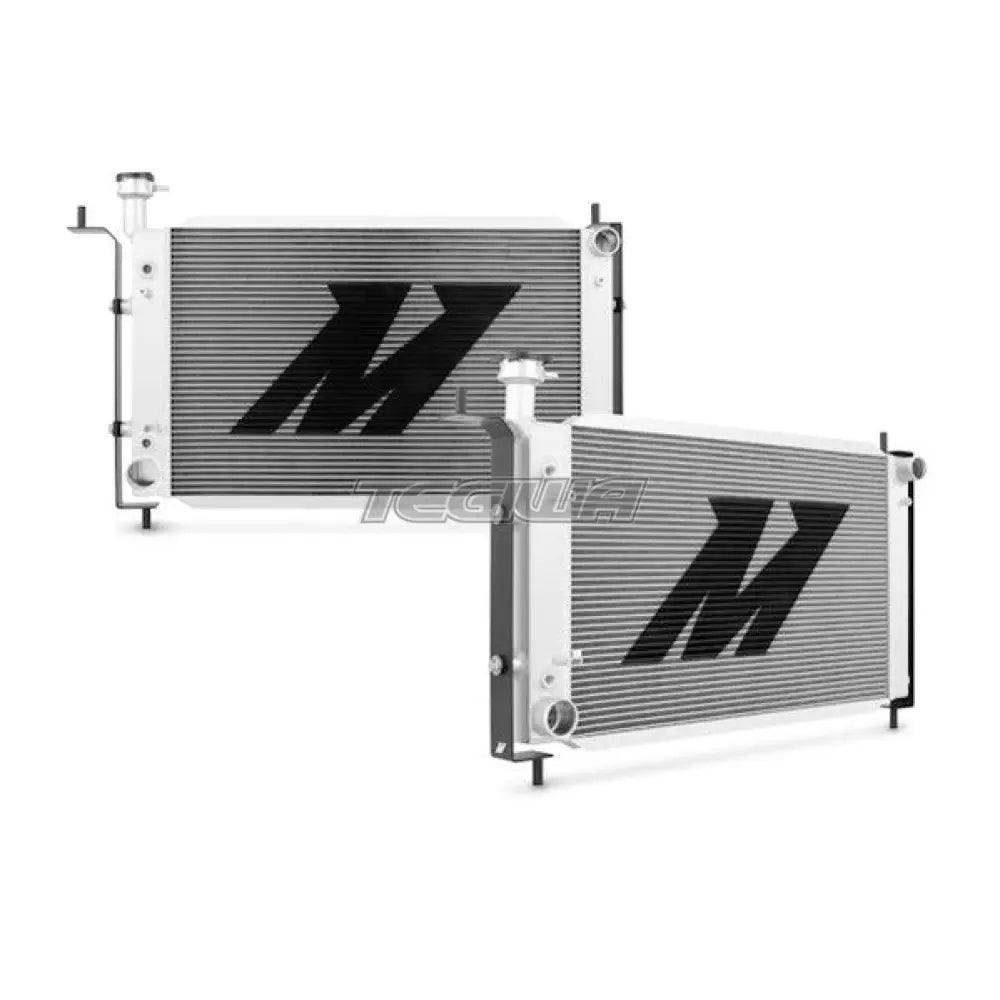

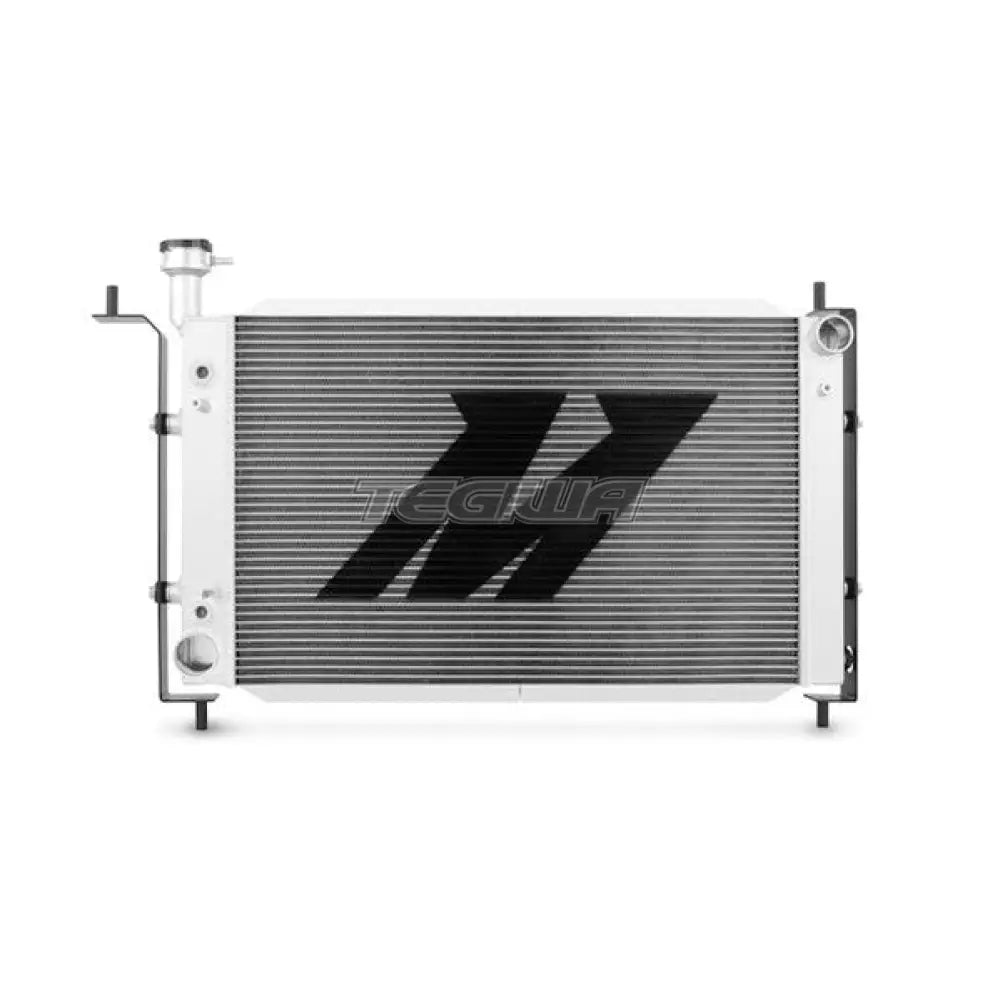

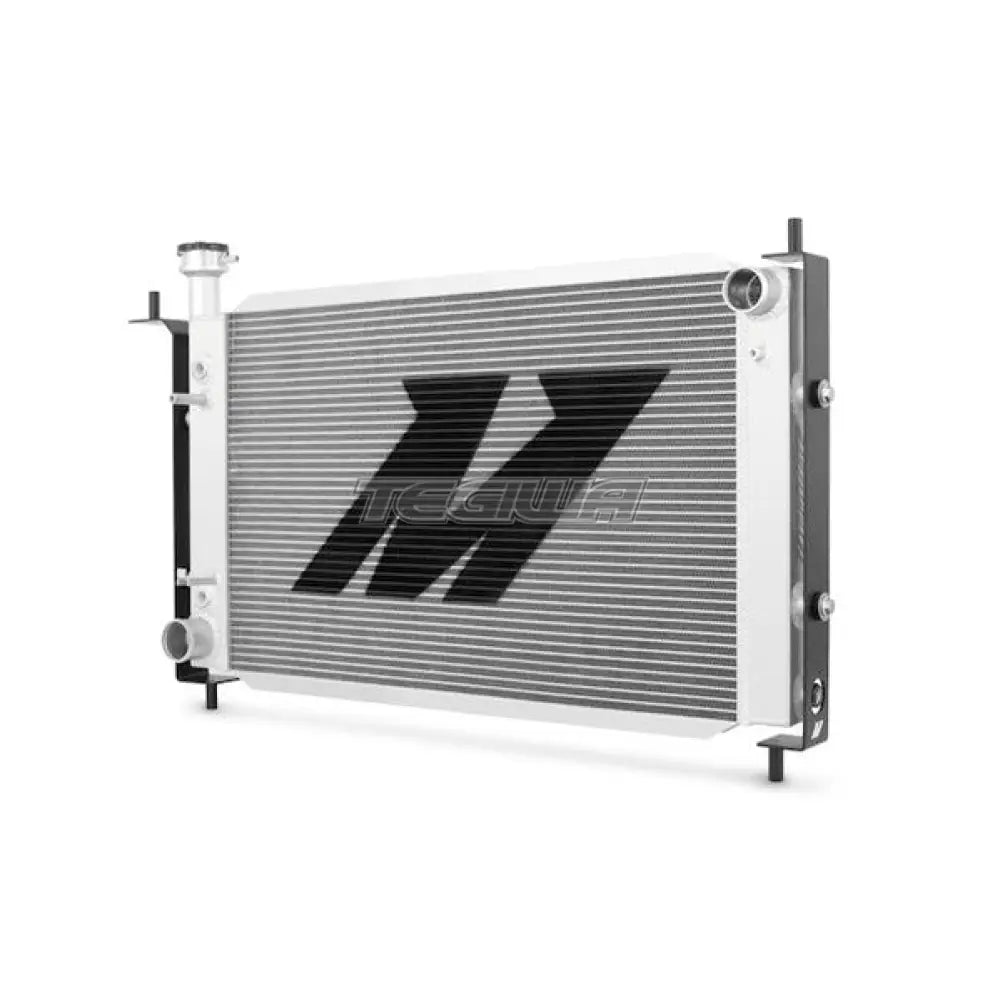

Mishimoto has released a revolutionary new radiator for the automatic 1994-1995 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
