TechSpec Overall Height (in): 19.69
TechSpec Overall Length (in): 21.85
TechSpec Overall Width (ins): 2.07
TechSpec Core Length (in): 16.34
TechSpec Core Height (in): 16.85
TechSpec Fluid Capacity (gal): 4.09
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.97
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 130
TechSpec Material: Aluminum
TechSpec Applications: 1963-1965 Mercury Comet 260/289--1963-1964 Ford Falcon 260
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Lifetime Warranty
Features:Direct fit for the 1964-1966 Ford Mustang with 289ci V8

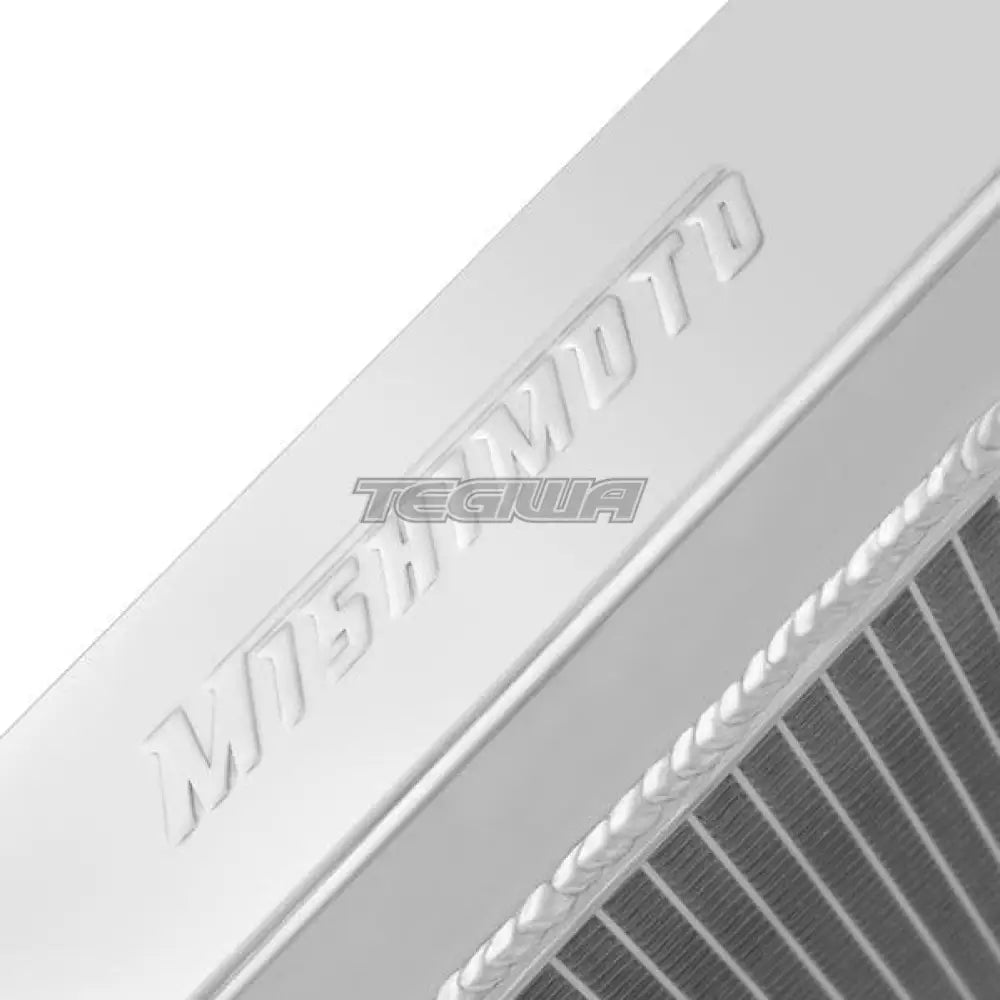

Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Perfect for use on the street and strip
Efficient temperature regulation for both stock and modified vehicles
Ideal replacement for an aged and/or clogged stock radiator

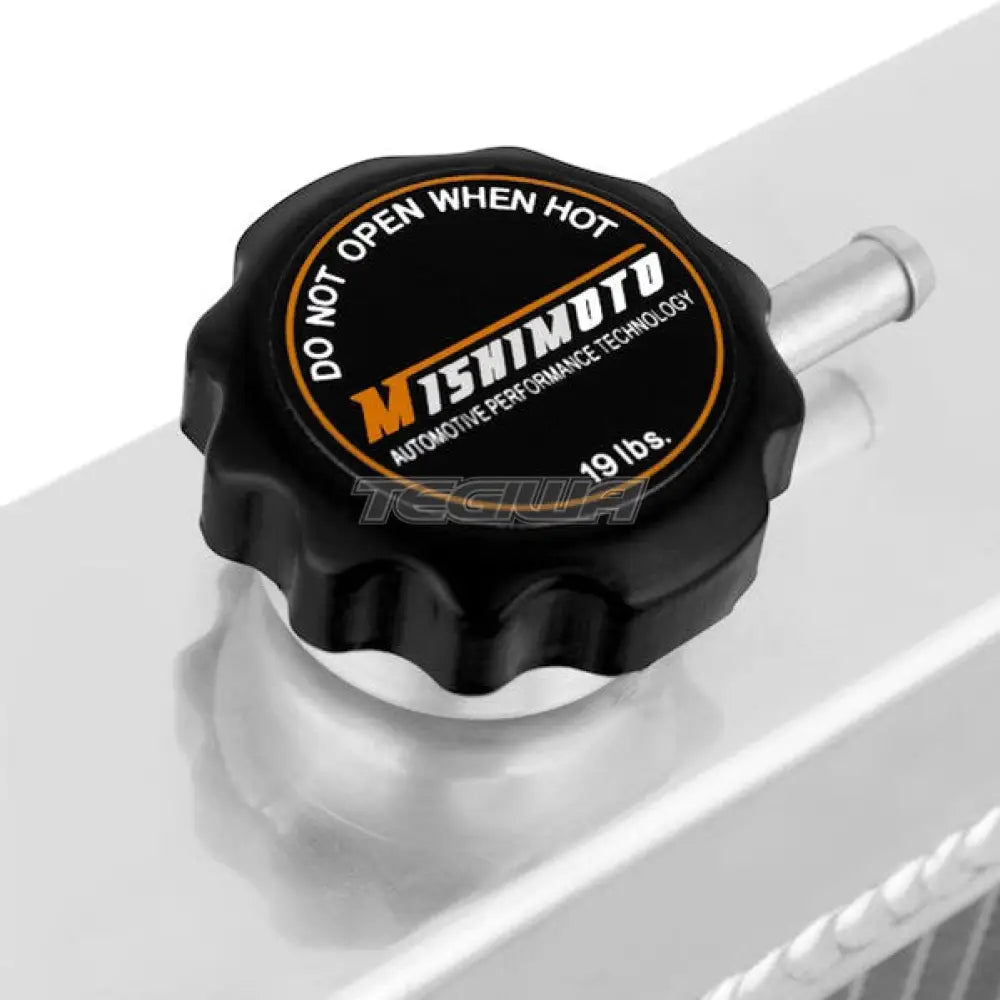

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

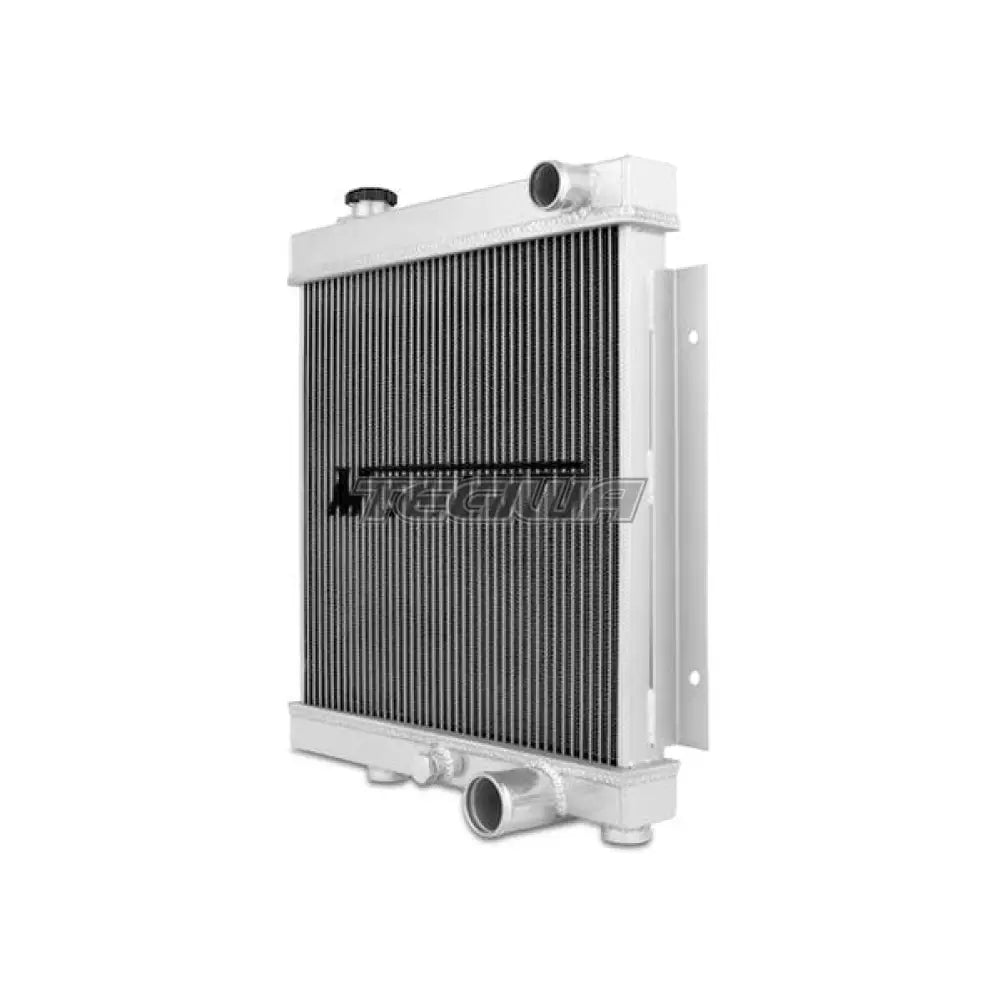

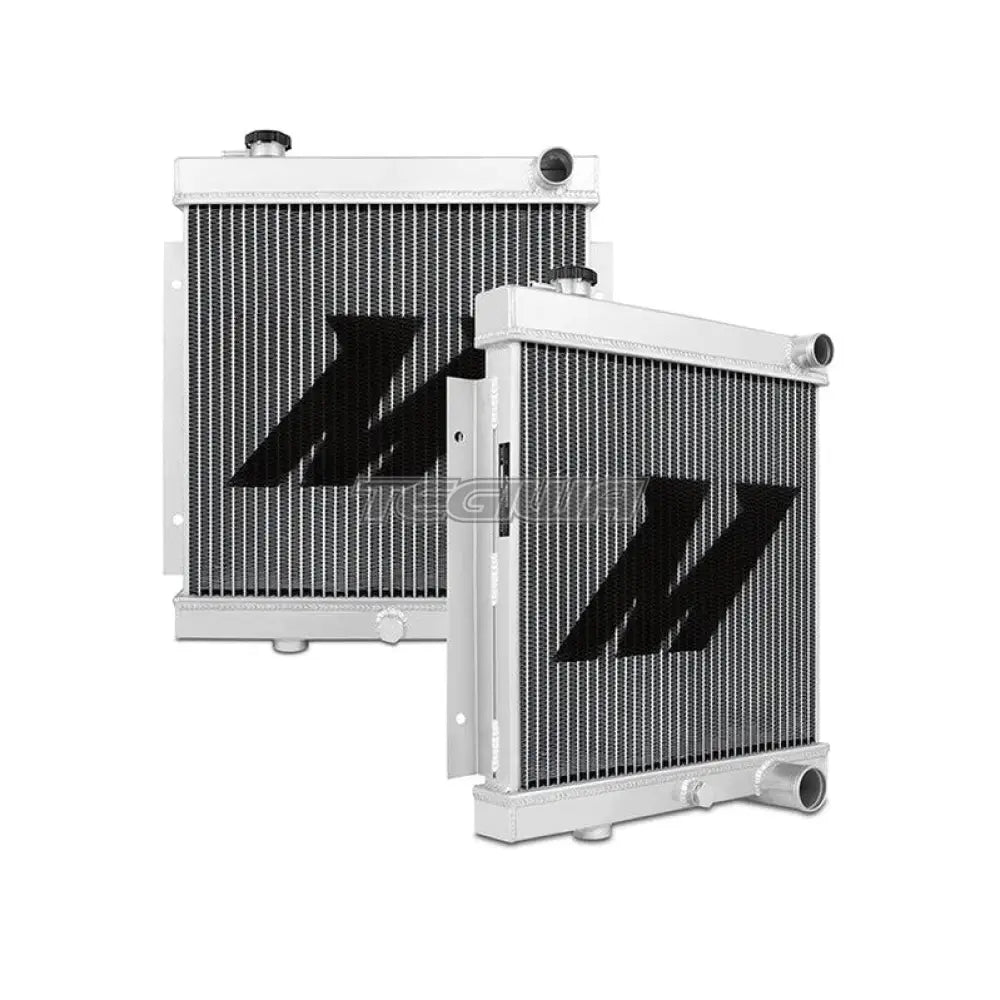

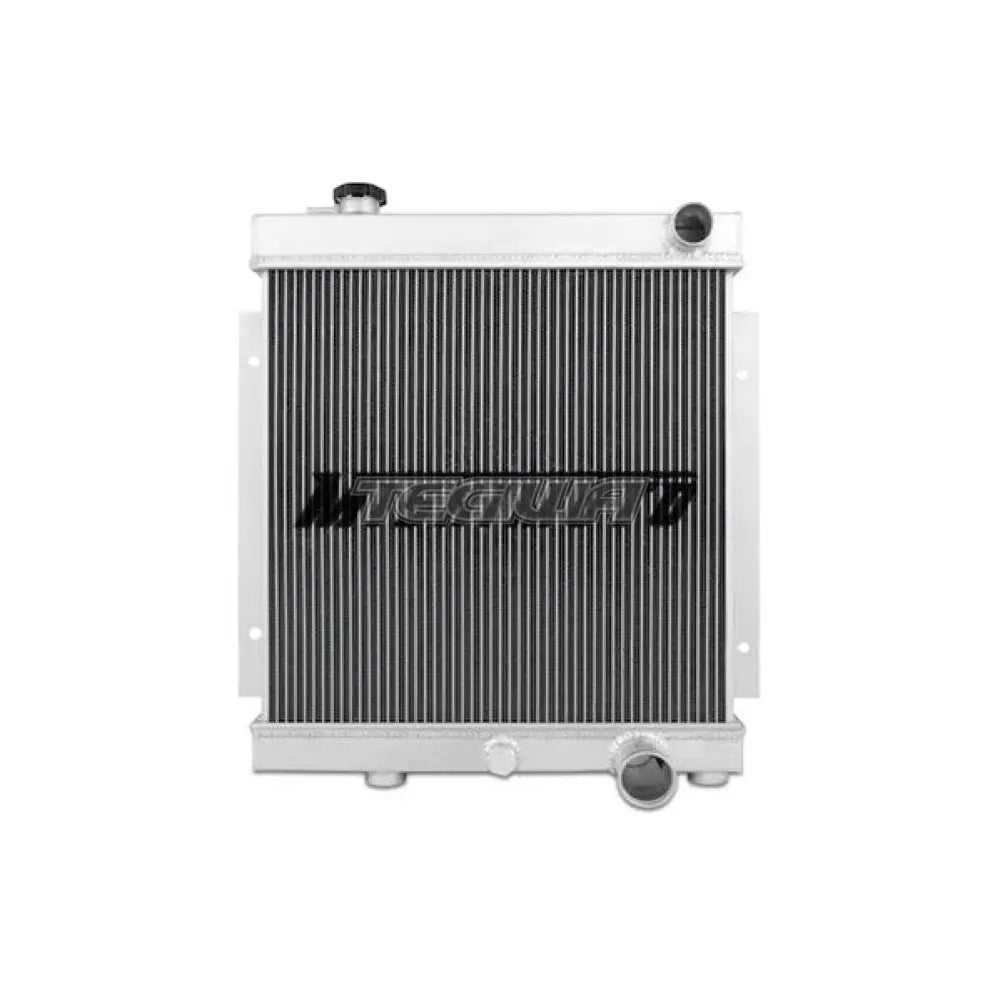

The Mishimoto 1964-1966 Mustang Aluminum Radiator w/ 289 V8 is the ideal upgrade to the stock Mustang radiator.Designed and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.A stock radiator cannot handle the heat that comes along with having a great deal of horsepower.The Mishimoto '64-'66 Mustang performance radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto Performance Radiator is a direct OEM fit, no cutting or modification is required.
